art.-7019-dino-b2-antracite

DINO/B2

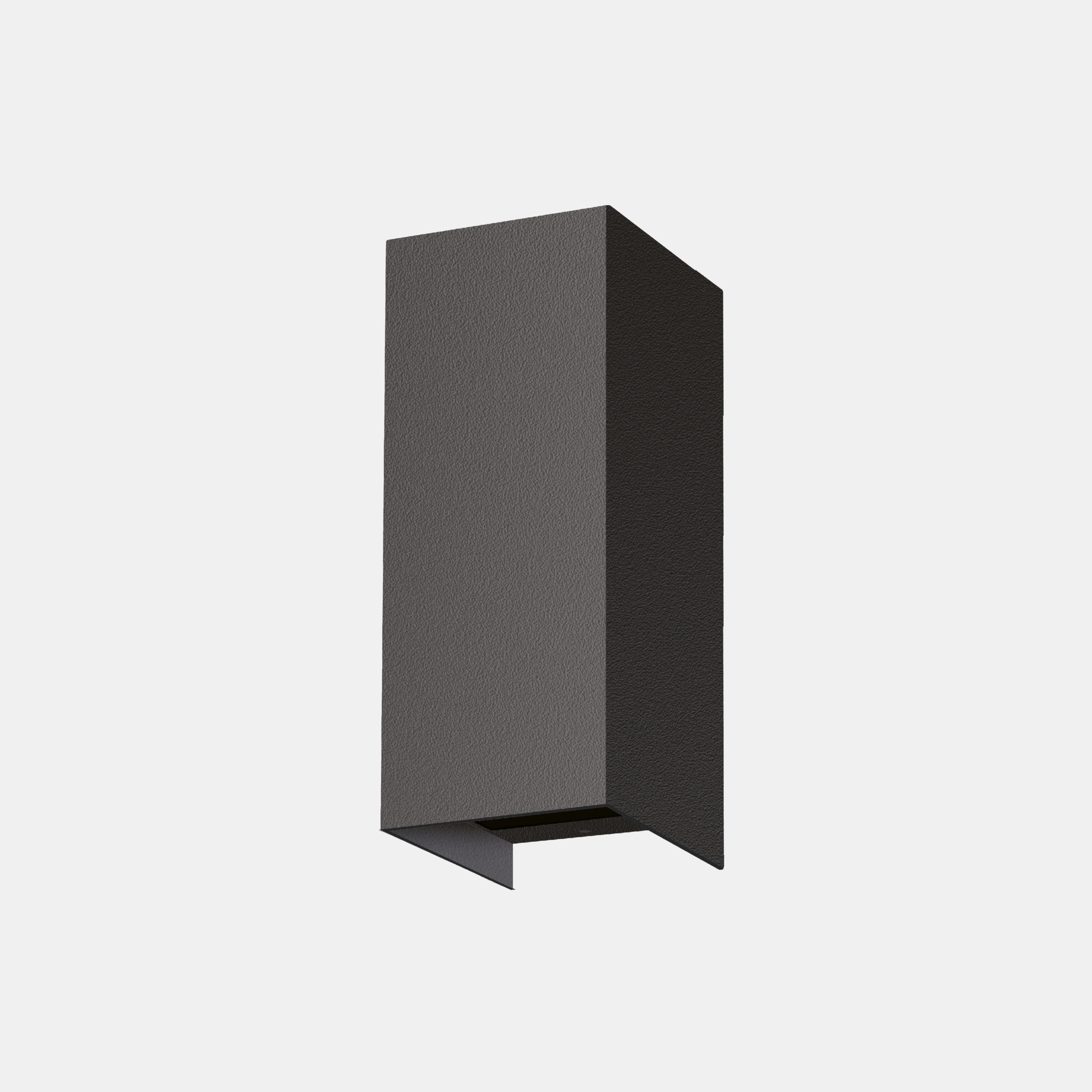

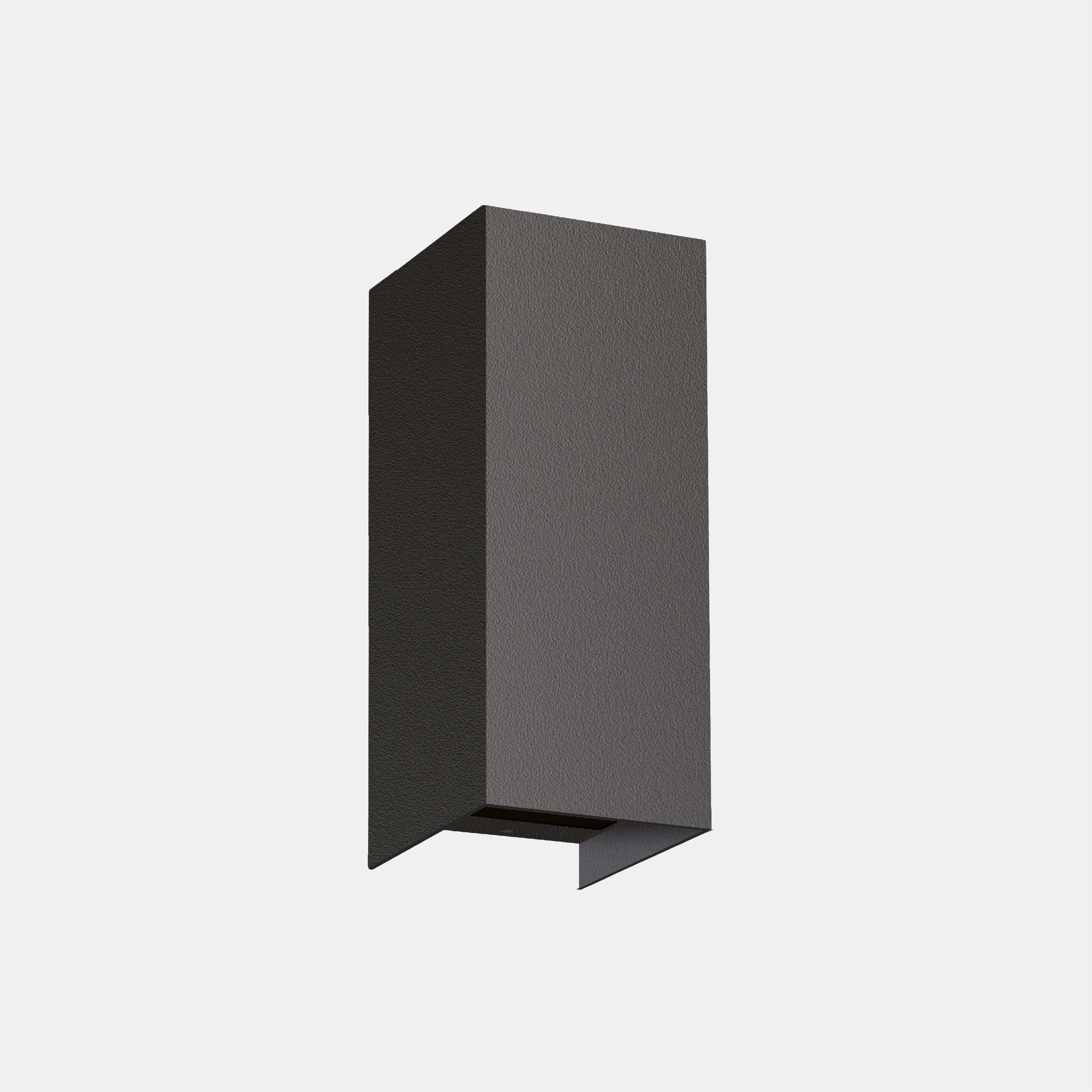

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color anthracite. Extra-clear tempered flat glass diffuser 3 mm thick. Anti-glare and anti-reflection 90° diffusing bi-emission optics.
Categories: Led, DINO - 7019, Architectural Outdoor, art. 7019 Dino
Models: 15
Color: Anthracite
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7019B227= 2700°K (CRI >80)14NL= on/off
30= 3000°K (CRI >80)20
40= 4000°K (CRI >80)28

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7019B24014NL14-4000°K - CRI>80on/off1579113115250115-1.0
7019B24020NL20-4000°K - CRI>80on/off2213111115250115-1.0
7019B24028NL28-4000°K - CRI>80on/off3019108115250115-1.0
7019B23014NL14-3000°K - CRI>80on/off1476105115250115-1.0
7019B23020NL20-3000°K - CRI>80on/off2069103115250115-1.0
7019B23028NL28-3000°K - CRI>80on/off2823101115250115-1.0
7019B22714NL14-2700°K - CRI>80on/off1429102115250115-1.0
7019B22720NL20-2700°K - CRI>80on/off2003100115250115-1.0
7019B22728NL28-2700°K - CRI>80on/off273298115250115-1.0
7019B24014NL14-4000°K - CRI>80on/off1579113115250115-1.0
7019B24020NL20-4000°K - CRI>80on/off2213111115250115-1.0
7019B24028NL28-4000°K - CRI>80on/off3019108115250115-1.0
7019B23014NL14-3000°K - CRI>80on/off1476105115250115-1.0
7019B23020NL20-3000°K - CRI>80on/off2069103115250115-1.0
7019B23028NL28-3000°K - CRI>80on/off2823101115250115-1.0
