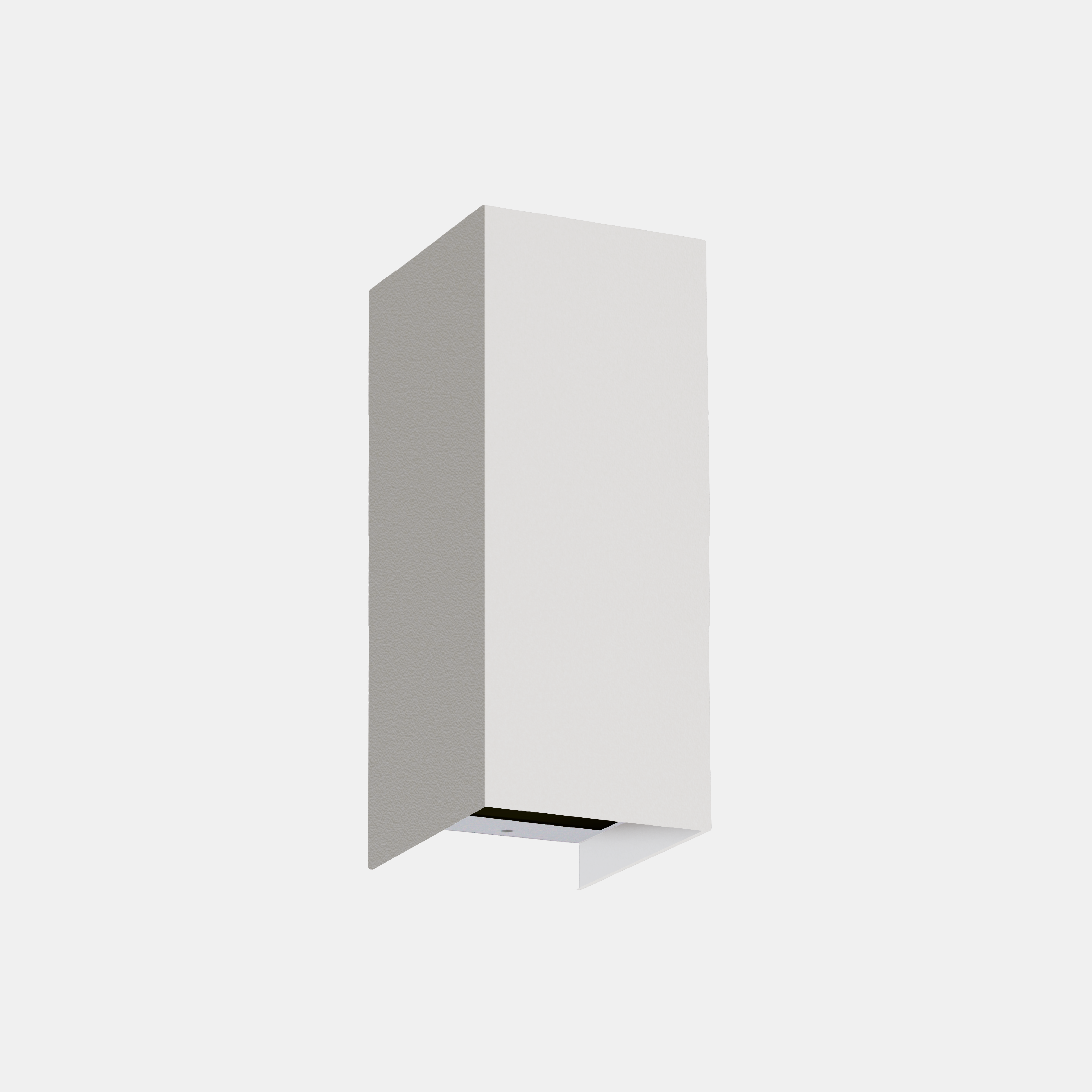

DINO – Mod. B2

(90° double emission optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color silver. Extra-clear tempered flat glass diffuser 3 mm thick. Anti-glare and anti-reflection 90° diffusing bi-emission optics.

Categories: Led, DINO, Architectural Outdoor, DINO

Models: 9

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7019	R2	27	= 2700°K (CRI >80)	14	SL	= on/off
		30	= 3000°K (CRI >80)	20
		40	= 4000°K (CRI >80)	28

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7019B24014SL	14	-	4000°K - CRI ≥80	on/off	1579	113	115	250	115	-	1.0
7019B24020SL	20	-	4000°K - CRI ≥80	on/off	2213	111	115	250	115	-	1.0
7019B24028SL	28	-	4000°K - CRI ≥80	on/off	3019	108	115	250	115	-	1.0
7019B23014SL	14	-	3000°K - CRI ≥80	on/off	1476	105	115	250	115	-	1.0
7019B23020SL	20	-	3000°K - CRI ≥80	on/off	2069	103	115	250	115	-	1.0
7019B23028SL	28	-	3000°K - CRI ≥80	on/off	2823	101	115	250	115	-	1.0
7019B22714SL	14	-	2700°K - CRI ≥80	on/off	1429	102	115	250	115	-	1.0
7019B22720SL	20	-	2700°K - CRI ≥80	on/off	2003	100	115	250	115	-	1.0
7019B22728SL	28	-	2700°K - CRI ≥80	on/off	2732	98	115	250	115	-	1.0
