ARC – Mod. B1

(15° dual emission optics)

Outdoor and indoor LED fixture, suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in corten. Extra-clear tempered flat glass diffuser 3/4 mm thick. 15° dual emission optics.
Categories: Led, ARC, ARC, ARC - 7022, Architectural Outdoor, ARC
Models: 12
Color: Corten
Catalogue abstract
Installation instructions

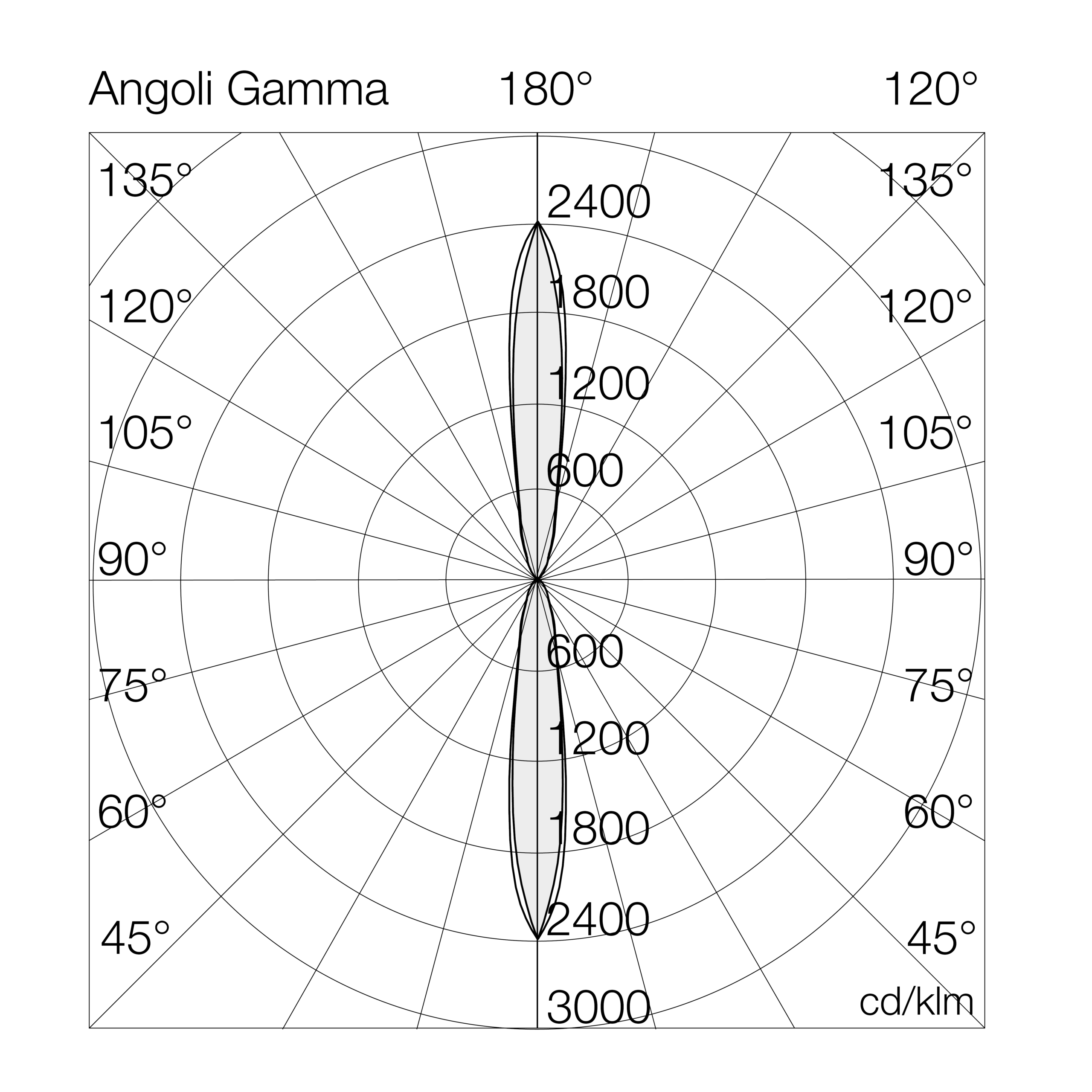

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7022B127= 2700°K (CRI >80)07CL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)14

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7022B14010CL10-4000°K - CRI>80on/off1082108110112110-1.2
7022B13010CL10-3000°K - CRI>80on/off1012101110112110-1.2
7022B12710CL10-2700°K - CRI>80on/off97998110112110-1.2
7022B14014CL14-4000°K - CRI>80on/off1442103110112110-1.2
7022B13014CL14-3000°K - CRI>80on/off134896110112110-1.2
7022B12714CL14-2700°K - CRI>80on/off130593110112110-1.2
7022B14020CL20-4000°K - CRI>80on/off2021101110112110-1.2
7022B13020CL20-3000°K - CRI>80on/off189095110112110-1.2
7022B12720CL20-2700°K - CRI>80on/off182991110112110-1.2
7022B14028CL28-4000°K - CRI>80on/off275798110112110-1.2
7022B13028CL28-3000°K - CRI>80on/off257892110112110-1.2
7022B12728CL28-2700°K - CRI>80on/off249589110112110-1.2
