ARC/M1

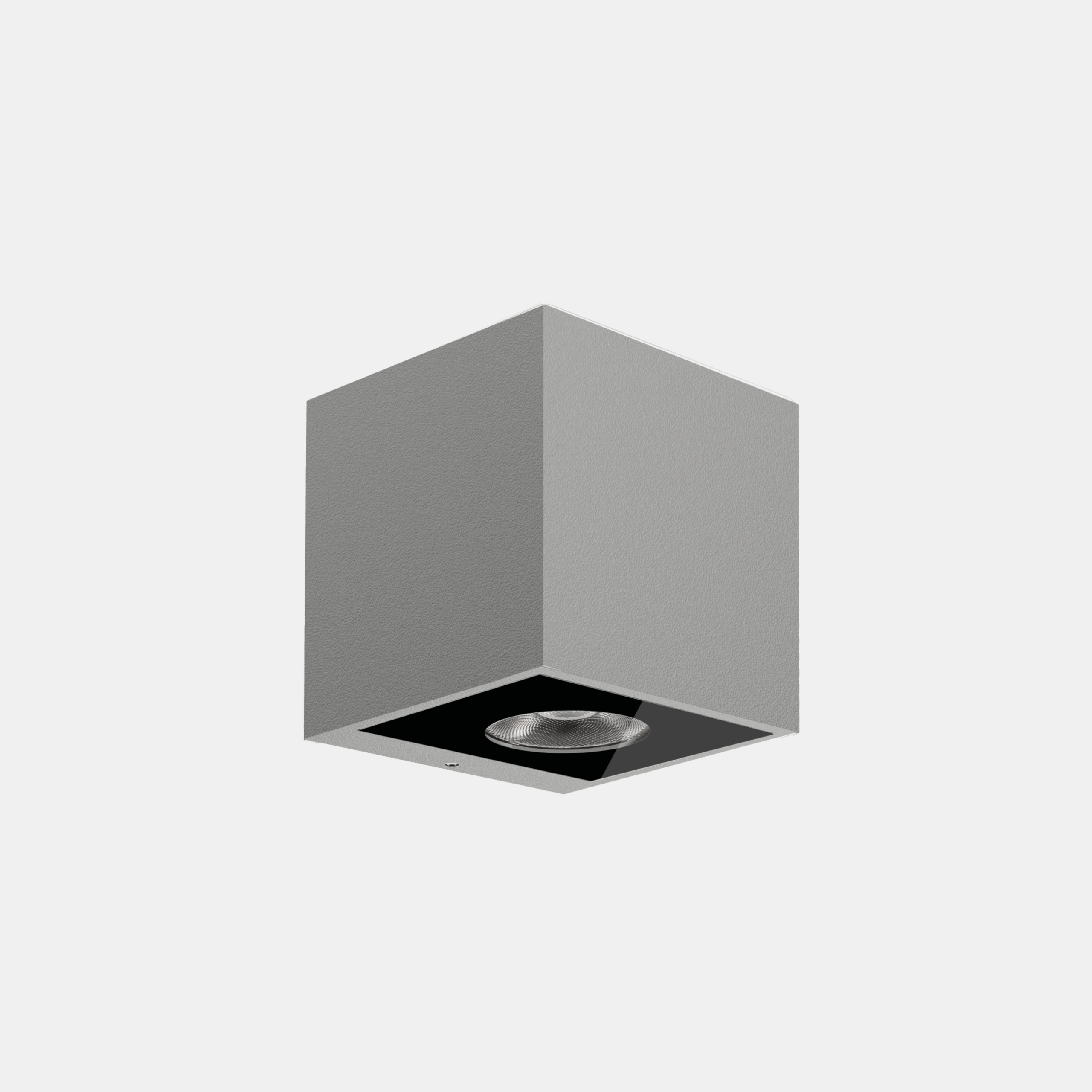

Outdoor and indoor LED fixture, suitable for wall or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in gray. Extra-clear tempered flat glass diffuser 3/4 mm thick. Available in seven types of optics with high flux efficiency, anti-glare and anti-reflection PMMA lenses: three types of single-emission optics (15°- 30°- 60°) and four types of bi-emission optics (15°- 30°- 60°- 30°/60°).
Categories: Led, ARC - 7022, art. 7022 Arc, Architectural Outdoor, art. 7022 Arc, ARC
Models: 9
Color: Matt grey
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7022M127= 2700°K (CRI >80)07GL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)14

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7022M14007GL7-4000°K - CRI>80on/off726104110112110-1.2
7022M13007GL7-3000°K - CRI>80on/off67997110112110-1.2
7022M12707GL7-2700°K - CRI>80on/off65794110112110-1.2
7022M14010GL10-4000°K - CRI>80on/off1018102110112110-1.2
7022M13010GL10-3000°K - CRI>80on/off95295110112110-1.2
7022M12710GL10-2700°K - CRI>80on/off92192110112110-1.2
7022M14014GL14-4000°K - CRI>80on/off138999110112110-1.2
7022M13014GL14-3000°K - CRI>80on/off129993110112110-1.2
7022M12714GL14-2700°K - CRI>80on/off125790110112110-1.2
