ARC – Mod. M6

(60° single-emission optics)

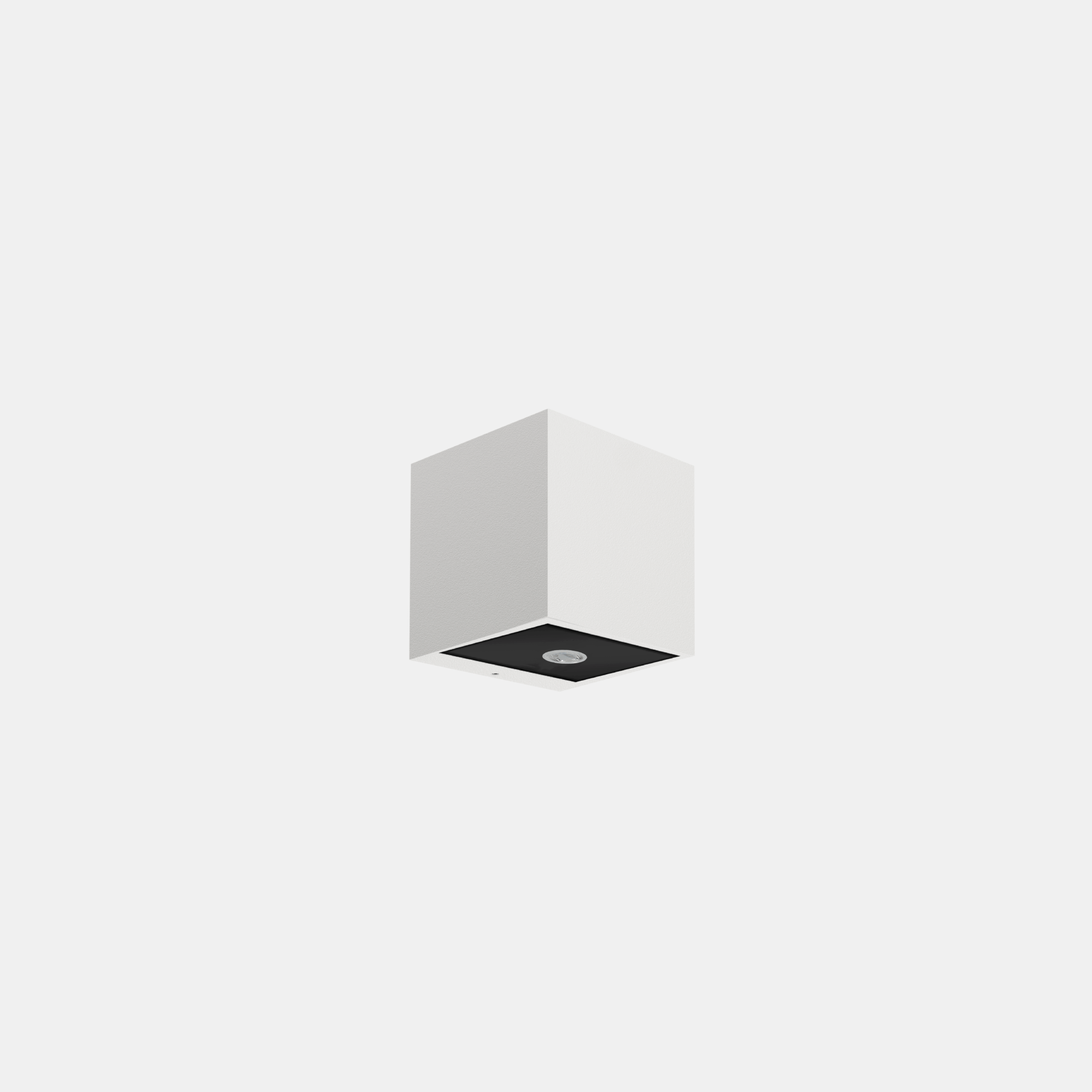

Outdoor and indoor LED fixture, suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in white. Extra-clear tempered flat glass diffuser 3/4 mm thick. 60° single-emission optics.

Categories: Led, ARC, ARC, Architectural Outdoor, ARC, ARC

Models: 6

Color: White

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7022	M6	27	= 2700°K (CRI >80)	04	BL	= on/off
		30	= 3000°K (CRI >80)
		40	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7022M64004BL	4.5	-	4000°K - CRI ≥80	on/off	360	80	60	70	60	-	0.50
7022M63004BL	4.5	-	3000°K - CRI ≥80	on/off	337	75	60	70	60	-	0.50
7022M62704BL	4.5	-	2700°K - CRI ≥80	on/off	326	72	60	70	60	-	0.50
7022M64006BL	6.5	-	4000°K - CRI ≥80	on/off	489	75	60	70	60	-	0.50
7022M63006BL	6.5	-	3000°K - CRI ≥80	on/off	457	70	60	70	60	-	0.50
7022M62706BL	6.5	-	2700°K - CRI ≥80	on/off	443	68	60	70	60	-	0.50
