ARC/M6

Outdoor and indoor LED fixture, suitable for wall or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in anthracite. Extra-clear tempered flat glass diffuser 3/4 mm thick. Available in seven types of optics with high flux efficiency, anti-glare and anti-reflection PMMA lenses: three types of single-emission optics (15°- 30°- 60°) and four types of bi-emission optics (15°- 30°- 60°- 30°/60°).
Categories: Led, ARC - 7022, art. 7022 Arc, Architectural Outdoor, art. 7022 Arc, ARC
Models: 9
Color: Anthracite
Catalogue abstract
Installation instructions

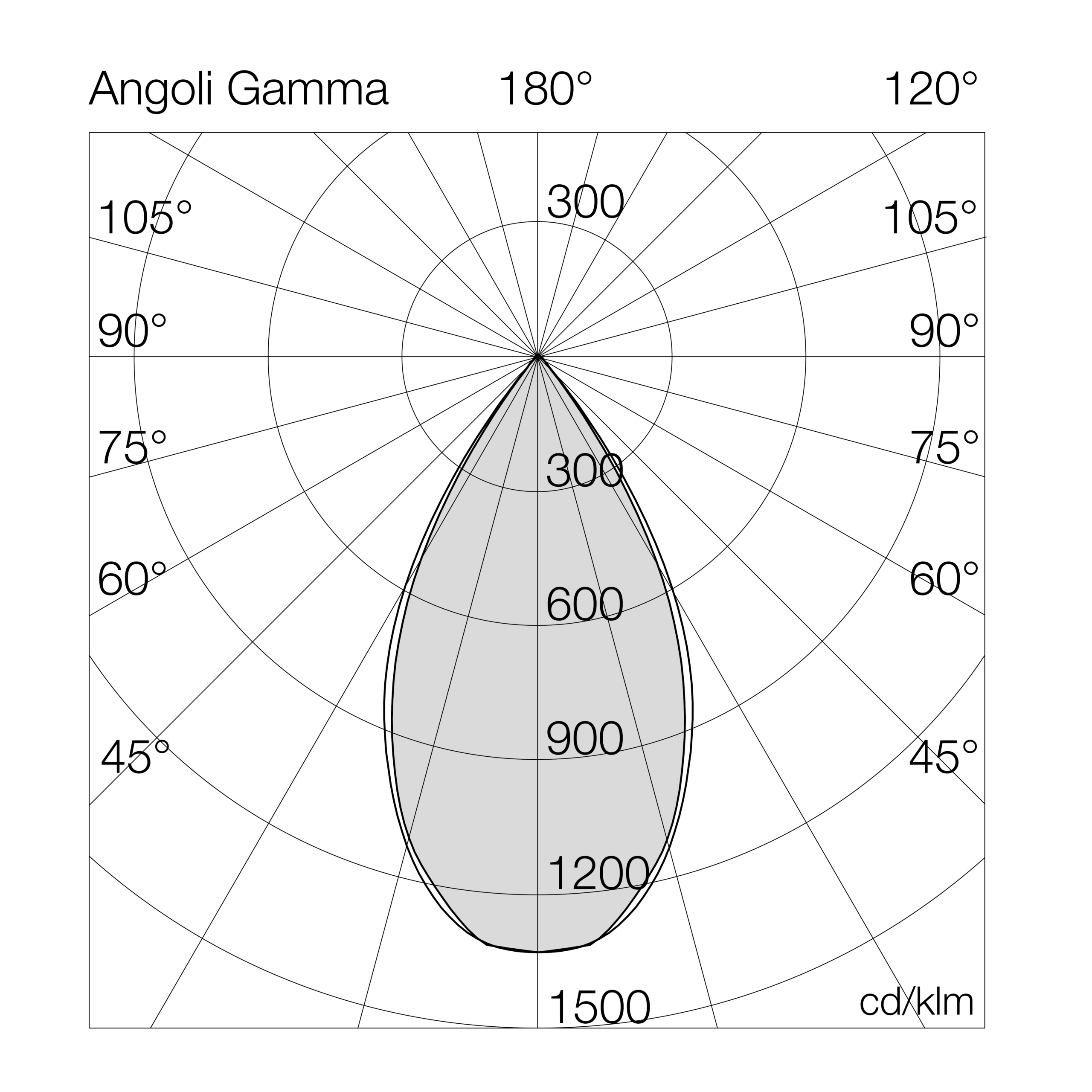

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7022M627= 2700°K (CRI >80)07NL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)14

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7022M64007NL7-4000°K - CRI>80on/off758108110112110-1.2
7022M63007NL7-3000°K - CRI>80on/off709101110112110-1.2
7022M62707NL7-2700°K - CRI>80on/off68698110112110-1.2
7022M64010NL10-4000°K - CRI>80on/off1062106110112110-1.2
7022M63010NL10-3000°K - CRI>80on/off99399110112110-1.2
7022M62710NL10-2700°K - CRI>80on/off96196110112110-1.2
7022M64014NL14-4000°K - CRI>80on/off1449104110112110-1.2
7022M63014NL14-3000°K - CRI>80on/off135597110112110-1.2
7022M62714NL14-2700°K - CRI>80on/off131194110112110-1.2
