art.-7022-arc-ms-bs-piccolo-corten

ARC – Mod. MS

(120° single-emission optics)

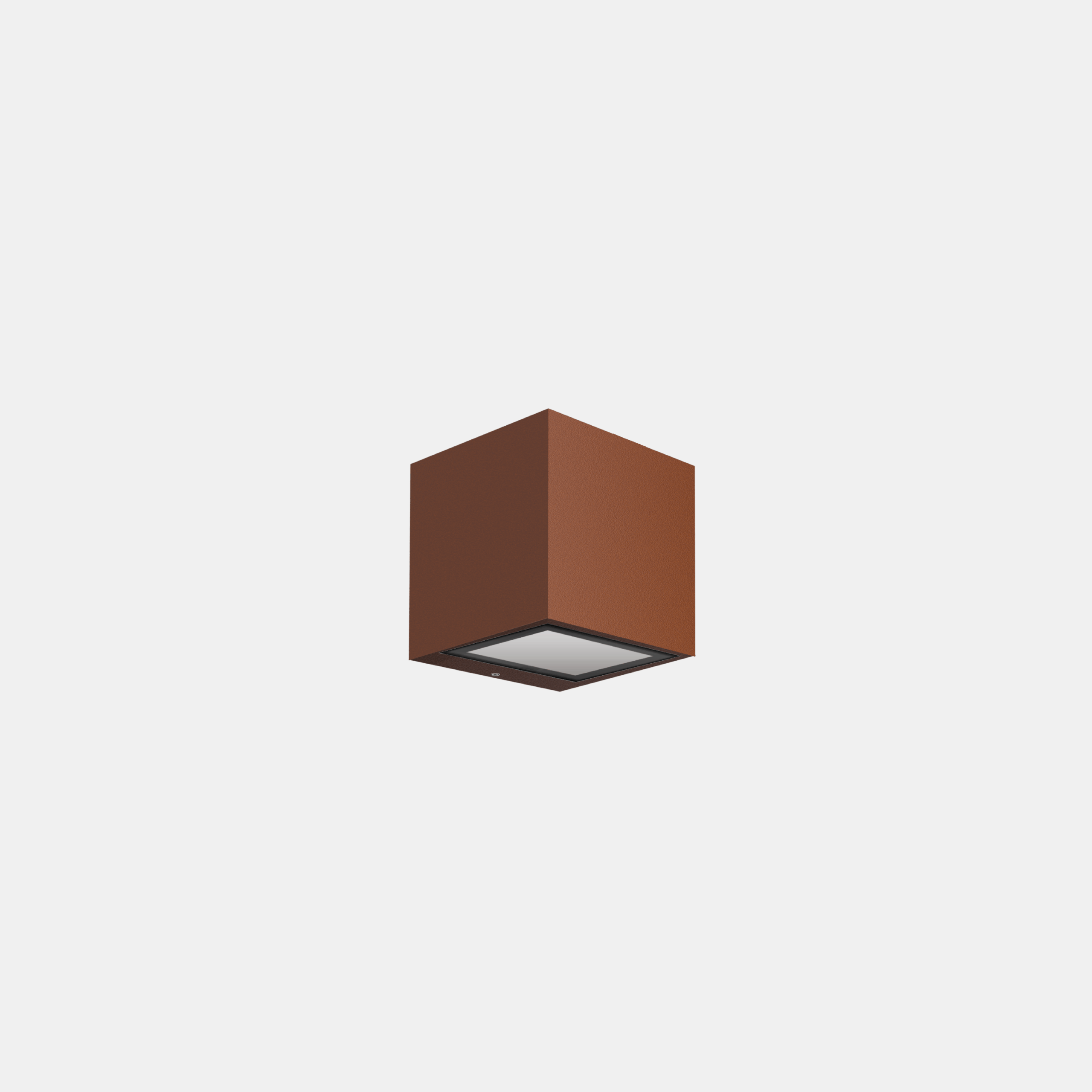

Outdoor and indoor LED fixture, suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in corten. Extra-clear tempered flat glass diffuser 3/4 mm thick. 120° single-emission optics.
Categories: Led, ARC, ARC, ARC - 7022, Architectural Outdoor, ARC
Models: 9
Color: Corten
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7022MS27= 2700°K (CRI >80)04CL= on/off
30= 3000°K (CRI >80)
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7022MS4007CL7-4000°K - CRI>80on/off57983110112110-1.2
7022MS3007CL7-3000°K - CRI>80on/off54177110112110-1.2
7022MS2707CL7-2700°K - CRI>80on/off52475110112110-1.2
7022MS4010CL10-4000°K - CRI>80on/off81281110112110-1.2
7022MS3010CL10-3000°K - CRI>80on/off75976110112110-1.2
7022MS2710CL10-2700°K - CRI>80on/off73574110112110-1.2
7022MS4014CL14-4000°K - CRI>80on/off110779110112110-1.2
7022MS3014CL14-3000°K - CRI>80on/off103574110112110-1.2
7022MS2714CL14-2700°K - CRI>80on/off100272110112110-1.2
