ARC – Mod. MS

(120° single-emission optics)

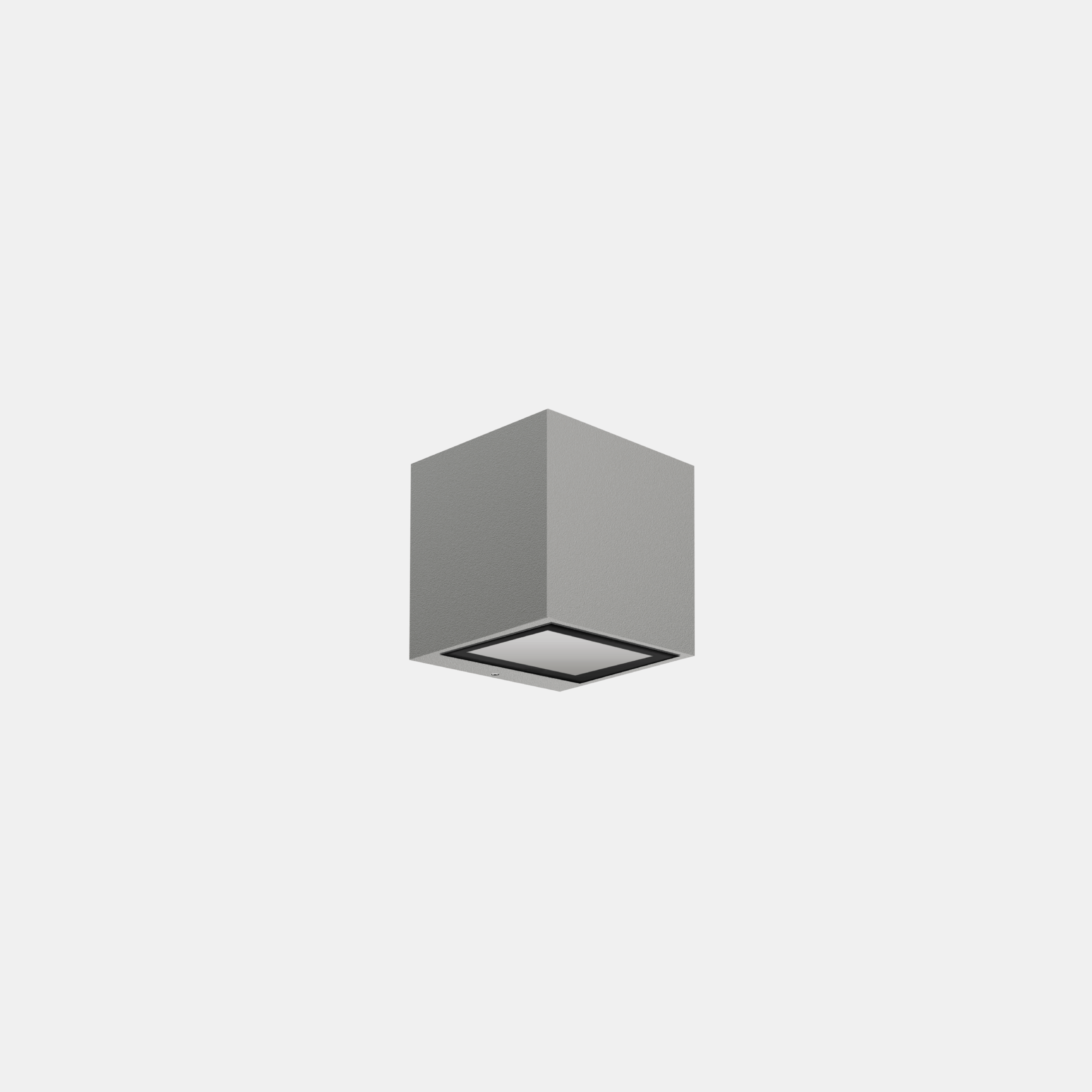

Outdoor and indoor LED fixture, suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in grey. Extra-clear tempered flat glass diffuser 3/4 mm thick. 120° single-emission optics.

Categories: Led, ARC, ARC, Architectural Outdoor, ARC, ARC

Models: 6

Color: Grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7022	MS	27	= 2700°K (CRI >80)	07	GL	= on/off
		30	= 3000°K (CRI >80)	10
		40	= 4000°K (CRI >80)	14

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7022MS4004GL	4.5	-	4000°K - CRI ≥80	on/off	265	59	60	70	60	-	0.50
7022MS3004GL	4.5	-	3000°K - CRI ≥80	on/off	248	55	60	70	60	-	0.50
7022MS2704GL	4.5	-	2700°K - CRI ≥80	on/off	240	53	60	70	60	-	0.50
7022MS4006GL	6.5	-	4000°K - CRI ≥80	on/off	360	55	60	70	60	-	0.50
7022MS3006GL	6.5	-	3000°K - CRI ≥80	on/off	337	52	60	70	60	-	0.50
7022MS2706GL	6.5	-	2700°K - CRI ≥80	on/off	326	50	60	70	60	-	0.50
