ARC – Mod. S3

(36° medium rotosymmetric optics)

Outdoor and indoor LED fixture, suitable for ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders in white. Extra-clear tempered flat glass diffuser 3/4 mm thick. 36° medium rotosymmetric optics.
Categories: Led, ARC, ARC, ARC - 7022, Architectural Outdoor, ARC
Models: 9
Color: Matt white
Catalogue abstract
Installation instructions

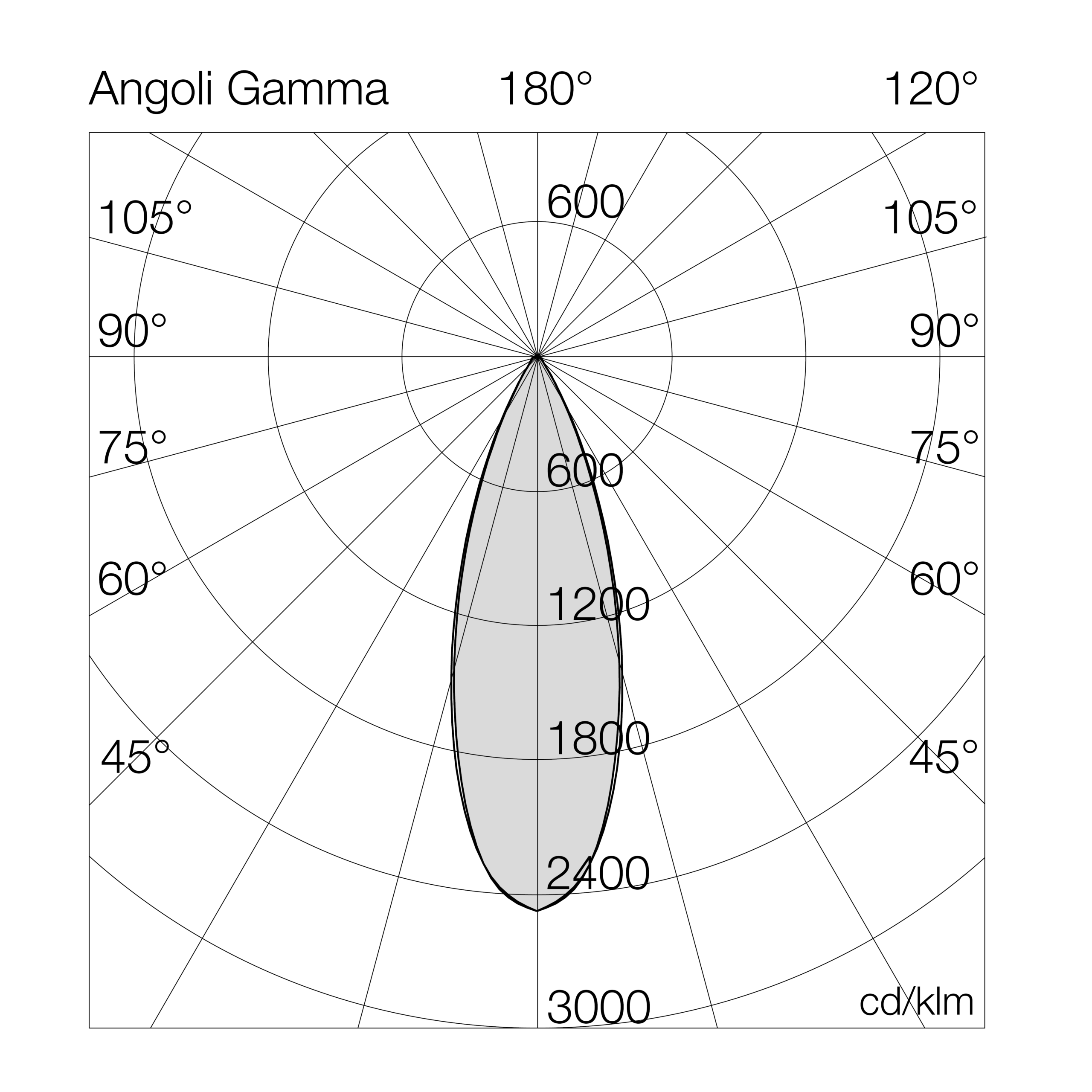

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7022S327= 2700°K (CRI >80)05BL= on/off
30= 3000°K (CRI >80)07
40= 4000°K (CRI >80)10

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7022S34005BL5-4000°K - CRI>80on/off40781100100100-0.60
7022S34007BL7-4000°K - CRI>80on/off57081100100100-0.60
7022S34010BL10-4000°K - CRI>80on/off81481100100100-0.60
7022S33005BL5-3000°K - CRI>80on/off38176100100100-0.60
7022S33007BL7-3000°K - CRI>80on/off53376100100100-0.60
7022S33010BL10-3000°K - CRI>80on/off76176100100100-0.60
7022S32705BL5-2700°K - CRI>80on/off36874100100100-0.60
7022S32707BL7-2700°K - CRI>80on/off51674100100100-0.60
7022S32710BL10-2700°K - CRI>80on/off73774100100100-0.60
