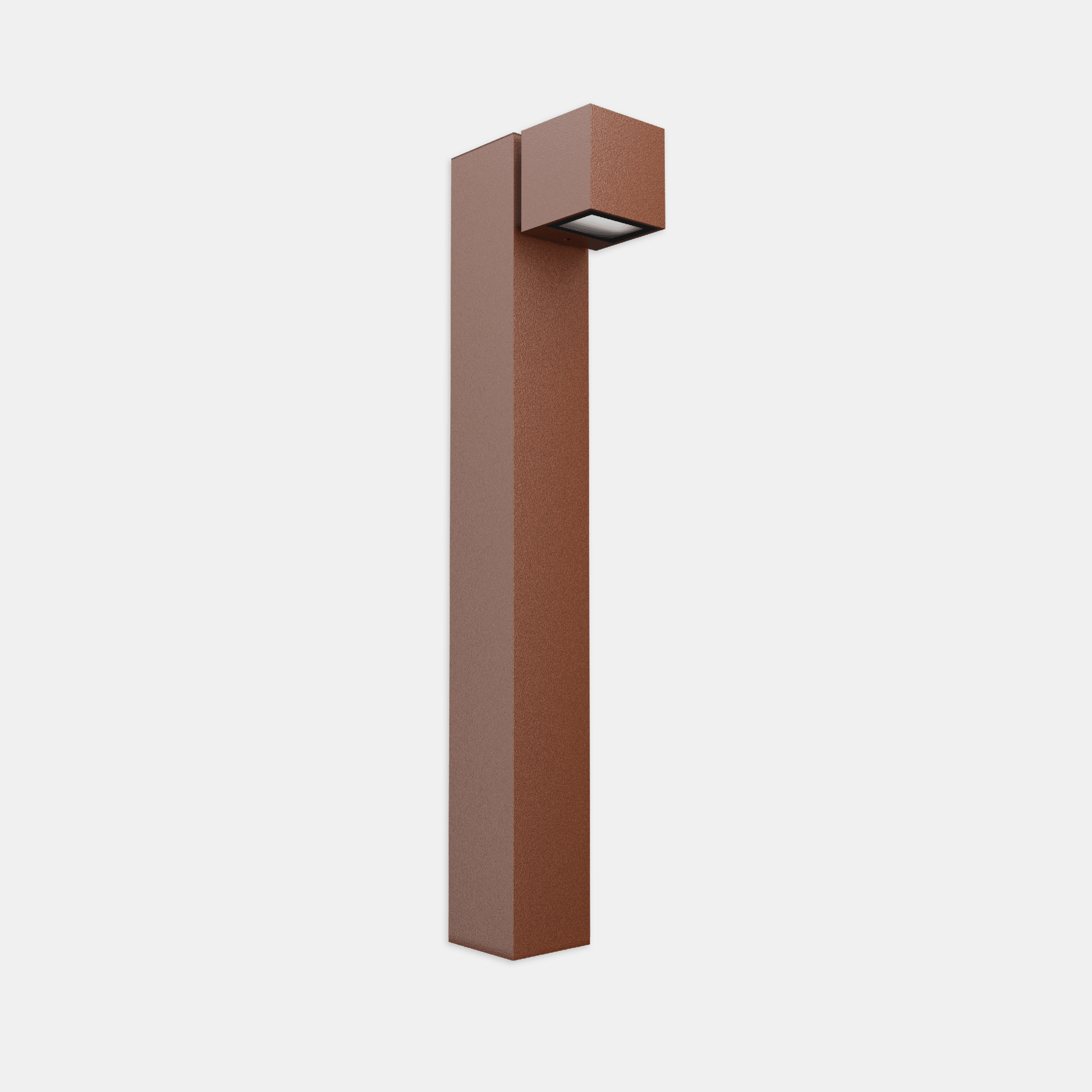

BOSTON 2/T2

Outdoor led bollard for suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester powder coating, color corten. Extra-clear flat glass diffuser 3 mm thick. 45° asymmetric single-emission optics with 120° light distribution, with PMMA lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, BOSTON 2 - 7023, art. 7023 Boston 2, Architectural Outdoor, art. 7023 Boston 2

Models: 27

Color: Corten

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7023	T2	27	= 2700°K (CRI >80)	3	C4	= 400 mm
		30	= 3000°K (CRI >80)	4	C7	= 700 mm
		40	= 4000°K (CRI >80)	7	C1	= 1000 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7023T24003C4	3	-	4000°K - CRI>80	400 mm	307	102	60	128	400	-	1.0
7023T24004C4	4.5	-	4000°K - CRI>80	400 mm	409	91	60	128	400	-	1.0
7023T24007C4	7	-	4000°K - CRI>80	400 mm	565	81	60	128	400	-	1.0
7023T24003C7	3	-	4000°K - CRI>80	700 mm	307	102	60	128	700	-	1.2
7023T24004C7	4.5	-	4000°K - CRI>80	700 mm	409	91	60	128	700	-	1.2
7023T24007C7	7	-	4000°K - CRI>80	700 mm	565	81	60	128	700	-	1.2
7023T24003C1	3	-	4000°K - CRI>80	1000 mm	307	102	60	128	1000	-	2.2
7023T24004C1	4.5	-	4000°K - CRI>80	1000 mm	409	91	60	128	1000	-	2.2
7023T24007C1	7	-	4000°K - CRI>80	1000 mm	565	81	60	128	1000	-	2.2
7023T23003C4	3	-	3000°K - CRI>80	400 mm	287	96	60	128	400	-	1.0
7023T23004C4	4.5	-	3000°K - CRI>80	400 mm	382	85	60	128	400	-	1.0
7023T23007C4	7	-	3000°K - CRI>80	400 mm	528	75	60	128	400	-	1.0
7023T23003C7	3	-	3000°K - CRI>80	700 mm	287	96	60	128	700	-	1.2
7023T23004C7	4.5	-	3000°K - CRI>80	700 mm	382	85	60	128	700	-	1.2
7023T23007C7	7	-	3000°K - CRI>80	700 mm	528	75	60	128	700	-	1.2
7023T23003C1	3	-	3000°K - CRI>80	1000 mm	287	96	60	128	1000	-	2.2
7023T23004C1	4.5	-	3000°K - CRI>80	1000 mm	382	85	60	128	1000	-	2.2
7023T23007C1	7	-	3000°K - CRI>80	1000 mm	528	75	60	128	1000	-	2.2
7023T22703C4	3	-	2700°K - CRI>80	400 mm	260	87	60	128	400	-	1.0
7023T22704C4	4.5	-	2700°K - CRI>80	400 mm	346	77	60	128	400	-	1.0
