BOSTON 2/T2

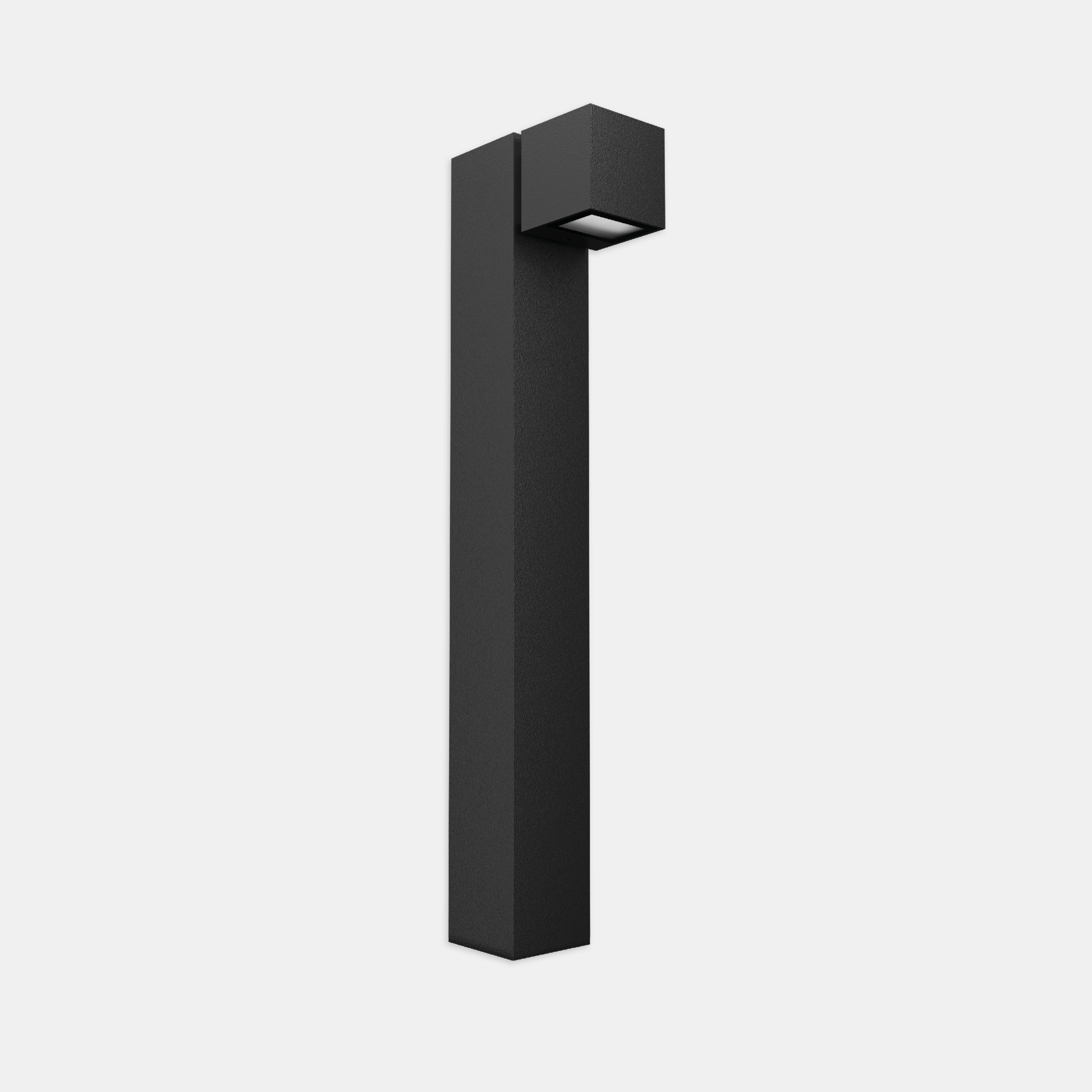

Outdoor led bollard for suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester powder coating, color anthracite. Extra-clear flat glass diffuser 3 mm thick. 45° asymmetric single-emission optics with 120° light distribution, with PMMA lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, BOSTON 2 - 7023, art. 7023 Boston 2, Architectural Outdoor, art. 7023 Boston 2

Models: 27

Color: Anthracite

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7023	T2	27	= 2700°K (CRI >80)	3	N4	= 400 mm
		30	= 3000°K (CRI >80)	4	N7	= 700 mm
		40	= 4000°K (CRI >80)	7	N1	= 1000 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7023T24003N4	3	-	4000°K - CRI>80	400 mm	307	102	60	128	400	-	1.0
7023T24004N4	4.5	-	4000°K - CRI>80	400 mm	409	91	60	128	400	-	1.0
7023T24007N4	7	-	4000°K - CRI>80	400 mm	565	81	60	128	400	-	1.0
7023T24003N7	3	-	4000°K - CRI>80	700 mm	307	102	60	128	700	-	1.2
7023T24004N7	4.5	-	4000°K - CRI>80	700 mm	409	91	60	128	700	-	1.2
7023T24007N7	7	-	4000°K - CRI>80	700 mm	565	81	60	128	700	-	1.2
7023T24003N1	3	-	4000°K - CRI>80	1000 mm	307	102	60	128	1000	-	2.2
7023T24004N1	4.5	-	4000°K - CRI>80	1000 mm	409	91	60	128	1000	-	2.2
7023T24007N1	7	-	4000°K - CRI>80	1000 mm	565	81	60	128	1000	-	2.2
7023T23003N4	3	-	3000°K - CRI>80	400 mm	287	96	60	128	400	-	1.0
7023T23004N4	4.5	-	3000°K - CRI>80	400 mm	382	85	60	128	400	-	1.0
7023T23007N4	7	-	3000°K - CRI>80	400 mm	528	75	60	128	400	-	1.0
7023T23003N7	3	-	3000°K - CRI>80	700 mm	287	96	60	128	700	-	1.2
7023T23004N7	4.5	-	3000°K - CRI>80	700 mm	382	85	60	128	700	-	1.2
7023T23007N7	7	-	3000°K - CRI>80	700 mm	528	75	60	128	700	-	1.2
7023T23003N1	3	-	3000°K - CRI>80	1000 mm	287	96	60	128	1000	-	2.2
7023T23004N1	4.5	-	3000°K - CRI>80	1000 mm	382	85	60	128	1000	-	2.2
7023T23007N1	7	-	3000°K - CRI>80	1000 mm	528	75	60	128	1000	-	2.2
7023T22703N4	3	-	2700°K - CRI>80	400 mm	260	87	60	128	400	-	1.0
7023T22704N4	4.5	-	2700°K - CRI>80	400 mm	346	77	60	128	400	-	1.0
