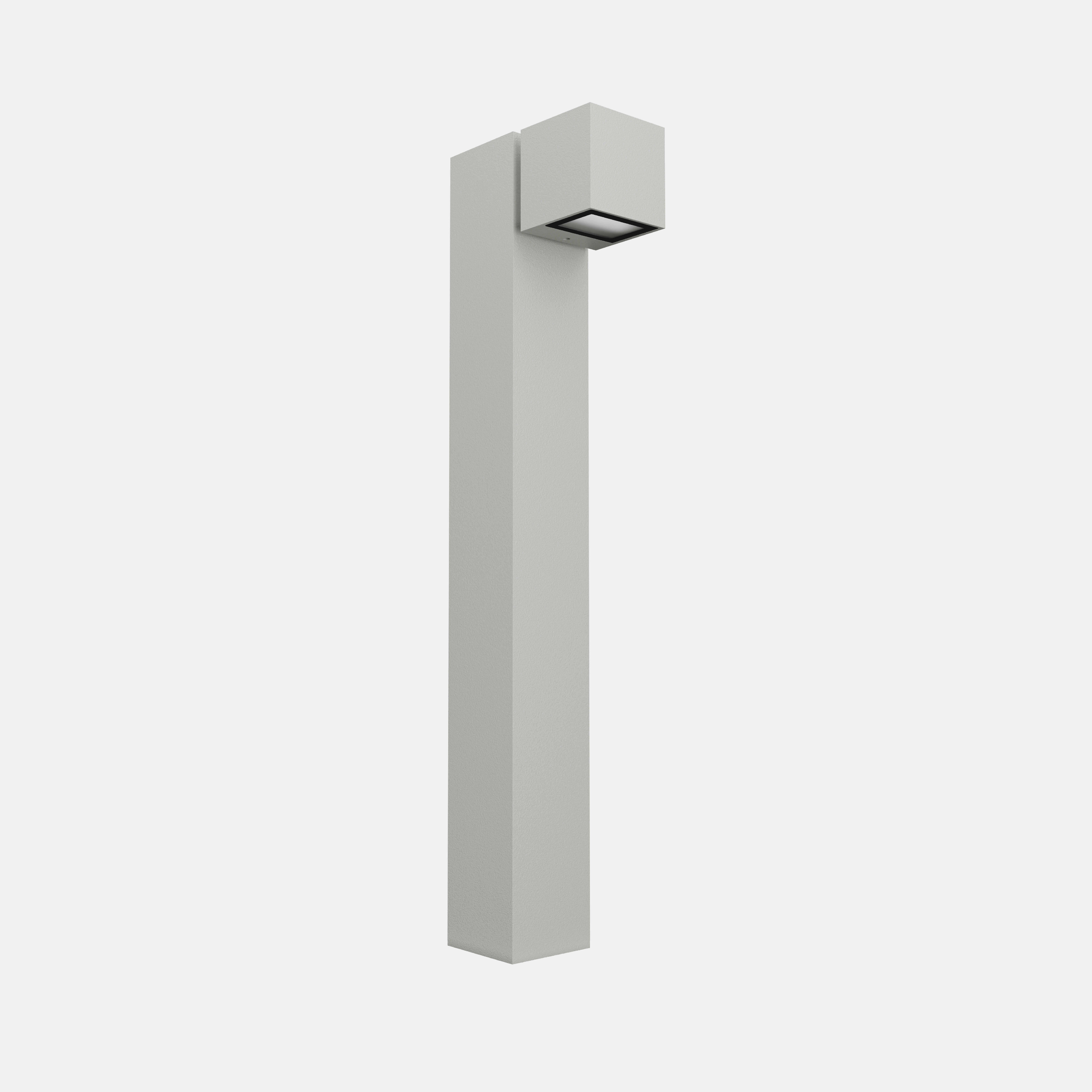

BOSTON 2 – Mod. T2

(45° asymmetric optics)

Outdoor led bollard for suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester powder coating, color silver. Extra-clear flat glass diffuser 3 mm thick. 45° asymmetric single-emission optics with 120° light distribution, with PMMA lenses with high flux efficiency, anti-glare and anti-reflection.

Categories: Led, Architectural Outdoor, BOSTON 2, BOSTON 2

Models: 27

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7023	T2	27	= 2700°K (CRI >80)	3	S4	= 400 mm
		30	= 3000°K (CRI >80)	4	S7	= 700 mm
		40	= 4000°K (CRI >80)	7	S1	= 1000 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7023T24003S4	3	-	4000°K - CRI ≥80	400mm	307	102	60	128	400	-	1.0
7023T24004S4	4.5	-	4000°K - CRI ≥80	400mm	409	91	60	128	400	-	1.0
7023T24007S4	7	-	4000°K - CRI ≥80	400mm	565	81	60	128	400	-	1.0
7023T24003S7	3	-	4000°K - CRI ≥80	700mm	307	102	60	128	700	-	1.2
7023T24004S7	4.5	-	4000°K - CRI ≥80	700mm	409	91	60	128	700	-	1.2
7023T24007S7	7	-	4000°K - CRI ≥80	700mm	565	81	60	128	700	-	1.2
7023T24003S1	3	-	4000°K - CRI ≥80	1000mm	307	102	60	128	1000	-	2.2
7023T24004S1	4.5	-	4000°K - CRI ≥80	1000mm	409	91	60	128	1000	-	2.2
7023T24007S1	7	-	4000°K - CRI ≥80	1000mm	565	81	60	128	1000	-	2.2
7023T23003S4	3	-	3000°K - CRI ≥80	400mm	287	96	60	128	400	-	1.0
7023T23004S4	4.5	-	3000°K - CRI ≥80	400mm	382	85	60	128	400	-	1.0
7023T23007S4	7	-	3000°K - CRI ≥80	400mm	528	75	60	128	400	-	1.0
7023T23003S7	3	-	3000°K - CRI ≥80	700mm	287	96	60	128	700	-	1.2
7023T23004S7	4.5	-	3000°K - CRI ≥80	700mm	382	85	60	128	700	-	1.2
7023T23007S7	7	-	3000°K - CRI ≥80	700mm	528	75	60	128	700	-	1.2
7023T23003S1	3	-	3000°K - CRI ≥80	1000mm	287	96	60	128	1000	-	2.2
7023T23004S1	4.5	-	3000°K - CRI ≥80	1000mm	382	85	60	128	1000	-	2.2
7023T23007S1	7	-	3000°K - CRI ≥80	1000mm	528	75	60	128	1000	-	2.2
7023T22703S4	3	-	2700°K - CRI ≥80	400mm	260	87	60	128	400	-	1.0
7023T22704S4	4.5	-	2700°K - CRI ≥80	400mm	346	77	60	128	400	-	1.0
