BOSTON/AB

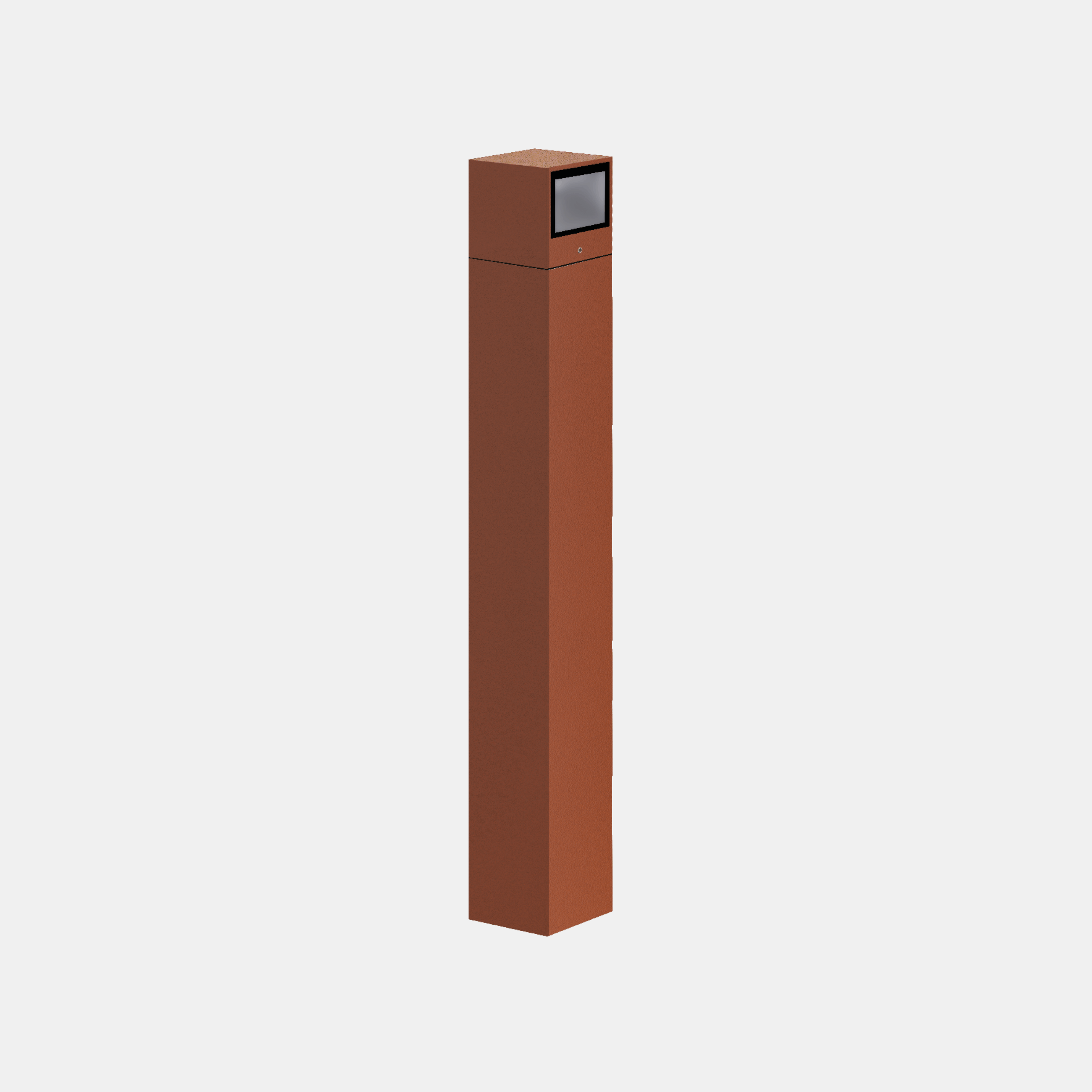

Outdoor led bollard suitable for ground/floor installation for illuminating pedestrian paths, driveway areas, and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation. Painted with anti-corrosion polyester thermosetting powders, color corten. Transparent tempered flat glass diffuser 3 mm thick. Available in two types of optics with opaque black painted steel plate reflector, anti-glare and anti-reflection: 45° asymmetrical single-emission optics with 120° light distribution and 45° asymmetrical bi-emission optics with 120° light distribution.

Categories: Led, BOSTON - 7023, Architectural Outdoor, art. 7023 Boston

Models: 60

Color: Corten

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7023	AB	27	= 2700°K (CRI >80)	3	C2	= 250 mm
		30	= 3000°K (CRI >80)	6	C4	= 400 mm
		40	= 4000°K (CRI >80)	9	C7	= 700 mm
				14	C1	= 1000 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7023AB4003C2	3	-	4000°K - CRI>80	250 mm	307	102	60	60	250	-	0.80
7023AB4006C2	6	-	4000°K - CRI>80	250 mm	613	102	60	60	250	-	0.80
7023AB4009C2	9	-	4000°K - CRI>80	250 mm	818	91	60	60	250	-	0.80
7023AB4003C4	3	-	4000°K - CRI>80	400 mm	307	102	60	60	400	-	1.0
7023AB4006C4	6	-	4000°K - CRI>80	400 mm	613	102	60	60	400	-	1.0
7023AB4009C4	9	-	4000°K - CRI>80	400 mm	818	91	60	60	400	-	1.0
7023AB4014C4	14	-	4000°K - CRI>80	400 mm	1130	81	60	60	400	-	1.0
7023AB4003C7	3	-	4000°K - CRI>80	700 mm	307	102	60	60	700	-	1.2
7023AB4006C7	6	-	4000°K - CRI>80	700 mm	613	102	60	60	700	-	1.2
7023AB4009C7	9	-	4000°K - CRI>80	700 mm	818	91	60	60	700	-	1.2
7023AB4014C7	14	-	4000°K - CRI>80	700 mm	1130	81	60	60	700	-	1.2
7023AB4003C1	3	-	4000°K - CRI>80	1000 mm	307	102	60	60	1000	-	2.2
7023AB4006C1	6	-	4000°K - CRI>80	1000 mm	613	102	60	60	1000	-	2.2
7023AB4009C1	9	-	4000°K - CRI>80	1000 mm	818	91	60	60	1000	-	2.2
7023AB4014C1	14	-	4000°K - CRI>80	1000 mm	1130	81	60	60	1000	-	2.2
7023AB4003C2	3	-	4000°K - CRI>80	250 mm	307	102	60	60	250	-	0.80
7023AB4006C2	6	-	4000°K - CRI>80	250 mm	613	102	60	60	250	-	0.80
7023AB4009C2	9	-	4000°K - CRI>80	250 mm	818	91	60	60	250	-	0.80
7023AB4003C4	3	-	4000°K - CRI>80	400 mm	307	102	60	60	400	-	1.0
7023AB4006C4	6	-	4000°K - CRI>80	400 mm	613	102	60	60	400	-	1.0
