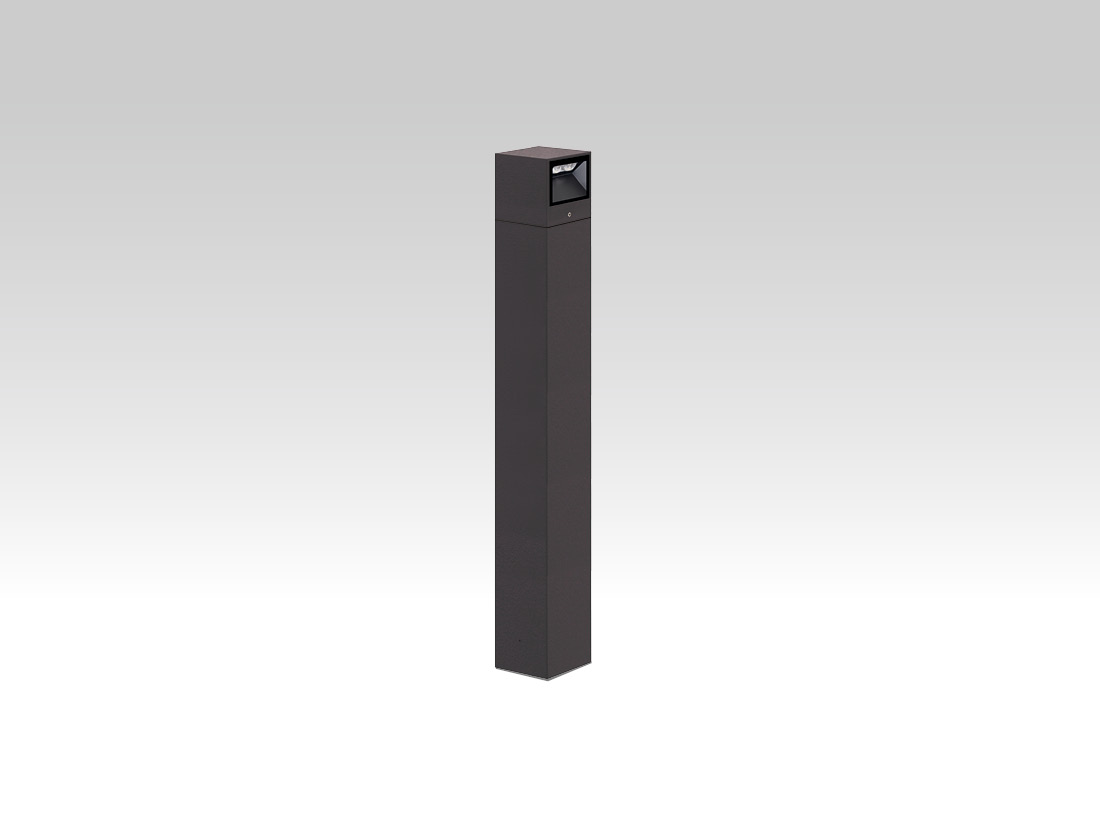

BOSTON – Mod. AB

(45° asymmetrical dual emission optics)

Outdoor led bollard suitable for ground/floor installation for illuminating pedestrian paths, driveway areas, and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation. Painted with anti-corrosion polyester thermosetting powders, color anthracite. Transparent tempered flat glass diffuser 3 mm thick. 45° asymmetrical dual emission optics.

Categories: Led, BOSTON - 7023, Architectural Outdoor, BOSTON

Models: 60

Color: Anthracite

Catalogue abstract

Installation instructions

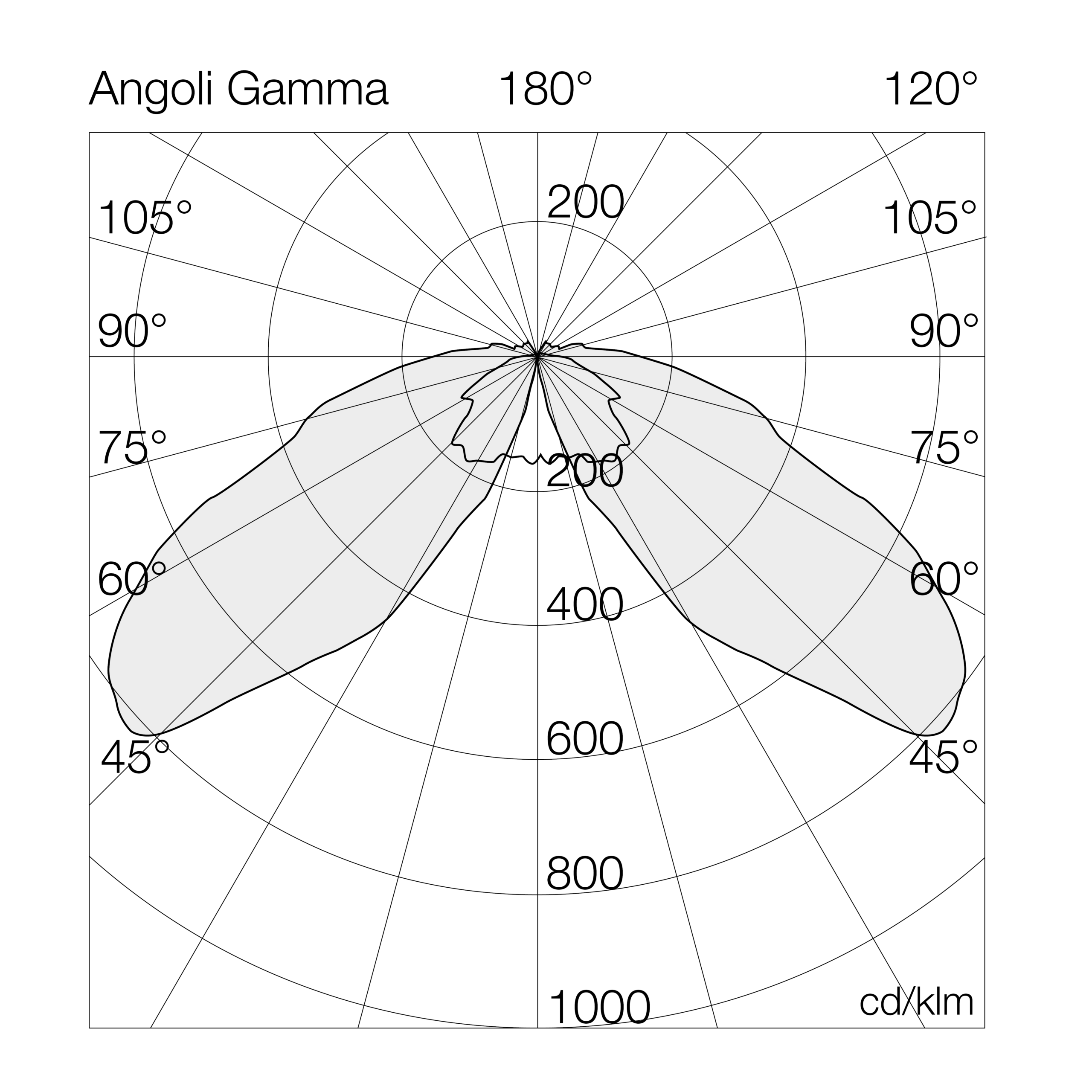

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7023	AB	27	= 2700°K (CRI >80)	3	N2	= 250 mm
		30	= 3000°K (CRI >80)	6	N4	= 400 mm
		40	= 4000°K (CRI >80)	9	N7	= 700 mm
				14	N1	= 1000 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7023AB4003N2	3	-	4000°K - CRI>80	250 mm	307	102	60	60	250	-	0.80
7023AB4006N2	6	-	4000°K - CRI>80	250 mm	613	102	60	60	250	-	0.80
7023AB4009N2	9	-	4000°K - CRI>80	250 mm	818	91	60	60	250	-	0.80
7023AB4003N4	3	-	4000°K - CRI>80	400 mm	307	102	60	60	400	-	1.0
7023AB4006N4	6	-	4000°K - CRI>80	400 mm	613	102	60	60	400	-	1.0
7023AB4009N4	9	-	4000°K - CRI>80	400 mm	818	91	60	60	400	-	1.0
7023AB4014N4	14	-	4000°K - CRI>80	400 mm	1130	81	60	60	400	-	1.0
7023AB4003N7	3	-	4000°K - CRI>80	700 mm	307	102	60	60	700	-	1.2
7023AB4006N7	6	-	4000°K - CRI>80	700 mm	613	102	60	60	700	-	1.2
7023AB4009N7	9	-	4000°K - CRI>80	700 mm	818	91	60	60	700	-	1.2
7023AB4014N7	14	-	4000°K - CRI>80	700 mm	1130	81	60	60	700	-	1.2
7023AB4003N1	3	-	4000°K - CRI>80	1000 mm	307	102	60	60	1000	-	2.2
7023AB4006N1	6	-	4000°K - CRI>80	1000 mm	613	102	60	60	1000	-	2.2
7023AB4009N1	9	-	4000°K - CRI>80	1000 mm	818	91	60	60	1000	-	2.2
7023AB4014N1	14	-	4000°K - CRI>80	1000 mm	1130	81	60	60	1000	-	2.2
7023AB4003N2	3	-	4000°K - CRI>80	250 mm	307	102	60	60	250	-	0.80
7023AB4006N2	6	-	4000°K - CRI>80	250 mm	613	102	60	60	250	-	0.80
7023AB4009N2	9	-	4000°K - CRI>80	250 mm	818	91	60	60	250	-	0.80
7023AB4003N4	3	-	4000°K - CRI>80	400 mm	307	102	60	60	400	-	1.0
7023AB4006N4	6	-	4000°K - CRI>80	400 mm	613	102	60	60	400	-	1.0
