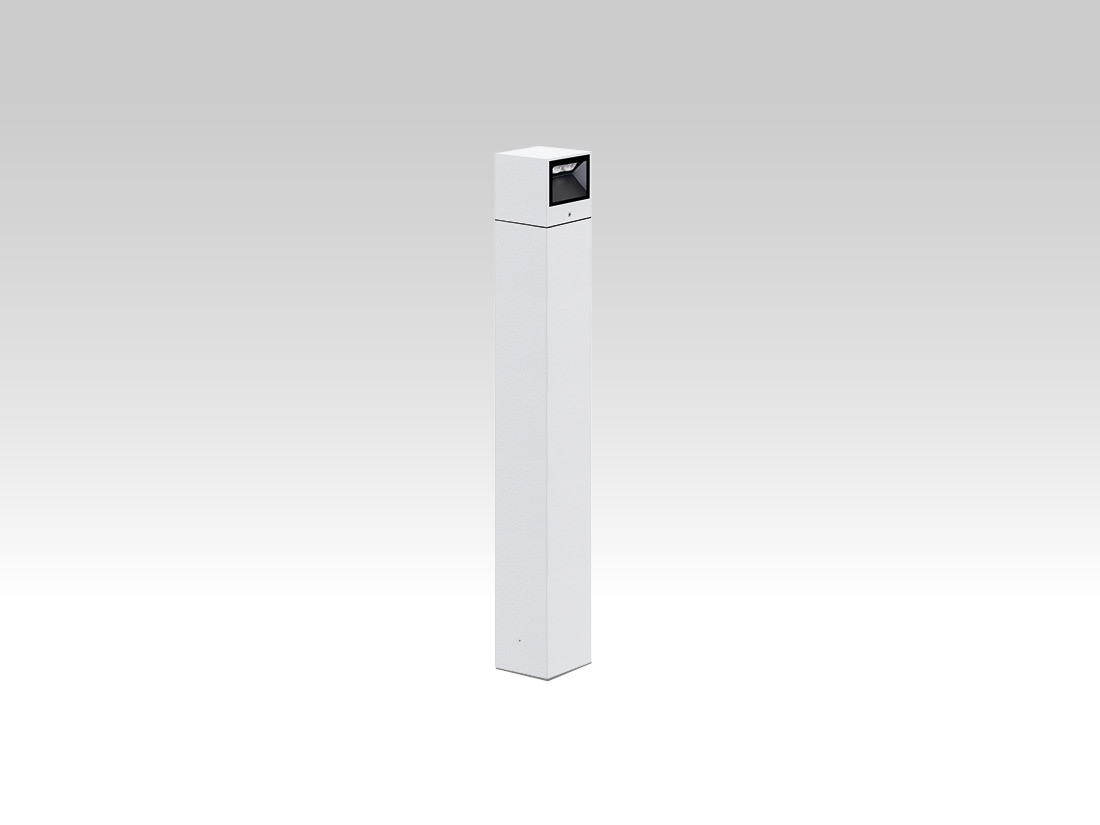

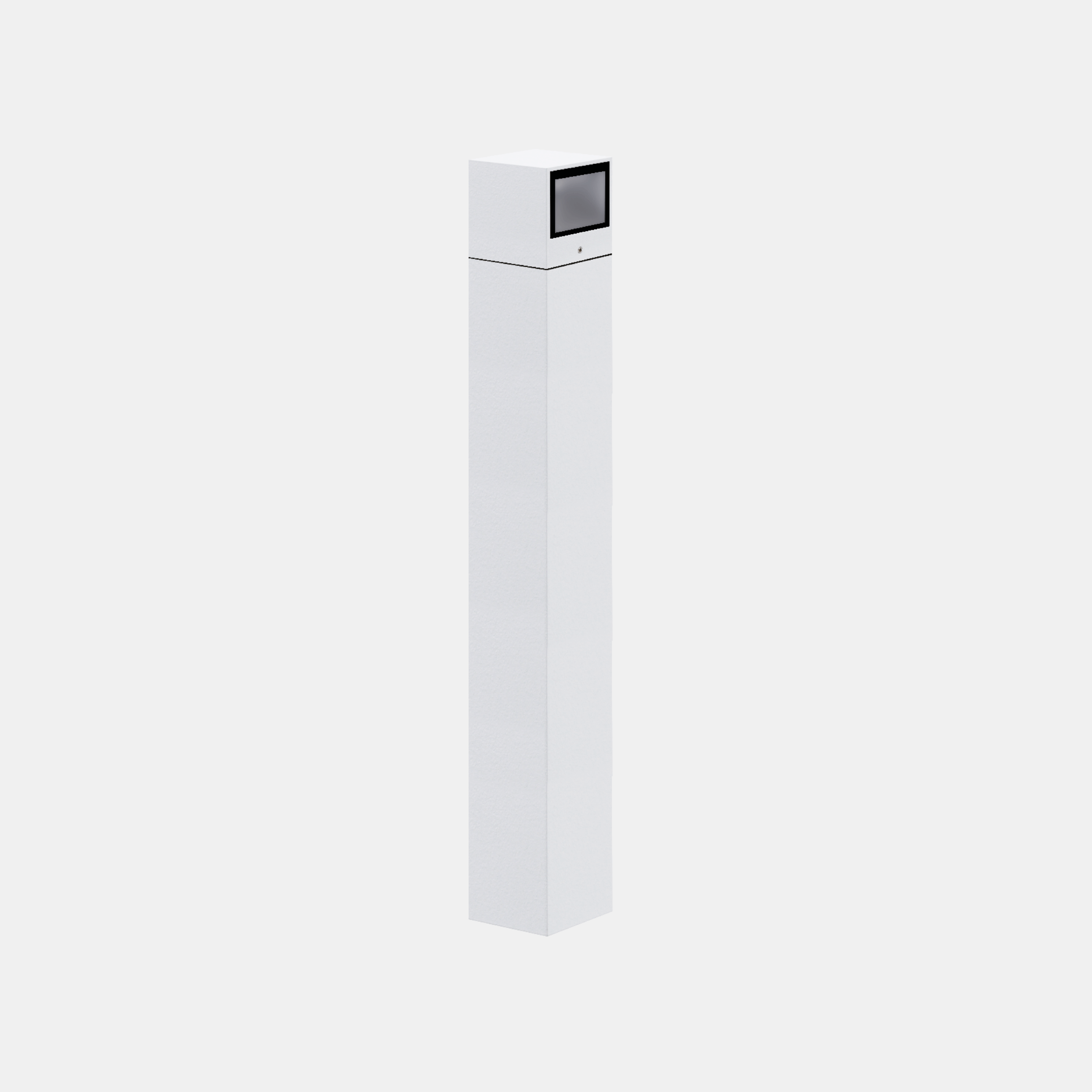

BOSTON/AM

Outdoor led bollard suitable for ground/floor installation for illuminating pedestrian paths, driveway areas, and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation. Painted with anti-corrosion polyester thermosetting powders, color white. Transparent tempered flat glass diffuser 3 mm thick. Available in two types of optics with opaque black painted steel plate reflector, anti-glare and anti-reflection: 45° asymmetrical single-emission optics with 120° light distribution and 45° asymmetrical bi-emission optics with 120° light distribution.

Categories: Led, BOSTON - 7023, Architectural Outdoor, art. 7023 Boston

Models: 33

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7023	AM	27	= 2700°K (CRI >80)	3	B2	= 250 mm
		30	= 3000°K (CRI >80)	4	B4	= 400 mm
		40	= 4000°K (CRI >80)	7	B7	= 700 mm
					B1	= 1000 mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7023AM4003B2	3	-	4000°K - CRI>80	250 mm	307	102	60	60	250	-	0.80
7023AM4004B2	4.5	-	4000°K - CRI>80	250 mm	409	91	60	60	250	-	0.80
7023AM4003B4	3	-	4000°K - CRI>80	400 mm	307	102	60	60	400	-	1.0
7023AM4004B4	4.5	-	4000°K - CRI>80	400 mm	409	91	60	60	400	-	1.0
7023AM4007B4	7	-	4000°K - CRI>80	400 mm	565	81	60	60	400	-	1.0
7023AM4003B7	3	-	4000°K - CRI>80	700 mm	307	102	60	60	700	-	1.2
7023AM4004B7	4.5	-	4000°K - CRI>80	700 mm	409	91	60	60	700	-	1.2
7023AM4007B7	7	-	4000°K - CRI>80	700 mm	565	81	60	60	700	-	1.2
7023AM4003B1	3	-	4000°K - CRI>80	1000 mm	307	102	60	60	1000	-	2.2
7023AM4004B1	4.5	-	4000°K - CRI>80	1000 mm	409	91	60	60	1000	-	2.2
7023AM4007B1	7	-	4000°K - CRI>80	1000 mm	565	81	60	60	1000	-	2.2
7023AM3003B2	3	-	3000°K - CRI>80	250 mm	287	96	60	60	250	-	0.80
7023AM3004B2	4.5	-	3000°K - CRI>80	250 mm	382	85	60	60	250	-	0.80
7023AM3003B4	3	-	3000°K - CRI>80	400 mm	287	96	60	60	400	-	1.0
7023AM3004B4	4.5	-	3000°K - CRI>80	400 mm	382	85	60	60	400	-	1.0
7023AM3007B4	7	-	3000°K - CRI>80	400 mm	528	75	60	60	400	-	1.0
7023AM3003B7	3	-	3000°K - CRI>80	700 mm	287	96	60	60	700	-	1.2
7023AM3004B7	4.5	-	3000°K - CRI>80	700 mm	382	85	60	60	700	-	1.2
7023AM3007B7	7	-	3000°K - CRI>80	700 mm	528	75	60	60	700	-	1.2
7023AM3003B1	3	-	3000°K - CRI>80	1000 mm	287	96	60	60	1000	-	2.2
