art.-7024-micro-a5-c3-p9-bianco

MICRO/P9

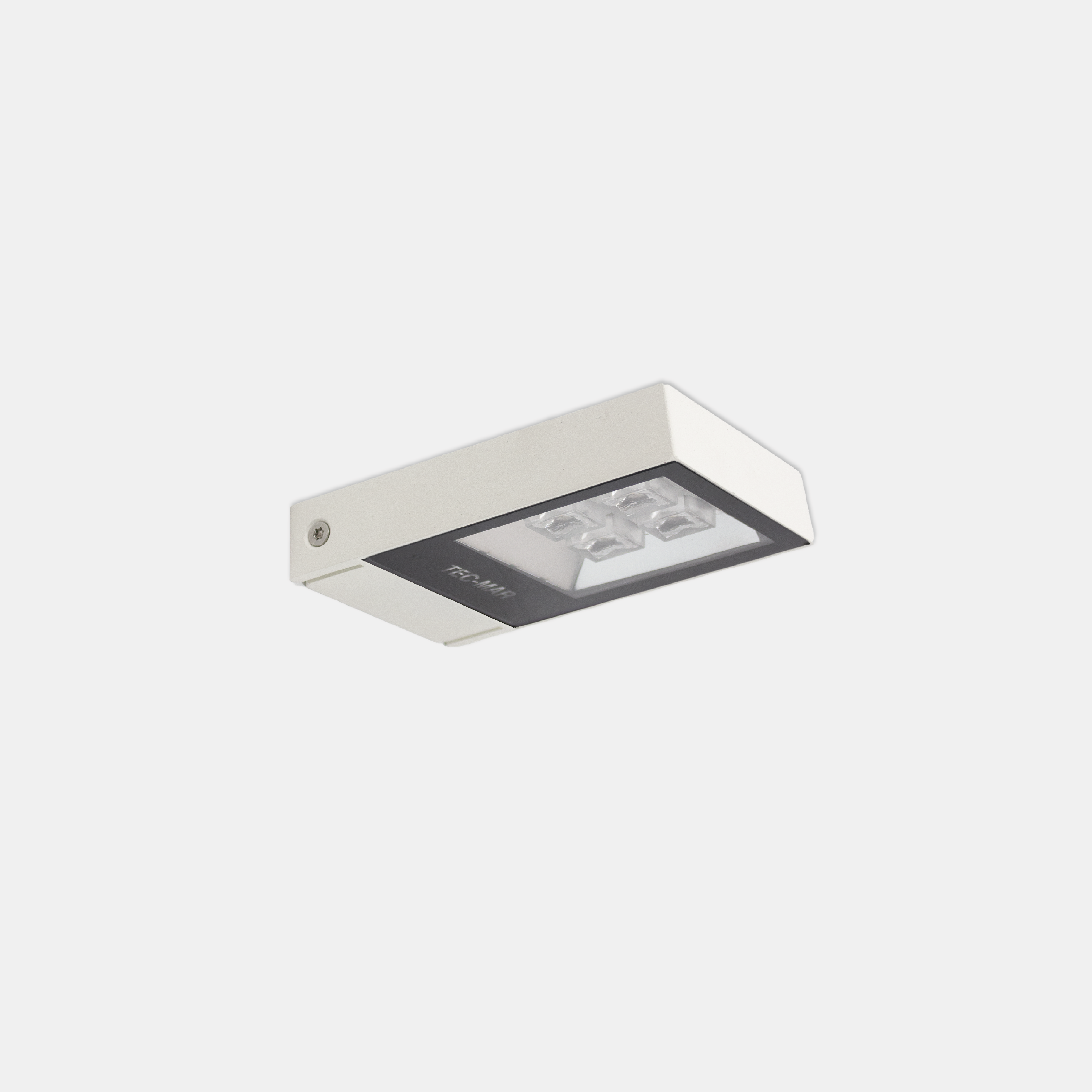

Outdoor and indoor LED fixture suitable for wall installation and with possibility of installation in projector version with adjustable bracket accessory. Die-cast aluminum body, painted with anticorrosion polyester thermosetting powders, color white. Extra-clear tempered flat glass diffuser 4 mm thick. Available in 3 types of optics with PMMA lenses with high flux efficiency, anti-glare and anti-reflection: medium diffusing optics 60°, spot optics 25° and asymmetric optics 45°.
Categories: Led, MICRO - 7024, Architectural Outdoor, art. 7024 Micro
Models: 8
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7024P927= 2700°K (CRI >80)15BL= on/off
30= 3000°K (CRI >80)20
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7024P94015BL15-4000°K - CRI>80on/off17781199525140-0.60
7024P94020BL20-4000°K - CRI>80on/off24171219525140-0.60
7024P93015BL15-3000°K - CRI>80on/off17641189525140-0.60
7024P93020BL20-3000°K - CRI>80on/off23981209525140-0.60
7024P95015BL15-5000°K - CRI>80on/off17871199525140-0.60
7024P95020BL20-5000°K - CRI>80on/off24291219525140-0.60
7024P92715BL15-2700°K - CRI>80on/off17131149525140-0.60
7024P92720BL20-2700°K - CRI>80on/off23291169525140-0.60

Accessories
