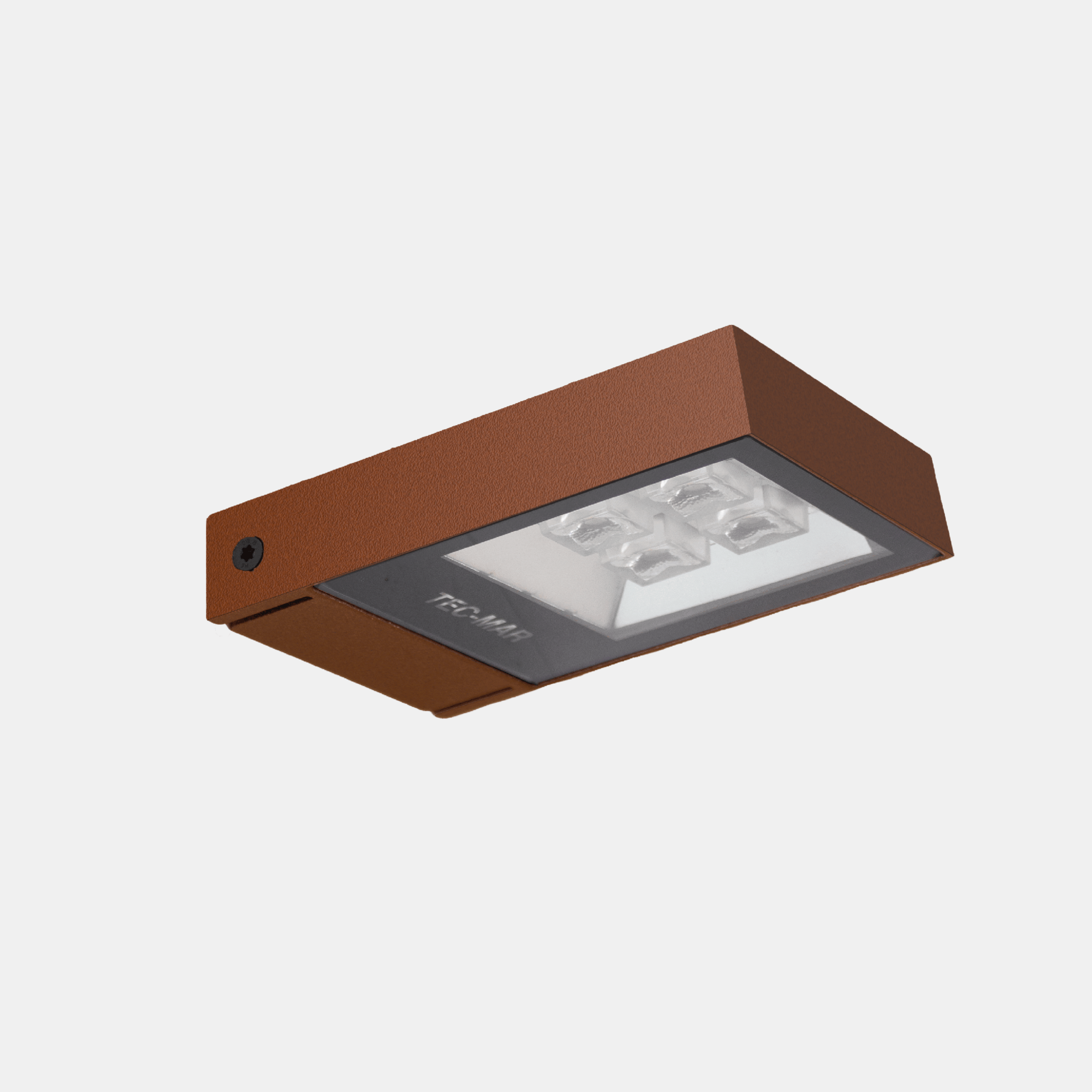

MICRO – Mod. P9

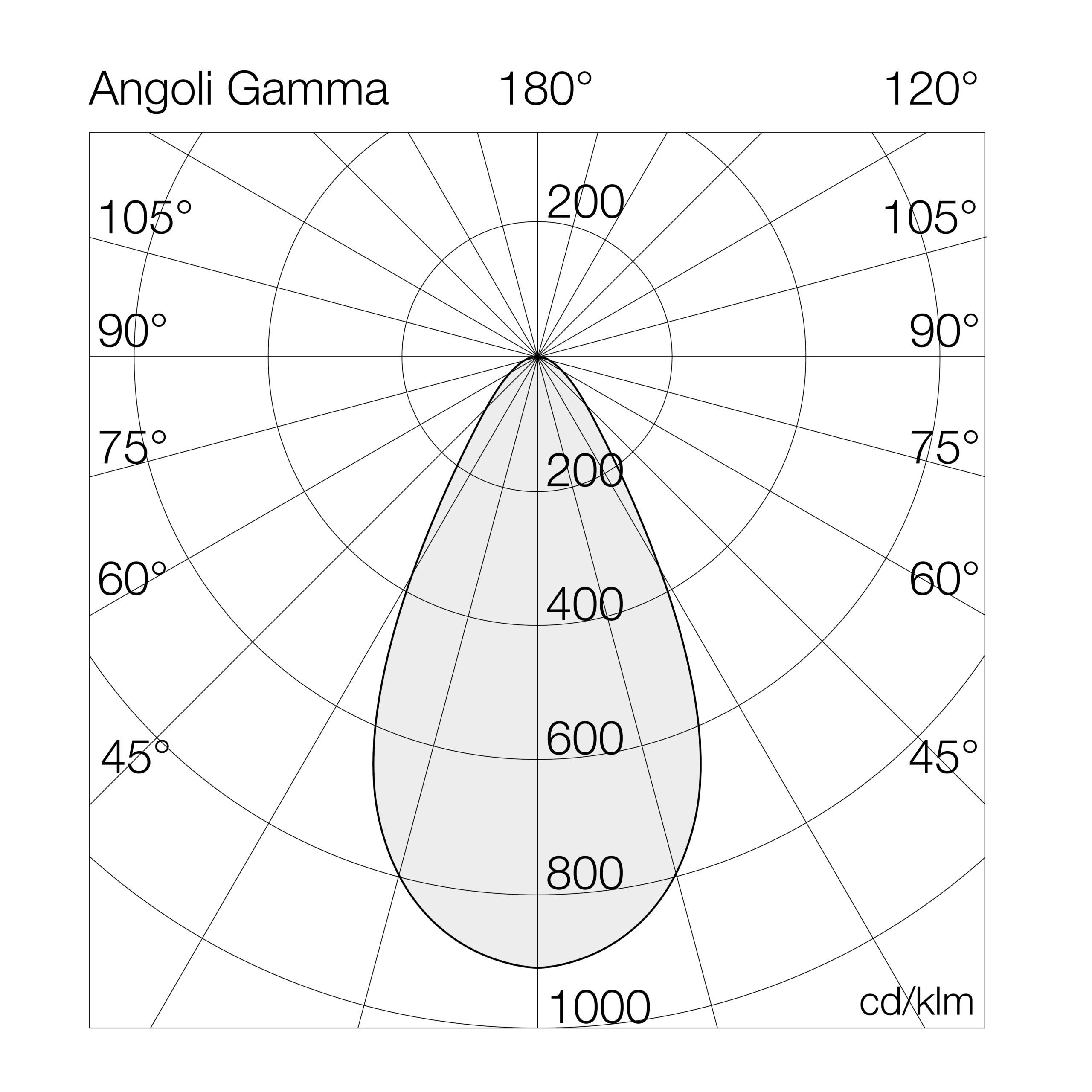

(60° medium diffusing optics)

Outdoor and indoor LED fixture suitable for wall installation and with possibility of installation in projector version with adjustable bracket accessory. Die-cast aluminum body, painted with anticorrosion polyester thermosetting powders, color corten. Extra-clear tempered flat glass diffuser 4 mm thick. 60° medium diffusing optics.
Categories: Led, MICRO - 7024, Architectural Outdoor, MICRO
Models: 8
Color: Corten
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7024PR27= 2700°K (CRI >80)15CL= on/off
30= 3000°K (CRI >80)20
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7024P94015CL15-4000°K - CRI>80on/off17781199525140-0.60
7024P94020CL20-4000°K - CRI>80on/off24171219525140-0.60
7024P93015CL15-3000°K - CRI>80on/off17641189525140-0.60
7024P93020CL20-3000°K - CRI>80on/off23981209525140-0.60
7024P95015CL15-5000°K - CRI>80on/off17871199525140-0.60
7024P95020CL20-5000°K - CRI>80on/off24291219525140-0.60
7024P92715CL15-2700°K - CRI>80on/off17131149525140-0.60
7024P92720CL20-2700°K - CRI>80on/off23291169525140-0.60

Accessories
