STILO/AB

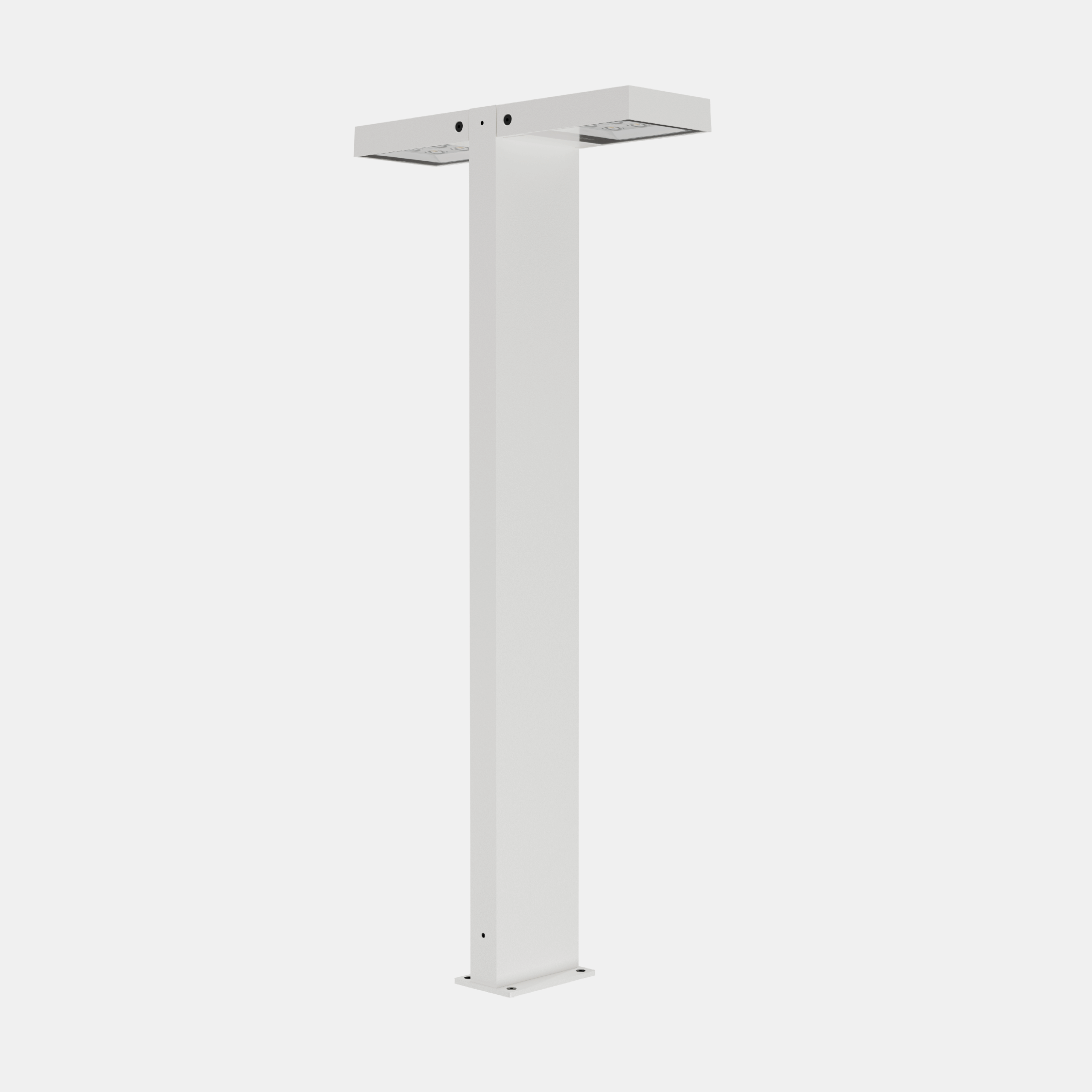

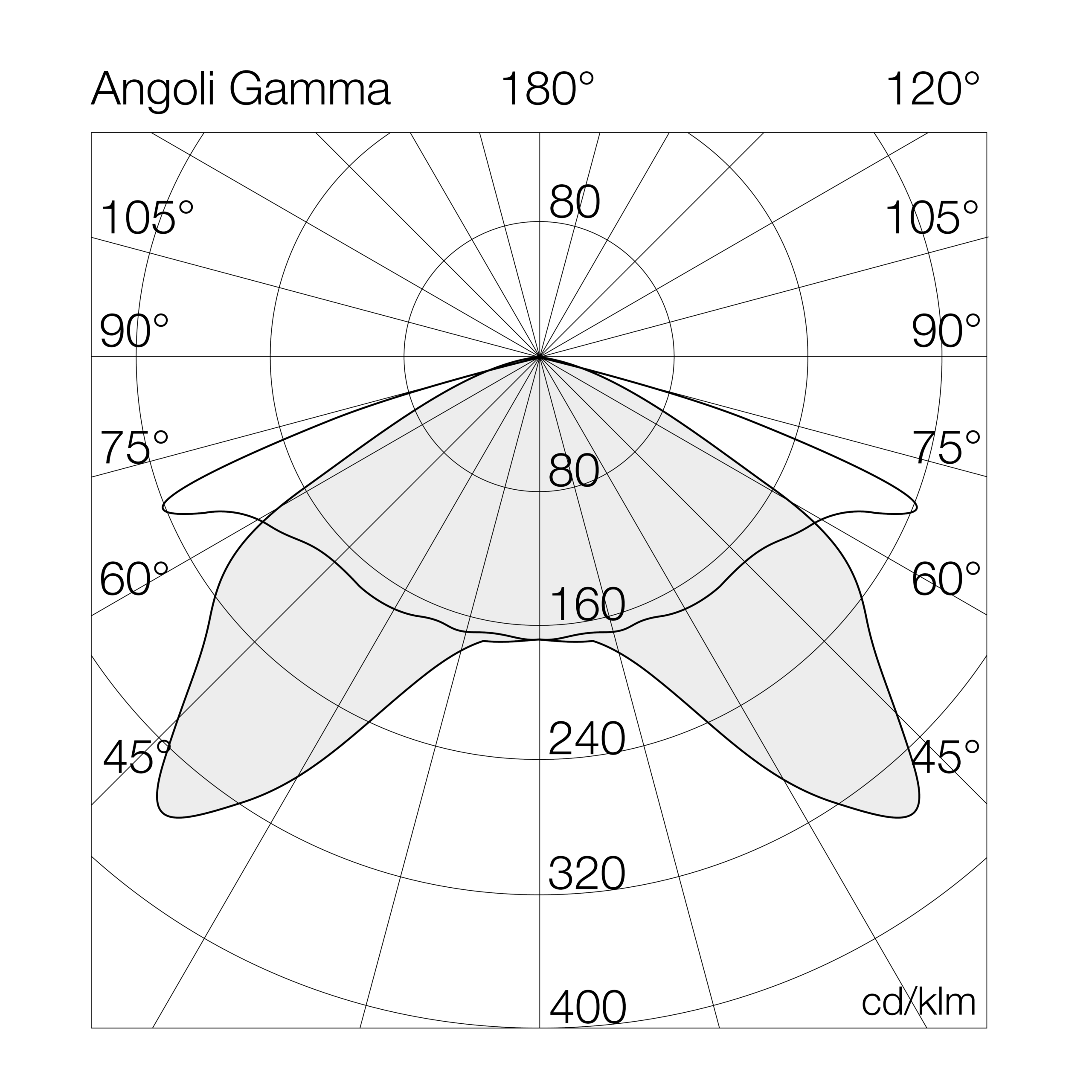

Outdoor Bollard suitable for ground/floor installation for lighting pedestrian paths, driveways and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color white. Available in two types of optics with high flux efficiency, antiglare and anti-reflective PMMA lenses and satin aluminum reflector: 45° asymmetrical singleemission optics with 120° light distribution and 45° asymmetrical bi-emission optics with 120° light distribution
Categories: Led, STILO, STILO - 7024, Architectural Outdoor, art. 7024 Stilo
Models: 27
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options

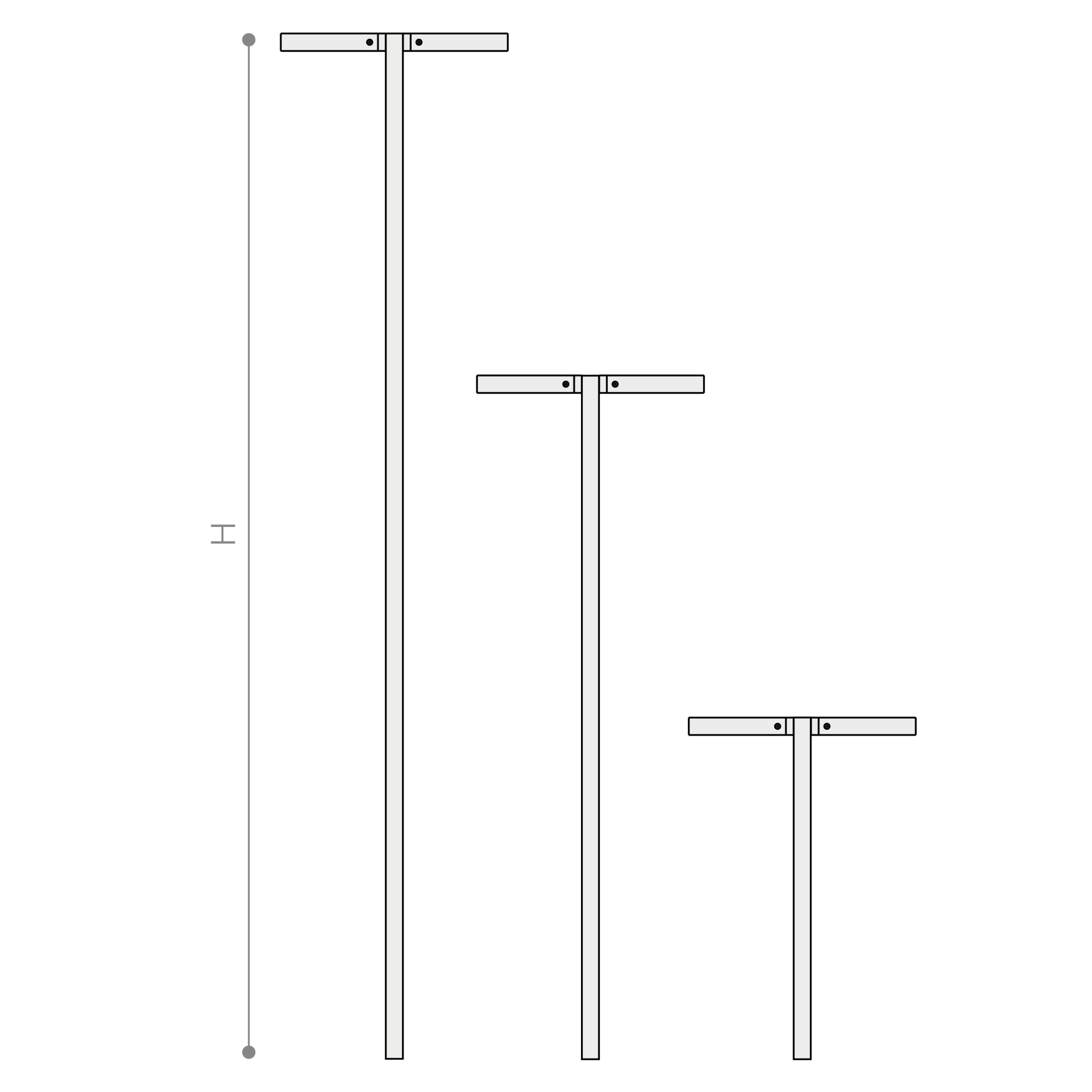

7024AB27= 2700°K (CRI >80)10B1= 500 mm
30= 3000°K (CRI >80)20B2 = 1000 mm
40= 4000°K (CRI >80)30B3 = 1500 mm

Models

W tot.
°K - CRI
Options

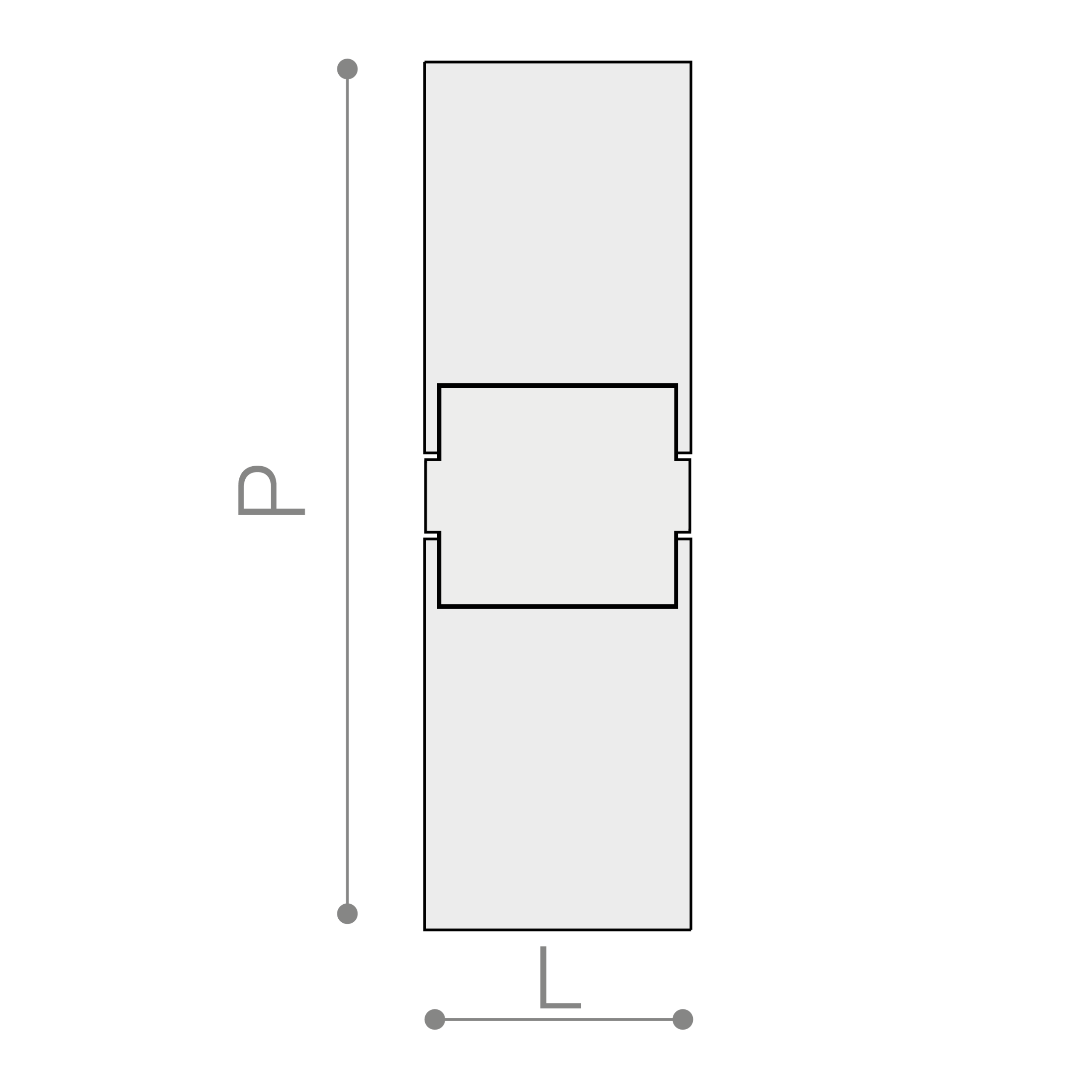

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7024AB4010B110-4000°K - CRI>80500 mm116311695305500-2.2
7024AB4020B120-4000°K - CRI>80500 mm232511695305500-2.2
7024AB4030B130-4000°K - CRI>80500 mm348711695305500-2.2
7024AB4010B210-4000°K - CRI>801000 mm1163116953051000-3.1
7024AB4020B220-4000°K - CRI>801000 mm2325116953051000-3.1
7024AB4030B230-4000°K - CRI>801000 mm3487116953051000-3.1
7024AB4010B310-4000°K - CRI>801500 mm1163116953051500-4.5
7024AB4020B320-4000°K - CRI>801500 mm2325116953051500-4.5
7024AB4030B330-4000°K - CRI>801500 mm3487116953051500-4.5
7024AB3010B110-3000°K - CRI>80500 mm115411595305500-2.2
7024AB3020B120-3000°K - CRI>80500 mm230611595305500-2.2
7024AB3030B130-3000°K - CRI>80500 mm345911595305500-2.2
7024AB3010B210-3000°K - CRI>801000 mm1154115953051000-3.1
7024AB3020B220-3000°K - CRI>801000 mm2306115953051000-3.1
7024AB3030B230-3000°K - CRI>801000 mm3459115953051000-3.1
7024AB3010B310-3000°K - CRI>801500 mm1154115953051500-4.5
7024AB3020B320-3000°K - CRI>801500 mm2306115953051500-4.5
7024AB3030B330-3000°K - CRI>801500 mm3459115953051500-4.5
7024AB2710B110-2700°K - CRI>80500 mm110111095305500-2.2
7024AB2720B120-2700°K - CRI>80500 mm220211095305500-2.2

Accessories
