STILO/AM

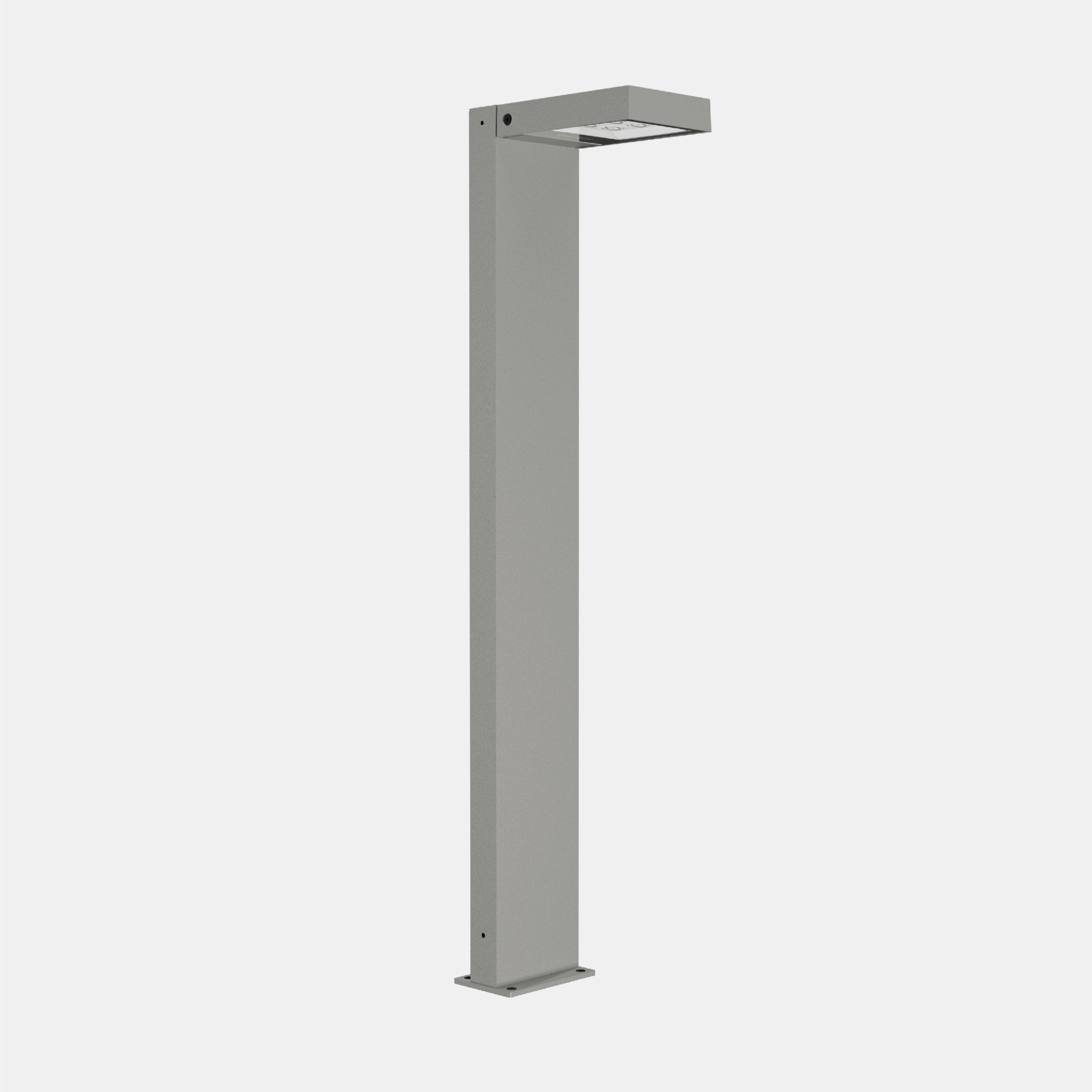

Outdoor Bollard suitable for ground/floor installation for lighting pedestrian paths, driveways and green spaces. Die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color gray. Available in two types of optics with high flux efficiency, antiglare and anti-reflective PMMA lenses and satin aluminum reflector: 45° asymmetrical singleemission optics with 120° light distribution and 45° asymmetrical bi-emission optics with 120° light distribution

Categories: Led, STILO, STILO - 7024, Architectural Outdoor, art. 7024 Stilo

Models: 27

Color: Matt grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7024	AM	27	= 2700°K (CRI >80)	5	G1	= 500 mm
		30	= 3000°K (CRI >80)	10	G2	= 1000 mm
		40	= 4000°K (CRI >80)	15	G3	= 1500 mm

Models

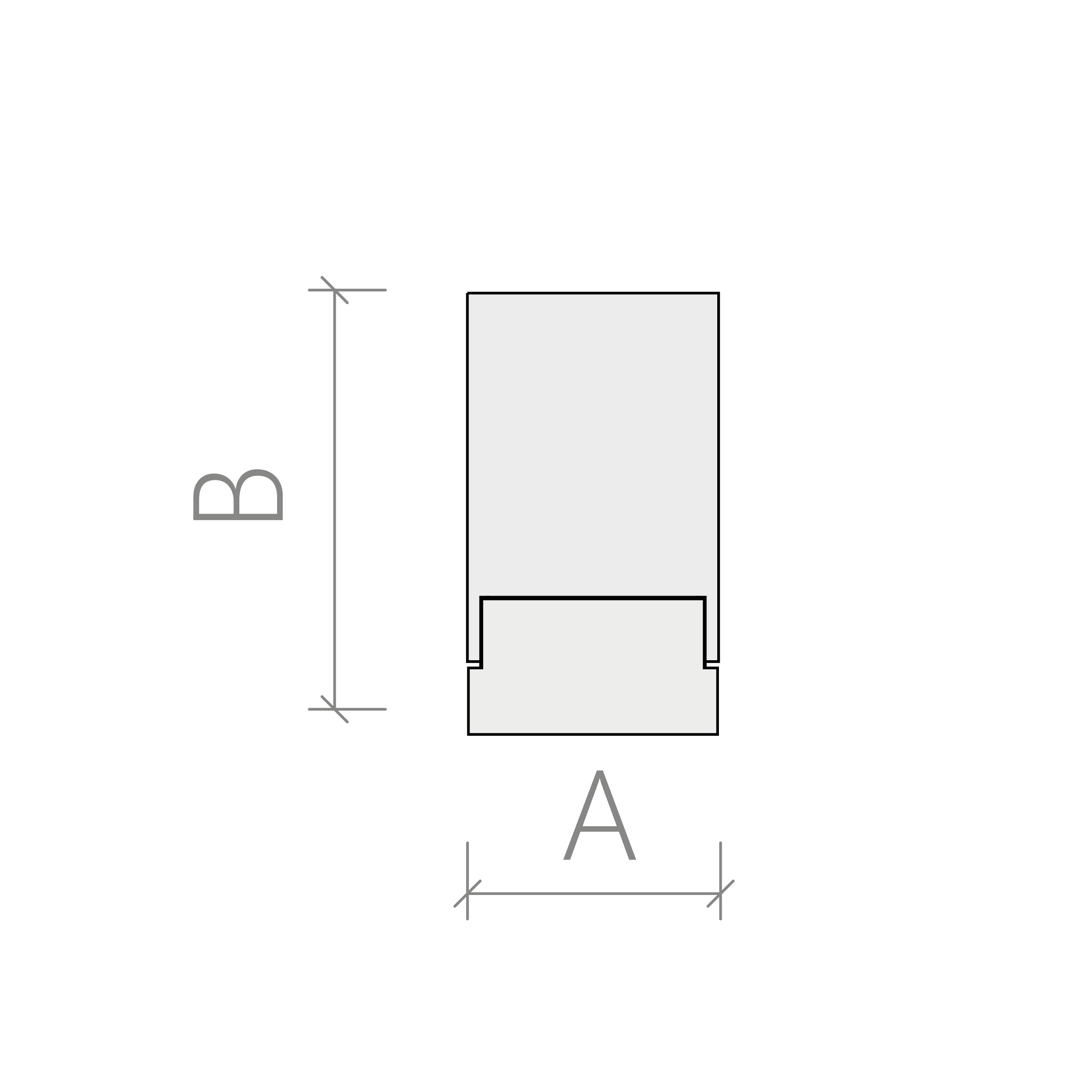

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7024AM4005G1	5	-	4000°K - CRI>80	500 mm	581	116	95	165	500	-	1.8
7024AM4010G1	10	-	4000°K - CRI>80	500 mm	1163	116	95	165	500	-	1.8
7024AM4015G1	15	-	4000°K - CRI>80	500 mm	1744	116	95	165	500	-	1.8
7024AM4005G2	5	-	4000°K - CRI>80	1000 mm	581	116	95	165	1000	-	2.5
7024AM4010G2	10	-	4000°K - CRI>80	1000 mm	1163	116	95	165	1000	-	2.5
7024AM4015G2	15	-	4000°K - CRI>80	1000 mm	1744	116	95	165	1000	-	2.5
7024AM4005G3	5	-	4000°K - CRI>80	1500 mm	581	116	95	165	1500	-	3.7
7024AM4010G3	10	-	4000°K - CRI>80	1500 mm	1163	116	95	165	1500	-	3.7
7024AM4015G3	15	-	4000°K - CRI>80	1500 mm	1744	116	95	165	1500	-	3.7
7024AM3005G1	5	-	3000°K - CRI>80	500 mm	576	115	95	165	500	-	1.8
7024AM3010G1	10	-	3000°K - CRI>80	500 mm	1154	115	95	165	500	-	1.8
7024AM3015G1	15	-	3000°K - CRI>80	500 mm	1730	115	95	165	500	-	1.8
7024AM3005G2	5	-	3000°K - CRI>80	1000 mm	576	115	95	165	1000	-	2.5
7024AM3010G2	10	-	3000°K - CRI>80	1000 mm	1154	115	95	165	1000	-	2.5
7024AM3015G2	15	-	3000°K - CRI>80	1000 mm	1730	115	95	165	1000	-	2.5
7024AM3005G3	5	-	3000°K - CRI>80	1500 mm	576	115	95	165	1500	-	3.7
7024AM3010G3	10	-	3000°K - CRI>80	1500 mm	1154	115	95	165	1500	-	3.7
7024AM3015G3	15	-	3000°K - CRI>80	1500 mm	1730	115	95	165	1500	-	3.7
7024AM2705G1	5	-	2700°K - CRI>80	500 mm	550	110	95	165	500	-	1.8
7024AM2710G1	10	-	2700°K - CRI>80	500 mm	1101	110	95	165	500	-	1.8
