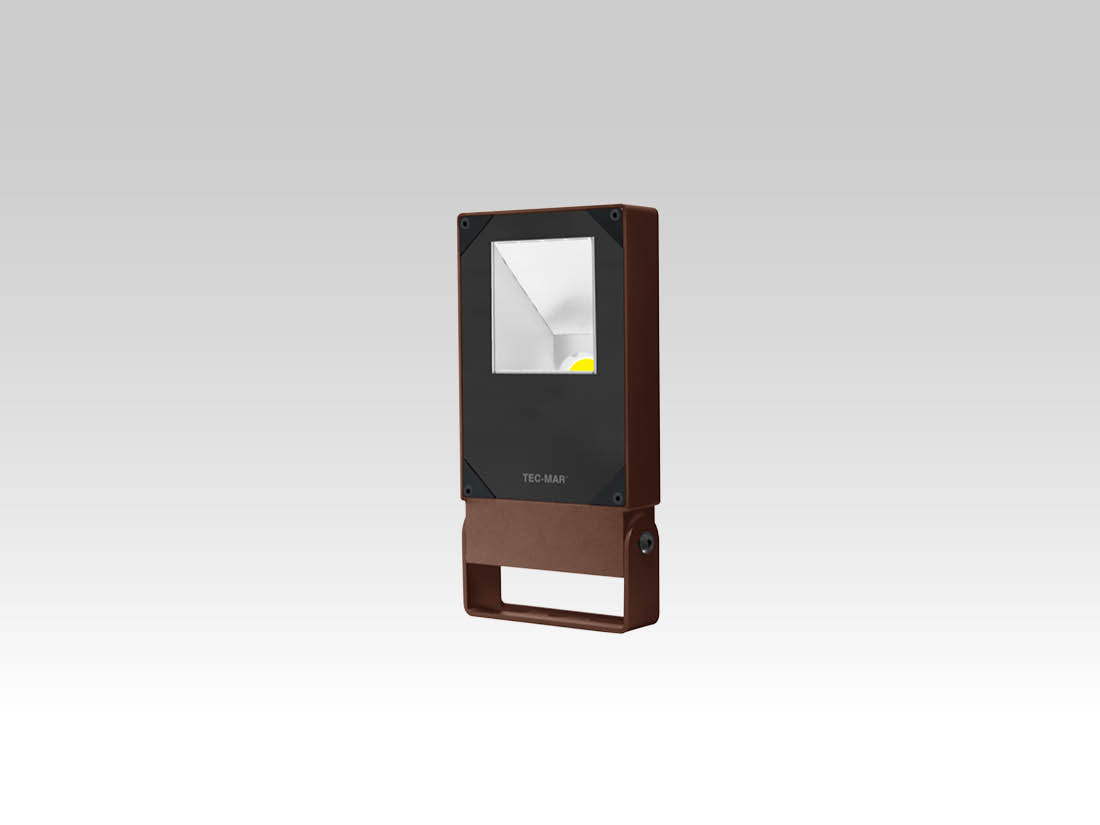

POLAR 1 – Mod. AR

(45° asymmetric optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 45° optics.

Categories: Led, POLAR, POLAR 1 - 7026, Floodlights, POLAR 1

Models: 144

Color: Dark brown

Catalogue abstract

Installation instructions

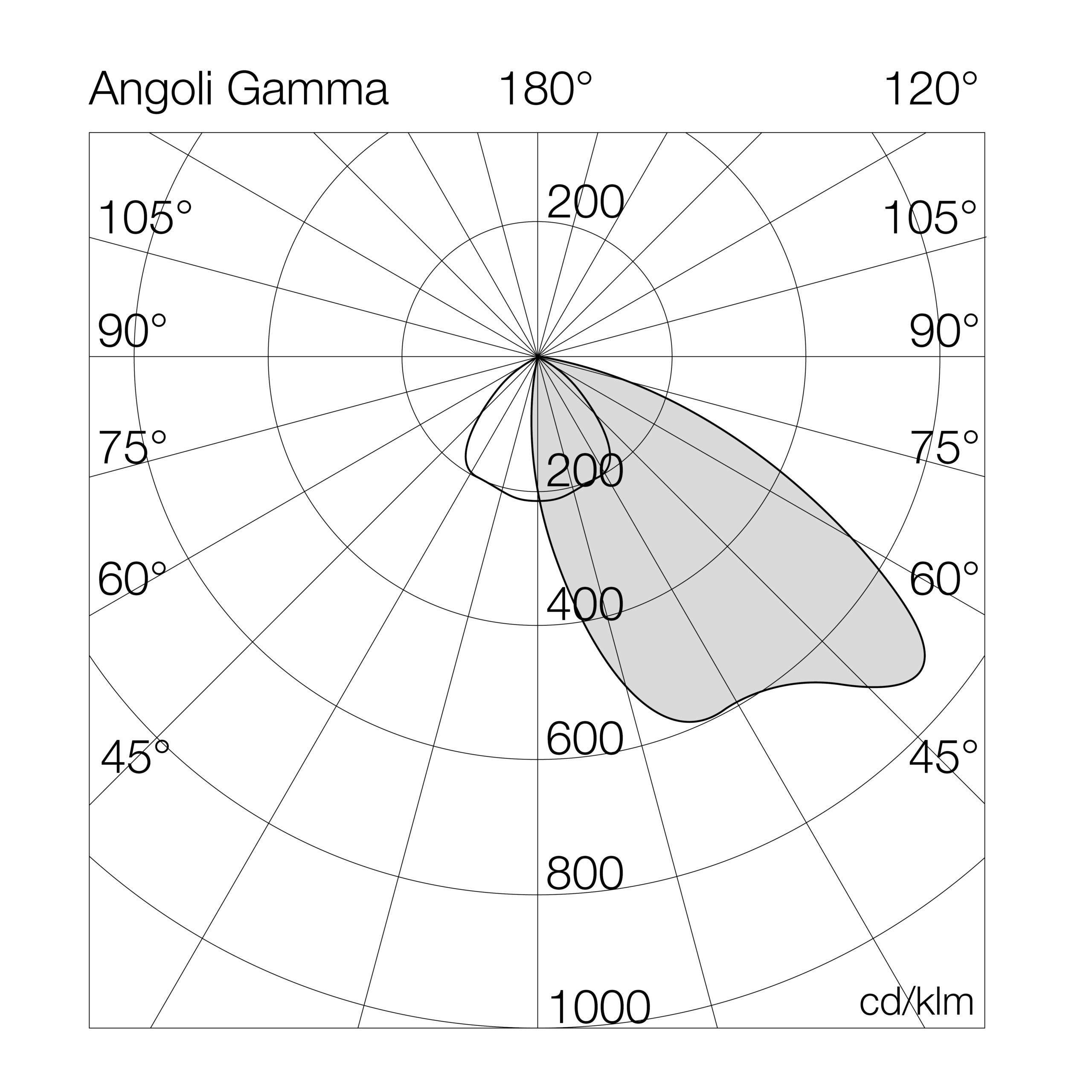

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7026	AR	22	= ambra (CRI >80)	30	CL	= on/off
		30	= 3000°K (CRI >80)	40	CD	= dali 2
		40	= 4000°K (CRI >80)	50	CA	= acid-etched glass
		50	= 5000°K (CRI >80)	54
				68
				73

Models

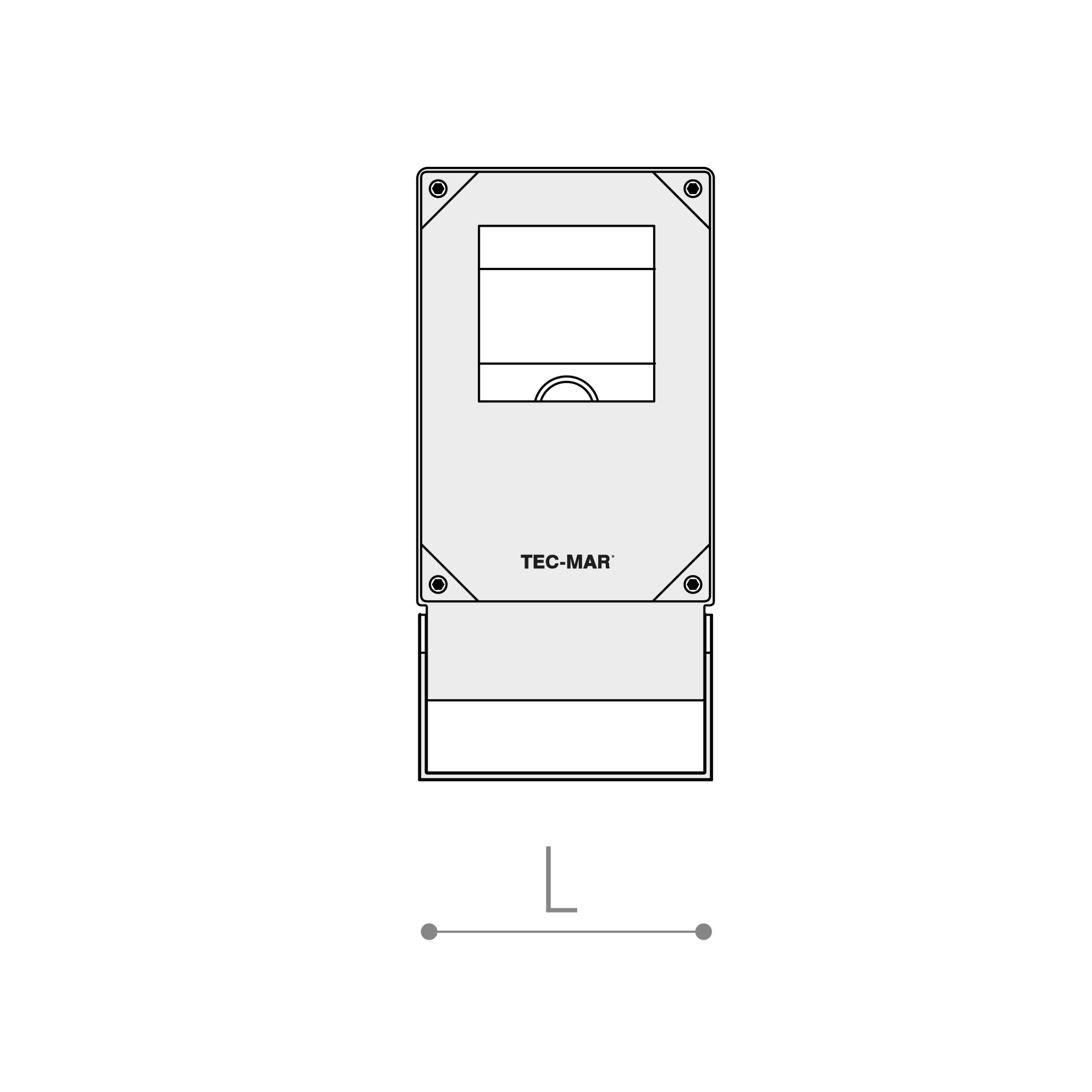

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7026AR4030CL	30	-	4000°K - CRI>80	on/off	3872	129	155	45	325	-	2.6
7026AR4040CL	40	-	4000°K - CRI>80	on/off	6014	150	155	45	325	-	2.6
7026AR4050CL	50	-	4000°K - CRI>80	on/off	7152	143	155	45	325	-	2.6
7026AR4054CL	54	-	4000°K - CRI>80	on/off	7614	141	155	45	325	-	2.6
7026AR4068CL	68	-	4000°K - CRI>80	on/off	8294	122	155	45	325	-	2.6
7026AR4073CL	73	-	4000°K - CRI>80	on/off	11052	151	155	45	325	-	2.6
7026AR4030CD	30	-	4000°K - CRI>80	dali	3872	129	155	45	325	-	2.6
7026AR4040CD	40	-	4000°K - CRI>80	dali	6014	150	155	45	325	-	2.6
7026AR4050CD	50	-	4000°K - CRI>80	dali	7152	143	155	45	325	-	2.6
7026AR4054CD	54	-	4000°K - CRI>80	dali	7614	141	155	45	325	-	2.6
7026AR4068CD	68	-	4000°K - CRI>80	dali	8294	122	155	45	325	-	2.6
7026AR4073CD	73	-	4000°K - CRI>80	dali	11052	151	155	45	325	-	2.6
7026AR4030CA	30	-	4000°K - CRI>80	acid-etched glass	3872	129	155	45	325	-	2.6
7026AR4040CA	40	-	4000°K - CRI>80	acid-etched glass	6014	150	155	45	325	-	2.6
7026AR4050CA	50	-	4000°K - CRI>80	acid-etched glass	7152	143	155	45	325	-	2.6
7026AR4054CA	54	-	4000°K - CRI>80	acid-etched glass	7614	141	155	45	325	-	2.6
7026AR4068CA	68	-	4000°K - CRI>80	acid-etched glass	8294	122	155	45	325	-	2.6
7026AR4073CA	73	-	4000°K - CRI>80	acid-etched glass	11052	151	155	45	325	-	2.6
7026AR3030CL	30	-	3000°K - CRI>80	on/off	3668	122	155	45	325	-	2.6
7026AR3040CL	40	-	3000°K - CRI>80	on/off	5696	142	155	45	325	-	2.6
