POLAR 1 – Mod. CR

(29° focusing optics)

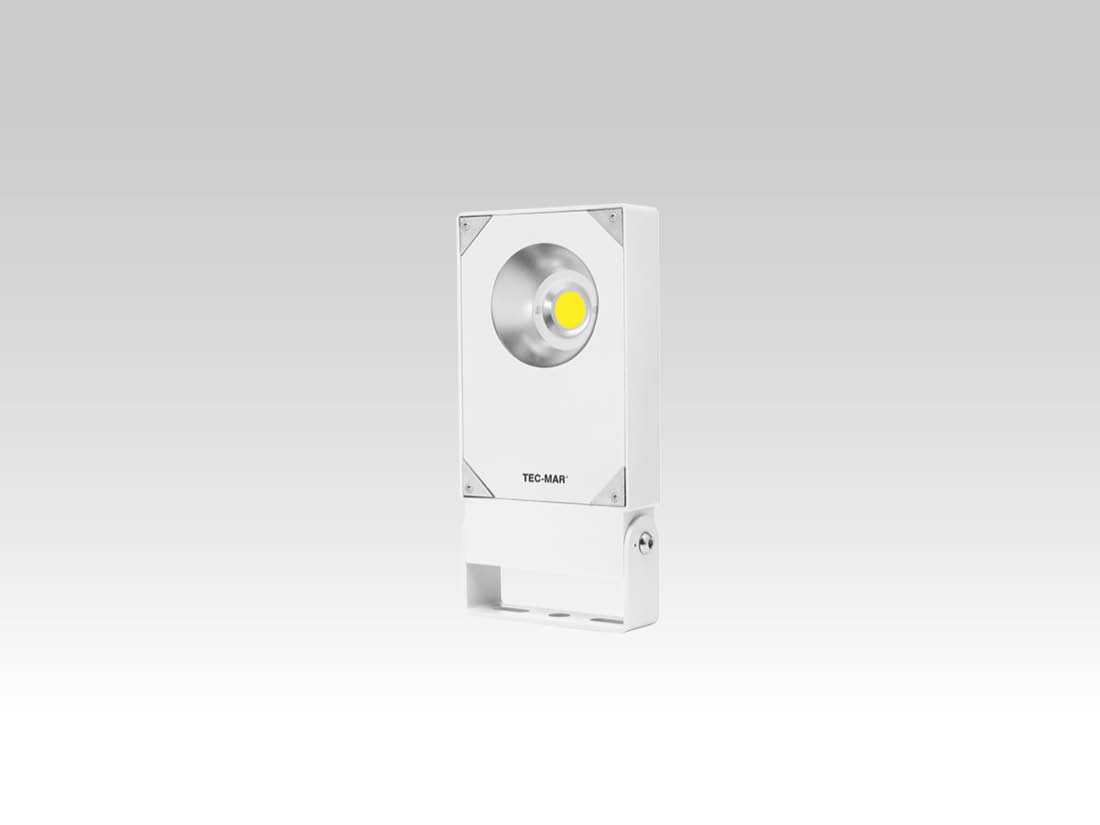

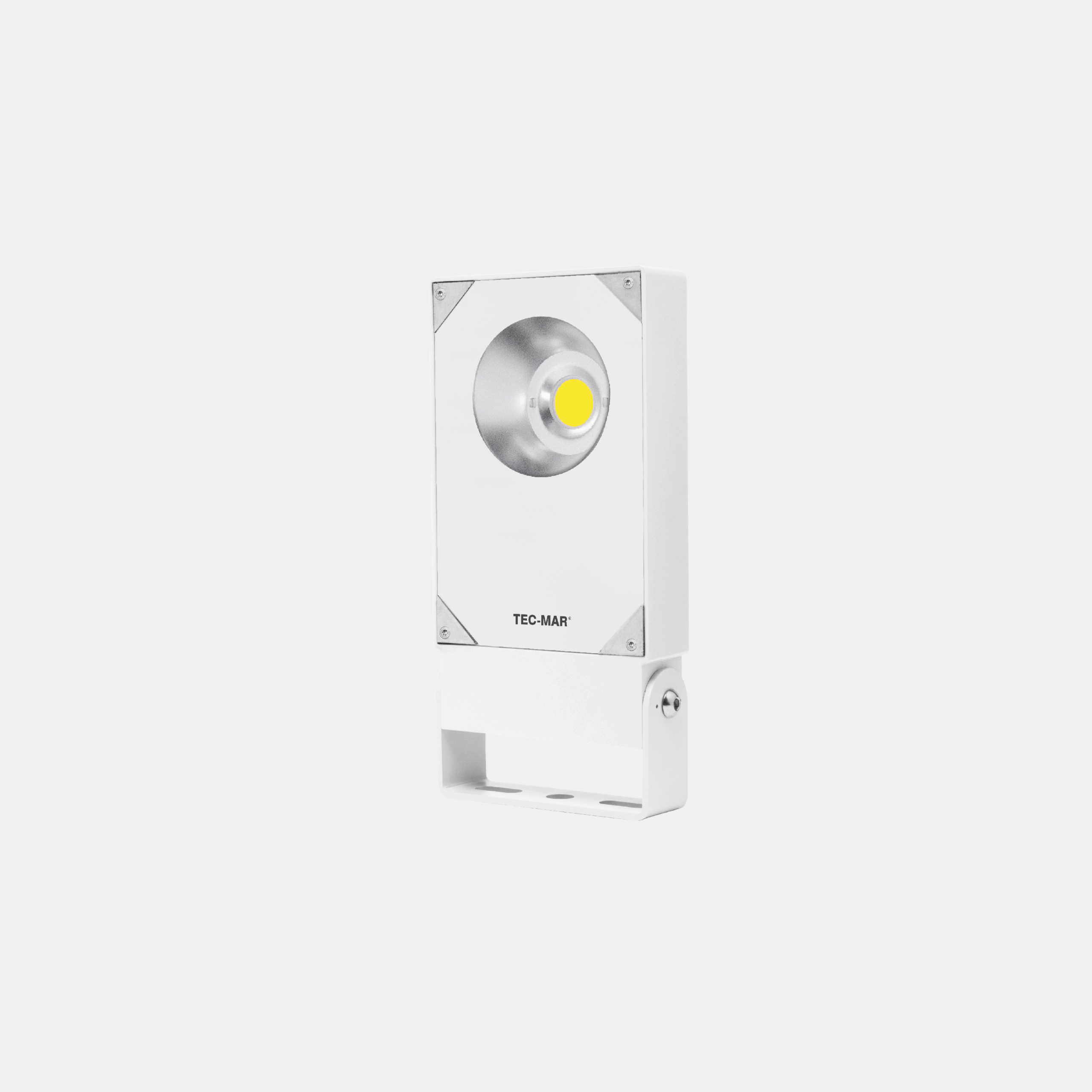

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with concentrating 29° optics.

Categories: Led, POLAR, POLAR 1 - 7026, Floodlights, POLAR 1

Models: 144

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7026	CR	22	= ambra (CRI >80)	30	BL	= on/off
		30	= 3000°K (CRI >80)	40	BD	= dali 2
		40	= 4000°K (CRI >80)	50	BA	= acid-etched glass
		50	= 5000°K (CRI >80)	54
				68
				73

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7026CR4030BL	30	-	4000°K - CRI>80	on/off	3940	131	155	45	325	-	2.6
7026CR4040BL	40	-	4000°K - CRI>80	on/off	6117	153	155	45	325	-	2.6
7026CR4050BL	50	-	4000°K - CRI>80	on/off	7276	146	155	45	325	-	2.6
7026CR4054BL	54	-	4000°K - CRI>80	on/off	7746	143	155	45	325	-	2.6
7026CR4068BL	68	-	4000°K - CRI>80	on/off	8437	124	155	45	325	-	2.6
7026CR4073BL	73	-	4000°K - CRI>80	on/off	11243	154	155	45	325	-	2.6
7026CR4030BD	30	-	4000°K - CRI>80	dali	3940	131	155	45	325	-	2.6
7026CR4040BD	40	-	4000°K - CRI>80	dali	6117	153	155	45	325	-	2.6
7026CR4050BD	50	-	4000°K - CRI>80	dali	7276	146	155	45	325	-	2.6
7026CR4054BD	54	-	4000°K - CRI>80	dali	7746	143	155	45	325	-	2.6
7026CR4068BD	68	-	4000°K - CRI>80	dali	8437	124	155	45	325	-	2.6
7026CR4073BD	73	-	4000°K - CRI>80	dali	11243	154	155	45	325	-	2.6
7026CR4030BA	30	-	4000°K - CRI>80	acid-etched glass	3940	131	155	45	325	-	2.6
7026CR4040BA	40	-	4000°K - CRI>80	acid-etched glass	6117	153	155	45	325	-	2.6
7026CR4050BA	50	-	4000°K - CRI>80	acid-etched glass	7276	146	155	45	325	-	2.6
7026CR4054BA	54	-	4000°K - CRI>80	acid-etched glass	7746	143	155	45	325	-	2.6
7026CR4068BA	68	-	4000°K - CRI>80	acid-etched glass	8437	124	155	45	325	-	2.6
7026CR4073BA	73	-	4000°K - CRI>80	acid-etched glass	11243	154	155	45	325	-	2.6
7026CR3030BL	30	-	3000°K - CRI>80	on/off	3732	124	155	45	325	-	2.6
7026CR3040BL	40	-	3000°K - CRI>80	on/off	5794	145	155	45	325	-	2.6
