POLAR 1 – Mod. CR

(29° focusing optics)

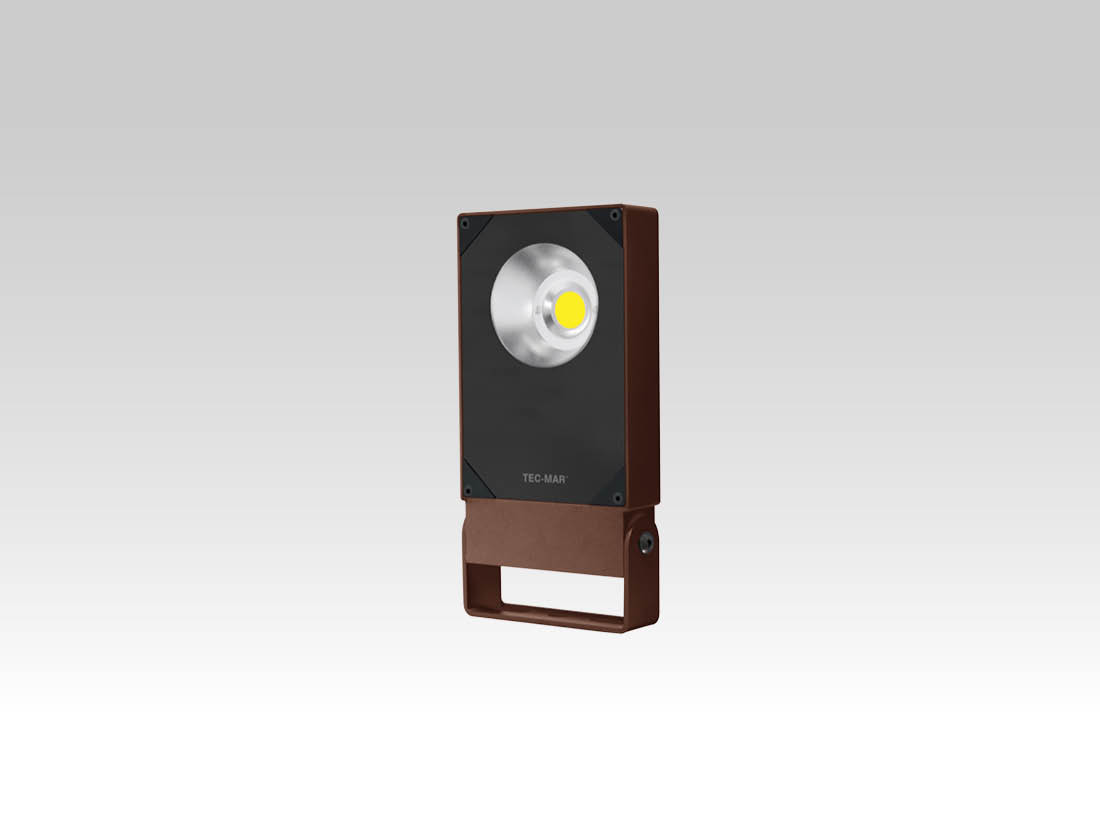

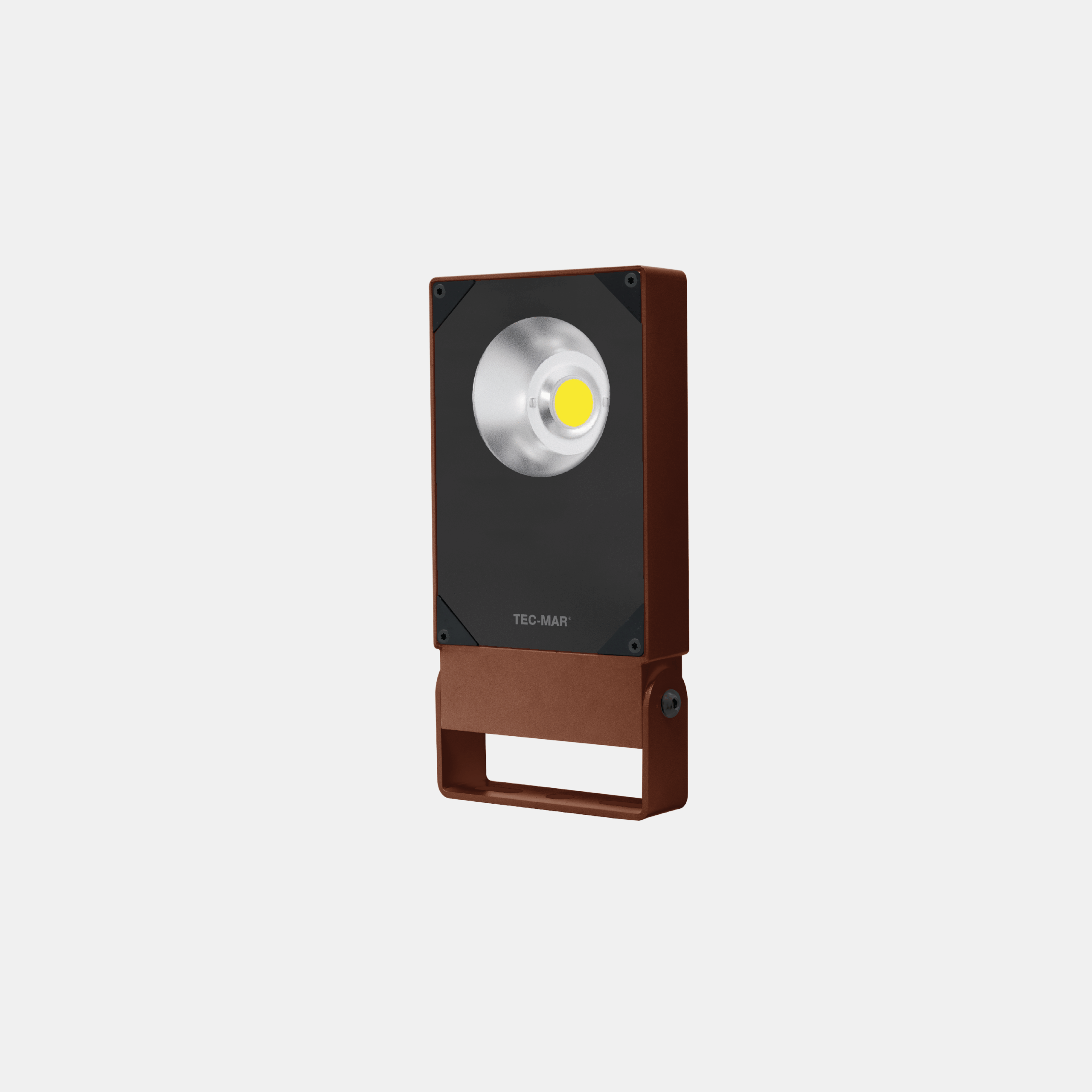

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with concentrating 29° optics.

Categories: Led, POLAR, POLAR 1 - 7026, Floodlights, POLAR 1

Models: 144

Color: Dark brown

Catalogue abstract

Installation instructions

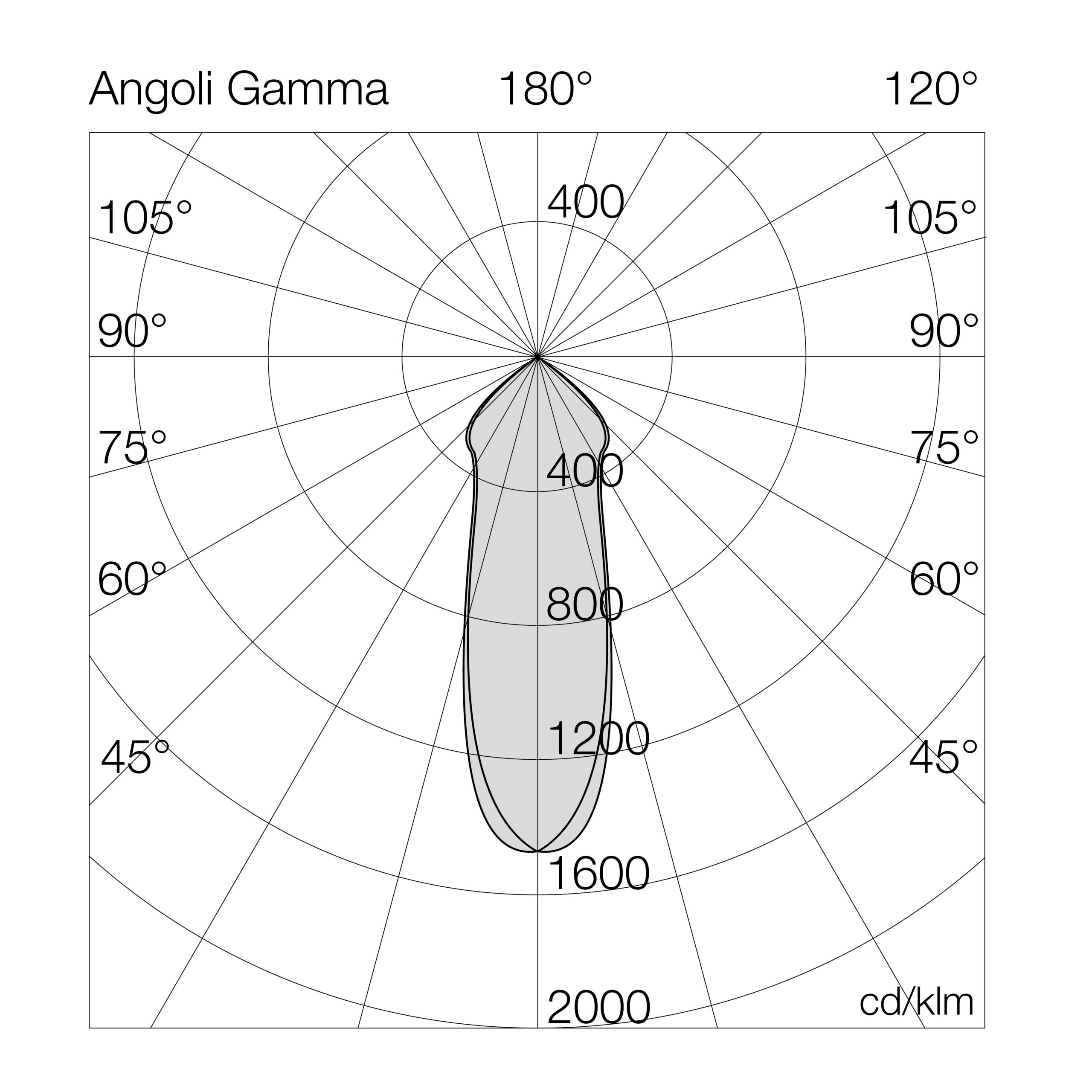

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7026	CR	22	= ambra (CRI >80)	30	CL	= on/off
		30	= 3000°K (CRI >80)	40	CD	= dali 2
		40	= 4000°K (CRI >80)	50	CA	= acid-etched glass
		50	= 5000°K (CRI >80)	54
				68
				73

Models

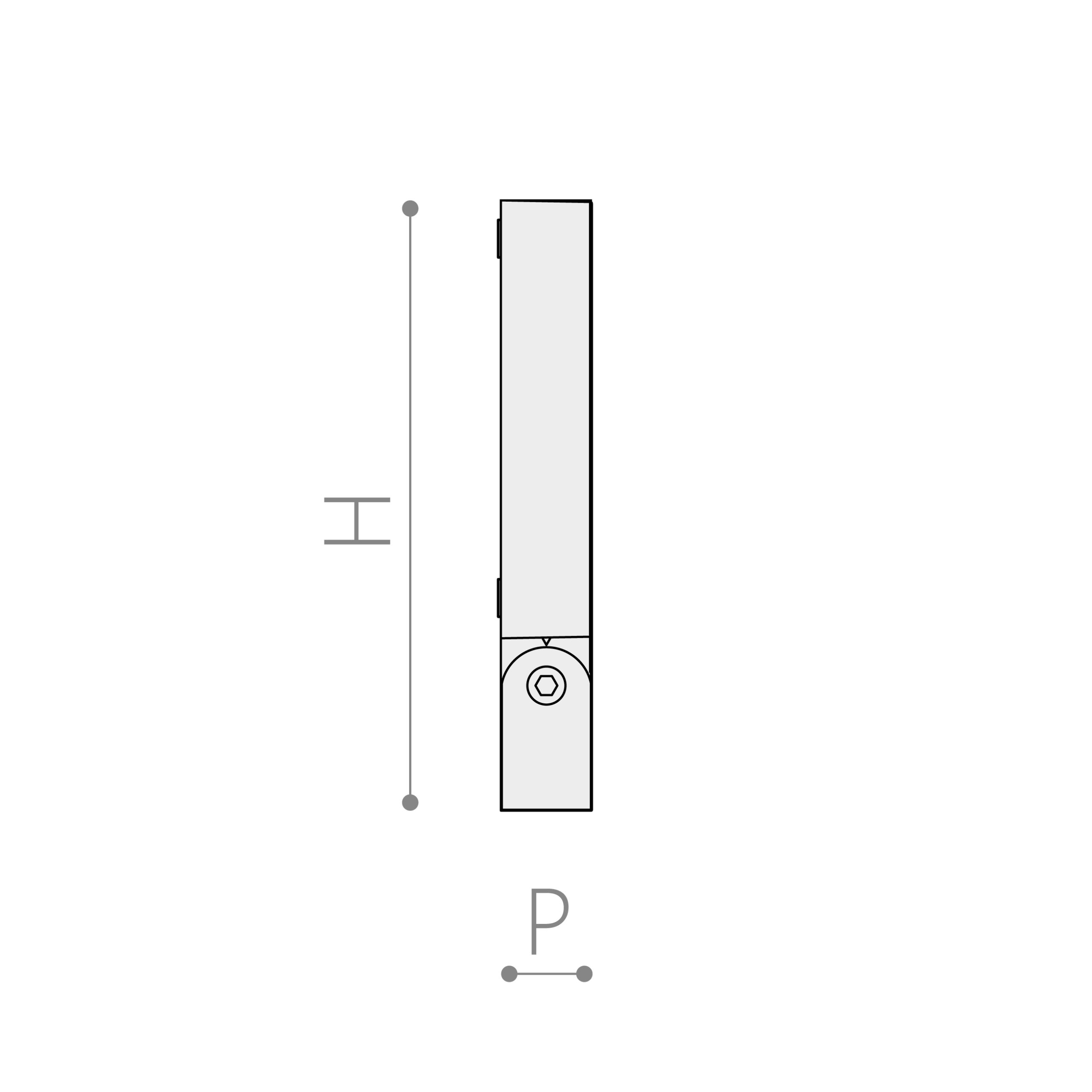

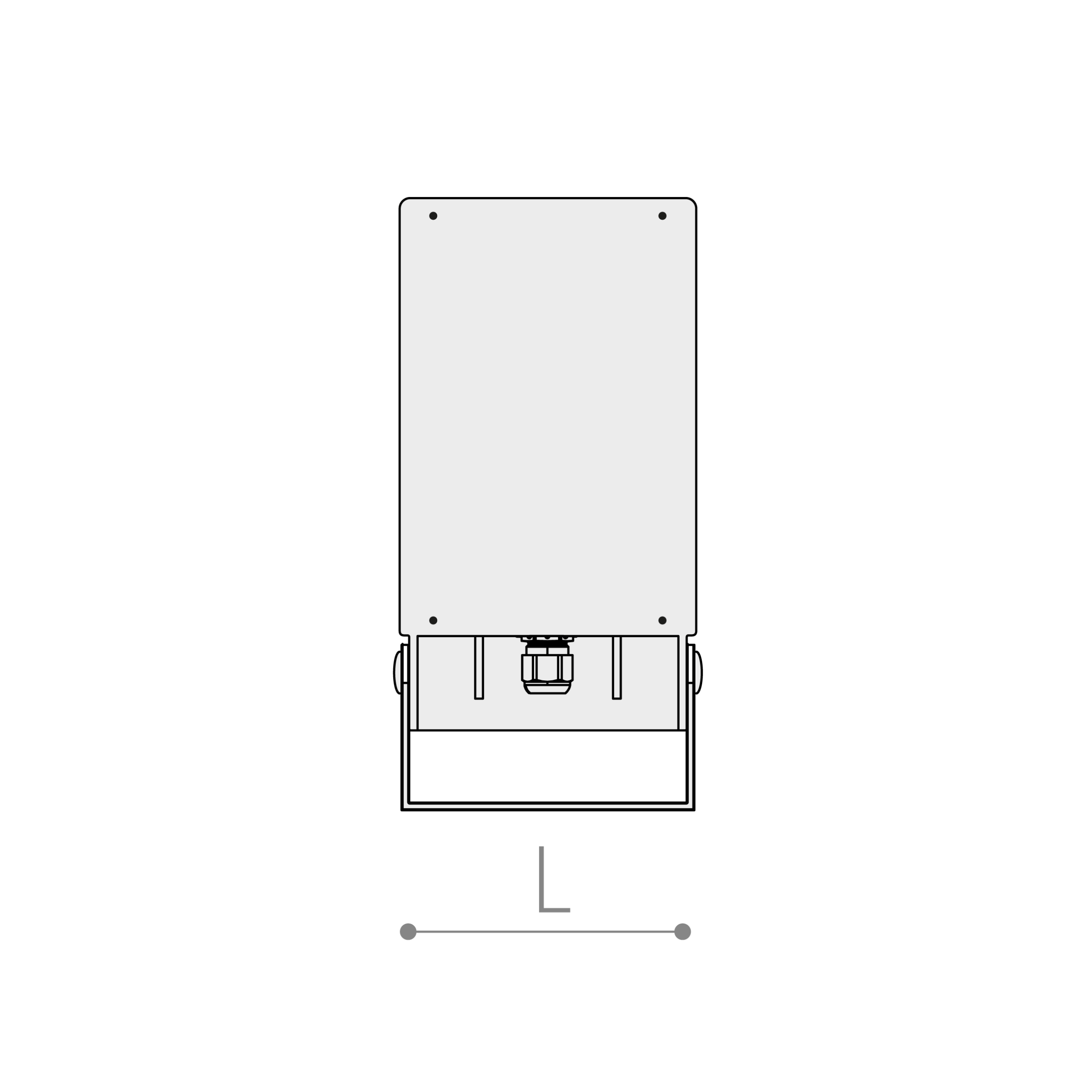

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7026CR4030CL	30	-	4000°K - CRI>80	on/off	3940	131	155	45	325	-	2.6
7026CR4040CL	40	-	4000°K - CRI>80	on/off	6117	153	155	45	325	-	2.6
7026CR4050CL	50	-	4000°K - CRI>80	on/off	7276	146	155	45	325	-	2.6
7026CR4054CL	54	-	4000°K - CRI>80	on/off	7746	143	155	45	325	-	2.6
7026CR4068CL	68	-	4000°K - CRI>80	on/off	8437	124	155	45	325	-	2.6
7026CR4073CL	73	-	4000°K - CRI>80	on/off	11243	154	155	45	325	-	2.6
7026CR4030CD	30	-	4000°K - CRI>80	dali	3940	131	155	45	325	-	2.6
7026CR4040CD	40	-	4000°K - CRI>80	dali	6117	153	155	45	325	-	2.6
7026CR4050CD	50	-	4000°K - CRI>80	dali	7276	146	155	45	325	-	2.6
7026CR4054CD	54	-	4000°K - CRI>80	dali	7746	143	155	45	325	-	2.6
7026CR4068CD	68	-	4000°K - CRI>80	dali	8437	124	155	45	325	-	2.6
7026CR4073CD	73	-	4000°K - CRI>80	dali	11243	154	155	45	325	-	2.6
7026CR4030CA	30	-	4000°K - CRI>80	acid-etched glass	3940	131	155	45	325	-	2.6
7026CR4040CA	40	-	4000°K - CRI>80	acid-etched glass	6117	153	155	45	325	-	2.6
7026CR4050CA	50	-	4000°K - CRI>80	acid-etched glass	7276	146	155	45	325	-	2.6
7026CR4054CA	54	-	4000°K - CRI>80	acid-etched glass	7746	143	155	45	325	-	2.6
7026CR4068CA	68	-	4000°K - CRI>80	acid-etched glass	8437	124	155	45	325	-	2.6
7026CR4073CA	73	-	4000°K - CRI>80	acid-etched glass	11243	154	155	45	325	-	2.6
7026CR3030CL	30	-	3000°K - CRI>80	on/off	3732	124	155	45	325	-	2.6
7026CR3040CL	40	-	3000°K - CRI>80	on/off	5794	145	155	45	325	-	2.6
