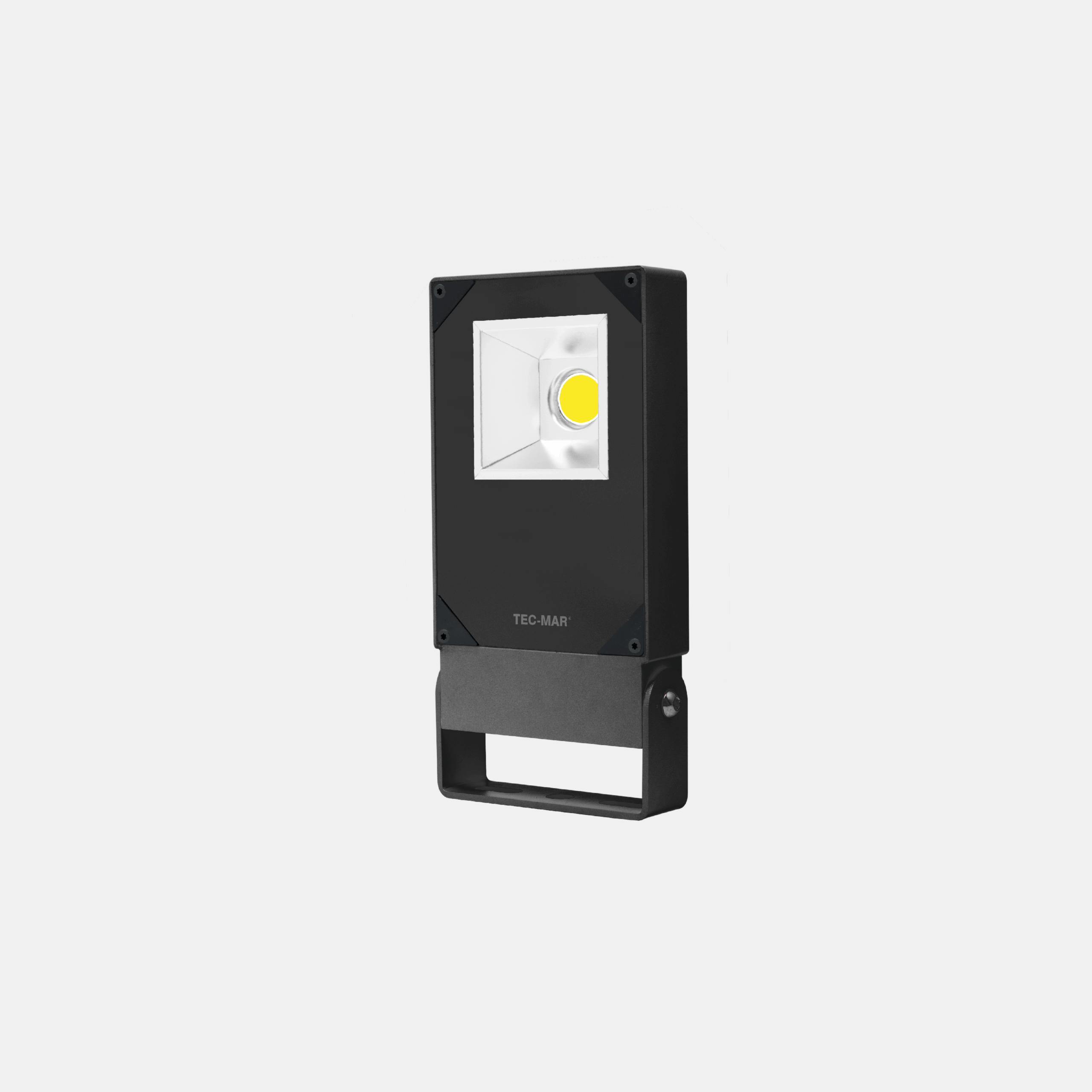

POLAR 1 – Mod. PR

(90° symmetrical optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with symmetrical 90° optics.
Categories: Led, POLAR, POLAR 1 - 7026, Floodlights, POLAR 1
Models: 144
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7026PR22= ambra (CRI >80) 30EL= on/off
30= 3000°K (CRI >80)40LD= dali 2
40= 4000°K (CRI >80)50VA= acid-etched glass
50= 5000°K (CRI >80)54
68
73

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7026PR4030EL30-4000°K - CRI>80on/off409513615545325-2.6
7026PR4040EL40-4000°K - CRI>80on/off635215915545325-2.6
7026PR4050EL50-4000°K - CRI>80on/off755515115545325-2.6
7026PR4054EL54-4000°K - CRI>80on/off804314915545325-2.6
7026PR4068EL68-4000°K - CRI>80on/off876112915545325-2.6
7026PR4073EL73-4000°K - CRI>80on/off1167516015545325-2.6
7026PR4030LD30-4000°K - CRI>80dali1167516015545325-2.6
7026PR4040LD40-4000°K - CRI>80dali635215915545325-2.6
7026PR4050LD50-4000°K - CRI>80dali1167516015545325-2.6
7026PR4054LD54-4000°K - CRI>80dali1105915115545325-2.6
7026PR4068LD68-4000°K - CRI>80dali1105915115545325-2.6
7026PR4073LD73-4000°K - CRI>80dali1167516015545325-2.6
7026PR4030VA30-4000°K - CRI>80acid-etched glass1178016115545325-2.6
7026PR4040VA40-4000°K - CRI>80acid-etched glass635215915545325-2.6
7026PR4050VA50-4000°K - CRI>80acid-etched glass1178016115545325-2.6
7026PR4054VA54-4000°K - CRI>80acid-etched glass1179216215545325-2.6
7026PR4068VA68-4000°K - CRI>80acid-etched glass1179216215545325-2.6
7026PR4073VA73-4000°K - CRI>80acid-etched glass1167516015545325-2.6
7026PR3030EL30-3000°K - CRI>80on/off1179216215545325-2.6
7026PR3040EL40-3000°K - CRI>80on/off601715015545325-2.6

Accessories
