POLAR 1 – Mod. RR

(65° asymmetric optics)

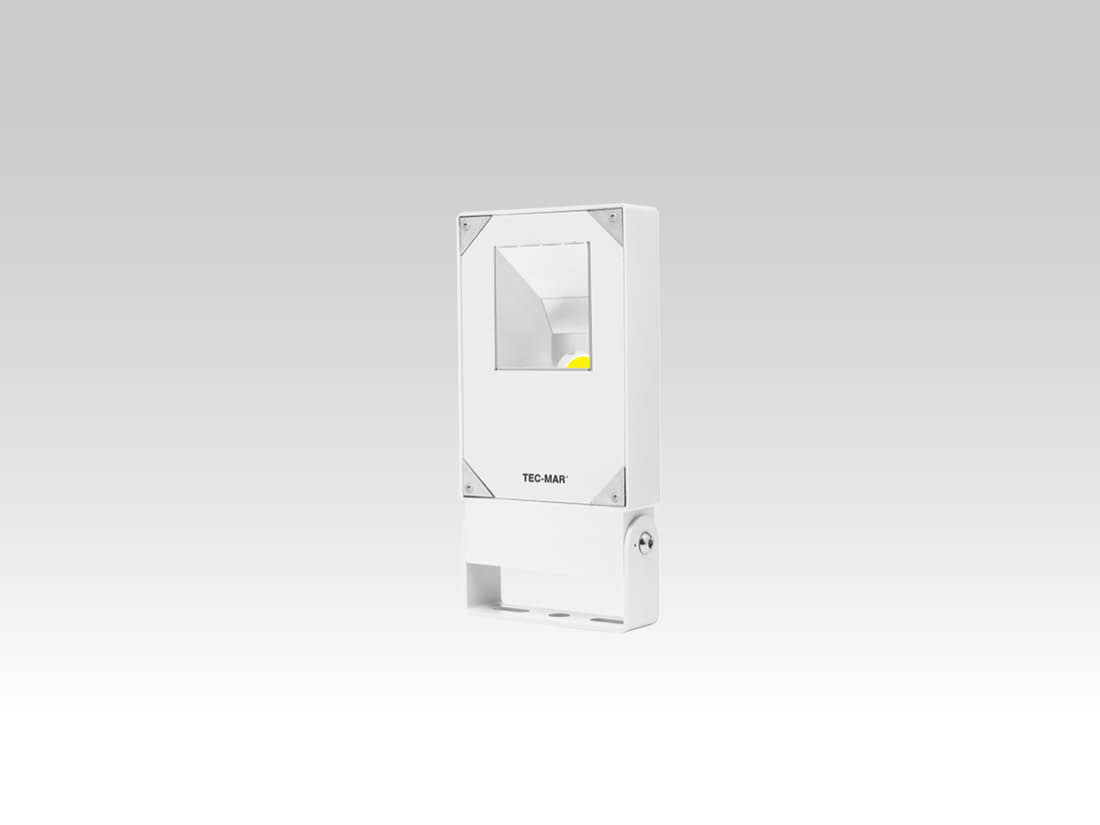

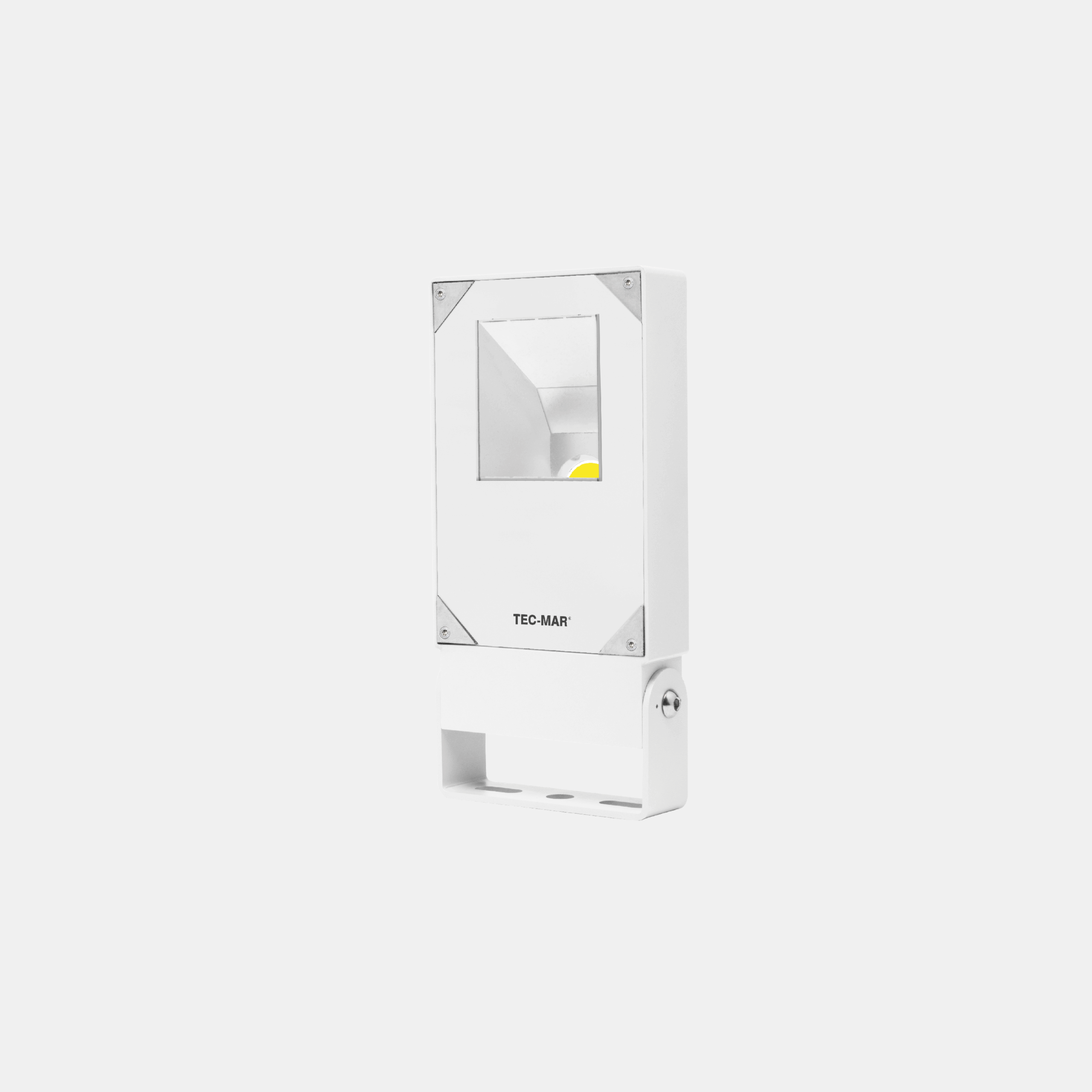

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in white. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.

Categories: Led, POLAR, POLAR 1 - 7026, Floodlights, POLAR 1

Models: 144

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7026	RR	22	= ambra (CRI >80)	30	BL	= on/off
		30	= 3000°K (CRI >80)	40	BD	= dali 2
		40	= 4000°K (CRI >80)	50	BA	= acid-etched glass
		50	= 5000°K (CRI >80)	54
				68
				73

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7026RR4030BL	30	-	4000°K - CRI>80	on/off	3690	123	155	45	325	-	2.6
7026RR4040BL	40	-	4000°K - CRI>80	on/off	5737	143	155	45	325	-	2.6
7026RR4050BL	50	-	4000°K - CRI>80	on/off	6823	136	155	45	325	-	2.6
7026RR4054BL	54	-	4000°K - CRI>80	on/off	7264	135	155	45	325	-	2.6
7026RR4068BL	68	-	4000°K - CRI>80	on/off	7912	116	155	45	325	-	2.6
7026RR4073BL	73	-	4000°K - CRI>80	on/off	10544	144	155	45	325	-	2.6
7026RR4030BD	30	-	4000°K - CRI>80	dali	3690	123	155	45	325	-	2.6
7026RR4040BD	40	-	4000°K - CRI>80	dali	5737	143	155	45	325	-	2.6
7026RR4050BD	50	-	4000°K - CRI>80	dali	6823	136	155	45	325	-	2.6
7026RR4054BD	54	-	4000°K - CRI>80	dali	7264	135	155	45	325	-	2.6
7026RR4068BD	68	-	4000°K - CRI>80	dali	7912	116	155	45	325	-	2.6
7026RR4073BD	73	-	4000°K - CRI>80	dali	10544	144	155	45	325	-	2.6
7026RR4030BA	30	-	4000°K - CRI>80	acid-etched glass	3690	123	155	45	325	-	2.6
7026RR4040BA	40	-	4000°K - CRI>80	acid-etched glass	5737	143	155	45	325	-	2.6
7026RR4050BA	50	-	4000°K - CRI>80	acid-etched glass	6823	136	155	45	325	-	2.6
7026RR4054BA	54	-	4000°K - CRI>80	acid-etched glass	7264	135	155	45	325	-	2.6
7026RR4068BA	68	-	4000°K - CRI>80	acid-etched glass	7912	116	155	45	325	-	2.6
7026RR4073BA	73	-	4000°K - CRI>80	acid-etched glass	10544	144	155	45	325	-	2.6
7026RR3030BL	30	-	3000°K - CRI>80	on/off	3495	117	155	45	325	-	2.6
7026RR3040BL	40	-	3000°K - CRI>80	on/off	5434	136	155	45	325	-	2.6
