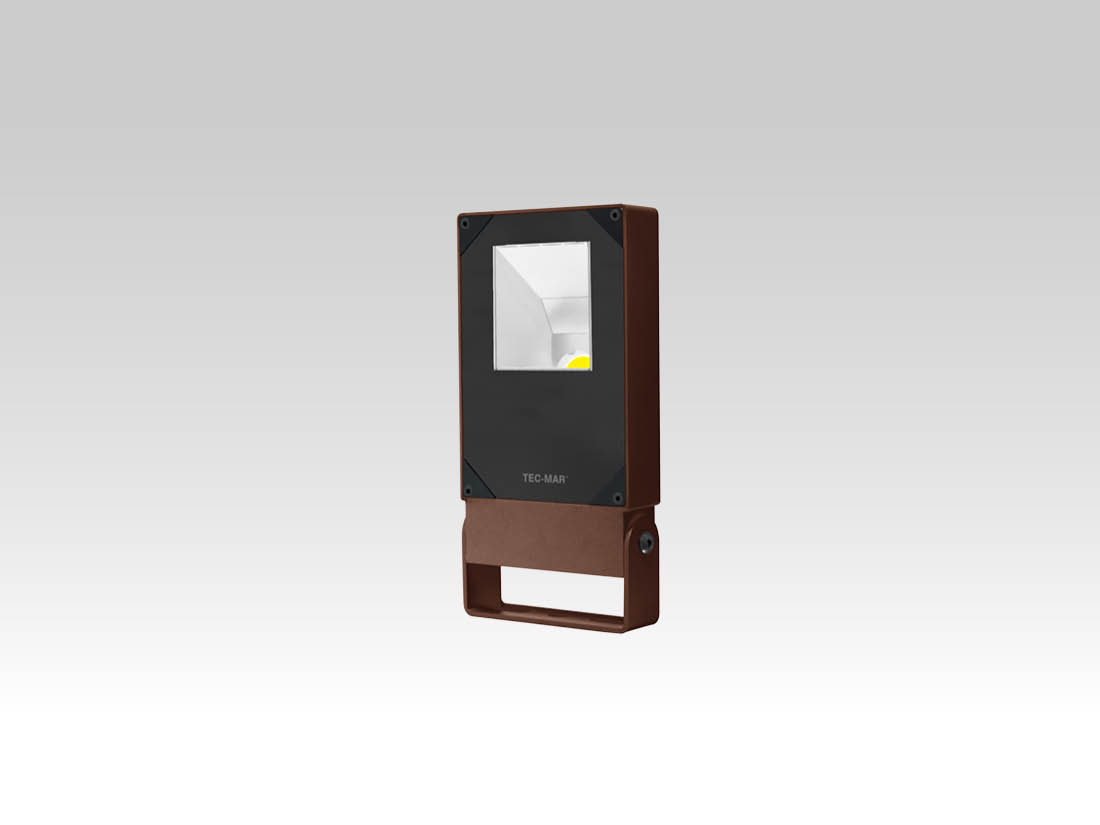

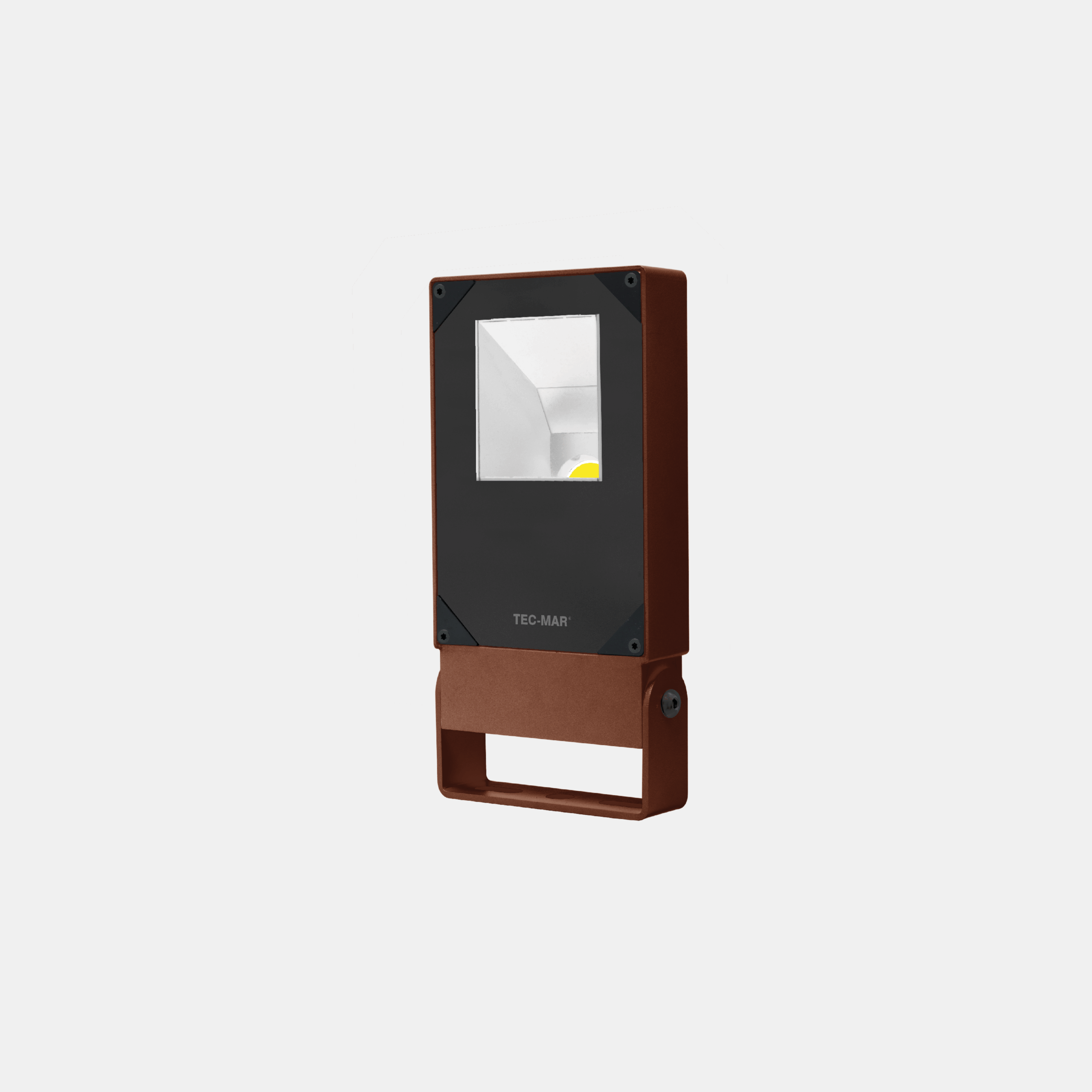

POLAR 1 – Mod. RR

(65° asymmetric optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in corten. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.

Categories: Led, POLAR, POLAR 1 - 7026, Floodlights, POLAR 1

Models: 144

Color: Dark brown

Catalogue abstract

Installation instructions

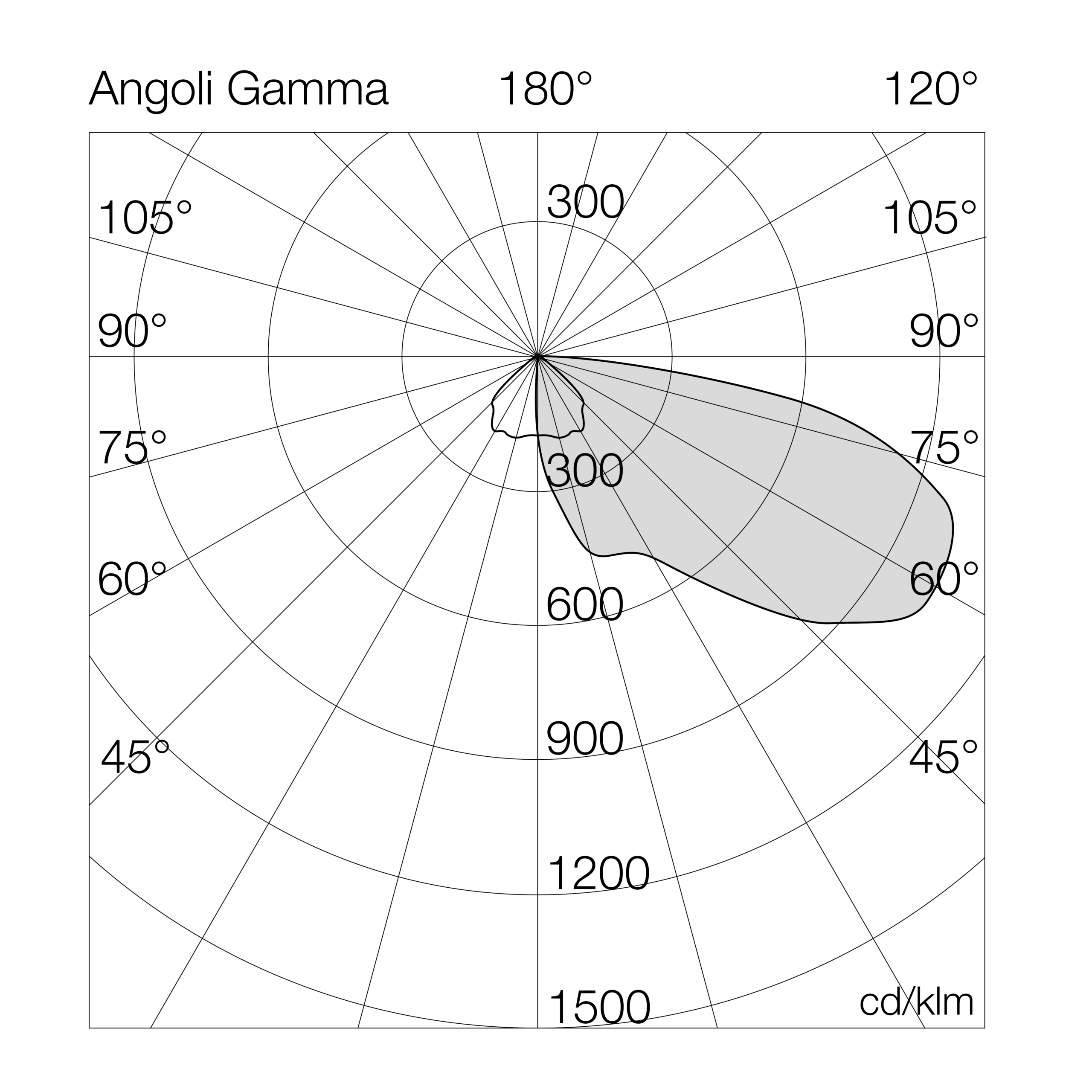

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7026	RR	22	= ambra (CRI >80)	30	CL	= on/off
		30	= 3000°K (CRI >80)	40	CD	= dali 2
		40	= 4000°K (CRI >80)	50	CA	= acid-etched glass
		50	= 5000°K (CRI >80)	54
				68
				73

Models

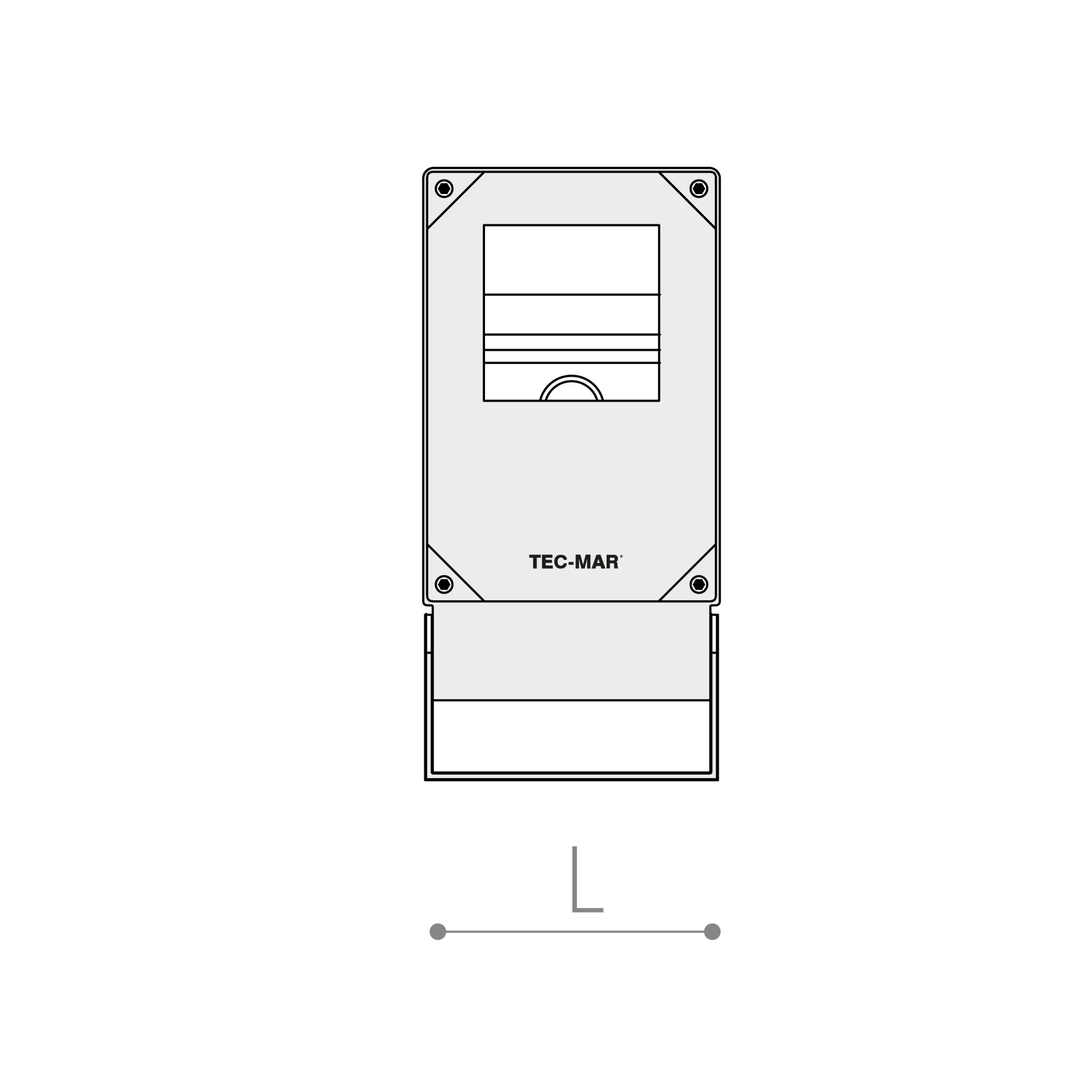

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7026RR4030CL	30	-	4000°K - CRI>80	on/off	3690	123	155	45	325	-	2.6
7026RR4040CL	40	-	4000°K - CRI>80	on/off	5737	143	155	45	325	-	2.6
7026RR4050CL	50	-	4000°K - CRI>80	on/off	6823	136	155	45	325	-	2.6
7026RR4054CL	54	-	4000°K - CRI>80	on/off	7264	135	155	45	325	-	2.6
7026RR4068CL	68	-	4000°K - CRI>80	on/off	7912	116	155	45	325	-	2.6
7026RR4073CL	73	-	4000°K - CRI>80	on/off	10544	144	155	45	325	-	2.6
7026RR4030CD	30	-	4000°K - CRI>80	dali	3690	123	155	45	325	-	2.6
7026RR4040CD	40	-	4000°K - CRI>80	dali	5737	143	155	45	325	-	2.6
7026RR4050CD	50	-	4000°K - CRI>80	dali	6823	136	155	45	325	-	2.6
7026RR4054CD	54	-	4000°K - CRI>80	dali	7264	135	155	45	325	-	2.6
7026RR4068CD	68	-	4000°K - CRI>80	dali	7912	116	155	45	325	-	2.6
7026RR4073CD	73	-	4000°K - CRI>80	dali	10544	144	155	45	325	-	2.6
7026RR4030CA	30	-	4000°K - CRI>80	acid-etched glass	3690	123	155	45	325	-	2.6
7026RR4040CA	40	-	4000°K - CRI>80	acid-etched glass	5737	143	155	45	325	-	2.6
7026RR4050CA	50	-	4000°K - CRI>80	acid-etched glass	6823	136	155	45	325	-	2.6
7026RR4054CA	54	-	4000°K - CRI>80	acid-etched glass	7264	135	155	45	325	-	2.6
7026RR4068CA	68	-	4000°K - CRI>80	acid-etched glass	7912	116	155	45	325	-	2.6
7026RR4073CA	73	-	4000°K - CRI>80	acid-etched glass	10544	144	155	45	325	-	2.6
7026RR3030CL	30	-	3000°K - CRI>80	on/off	3495	117	155	45	325	-	2.6
7026RR3040CL	40	-	3000°K - CRI>80	on/off	5434	136	155	45	325	-	2.6
