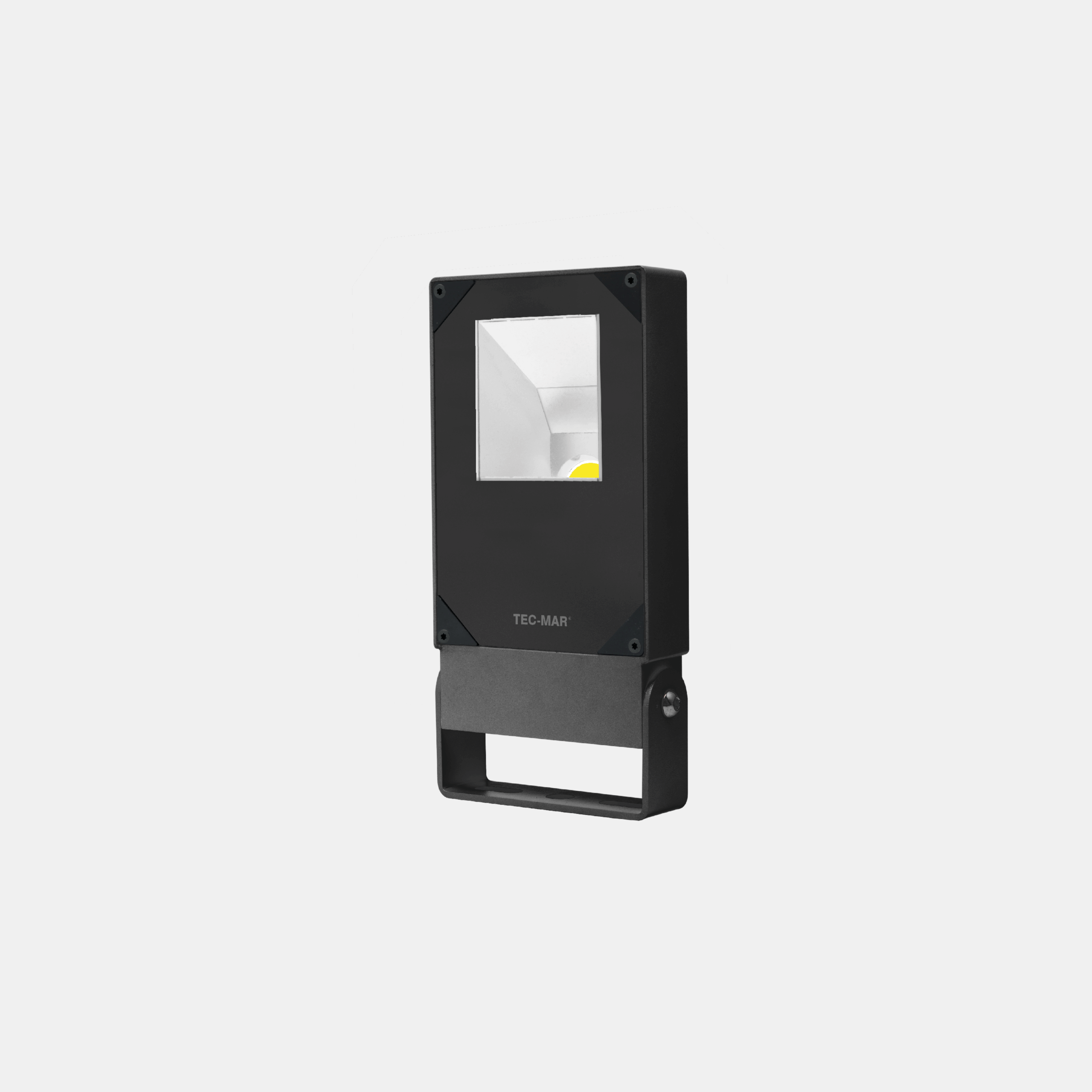

POLAR 1/RR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR 1 - 7026, POLAR, Floodlights, art. 7026 Polar 1

Models: 144

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7026	RR	22	= ambra (CRI >80)	30	EL	= on/off
		30	= 3000°K (CRI >80)	40	LD	= dali 2
		40	= 4000°K (CRI >80)	50	VA	= acid-etched glass
		50	= 5000°K (CRI >80)	54
				68
				73

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7026RR4030EL	30	-	4000°K - CRI>80	on/off	3690	123	155	45	325	-	2.6
7026RR4040EL	40	-	4000°K - CRI>80	on/off	5737	143	155	45	325	-	2.6
7026RR4050EL	50	-	4000°K - CRI>80	on/off	6823	136	155	45	325	-	2.6
7026RR4054EL	54	-	4000°K - CRI>80	on/off	7264	135	155	45	325	-	2.6
7026RR4068EL	68	-	4000°K - CRI>80	on/off	7912	116	155	45	325	-	2.6
7026RR4073EL	73	-	4000°K - CRI>80	on/off	10544	144	155	45	325	-	2.6
7026RR4030LD	30	-	4000°K - CRI>80	dali	3690	123	155	45	325	-	2.6
7026RR4040LD	40	-	4000°K - CRI>80	dali	5737	143	155	45	325	-	2.6
7026RR4050LD	50	-	4000°K - CRI>80	dali	6823	136	155	45	325	-	2.6
7026RR4054LD	54	-	4000°K - CRI>80	dali	7264	135	155	45	325	-	2.6
7026RR4068LD	68	-	4000°K - CRI>80	dali	7912	116	155	45	325	-	2.6
7026RR4073LD	73	-	4000°K - CRI>80	dali	10544	144	155	45	325	-	2.6
7026RR4030VA	30	-	4000°K - CRI>80	acid-etched glass	3690	123	155	45	325	-	2.6
7026RR4040VA	40	-	4000°K - CRI>80	acid-etched glass	5737	143	155	45	325	-	2.6
7026RR4050VA	50	-	4000°K - CRI>80	acid-etched glass	6823	136	155	45	325	-	2.6
7026RR4054VA	54	-	4000°K - CRI>80	acid-etched glass	7264	135	155	45	325	-	2.6
7026RR4068VA	68	-	4000°K - CRI>80	acid-etched glass	7912	116	155	45	325	-	2.6
7026RR4073VA	73	-	4000°K - CRI>80	acid-etched glass	10544	144	155	45	325	-	2.6
7026RR3030EL	30	-	3000°K - CRI>80	on/off	3495	117	155	45	325	-	2.6
7026RR3040EL	40	-	3000°K - CRI>80	on/off	5434	136	155	45	325	-	2.6
