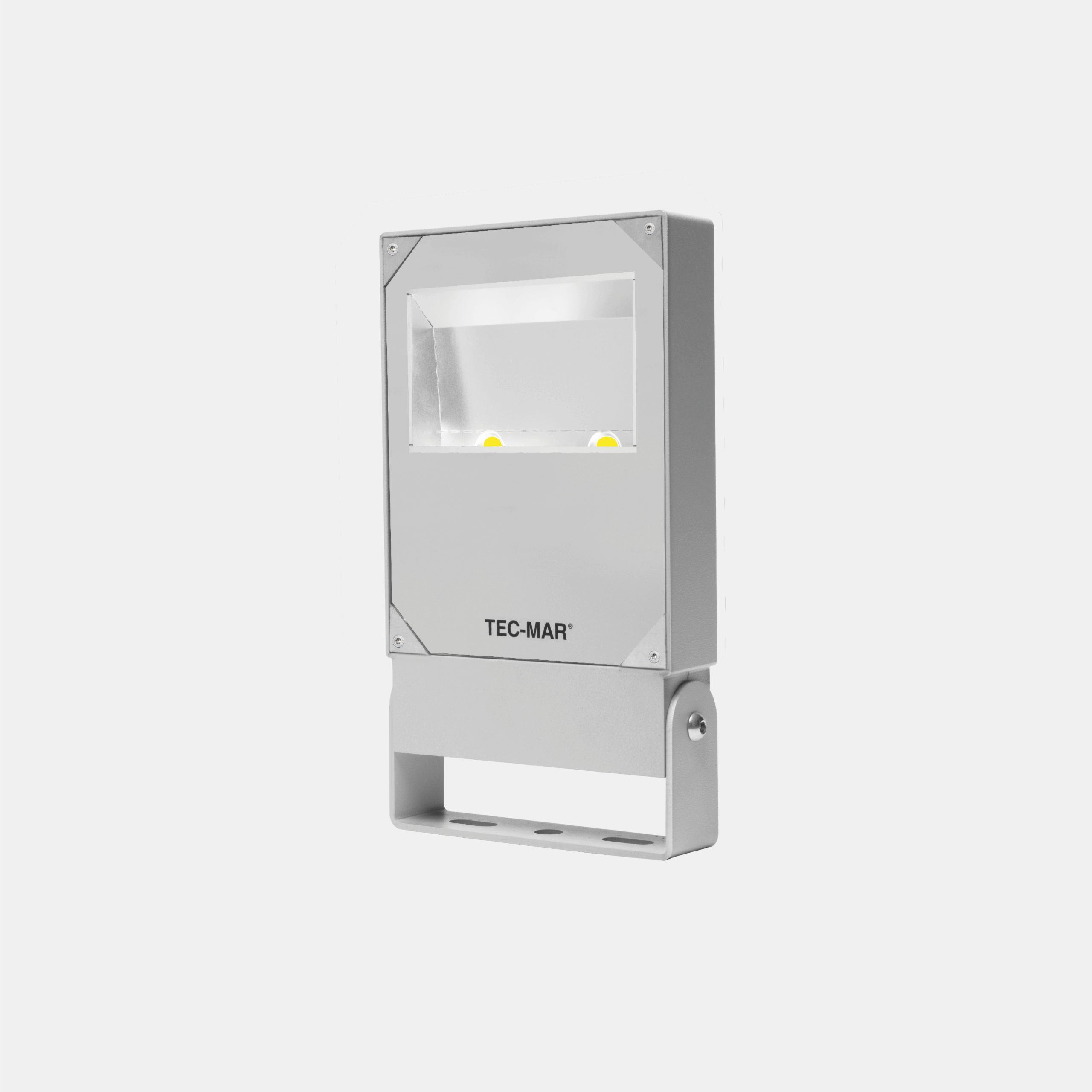

POLAR 2/AR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR, Floodlights, art. 7027 Polar 2

Models: 189

Color: Silver

Catalogue abstract

Installation instructions

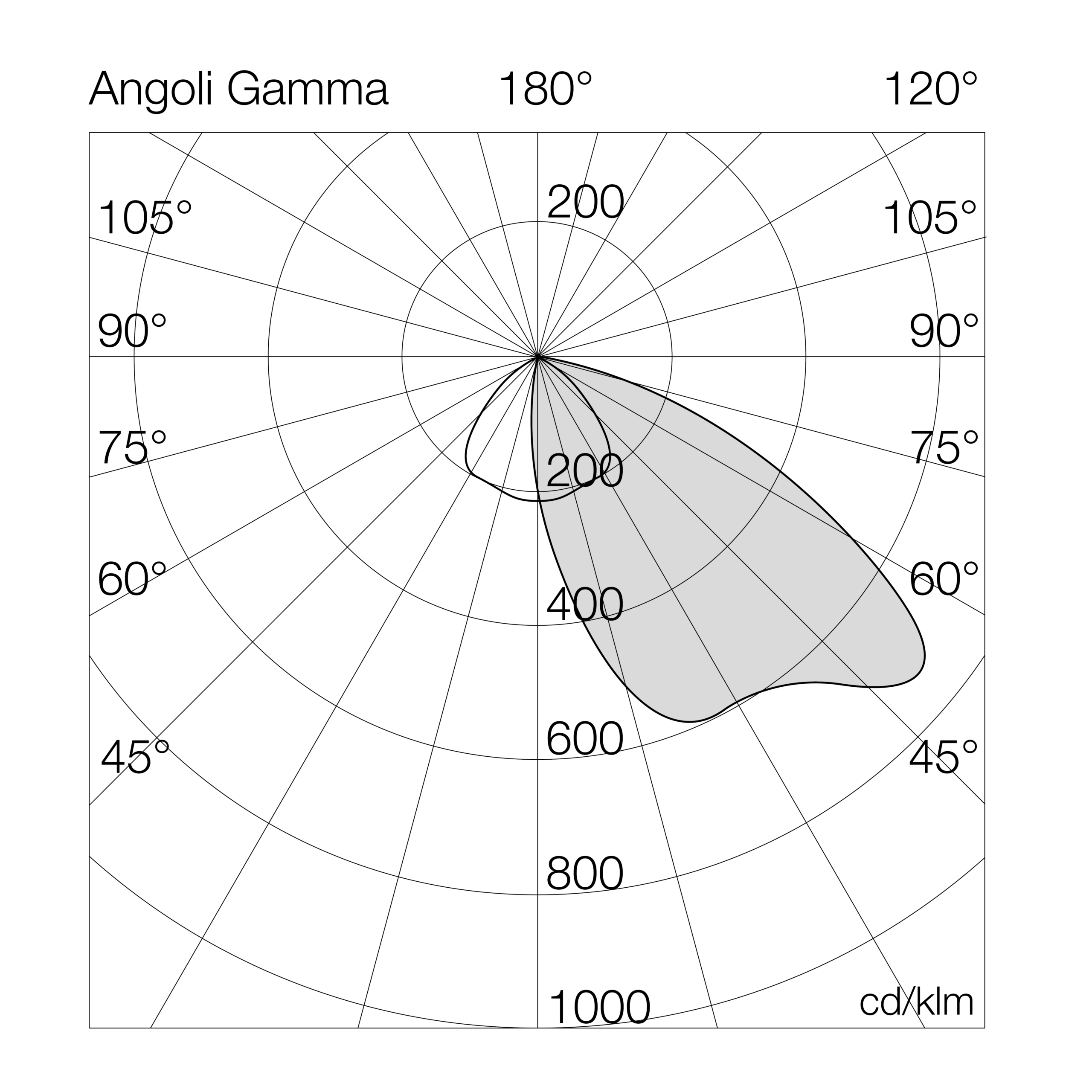

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7027	AR	2	= ambra (CRI >80)	030	GL	= on/off
		3	= 3000°K (CRI >80)	040	GD	= dali 2
		4	= 4000°K (CRI >80)	050	GA	= acid-etched glass
		5	= 5000°K (CRI >80)	060
		6	= 6500°K (CRI >80)	070
		7	= 5700°K (CRI >80)	080
		9	= 4000°K (CRI >90)	090
				100
				120

Models

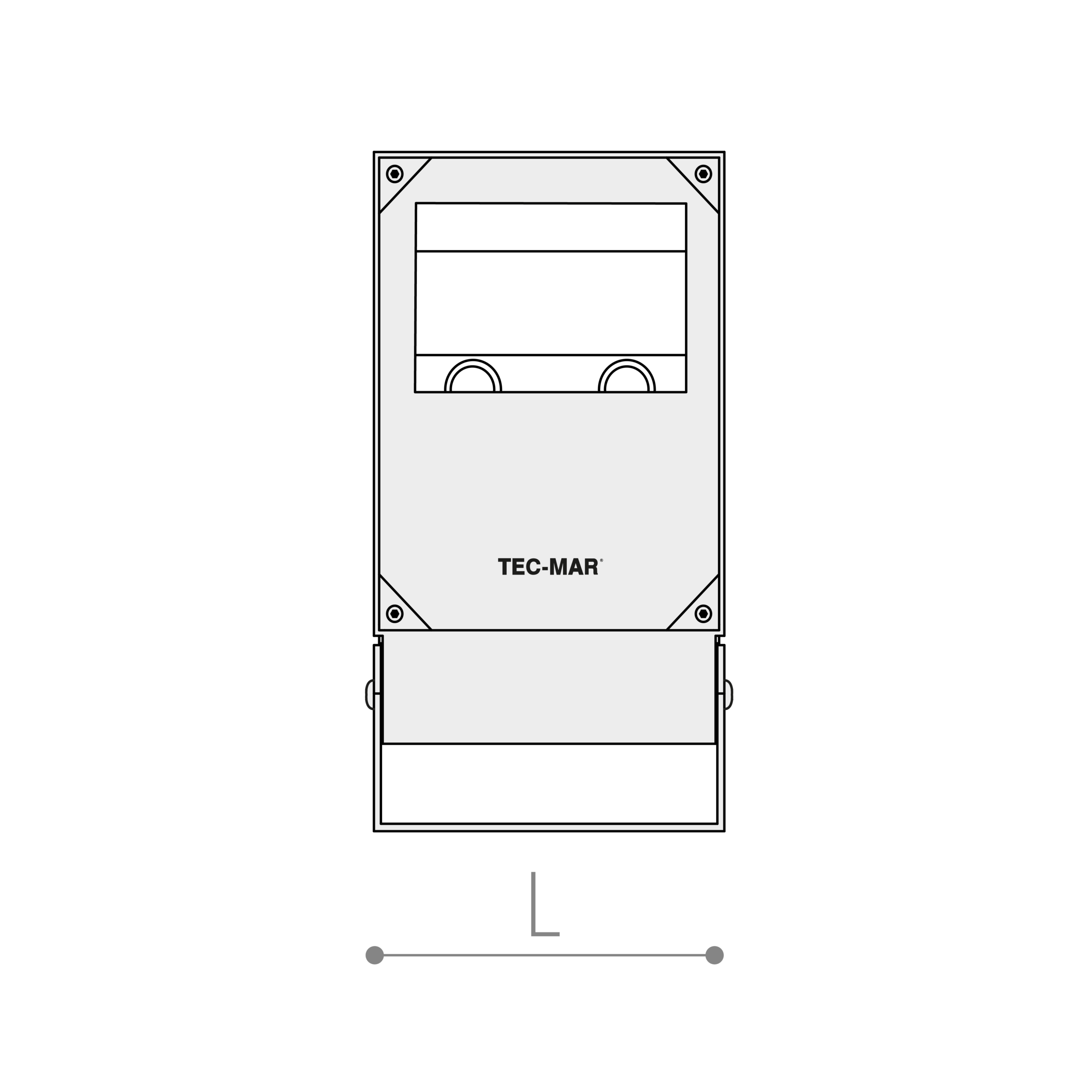

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
7027AR4030GL	30	4000°K - CRI>80	on/off	4833	161	205	50	365	3.7
7027AR4040GL	40	4000°K - CRI>80	on/off	6321	158	205	50	365	3.7
7027AR4050GL	50	4000°K - CRI>80	on/off	7744	155	205	50	365	3.7
7027AR4060GL	60	4000°K - CRI>80	on/off	8204	137	205	50	365	3.7
7027AR4070GL	70	4000°K - CRI>80	on/off	10967	157	205	50	365	3.7
7027AR4080GL	80	4000°K - CRI>80	on/off	12539	157	205	50	365	3.7
7027AR4090GL	90	4000°K - CRI>80	on/off	14258	158	205	50	365	3.7
7027AR4100GL	100	4000°K - CRI>80	on/off	15505	155	205	50	365	3.7
7027AR4120GL	120	4000°K - CRI>80	on/off	17077	142	205	50	365	3.7
7027AR4030GD	30	4000°K - CRI>80	dali	4833	161	205	50	365	3.7
7027AR4040GD	40	4000°K - CRI>80	dali	6321	158	205	50	365	3.7
7027AR4050GD	50	4000°K - CRI>80	dali	7744	155	205	50	365	3.7
7027AR4060GD	60	4000°K - CRI>80	dali	8204	137	205	50	365	3.7
7027AR4070GD	70	4000°K - CRI>80	dali	10967	157	205	50	365	3.7
7027AR4080GD	80	4000°K - CRI>80	dali	12539	157	205	50	365	3.7
7027AR4090GD	90	4000°K - CRI>80	dali	14258	158	205	50	365	3.7
7027AR4100GD	100	4000°K - CRI>80	dali	15505	155	205	50	365	3.7
7027AR4120GD	120	4000°K - CRI>80	dali	17077	142	205	50	365	3.7
7027AR4030GA	30	4000°K - CRI>80	acid-etched glass	4833	161	205	50	365	3.7
7027AR4040GA	40	4000°K - CRI>80	acid-etched glass	6321	158	205	50	365	3.7
