POLAR 2 – Mod. CR

(29° focusing optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with concentrating 29° optics.

Categories: Led, POLAR, POLAR 2, Floodlights, POLAR 2

Models: 189

Color: Anthracite

Catalogue abstract

Installation instructions

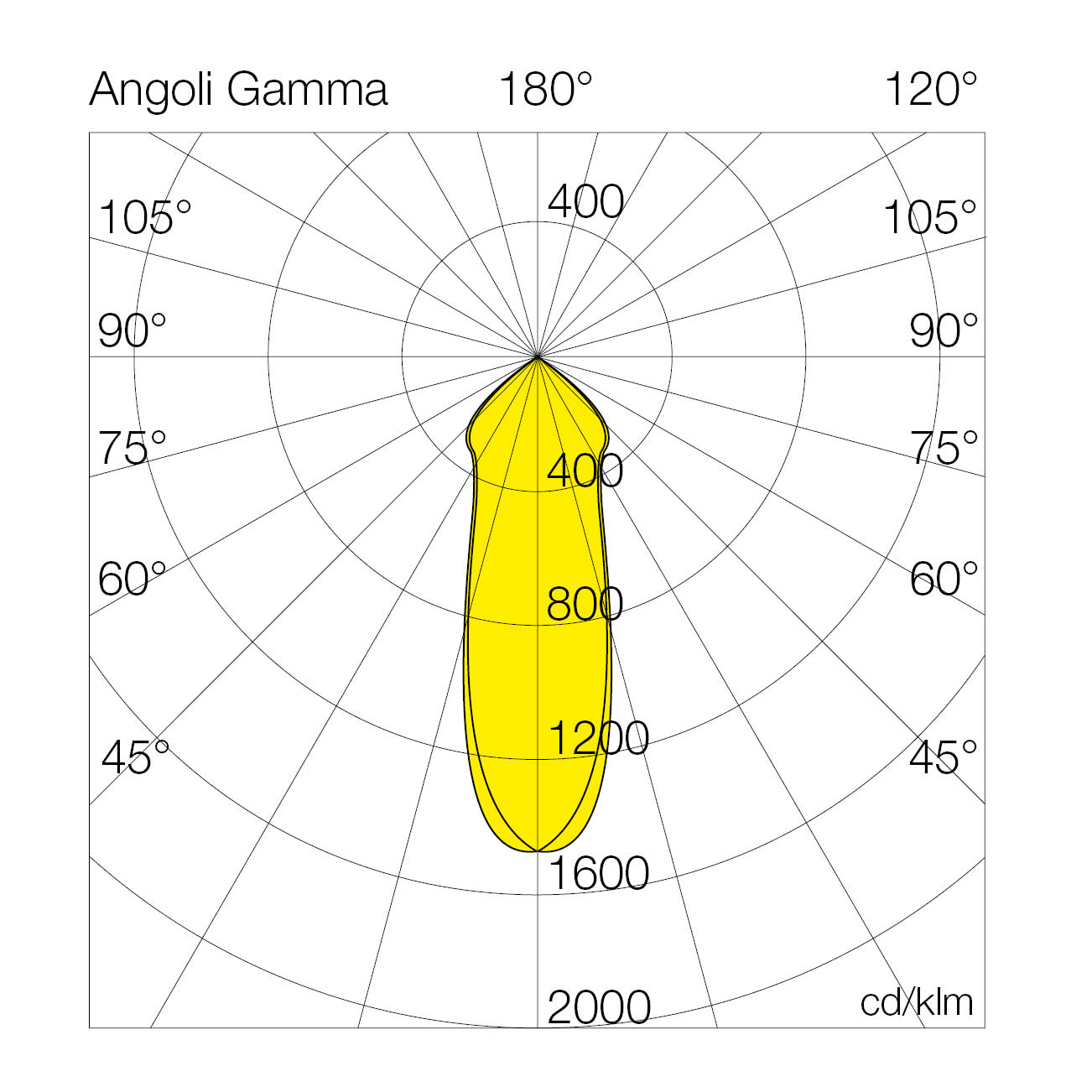

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7027	CR	2	= ambra (CRI >80)	030	EL	= on/off
		3	= 3000°K (CRI >80)	040	LD	= dali 2
		4	= 4000°K (CRI >80)	050	VA	= acid-etched glass
		5	= 5000°K (CRI >80)	060
				070
				080
				090
				100
				120

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7027CR4030EL	30	-	4000°K - CRI ≥80	on/off	4918	164	205	50	365	-	3.7
7027CR4040EL	40	-	4000°K - CRI ≥80	on/off	6432	161	205	50	365	-	3.7
7027CR4050EL	50	-	4000°K - CRI ≥80	on/off	7880	158	205	50	365	-	3.7
7027CR4060EL	60	-	4000°K - CRI ≥80	on/off	8349	139	205	50	365	-	3.7
7027CR4070EL	70	-	4000°K - CRI ≥80	on/off	11156	159	205	50	365	-	3.7
7027CR4080EL	80	-	4000°K - CRI ≥80	on/off	12755	159	205	50	365	-	3.7
7027CR4090EL	90	-	4000°K - CRI ≥80	on/off	14504	161	205	50	365	-	3.7
7027CR4100EL	100	-	4000°K - CRI ≥80	on/off	15772	158	205	50	365	-	3.7
7027CR4120EL	120	-	4000°K - CRI ≥80	on/off	17371	145	205	50	365	-	3.7
7027CR4030LD	30	-	4000°K - CRI ≥80	dali 2	4918	164	205	50	365	-	3.7
7027CR4040LD	40	-	4000°K - CRI ≥80	dali 2	6432	161	205	50	365	-	3.7
7027CR4050LD	50	-	4000°K - CRI ≥80	dali 2	7880	158	205	50	365	-	3.7
7027CR4060LD	60	-	4000°K - CRI ≥80	dali 2	8349	139	205	50	365	-	3.7
7027CR4070LD	70	-	4000°K - CRI ≥80	dali 2	11156	159	205	50	365	-	3.7
7027CR4080LD	80	-	4000°K - CRI ≥80	dali 2	12755	159	205	50	365	-	3.7
7027CR4090LD	90	-	4000°K - CRI ≥80	dali 2	14504	161	205	50	365	-	3.7
7027CR4100LD	100	-	4000°K - CRI ≥80	dali 2	15772	158	205	50	365	-	3.7
7027CR4120LD	120	-	4000°K - CRI ≥80	dali 2	17371	145	205	50	365	-	3.7
7027CR4030VA	30	-	4000°K - CRI ≥80	acid-etched glass	4918	164	205	50	365	-	3.7
7027CR4040VA	40	-	4000°K - CRI ≥80	acid-etched glass	6432	161	205	50	365	-	3.7
