POLAR 2/PR

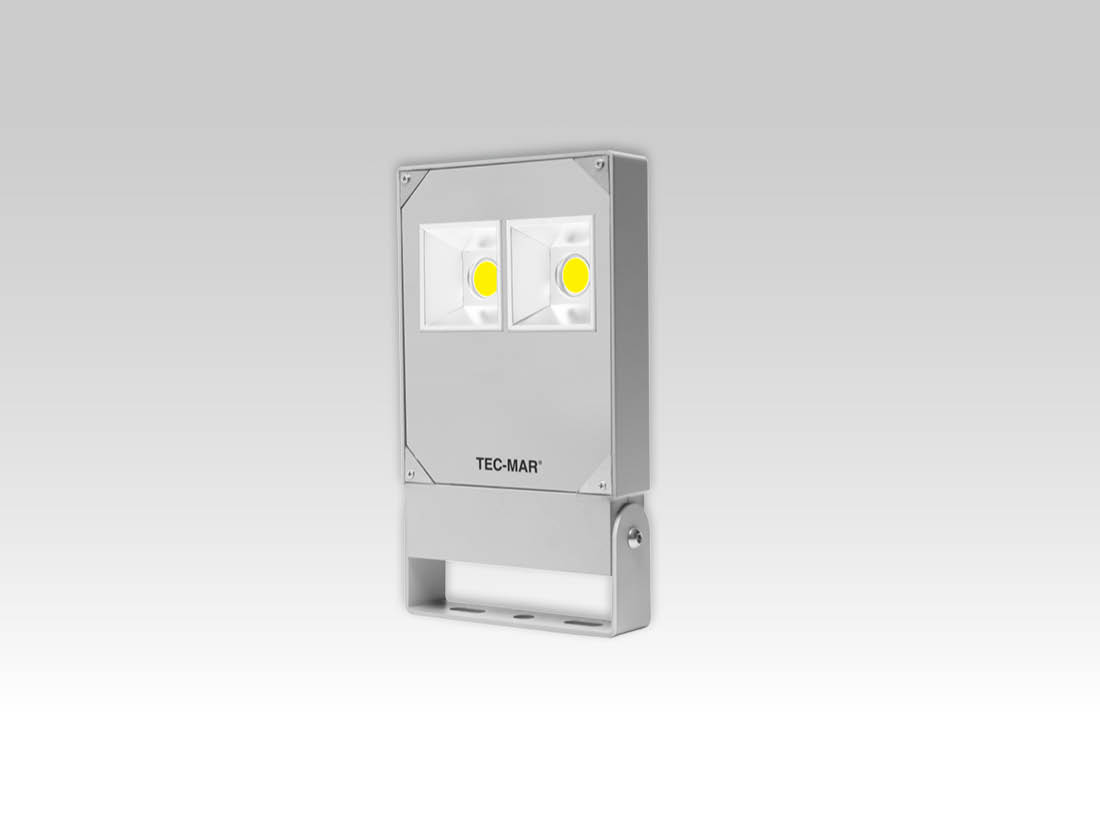

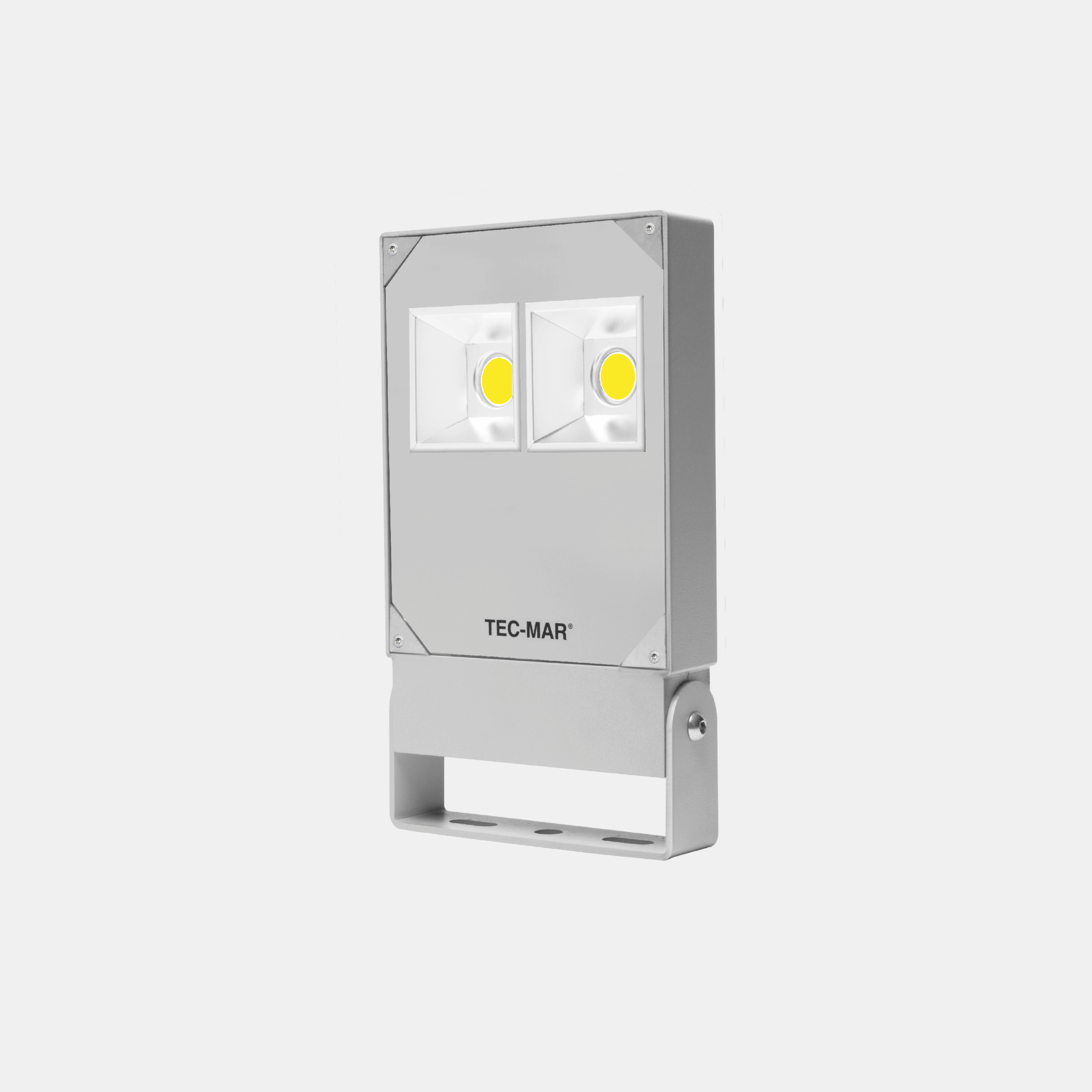

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR 2 - 7027, POLAR, Floodlights, art. 7027 Polar 2
Models: 189
Color: Silver
Catalogue abstract
Installation instructions

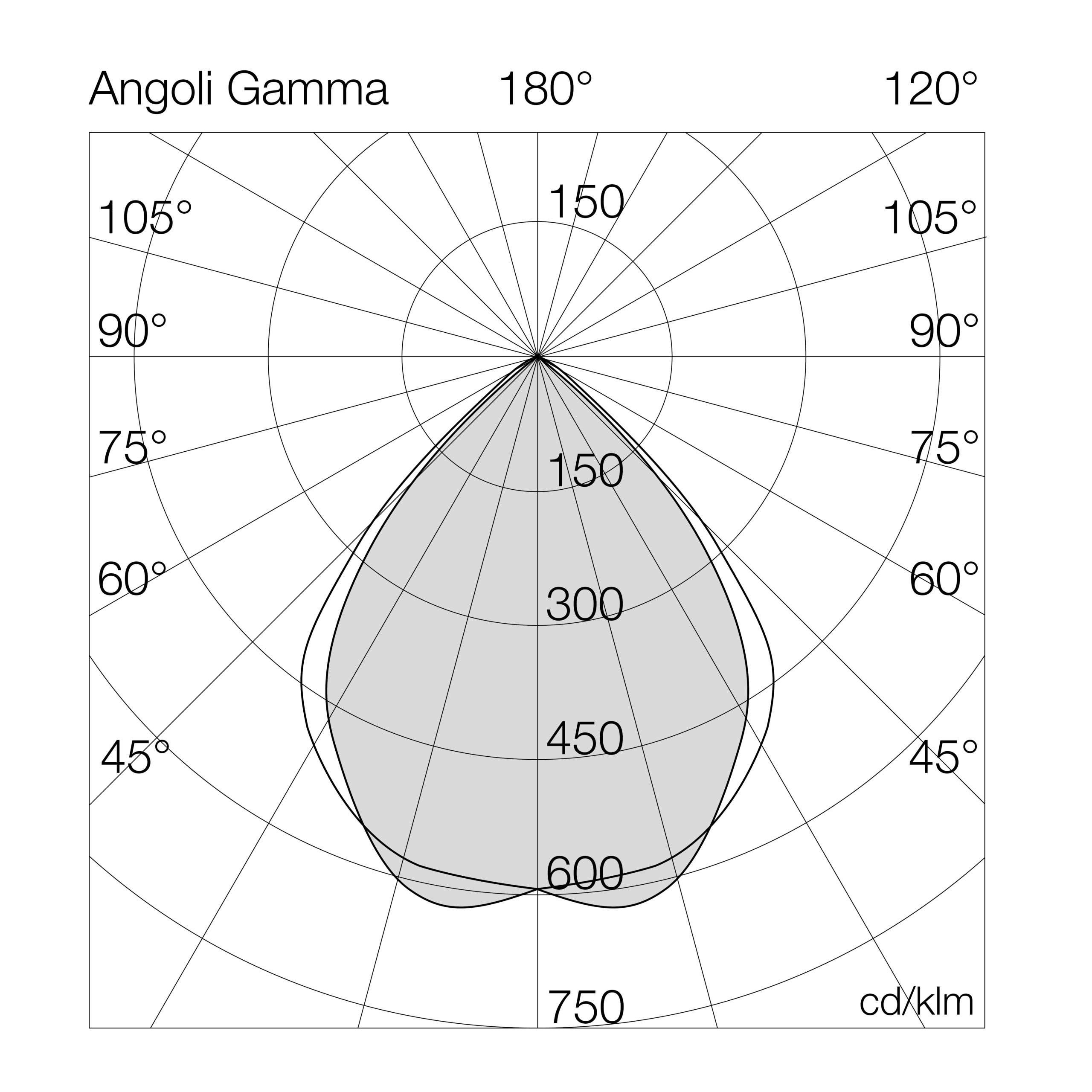

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7027PR2= ambra (CRI >80) 030GL= on/off
3= 3000°K (CRI >80)040GD= dali 2
4= 4000°K (CRI >80)050GA= acid-etched glass
5= 5000°K (CRI >80)060
070
080
090
100
120

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7027PR4030GL30-4000°K - CRI>80on/off511217020550365-3.7
7027PR4040GL40-4000°K - CRI>80on/off668516720550365-3.7
7027PR4050GL50-4000°K - CRI>80on/off819016420550365-3.7
7027PR4060GL60-4000°K - CRI>80on/off867714520550365-3.7
7027PR4070GL70-4000°K - CRI>80on/off1158516520550365-3.7
7027PR4080GL80-4000°K - CRI>80on/off1324516620550365-3.7
7027PR4090GL90-4000°K - CRI>80on/off1506116720550365-3.7
7027PR4100GL100-4000°K - CRI>80on/off1637816420550365-3.7
7027PR4120GL120-4000°K - CRI>80on/off1803915020550365-3.7
7027PR4030GD30-4000°K - CRI>80dali511217020550365-3.7
7027PR4040GD40-4000°K - CRI>80dali668516720550365-3.7
7027PR4050GD50-4000°K - CRI>80dali819016420550365-3.7
7027PR4060GD60-4000°K - CRI>80dali867714520550365-3.7
7027PR4070GD70-4000°K - CRI>80dali1158516520550365-3.7
7027PR4080GD80-4000°K - CRI>80dali1324516620550365-3.7
7027PR4090GD90-4000°K - CRI>80dali1506116720550365-3.7
7027PR4100GD100-4000°K - CRI>80dali1637816420550365-3.7
7027PR4120GD120-4000°K - CRI>80dali1803915020550365-3.7
7027PR4030GA30-4000°K - CRI>80acid-etched glass511217020550365-3.7
7027PR4040GA40-4000°K - CRI>80acid-etched glass668516720550365-3.7

Accessories
