art.-7027-polar-2-rr-antracite

POLAR 2 – Mod. RR

(65° asymmetric optics)

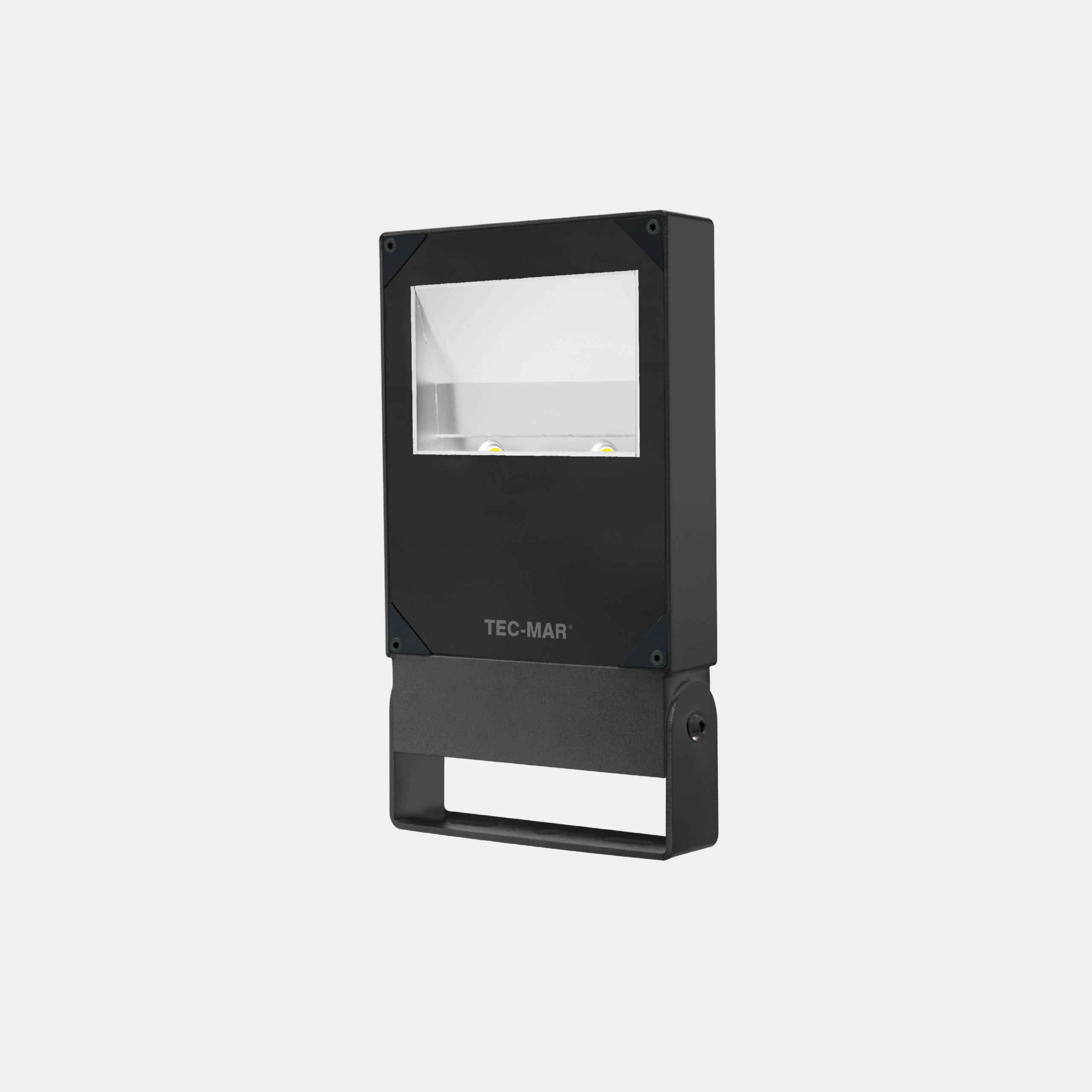

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.
Categories: Led, POLAR, POLAR 2 - 7027, Floodlights, POLAR 2
Models: 189
Color: Anthracite
Catalogue abstract
Installation instructions

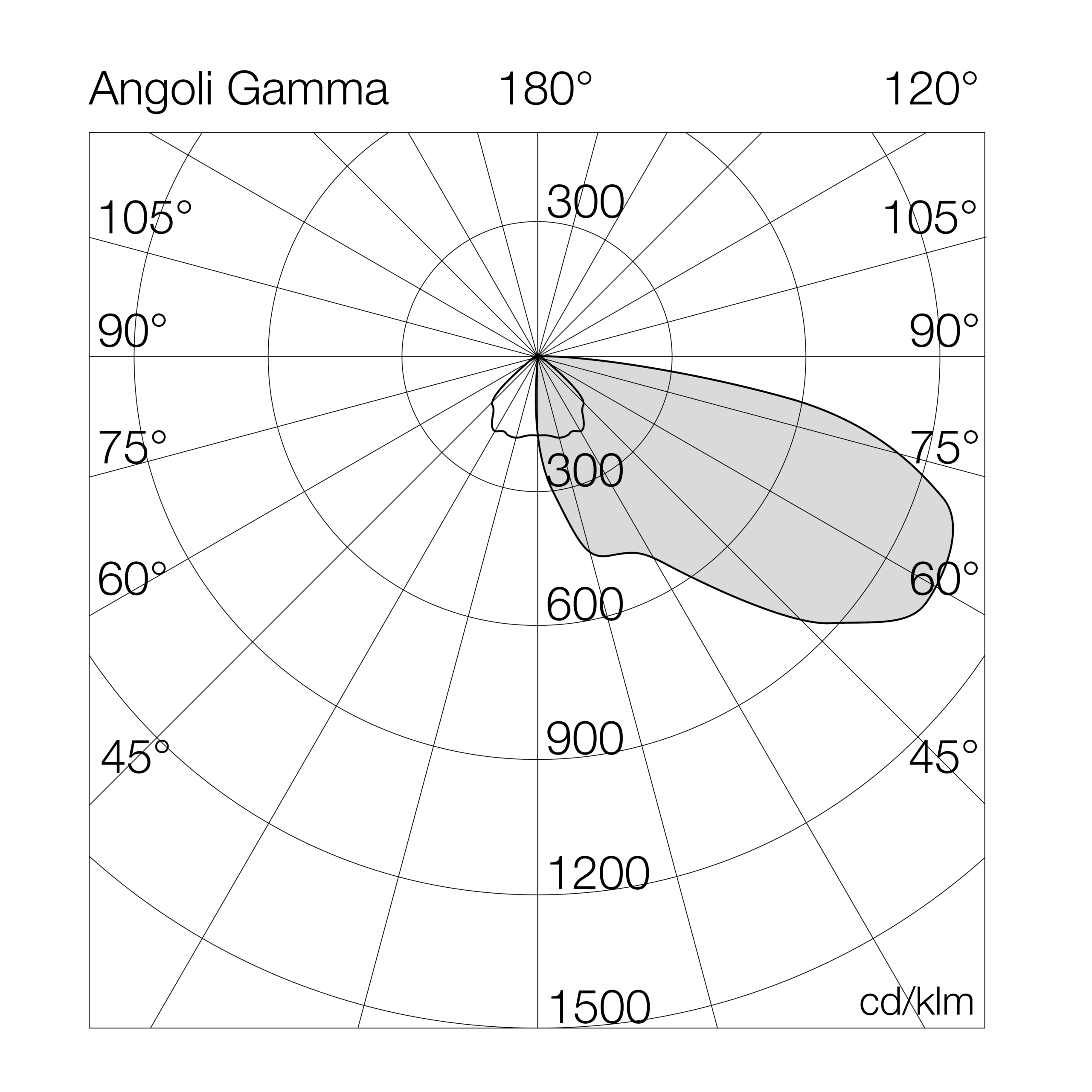

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7027RR2= ambra (CRI >80) 030EL= on/off
3= 3000°K (CRI >80)040LD= dali 2
4= 4000°K (CRI >80)050VA= acid-etched glass
5= 5000°K (CRI >80)060
070
080
090
100
120

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7027RR4030EL30-4000°K - CRI>80on/off460615420550365-3.7
7027RR4040EL40-4000°K - CRI>80on/off602315120550365-3.7
7027RR4050EL50-4000°K - CRI>80on/off737914820550365-3.7
7027RR4060EL60-4000°K - CRI>80on/off781813020550365-3.7
7027RR4070EL70-4000°K - CRI>80on/off1046314920550365-3.7
7027RR4080EL80-4000°K - CRI>80on/off1196315020550365-3.7
7027RR4090EL90-4000°K - CRI>80on/off1360215120550365-3.7
7027RR4100EL100-4000°K - CRI>80on/off1479214820550365-3.7
7027RR4120EL120-4000°K - CRI>80on/off1629213620550365-3.7
7027RR4030LD30-4000°K - CRI>80dali460615420550365-3.7
7027RR4040LD40-4000°K - CRI>80dali602315120550365-3.7
7027RR4050LD50-4000°K - CRI>80dali737914820550365-3.7
7027RR4060LD60-4000°K - CRI>80dali781813020550365-3.7
7027RR4070LD70-4000°K - CRI>80dali1046314920550365-3.7
7027RR4080LD80-4000°K - CRI>80dali1196315020550365-3.7
7027RR4090LD90-4000°K - CRI>80dali1360215120550365-3.7
7027RR4100LD100-4000°K - CRI>80dali1479214820550365-3.7
7027RR4120LD120-4000°K - CRI>80dali1629213620550365-3.7
7027RR4030VA30-4000°K - CRI>80acid-etched glass460615420550365-3.7
7027RR4040VA40-4000°K - CRI>80acid-etched glass602315120550365-3.7

Accessories
