art.-7027-tod-1-t2-me-cp-antracite

TOD 1 – Mod. ME

(Ottica stradale asimmetrica ampia Classe ME)

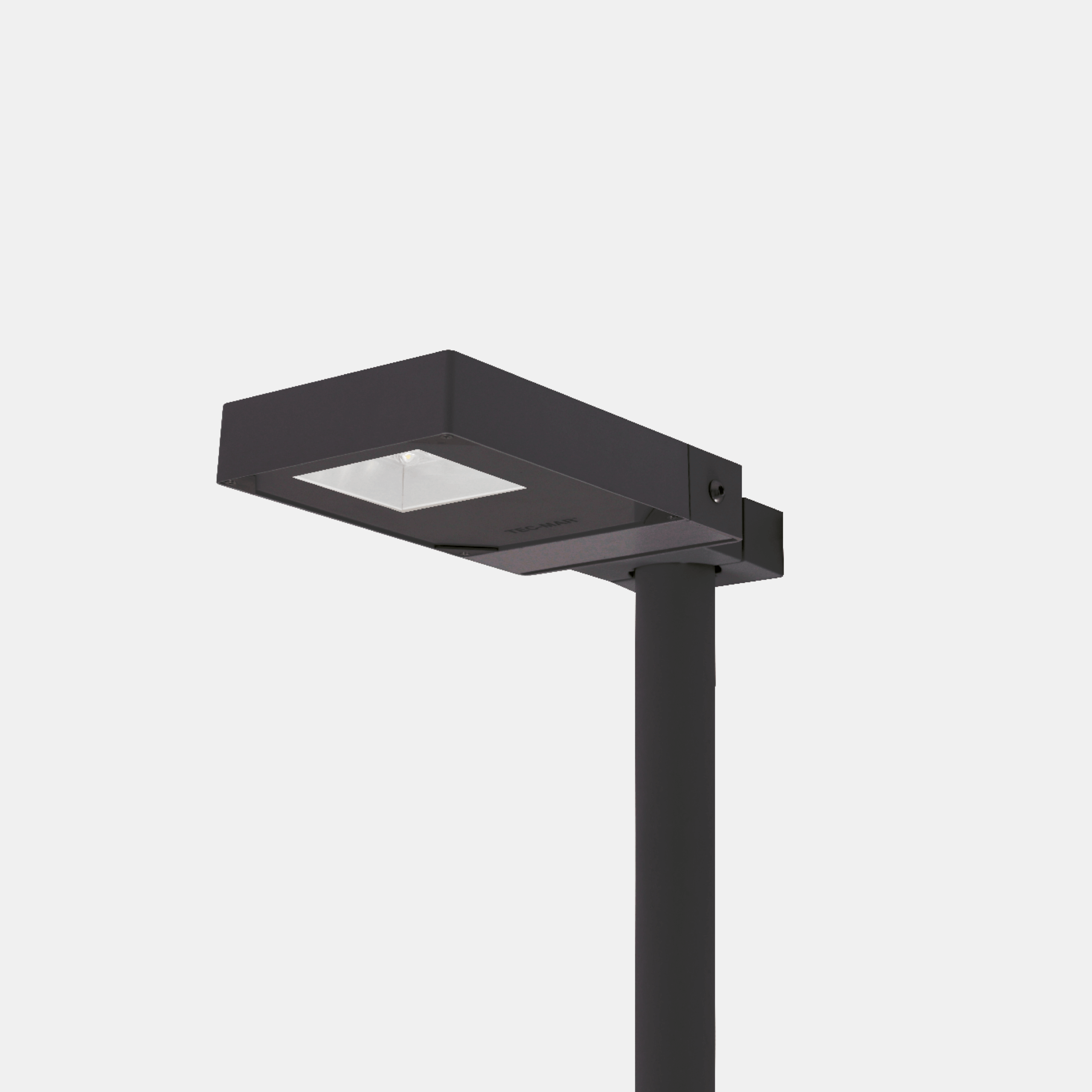

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder anthracite color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 1 - 7027, Street lighting, TOD 1
Models: 96
Color: Anthracite
Catalogue abstract

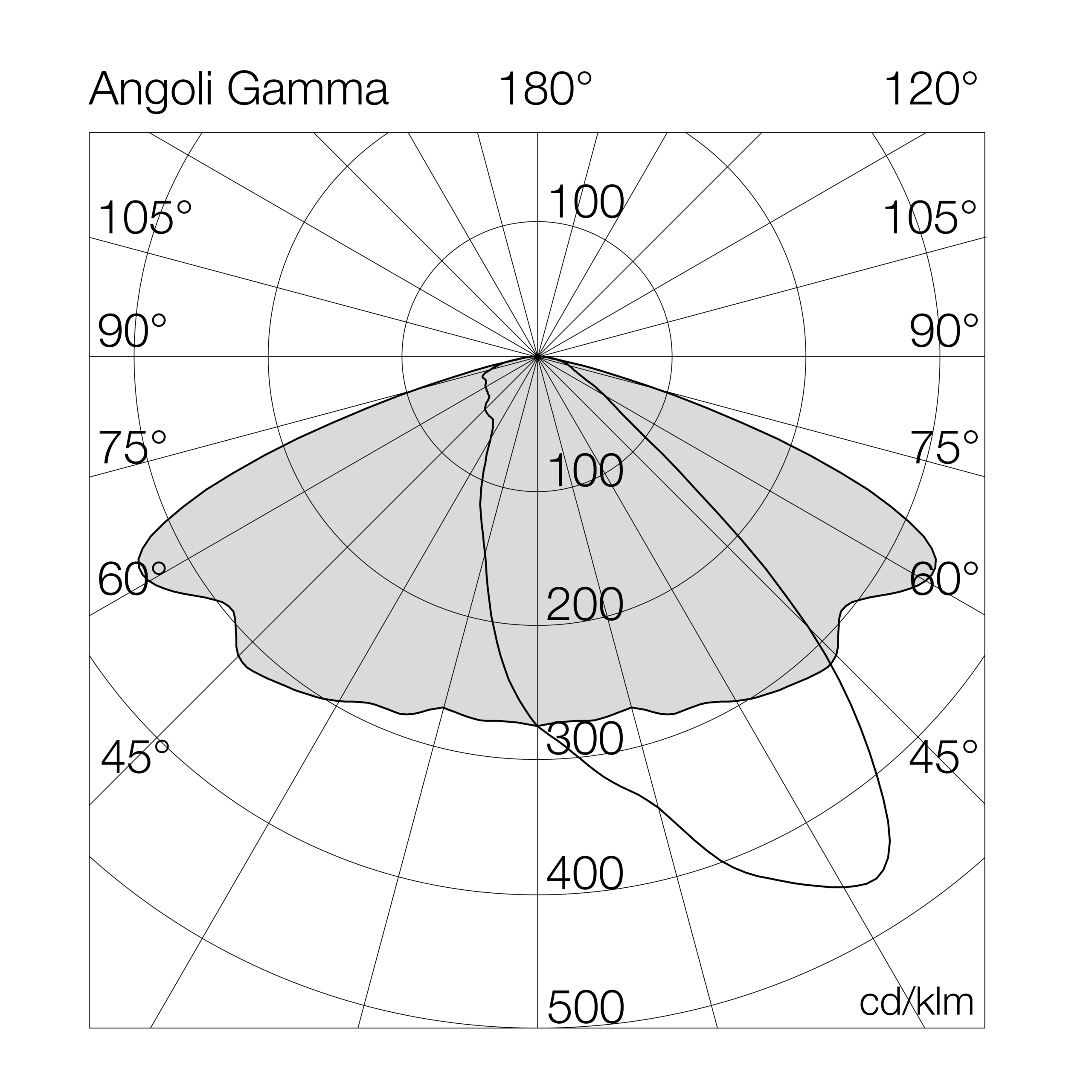

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7027ME22= ambra (CRI >70) 08EL= on/off
30= 3000°K (CRI >70)12LD= dali 2
40= 4000°K (CRI >70)16MD= virtual midnight
50= 5000°K (CRI >70)17
24
27
34
54

Models

W tot.
°K - CRI
Options

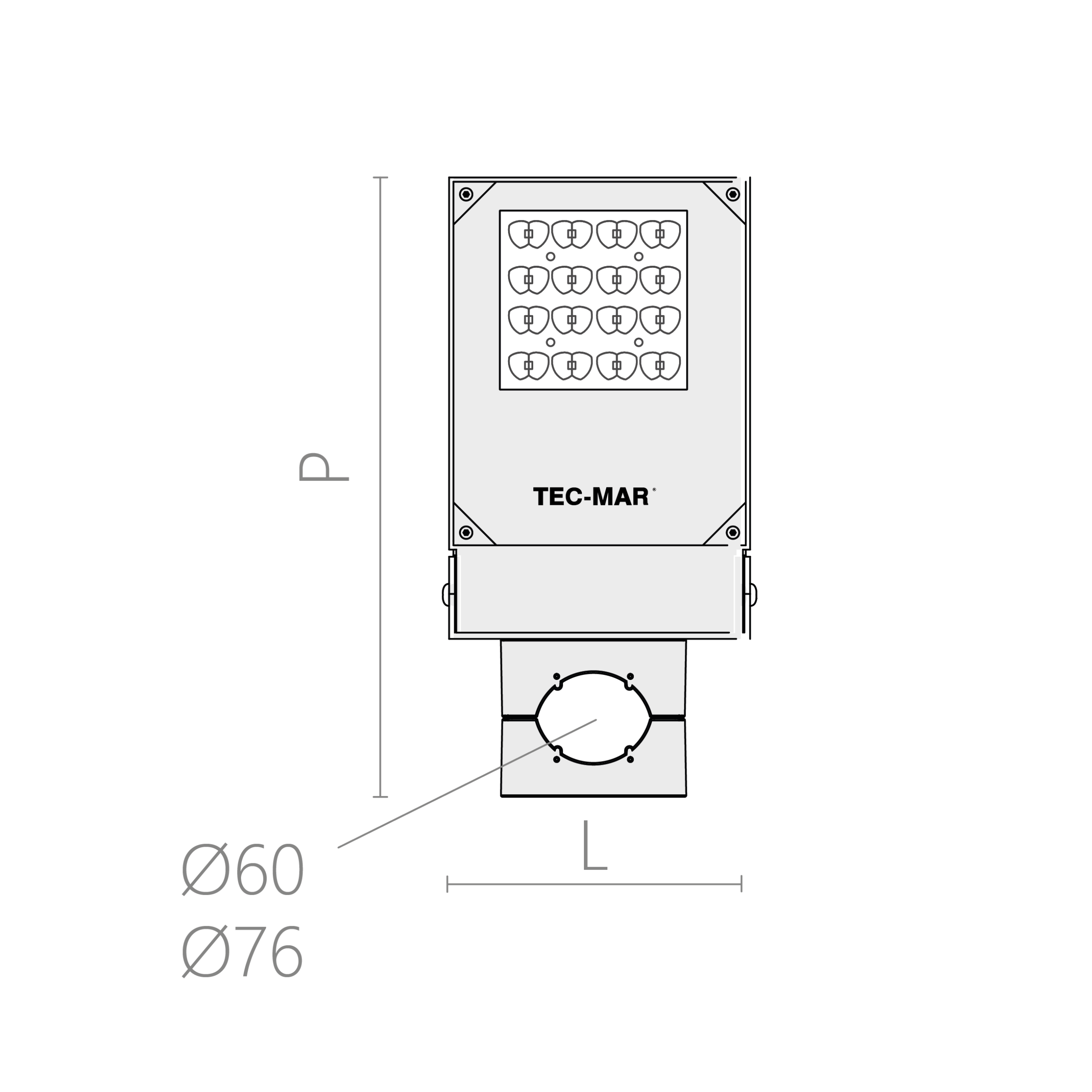

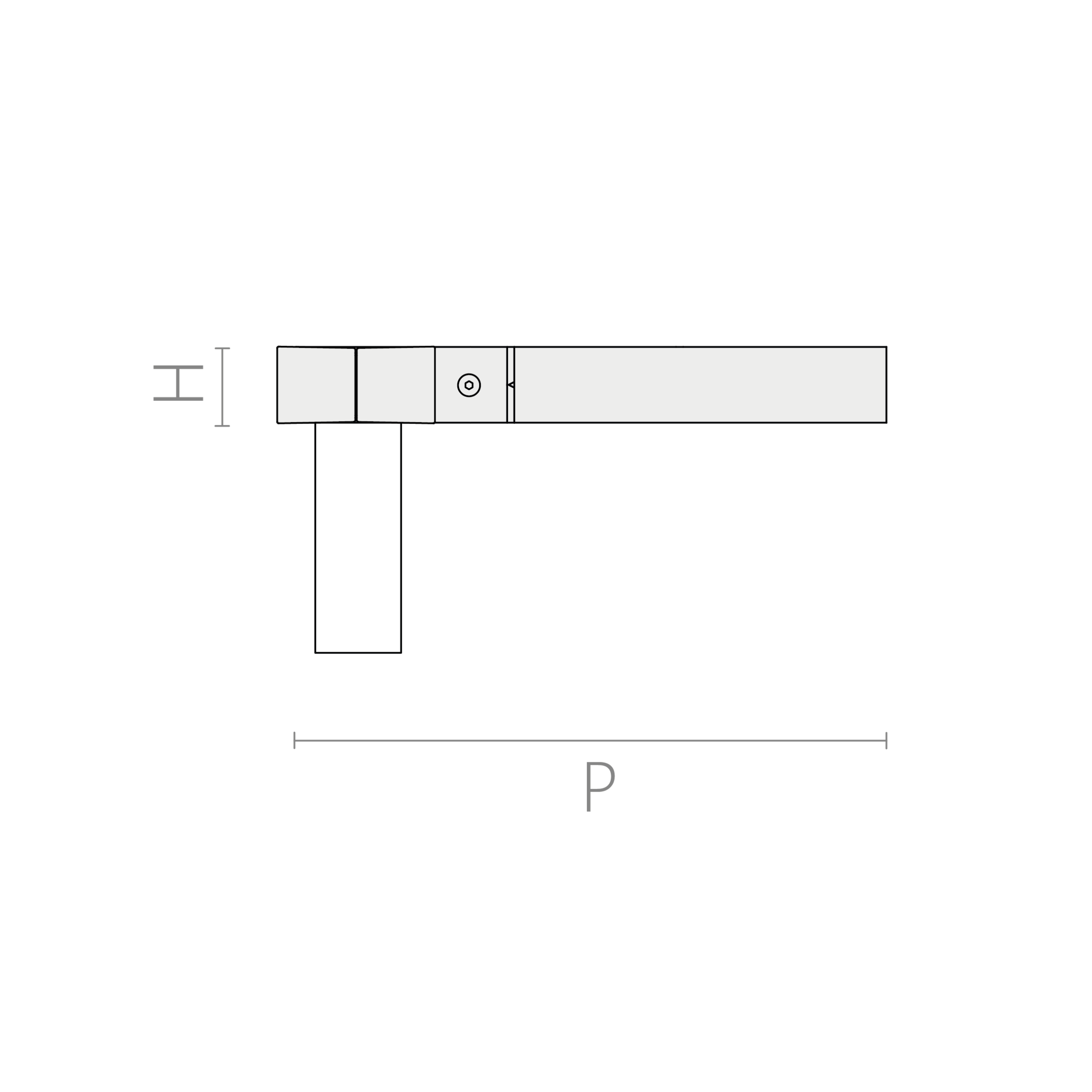

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7027ME4008EL8-4000°K - CRI>70on/off140917620555415-5.5
7027ME4016EL16-4000°K - CRI>70on/off281917620555415-5.5
7027ME4012EL12-4000°K - CRI>70on/off197616520555415-5.5
7027ME4024EL24-4000°K - CRI>70on/off395316520555415-5.5
7027ME4017EL17-4000°K - CRI>70on/off269715920555415-5.5
7027ME4034EL34-4000°K - CRI>70on/off539315920555415-5.5
7027ME4027EL27-4000°K - CRI>70on/off385414320555415-5.5
7027ME4054EL54-4000°K - CRI>70on/off770814320555415-5.5
7027ME4008LD8-4000°K - CRI>70dali 2140917620555415-5.5
7027ME4016LD16-4000°K - CRI>70dali 2281917620555415-5.5
7027ME4012LD12-4000°K - CRI>70dali 2197616520555415-5.5
7027ME4024LD24-4000°K - CRI>70dali 2395316520555415-5.5
7027ME4017LD17-4000°K - CRI>70dali 2269715920555415-5.5
7027ME4034LD34-4000°K - CRI>70dali 2539315920555415-5.5
7027ME4027LD27-4000°K - CRI>70dali 2385414320555415-5.5
7027ME4054LD54-4000°K - CRI>70dali 2770814320555415-5.5
7027ME4008MD8-4000°K - CRI>70virtual midnight140917620555415-5.5
7027ME4016MD16-4000°K - CRI>70virtual midnight281917620555415-5.5
7027ME4012MD12-4000°K - CRI>70virtual midnight197616520555415-5.5
7027ME4024MD24-4000°K - CRI>70virtual midnight395316520555415-5.5

Accessories
