TOD 1 – Mod. T2

(Ottica stradale asimmetrica media 45° IESNA Tipo II)

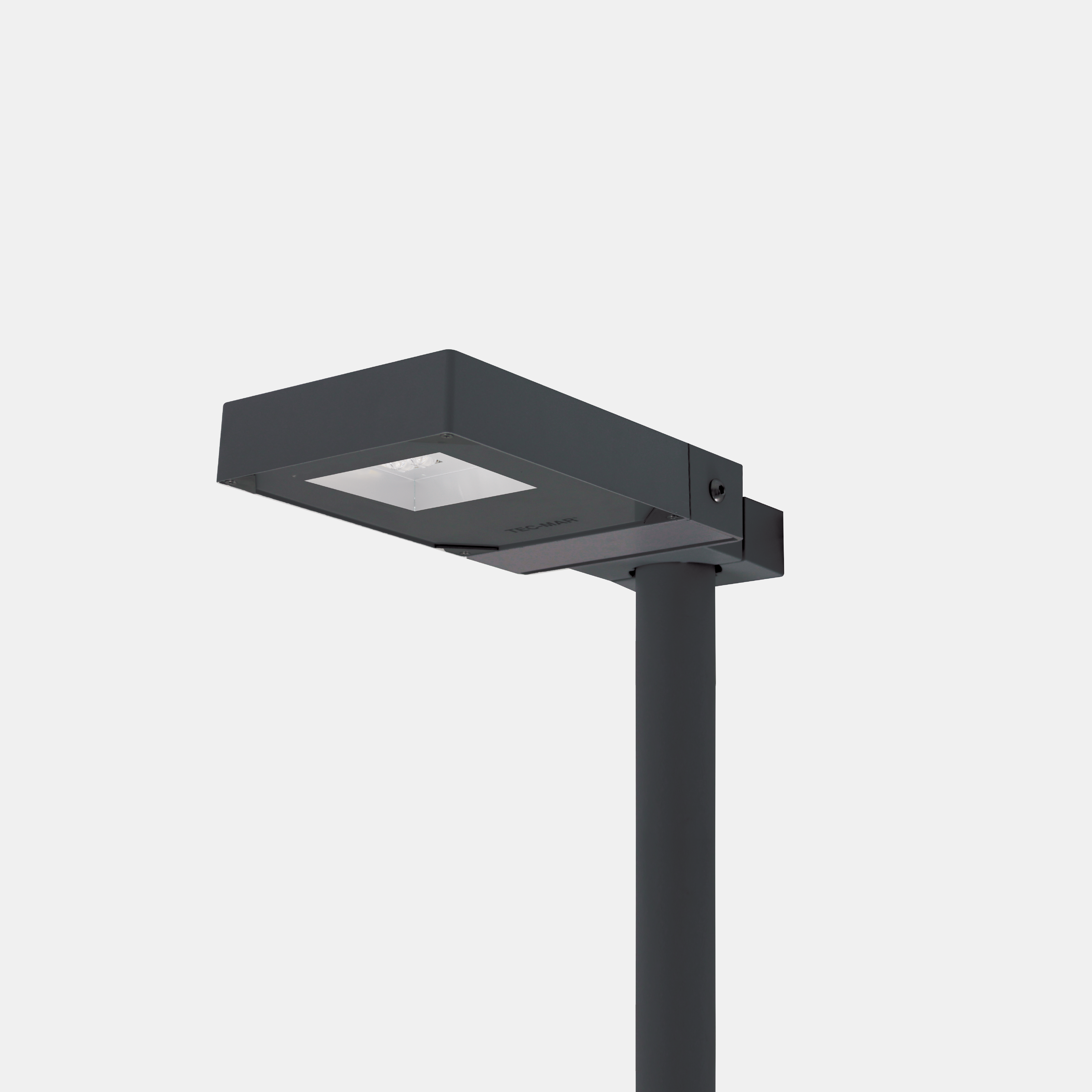

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder anthracite color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 1 - 7027, Street lighting, TOD 1
Models: 96
Color: Anthracite
Catalogue abstract

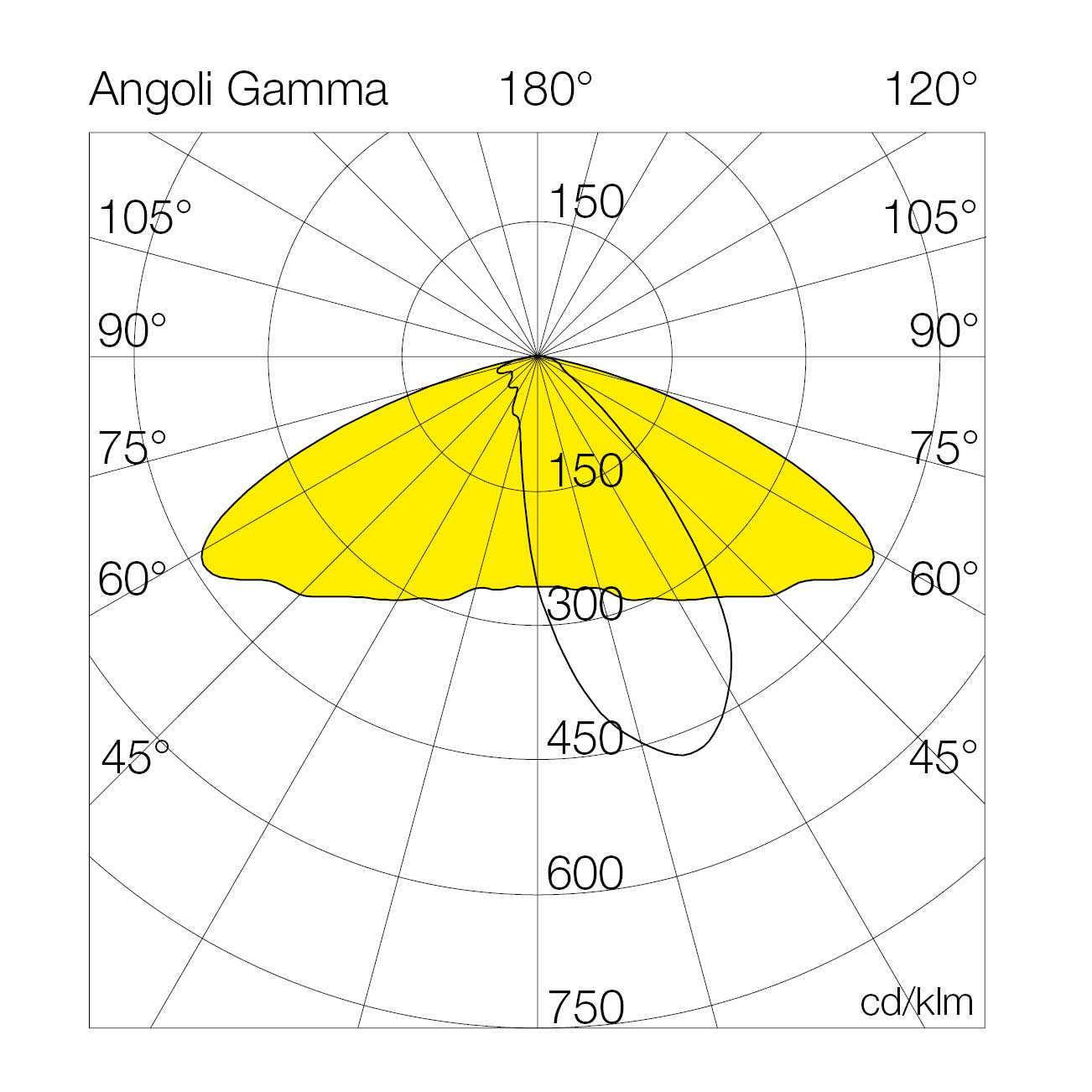

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7027T222= ambra (CRI >70) 08EL= on/off
30= 3000°K (CRI >70)12LD= dali 2
40= 4000°K (CRI >70)16MD= virtual midnight
50= 5000°K (CRI >70)17
24
27
34
54

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7027T24008EL8-4000°K - CRI>70on/off140817620555415-5.5
7027T24016EL16-4000°K - CRI>70on/off281517620555415-5.5
7027T24012EL12-4000°K - CRI>70on/off197416520555415-5.5
7027T24024EL24-4000°K - CRI>70on/off394816520555415-5.5
7027T24017EL17-4000°K - CRI>70on/off269415820555415-5.5
7027T24034EL34-4000°K - CRI>70on/off538715820555415-5.5
7027T24027EL27-4000°K - CRI>70on/off385014320555415-5.5
7027T24054EL54-4000°K - CRI>70on/off770014320555415-5.5
7027T24008LD8-4000°K - CRI>70dali 2140817620555415-5.5
7027T24016LD16-4000°K - CRI>70dali 2281517620555415-5.5
7027T24012LD12-4000°K - CRI>70dali 2197416520555415-5.5
7027T24024LD24-4000°K - CRI>70dali 2394816520555415-5.5
7027T24017LD17-4000°K - CRI>70dali 2269415820555415-5.5
7027T24034LD34-4000°K - CRI>70dali 2538715820555415-5.5
7027T24027LD27-4000°K - CRI>70dali 2385014320555415-5.5
7027T24054LD54-4000°K - CRI>70dali 2770014320555415-5.5
7027T24008MD8-4000°K - CRI>70virtual midnight140817620555415-5.5
7027T24016MD16-4000°K - CRI>70virtual midnight281517620555415-5.5
7027T24012MD12-4000°K - CRI>70virtual midnight197416520555415-5.5
7027T24024MD24-4000°K - CRI>70virtual midnight394816520555415-5.5

Accessories
