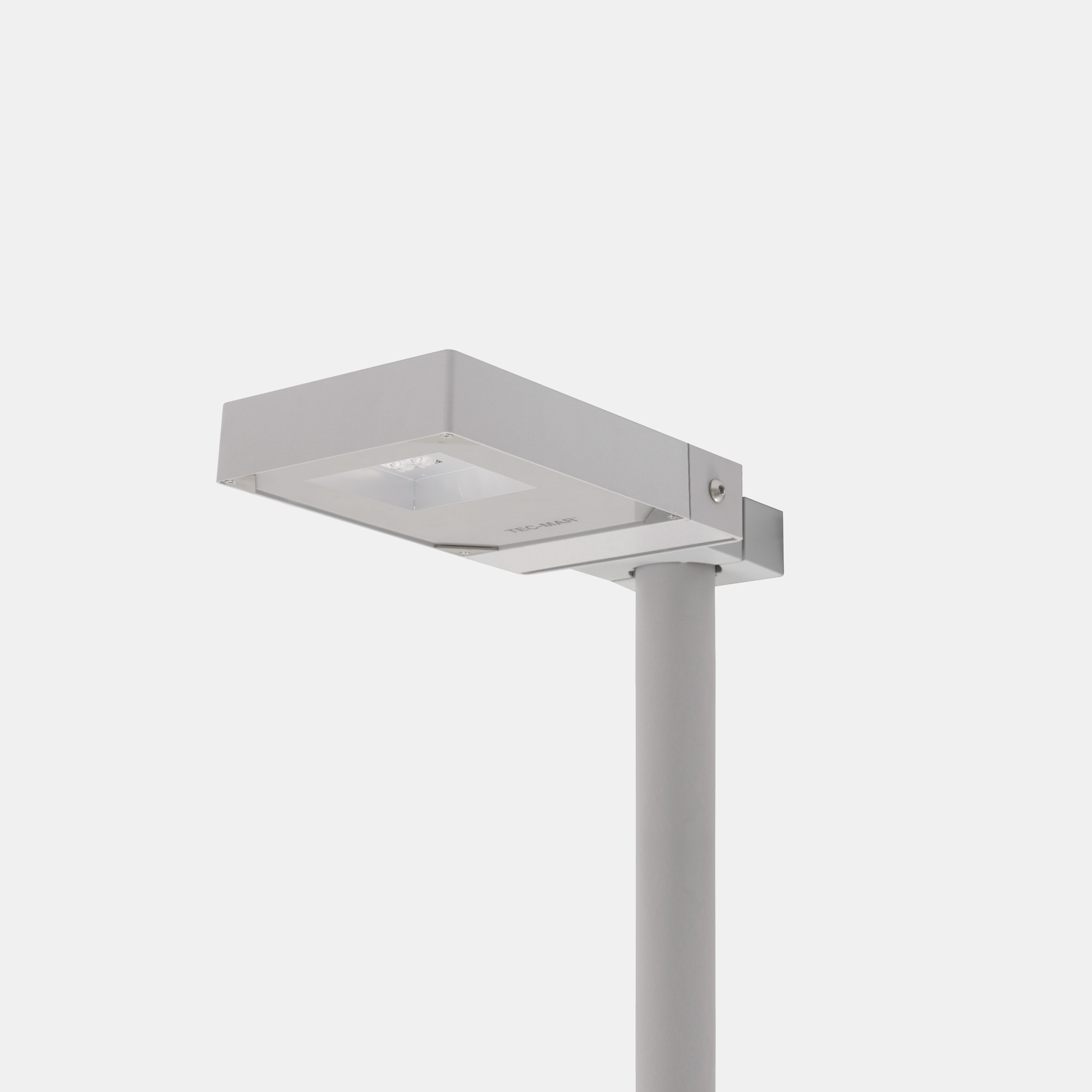

TOD 1 – Mod. T2

(Ottica stradale asimmetrica media 45° IESNA Tipo II)

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 1, Street lighting, TOD 1
Models: 156
Color: Silver
Catalogue abstract
Installation instructions

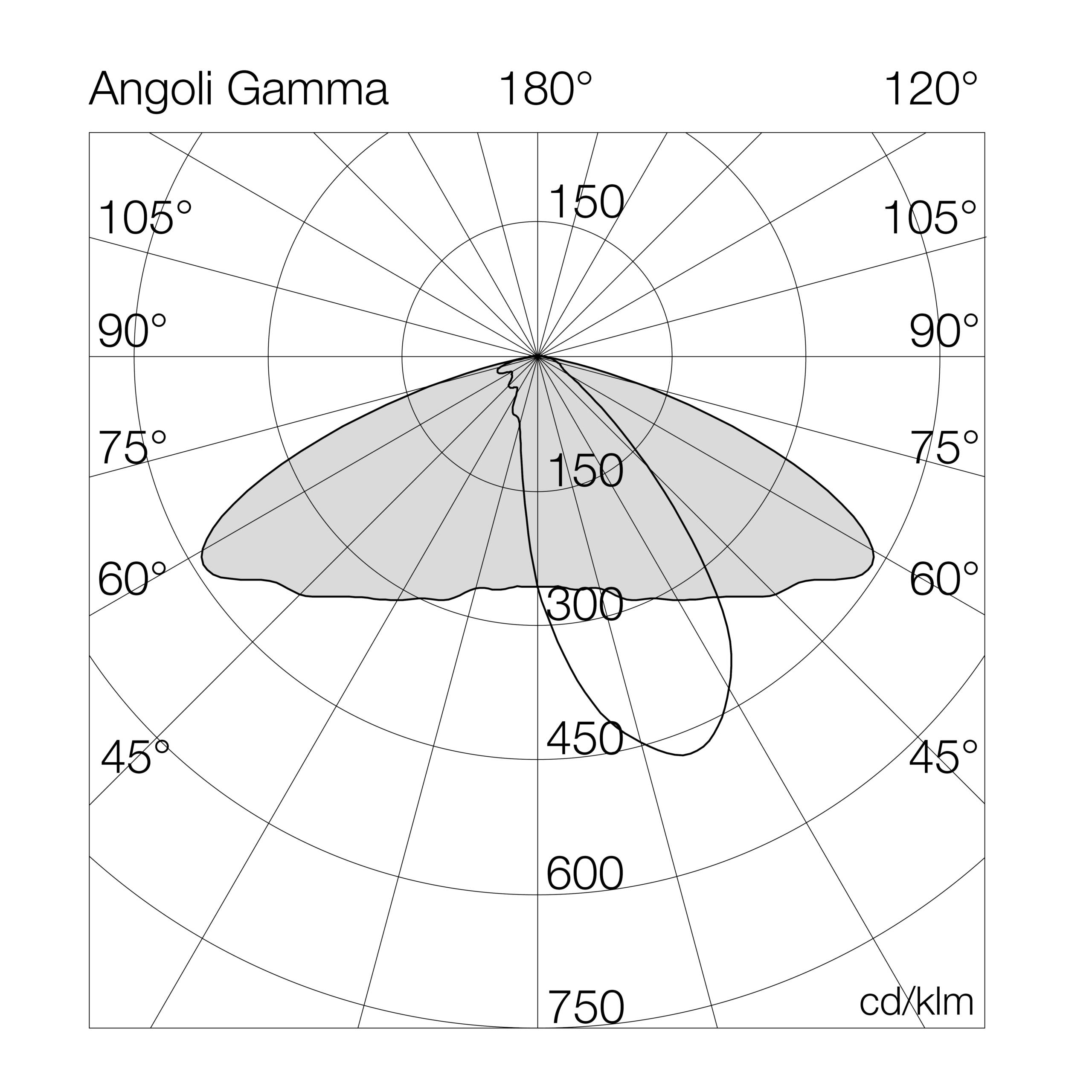

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7027T222= ambra (CRI >70) 08GL= on/off
30= 3000°K (CRI >70)12GD= dali 2
40= 4000°K (CRI >70)16MG= virtual midnight
50= 5000°K (CRI >70)17
24
27
34
54

Models

W tot.
°K - CRI
Options

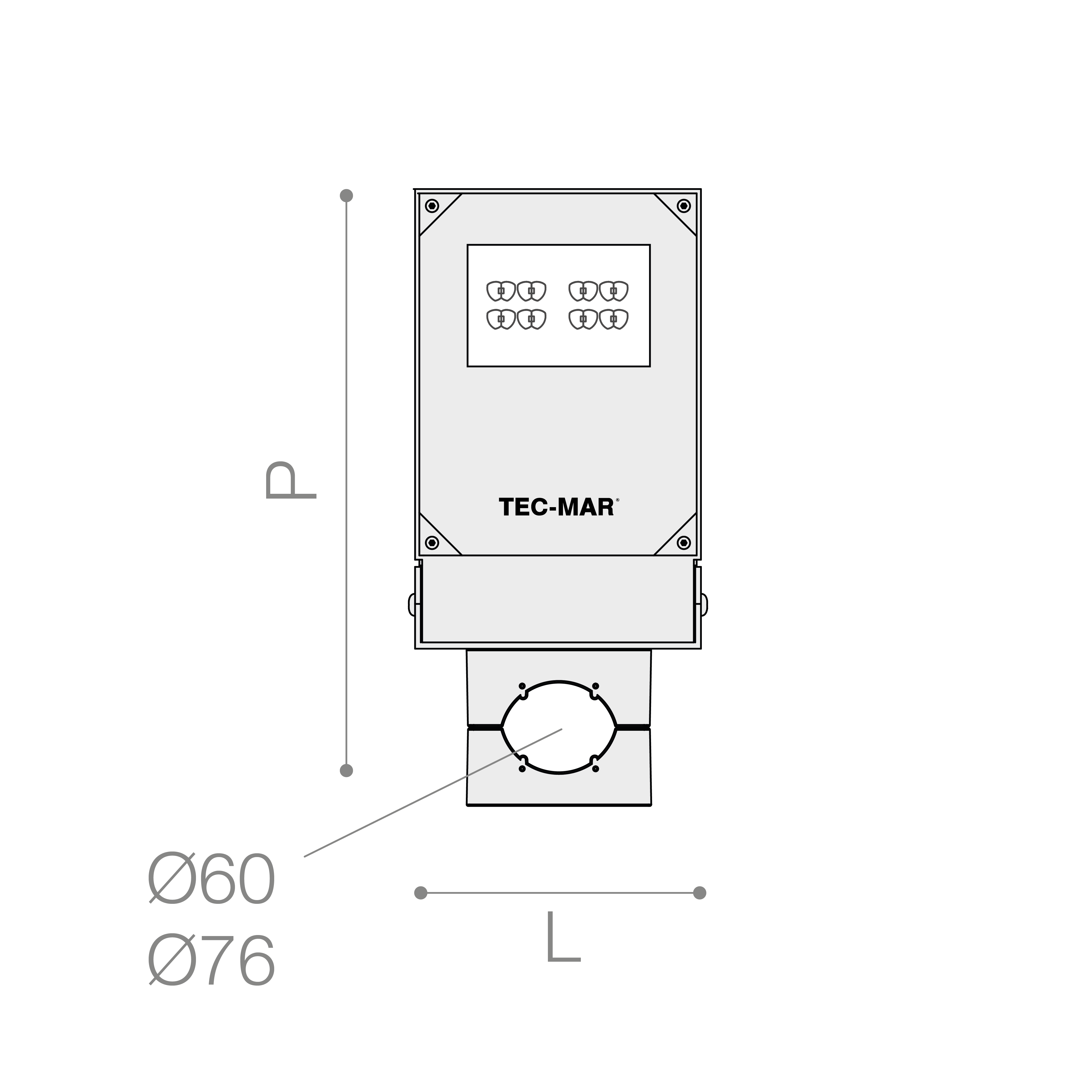

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7027T24011GL11-4000°K - CRI ≥70on/off163614920555415-5.5
7027T24015GL15-4000°K - CRI ≥70on/off223214920555415-5.5
7027T24020GL20-4000°K - CRI ≥70on/off295814820555415-5.5
7027T24025GL25-4000°K - CRI ≥70on/off366214620555415-5.5
7027T24035GL35-4000°K - CRI ≥70on/off487713920555415-5.5
7027T24040GL40-4000°K - CRI ≥70on/off574914420555415-5.5
7027T24050GL50-4000°K - CRI ≥70on/off716614320555415-5.5
7027T24056GL56-4000°K - CRI ≥70on/off780913920555415-5.5
7027T24062GL62-4000°K - CRI ≥70on/off931315020555415-5.5
7027T24075GL75-4000°K - CRI ≥70on/off1151115320555415-5.5
7027T24092GL92-4000°K - CRI ≥70on/off1276513920555415-5.5
7027T24105GL105-4000°K - CRI ≥70on/off1416513520555415-5.5
7027T24122GL122-4000°K - CRI ≥70on/off1561312820555415-5.5
7027T24011GD11-4000°K - CRI ≥70dali 2163614920555415-5.5
7027T24015GD15-4000°K - CRI ≥70dali 2223214920555415-5.5
7027T24020GD20-4000°K - CRI ≥70dali 2295814820555415-5.5
7027T24025GD25-4000°K - CRI ≥70dali 2366214620555415-5.5
7027T24035GD35-4000°K - CRI ≥70dali 2487713920555415-5.5
7027T24040GD40-4000°K - CRI ≥70dali 2574914420555415-5.5
7027T24050GD50-4000°K - CRI ≥70dali 2716614320555415-5.5

Accessories
