art.-7028-polar-3-cr-silver

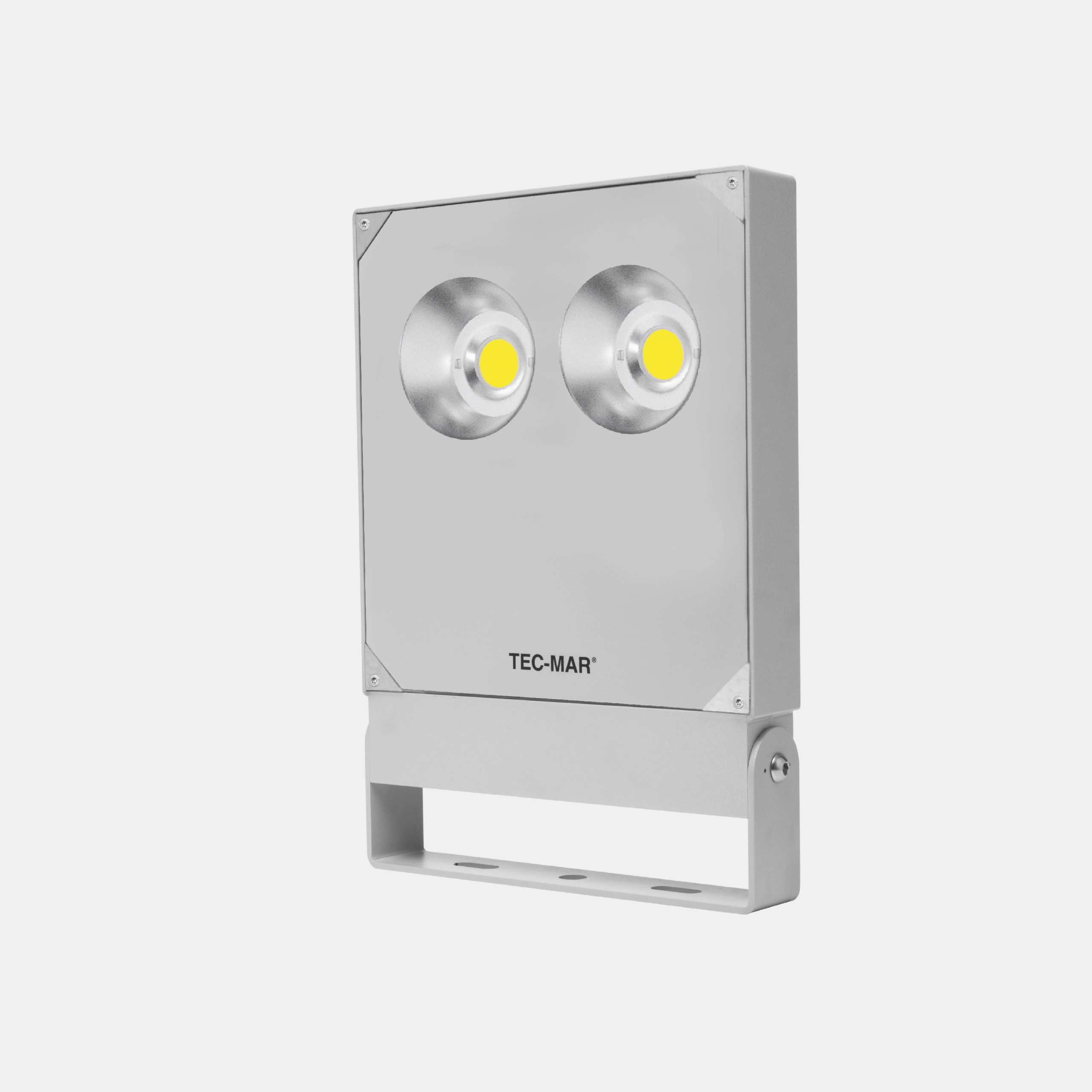

POLAR 3 – Mod. CR

(29° focusing optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with concentrating 29° optics.
Categories: Led, POLAR, POLAR 3 - 7028, Floodlights, POLAR 3
Models: 144
Color: Silver
Catalogue abstract
Installation instructions

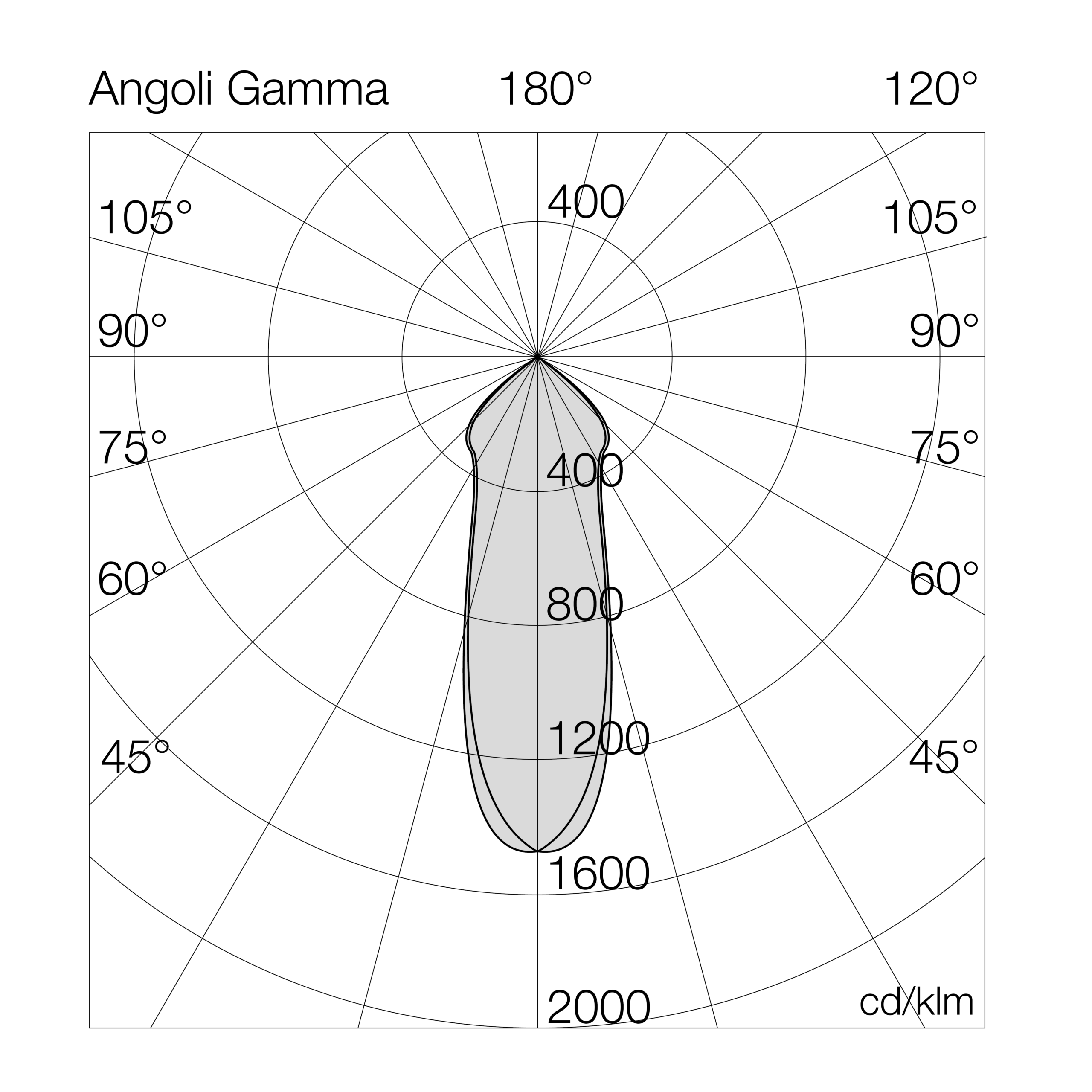

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028CR2= ambra (CRI >80) 125GL= on/off
3= 3000°K (CRI >80)130GD= dali
4= 4000°K (CRI >80)148GA= acid-etched glass
5= 5000°K (CRI >80)150
175
190

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028CR4125GL125-4000°K - CRI>80on/off1778514229555425-5.6
7028CR4130GL130-4000°K - CRI>80on/off1944115029555425-5.6
7028CR4148GL148-4000°K - CRI>80on/off2027213729555425-5.6
7028CR4150GL150-4000°K - CRI>80on/off2368615829555425-5.6
7028CR4175GL175-4000°K - CRI>80on/off2555414629555425-5.6
7028CR4190GL190-4000°K - CRI>80on/off2760714529555425-5.6
7028CR4125GD125-4000°K - CRI>80dali1778514229555425-5.6
7028CR4130GD130-4000°K - CRI>80dali1944115029555425-5.6
7028CR4148GD148-4000°K - CRI>80dali2027213729555425-5.6
7028CR4150GD150-4000°K - CRI>80dali2368615829555425-5.6
7028CR4175GD175-4000°K - CRI>80dali2555414629555425-5.6
7028CR4190GD190-4000°K - CRI>80dali2760714529555425-5.6
7028CR4125GA125-4000°K - CRI>80acid-etched glass1778514229555425-5.6
7028CR4130GA130-4000°K - CRI>80acid-etched glass1944115029555425-5.6
7028CR4148GA148-4000°K - CRI>80acid-etched glass2027213729555425-5.6
7028CR4150GA150-4000°K - CRI>80acid-etched glass2368615829555425-5.6
7028CR4175GA175-4000°K - CRI>80acid-etched glass2555414629555425-5.6
7028CR4190GA190-4000°K - CRI>80acid-etched glass2760714529555425-5.6
7028CR3125GL125-3000°K - CRI>80on/off1684613529555425-5.6
7028CR3130GL130-3000°K - CRI>80on/off1841514229555425-5.6
