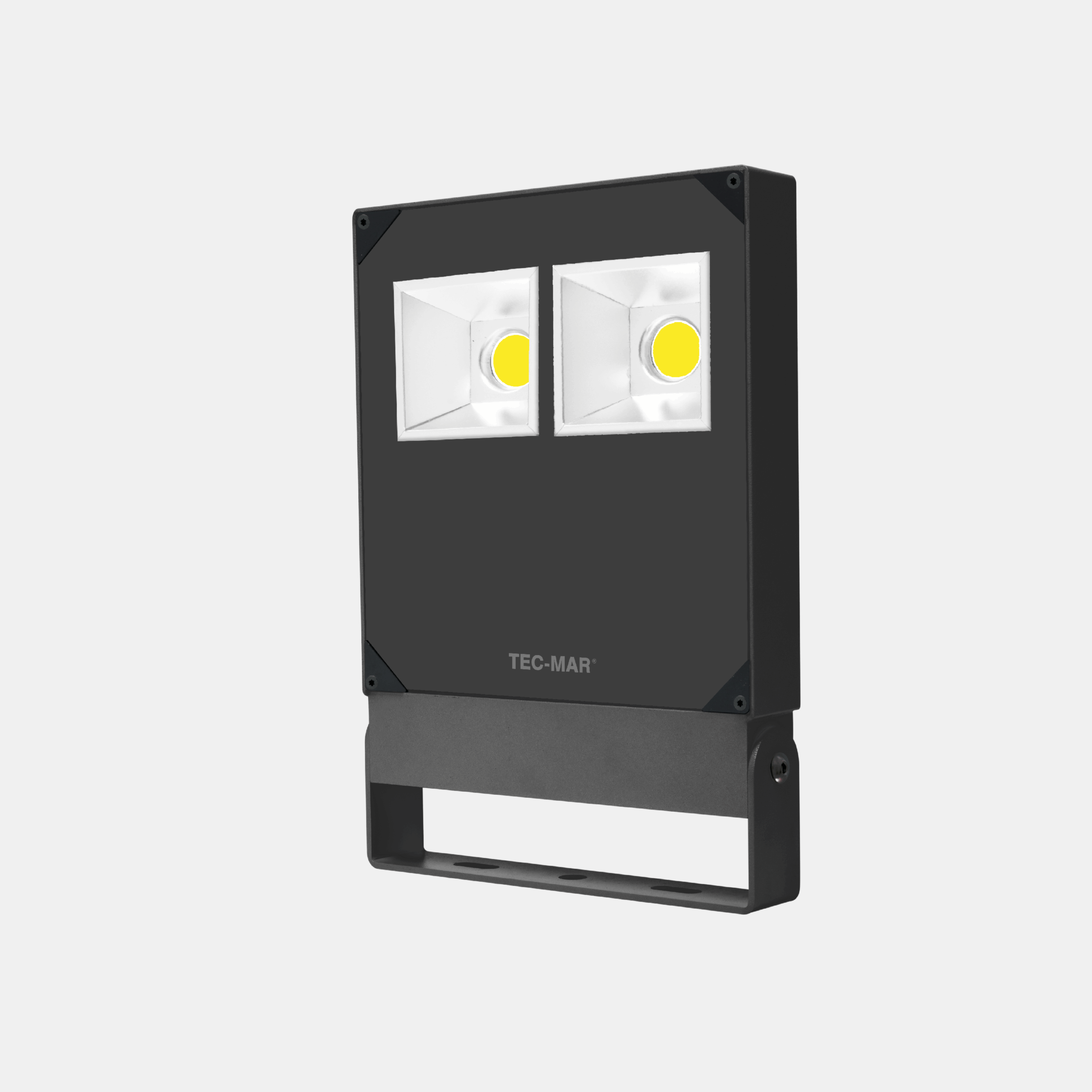

POLAR 3/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, Floodlights, art. 7028 Polar 3
Models: 144
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028PR2= ambra (CRI >80) 125EL= on/off
3= 3000°K (CRI >80)130LD= dali
4= 4000°K (CRI >80)148VA= acid-etched glass
5= 5000°K (CRI >80)150
6= 6500°K (CRI >80)175
7= 5700°K (CRI >80)190
8= 5700°K (CRI >90)
S= 4000°K (CRI >70)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7028PR4125EL1254000°K - CRI>80on/off18468148295554255.6
7028PR4130EL1304000°K - CRI>80on/off20188155295554255.6
7028PR4148EL1484000°K - CRI>80on/off21050142295554255.6
7028PR4150EL1504000°K - CRI>80on/off24596164295554255.6
7028PR4175EL1754000°K - CRI>80on/off26536152295554255.6
7028PR4190EL1904000°K - CRI>80on/off28668151295554255.6
7028PR4125LD1254000°K - CRI>80dali18468148295554255.6
7028PR4130LD1304000°K - CRI>80dali20188155295554255.6
7028PR4148LD1484000°K - CRI>80dali21050142295554255.6
7028PR4150LD1504000°K - CRI>80dali24596164295554255.6
7028PR4175LD1754000°K - CRI>80dali26536152295554255.6
7028PR4190LD1904000°K - CRI>80dali28668151295554255.6
7028PR4125VA1254000°K - CRI>80acid-etched glass18468148295554255.6
7028PR4130VA1304000°K - CRI>80acid-etched glass20188155295554255.6
7028PR4148VA1484000°K - CRI>80acid-etched glass21050142295554255.6
7028PR4150VA1504000°K - CRI>80acid-etched glass24596164295554255.6
7028PR4175VA1754000°K - CRI>80acid-etched glass26536152295554255.6
7028PR4190VA1904000°K - CRI>80acid-etched glass28668151295554255.6
7028PR3125EL1253000°K - CRI>80on/off17493140295554255.6
7028PR3130EL1303000°K - CRI>80on/off19122147295554255.6
