art.-7028-polar-3-pr-silver

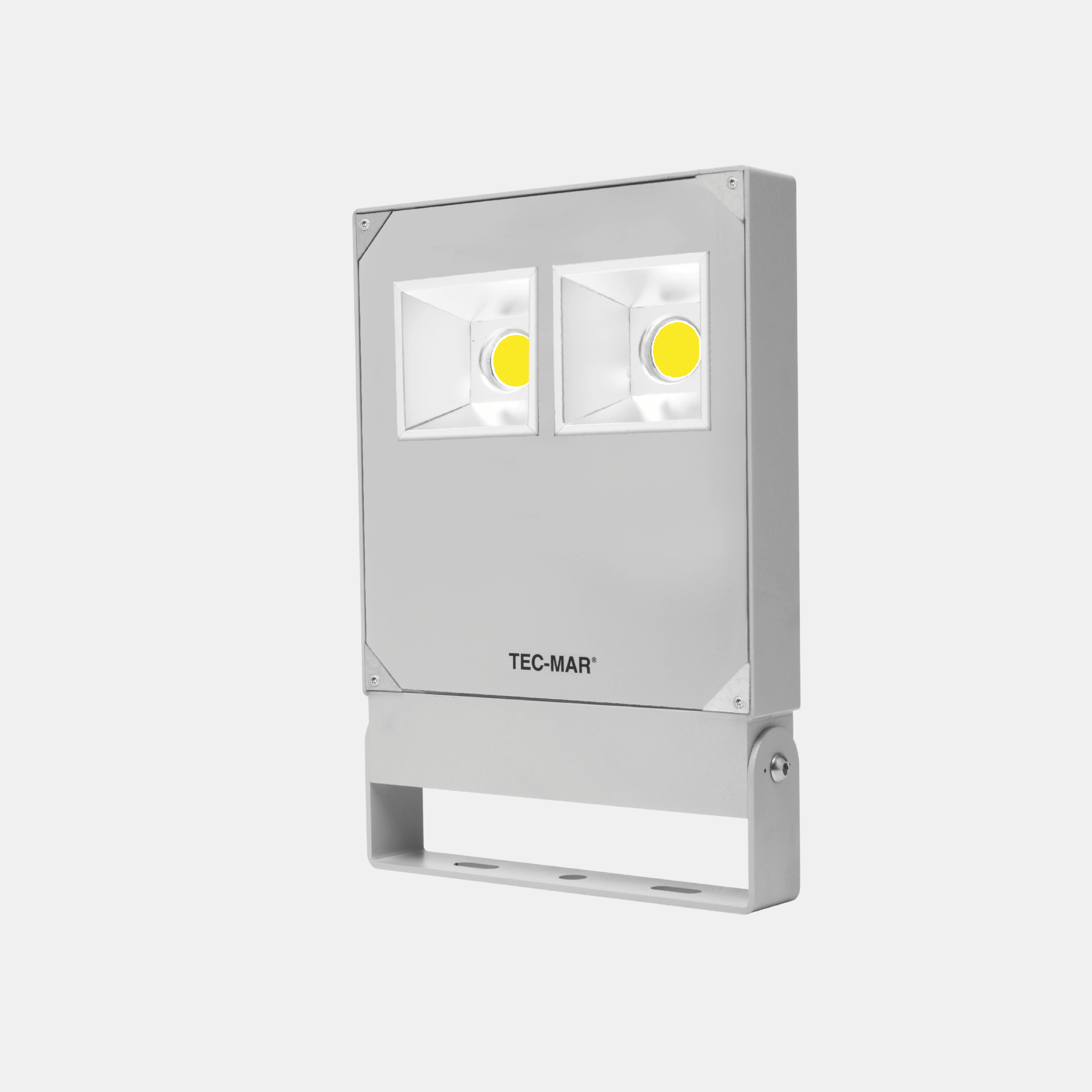

POLAR 3 – Mod. PR

(90° symmetrical optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with symmetrical 90° optics.
Categories: Led, POLAR, POLAR 3 - 7028, Floodlights, POLAR 3
Models: 144
Color: Silver
Catalogue abstract
Installation instructions

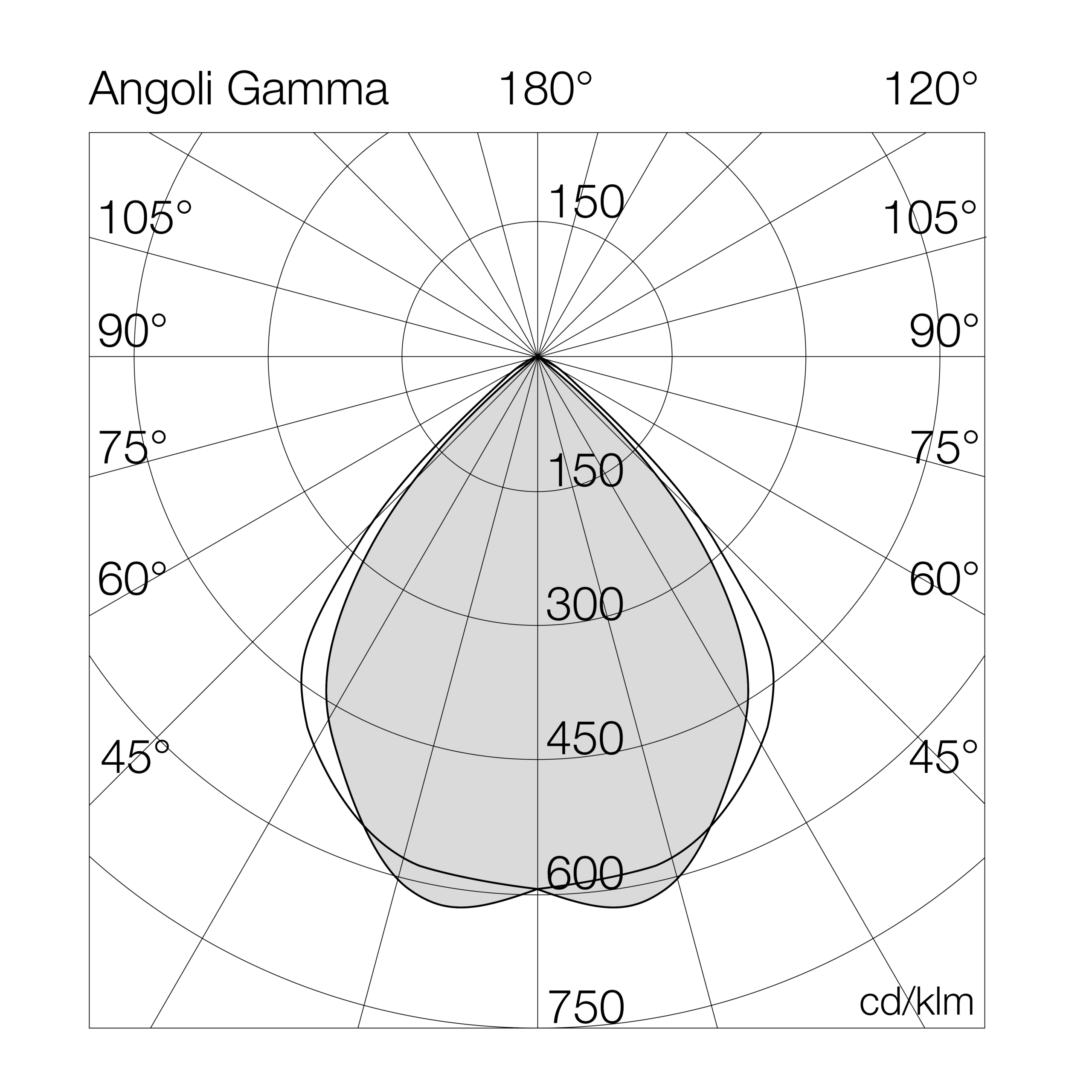

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028PR2= ambra (CRI >80) 125GL= on/off
3= 3000°K (CRI >80)130GD= dali
4= 4000°K (CRI >80)148GA= acid-etched glass
5= 5000°K (CRI >80)150
175
190

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028PR4125GL125-4000°K - CRI>80on/off1846814829555425-5.6
7028PR4130GL130-4000°K - CRI>80on/off2018815529555425-5.6
7028PR4148GL148-4000°K - CRI>80on/off2105014229555425-5.6
7028PR4150GL150-4000°K - CRI>80on/off2459616429555425-5.6
7028PR4175GL175-4000°K - CRI>80on/off2653615229555425-5.6
7028PR4190GL190-4000°K - CRI>80on/off2866815129555425-5.6
7028PR4125GD125-4000°K - CRI>80dali1846814829555425-5.6
7028PR4130GD130-4000°K - CRI>80dali2018815529555425-5.6
7028PR4148GD148-4000°K - CRI>80dali2105014229555425-5.6
7028PR4150GD150-4000°K - CRI>80dali2459616429555425-5.6
7028PR4175GD175-4000°K - CRI>80dali2653615229555425-5.6
7028PR4190GD190-4000°K - CRI>80dali2866815129555425-5.6
7028PR4125GA125-4000°K - CRI>80acid-etched glass1846814829555425-5.6
7028PR4130GA130-4000°K - CRI>80acid-etched glass2018815529555425-5.6
7028PR4148GA148-4000°K - CRI>80acid-etched glass2105014229555425-5.6
7028PR4150GA150-4000°K - CRI>80acid-etched glass2459616429555425-5.6
7028PR4175GA175-4000°K - CRI>80acid-etched glass2653615229555425-5.6
7028PR4190GA190-4000°K - CRI>80acid-etched glass2866815129555425-5.6
7028PR3125GL125-3000°K - CRI>80on/off1749314029555425-5.6
7028PR3130GL130-3000°K - CRI>80on/off1912214729555425-5.6

Accessories
