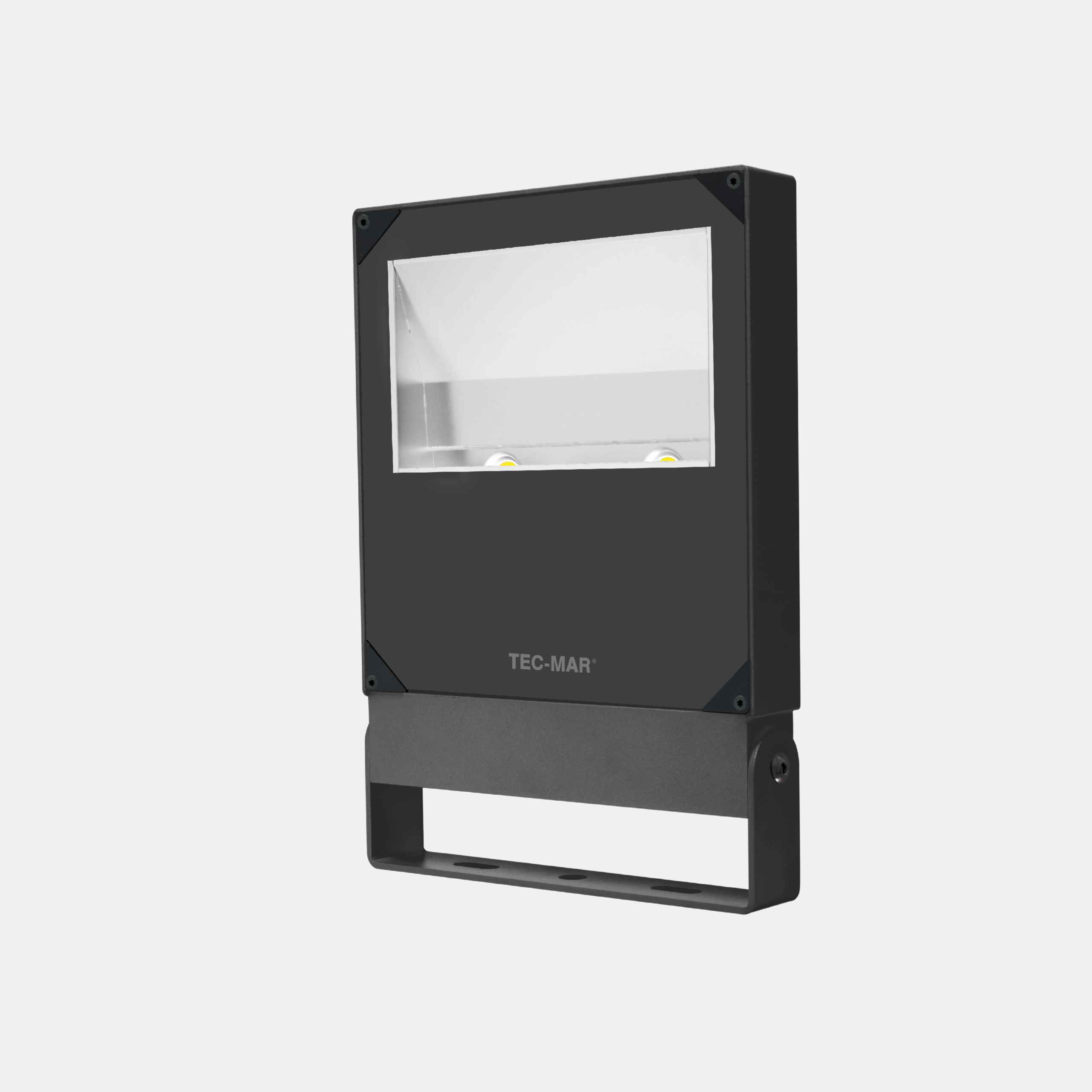

POLAR 3 – Mod. RR

(65° asymmetric optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.
Categories: Led, POLAR, POLAR 3 - 7028, Floodlights, POLAR 3
Models: 144
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028RR2= ambra (CRI >80) 125EL= on/off
3= 3000°K (CRI >80)130LD= dali
4= 4000°K (CRI >80)148VA= acid-etched glass
5= 5000°K (CRI >80)150
175
190

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028RR4125EL125-4000°K - CRI>80on/off1668013329555425-5.6
7028RR4130EL130-4000°K - CRI>80on/off1823314029555425-5.6
7028RR4148EL148-4000°K - CRI>80on/off1901212829555425-5.6
7028RR4150EL150-4000°K - CRI>80on/off2221414829555425-5.6
7028RR4175EL175-4000°K - CRI>80on/off2396613729555425-5.6
7028RR4190EL190-4000°K - CRI>80on/off2589213629555425-5.6
7028RR4125LD125-4000°K - CRI>80dali1668013329555425-5.6
7028RR4130LD130-4000°K - CRI>80dali1823314029555425-5.6
7028RR4148LD148-4000°K - CRI>80dali1901212829555425-5.6
7028RR4150LD150-4000°K - CRI>80dali2221414829555425-5.6
7028RR4175LD175-4000°K - CRI>80dali2396613729555425-5.6
7028RR4190LD190-4000°K - CRI>80dali2589213629555425-5.6
7028RR4125VA125-4000°K - CRI>80acid-etched glass1668013329555425-5.6
7028RR4130VA130-4000°K - CRI>80acid-etched glass1823314029555425-5.6
7028RR4148VA148-4000°K - CRI>80acid-etched glass1901212829555425-5.6
7028RR4150VA150-4000°K - CRI>80acid-etched glass2221414829555425-5.6
7028RR4175VA175-4000°K - CRI>80acid-etched glass2396613729555425-5.6
7028RR4190VA190-4000°K - CRI>80acid-etched glass2589213629555425-5.6
7028RR3125EL125-3000°K - CRI>80on/off1579912629555425-5.6
7028RR3130EL130-3000°K - CRI>80on/off1727013329555425-5.6
