art.-7028-polar-3-rr-silver

POLAR 3 – Mod. RR

(65° asymmetric optics)

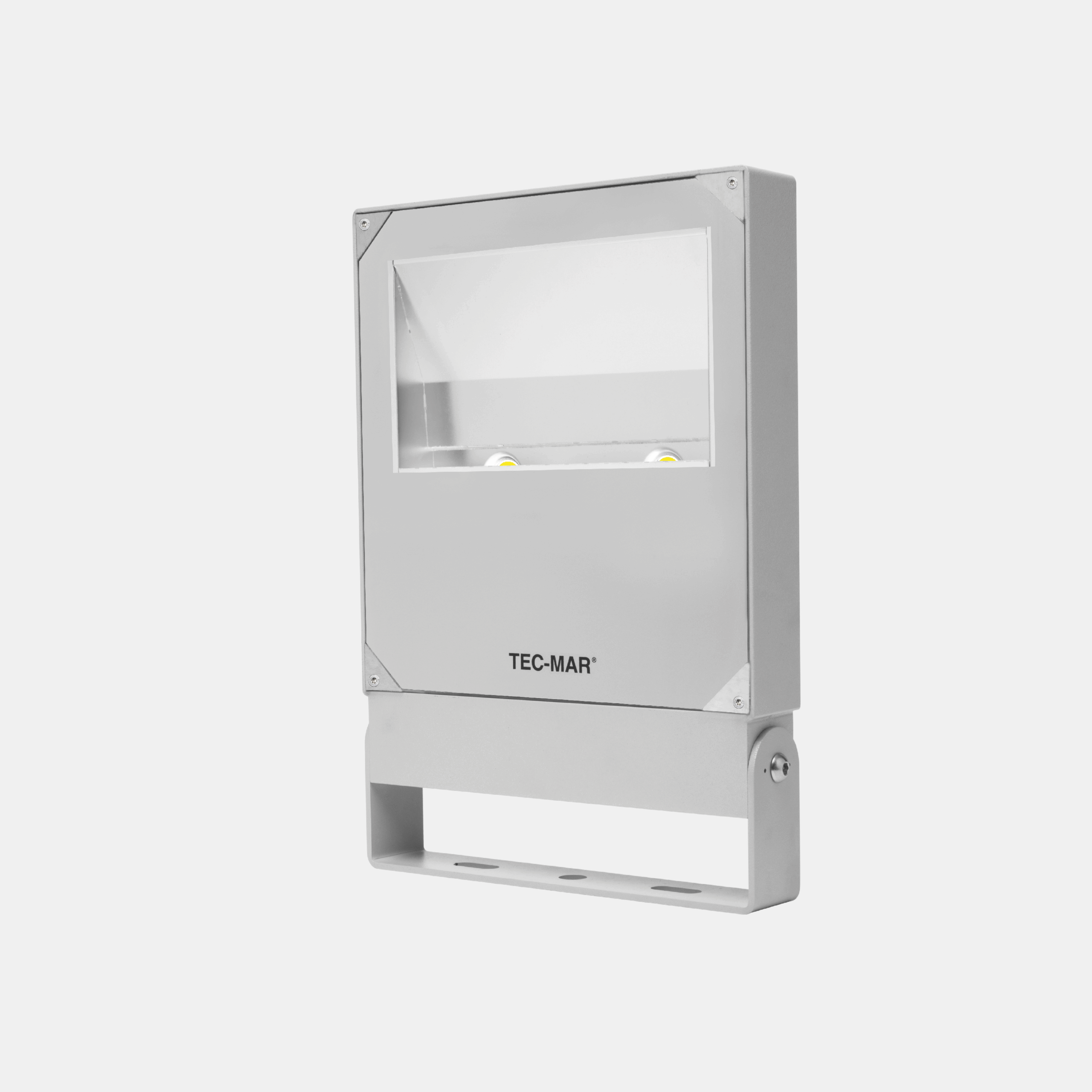

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.
Categories: Led, POLAR, POLAR 3 - 7028, Floodlights, POLAR 3
Models: 144
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028RR2= ambra (CRI >80) 125GL= on/off
3= 3000°K (CRI >80)130GD= dali
4= 4000°K (CRI >80)148GA= acid-etched glass
5= 5000°K (CRI >80)150
175
190

Models

W tot.
°K - CRI
Options

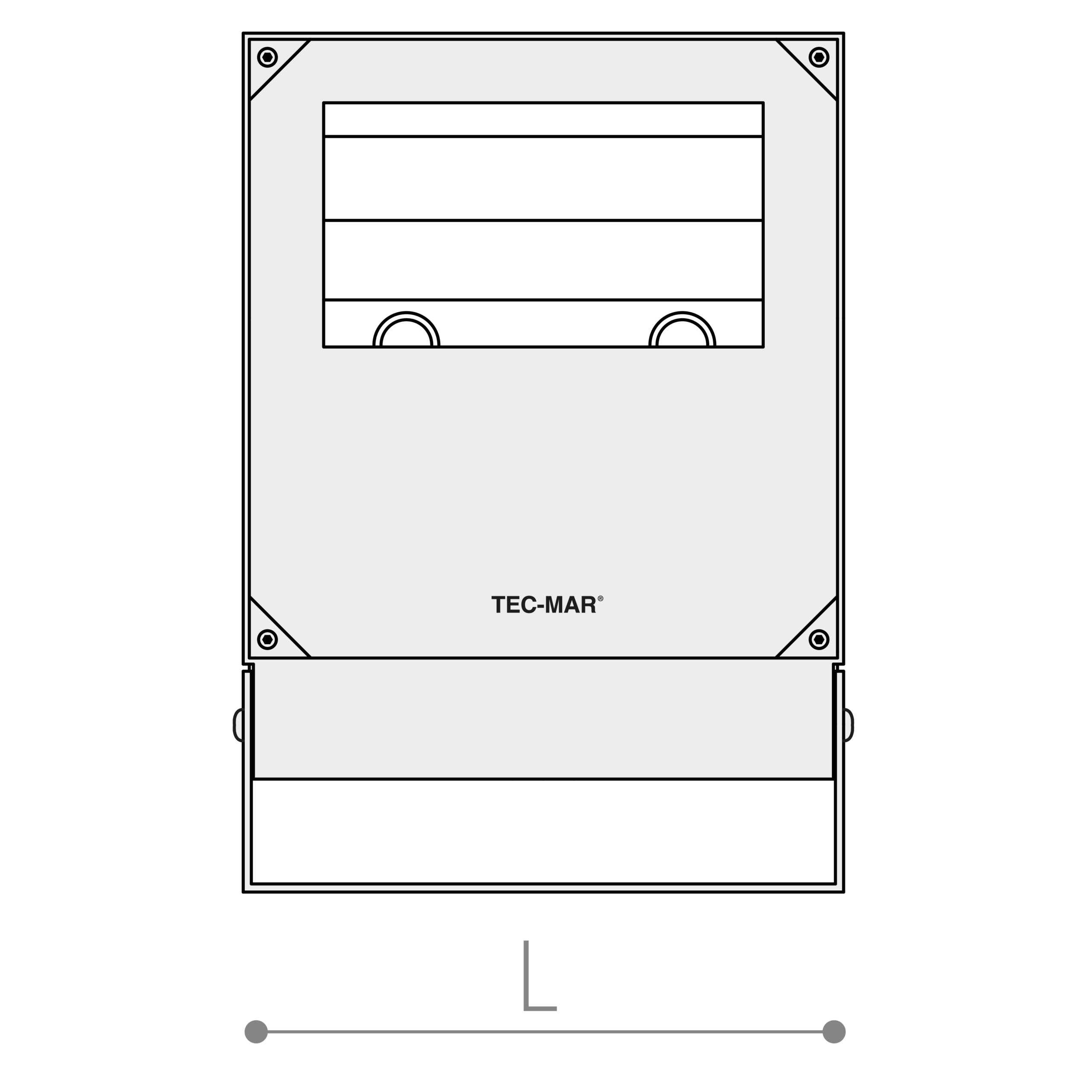

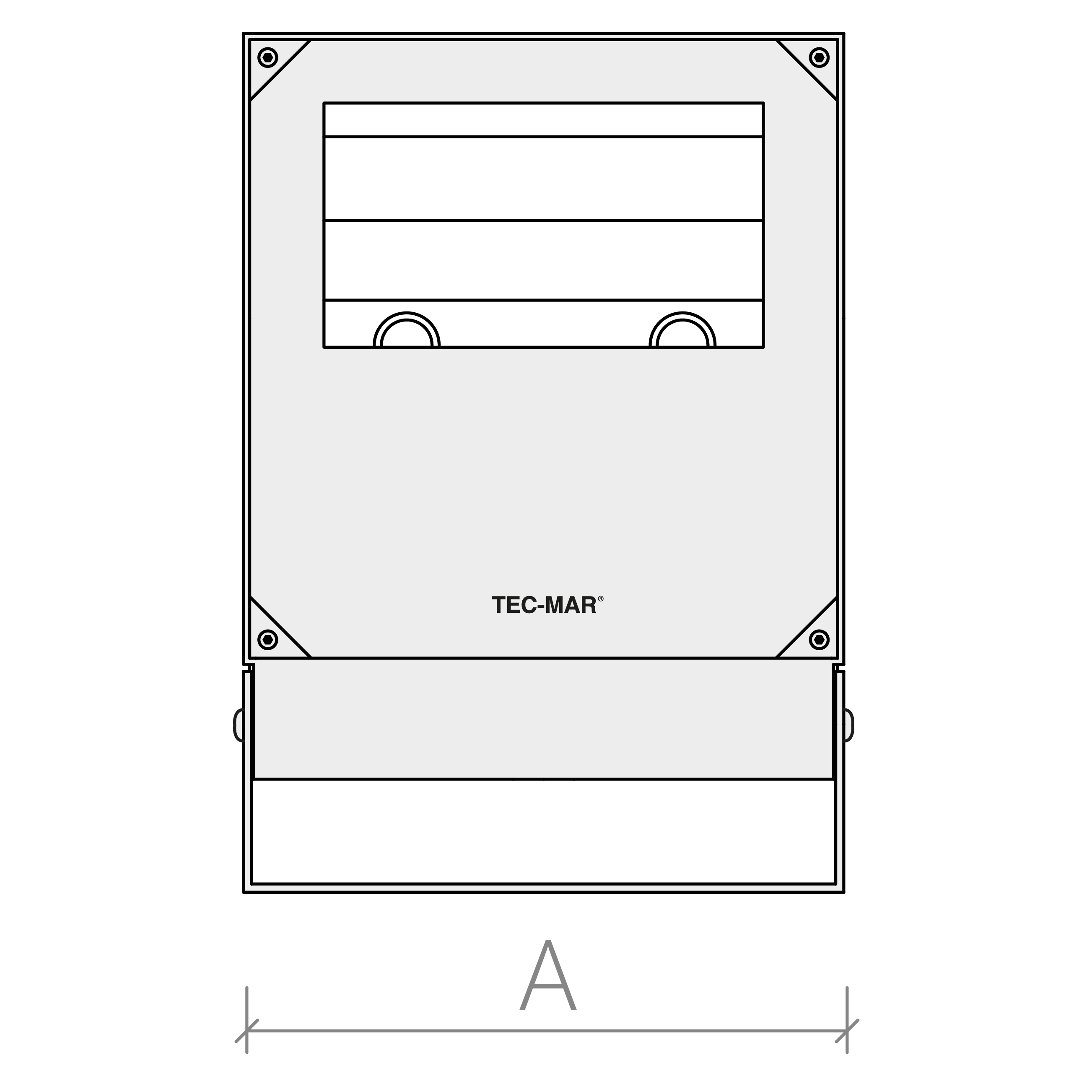

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028RR4125GL125-4000°K - CRI>80on/off1668013329555425-5.6
7028RR4130GL130-4000°K - CRI>80on/off1823314029555425-5.6
7028RR4148GL148-4000°K - CRI>80on/off1901212829555425-5.6
7028RR4150GL150-4000°K - CRI>80on/off2221414829555425-5.6
7028RR4175GL175-4000°K - CRI>80on/off2396613729555425-5.6
7028RR4190GL190-4000°K - CRI>80on/off2589213629555425-5.6
7028RR4125GD125-4000°K - CRI>80dali1668013329555425-5.6
7028RR4130GD130-4000°K - CRI>80dali1823314029555425-5.6
7028RR4148GD148-4000°K - CRI>80dali1901212829555425-5.6
7028RR4150GD150-4000°K - CRI>80dali2221414829555425-5.6
7028RR4175GD175-4000°K - CRI>80dali2396613729555425-5.6
7028RR4190GD190-4000°K - CRI>80dali2589213629555425-5.6
7028RR4125GA125-4000°K - CRI>80acid-etched glass1668013329555425-5.6
7028RR4130GA130-4000°K - CRI>80acid-etched glass1823314029555425-5.6
7028RR4148GA148-4000°K - CRI>80acid-etched glass1901212829555425-5.6
7028RR4150GA150-4000°K - CRI>80acid-etched glass2221414829555425-5.6
7028RR4175GA175-4000°K - CRI>80acid-etched glass2396613729555425-5.6
7028RR4190GA190-4000°K - CRI>80acid-etched glass2589213629555425-5.6
7028RR3125GL125-3000°K - CRI>80on/off1579912629555425-5.6
7028RR3130GL130-3000°K - CRI>80on/off1727013329555425-5.6

Accessories
