art.-7028-tod-2-t2-me-cp-silver

TOD 2 – Mod. ME

(Wide asymmetric street optics Class ME)

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 2 - 7028, Street lighting, TOD 2
Models: 144
Color: Silver
Catalogue abstract

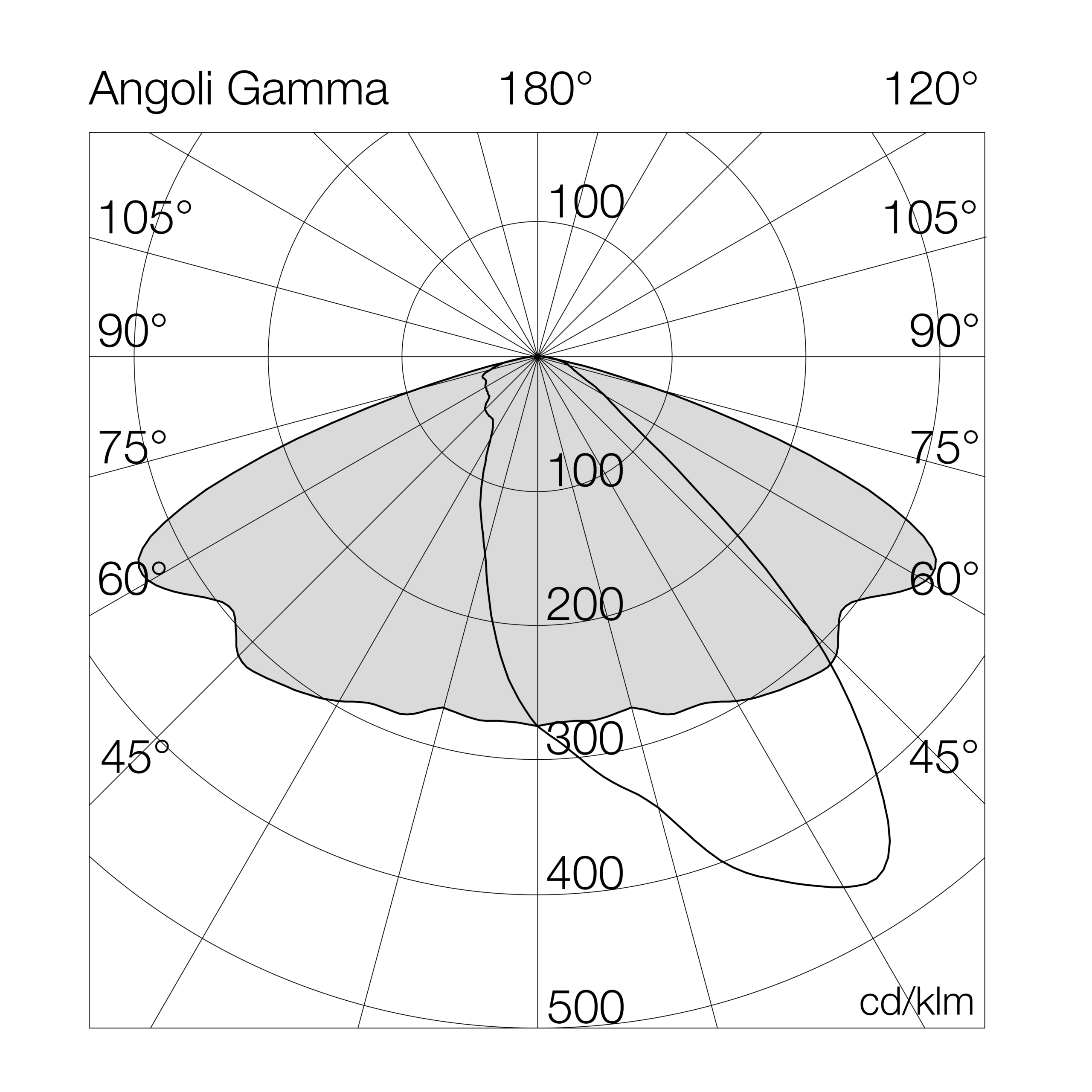

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028ME2= ambra (CRI >70)025073GL= on/off
3= 3000°K (CRI >70)036078GD= dali 2
4= 4000°K (CRI >70)037080MG= virtual midnight
5= 5000°K (CRI >70)050104
052120
054150

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028ME4025GL25-4000°K - CRI>70on/off422316929555465-7.5
7028ME4037GL37-4000°K - CRI>70on/off633417129555465-7.5
7028ME4050GL50-4000°K - CRI>70on/off844616929555465-7.5
7028ME4036GL36-4000°K - CRI>70on/off592216529555465-7.5
7028ME4054GL54-4000°K - CRI>70on/off888416529555465-7.5
7028ME4073GL73-4000°K - CRI>70on/off1184516229555465-7.5
7028ME4052GL52-4000°K - CRI>70on/off808115529555465-7.5
7028ME4078GL78-4000°K - CRI>70on/off1212215529555465-7.5
7028ME4104GL104-4000°K - CRI>70on/off1616315529555465-7.5
7028ME4080GL80-4000°K - CRI>70on/off1155014429555465-7.5
7028ME4120GL120-4000°K - CRI>70on/off1732614429555465-7.5
7028ME4150GL150-4000°K - CRI>70on/off2215914829555465-7.5
7028ME4025GD25-4000°K - CRI>70dali 2422316929555465-7.5
7028ME4037GD37-4000°K - CRI>70dali 2633417129555465-7.5
7028ME4050GD50-4000°K - CRI>70dali 2844616929555465-7.5
7028ME4036GD36-4000°K - CRI>70dali 2592216529555465-7.5
7028ME4054GD54-4000°K - CRI>70dali 2888416529555465-7.5
7028ME4073GD73-4000°K - CRI>70dali 21184516229555465-7.5
7028ME4052GD52-4000°K - CRI>70dali 2808115529555465-7.5
7028ME4078GD78-4000°K - CRI>70dali 21212215529555465-7.5

Accessories
