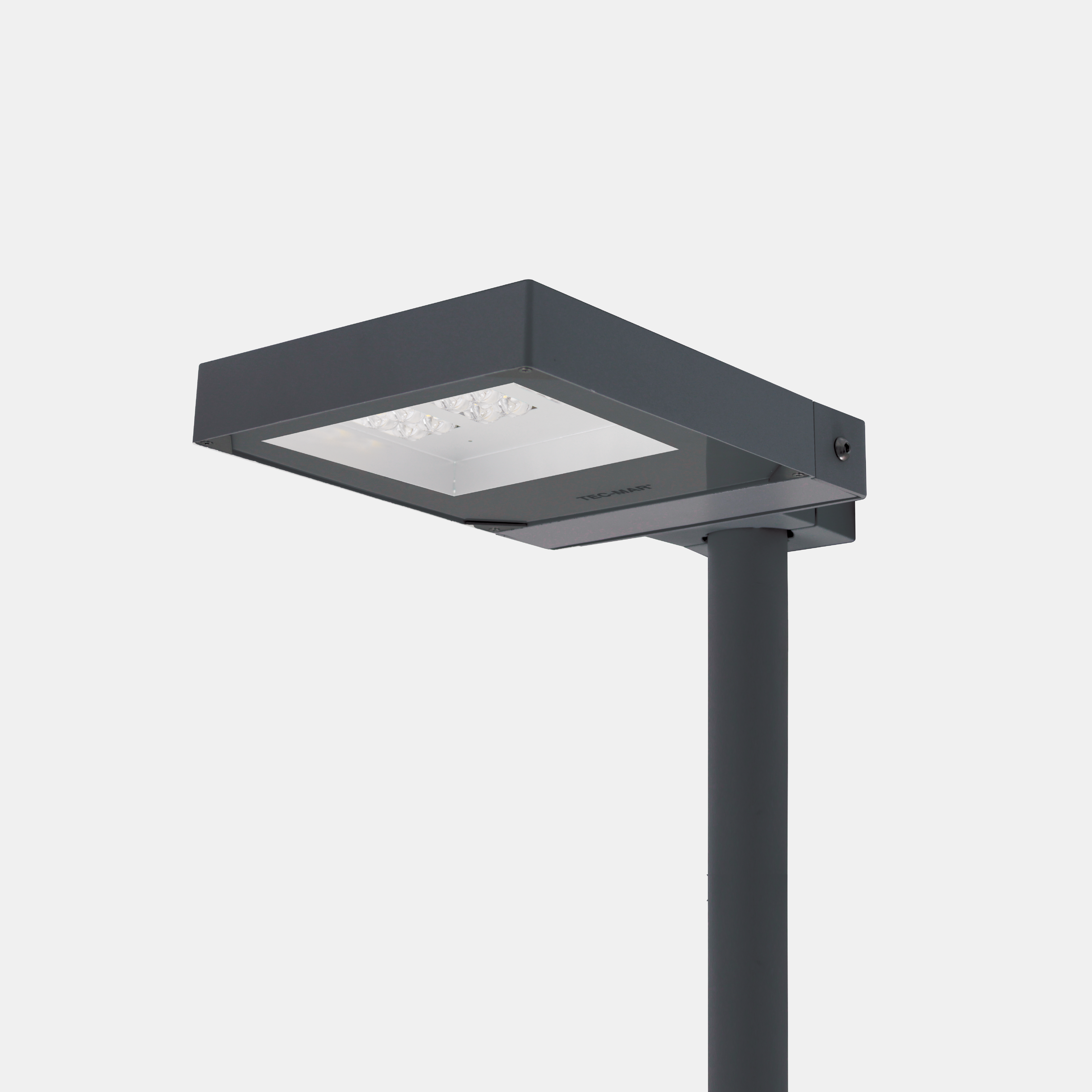

TOD 2 – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder anthracite color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 2 - 7028, Street lighting, TOD 2
Models: 144
Color: Anthracite
Catalogue abstract
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028T22= ambra (CRI >70)025073EL= on/off
3= 3000°K (CRI >70)036078LD= dali 2
4= 4000°K (CRI >70)037080MD= virtual midnight
5= 5000°K (CRI >70)050104
052120
054150

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028T24025EL25-4000°K - CRI>70on/off422816929555465-7.5
7028T24037EL37-4000°K - CRI>70on/off634217129555465-7.5
7028T24050EL50-4000°K - CRI>70on/off845616929555465-7.5
7028T24036EL36-4000°K - CRI>70on/off592916529555465-7.5
7028T24054EL54-4000°K - CRI>70on/off889416529555465-7.5
7028T24073EL73-4000°K - CRI>70on/off1185916229555465-7.5
7028T24052EL52-4000°K - CRI>70on/off809015629555465-7.5
7028T24078EL78-4000°K - CRI>70on/off1213615629555465-7.5
7028T24104EL104-4000°K - CRI>70on/off1618115629555465-7.5
7028T24080EL80-4000°K - CRI>70on/off1156314529555465-7.5
7028T24120EL120-4000°K - CRI>70on/off1734614529555465-7.5
7028T24150EL150-4000°K - CRI>70on/off2218414829555465-7.5
7028T24025LD25-4000°K - CRI>70dali 2422816929555465-7.5
7028T24037LD37-4000°K - CRI>70dali 2634217129555465-7.5
7028T24050LD50-4000°K - CRI>70dali 2845616929555465-7.5
7028T24036LD36-4000°K - CRI>70dali 2592916529555465-7.5
7028T24054LD54-4000°K - CRI>70dali 2889416529555465-7.5
7028T24073LD73-4000°K - CRI>70dali 21185916229555465-7.5
7028T24052LD52-4000°K - CRI>70dali 2809015629555465-7.5
7028T24078LD78-4000°K - CRI>70dali 21213615629555465-7.5
