TOD 2 – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

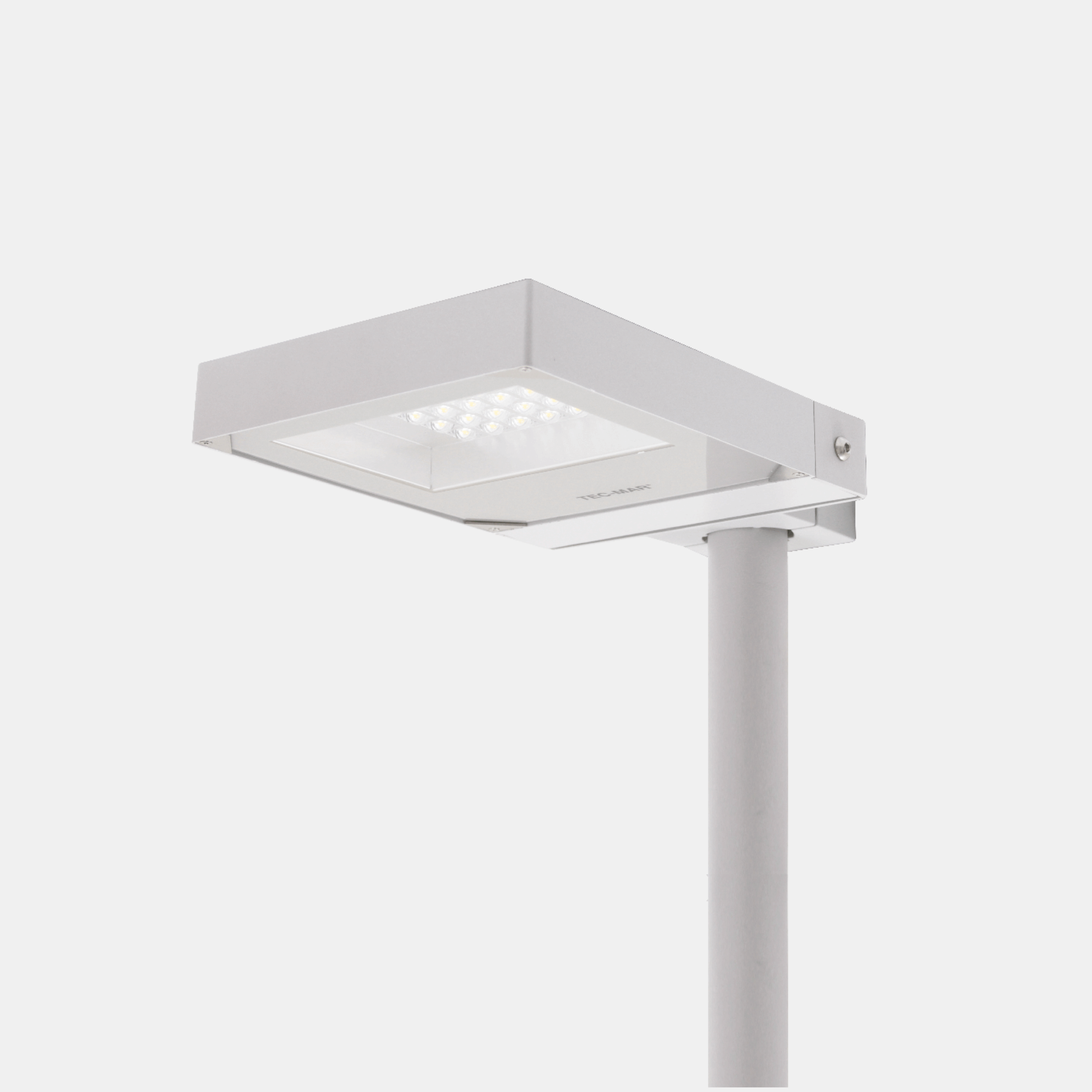

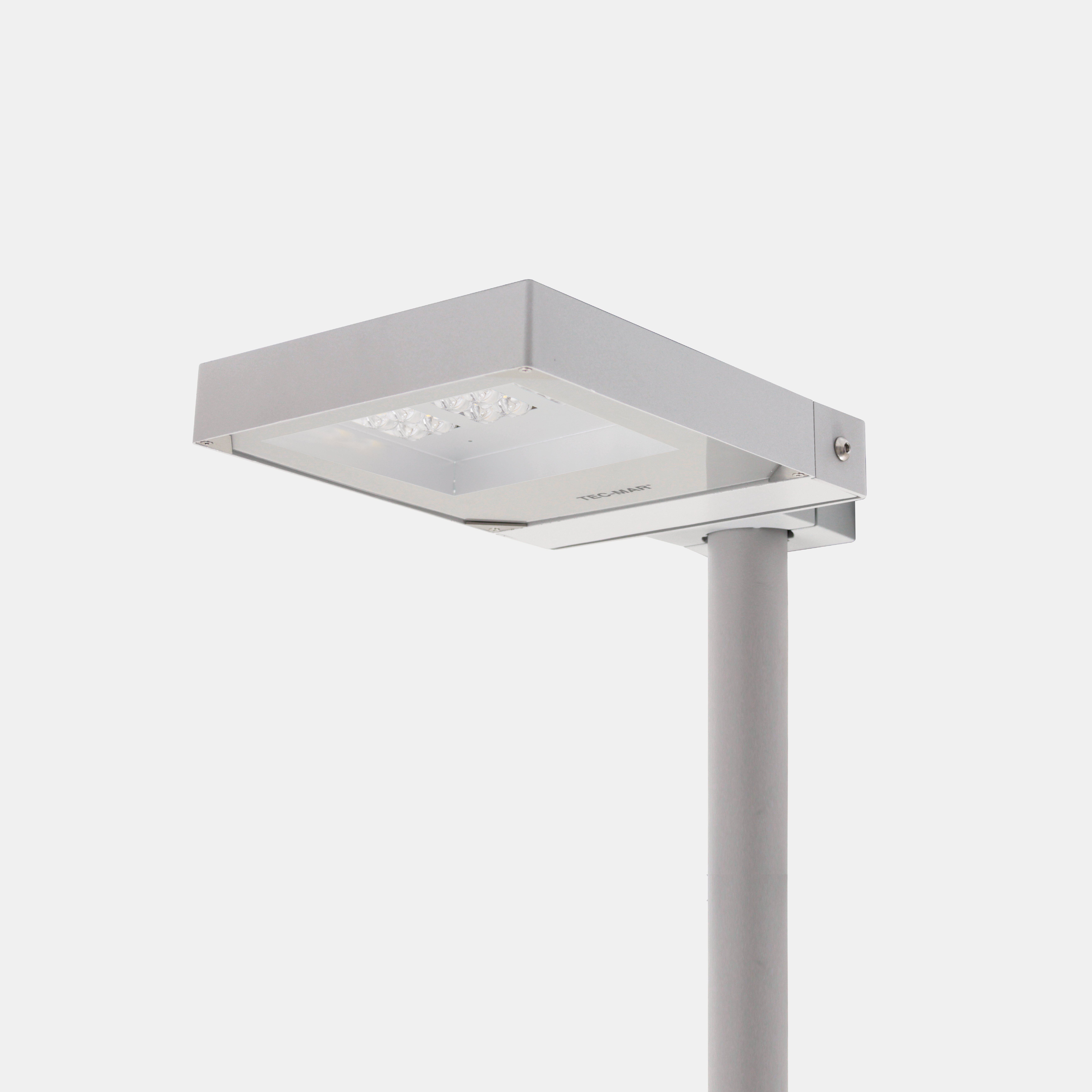

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 2 - 7028, Street lighting, TOD 2
Models: 144
Color: Silver
Catalogue abstract

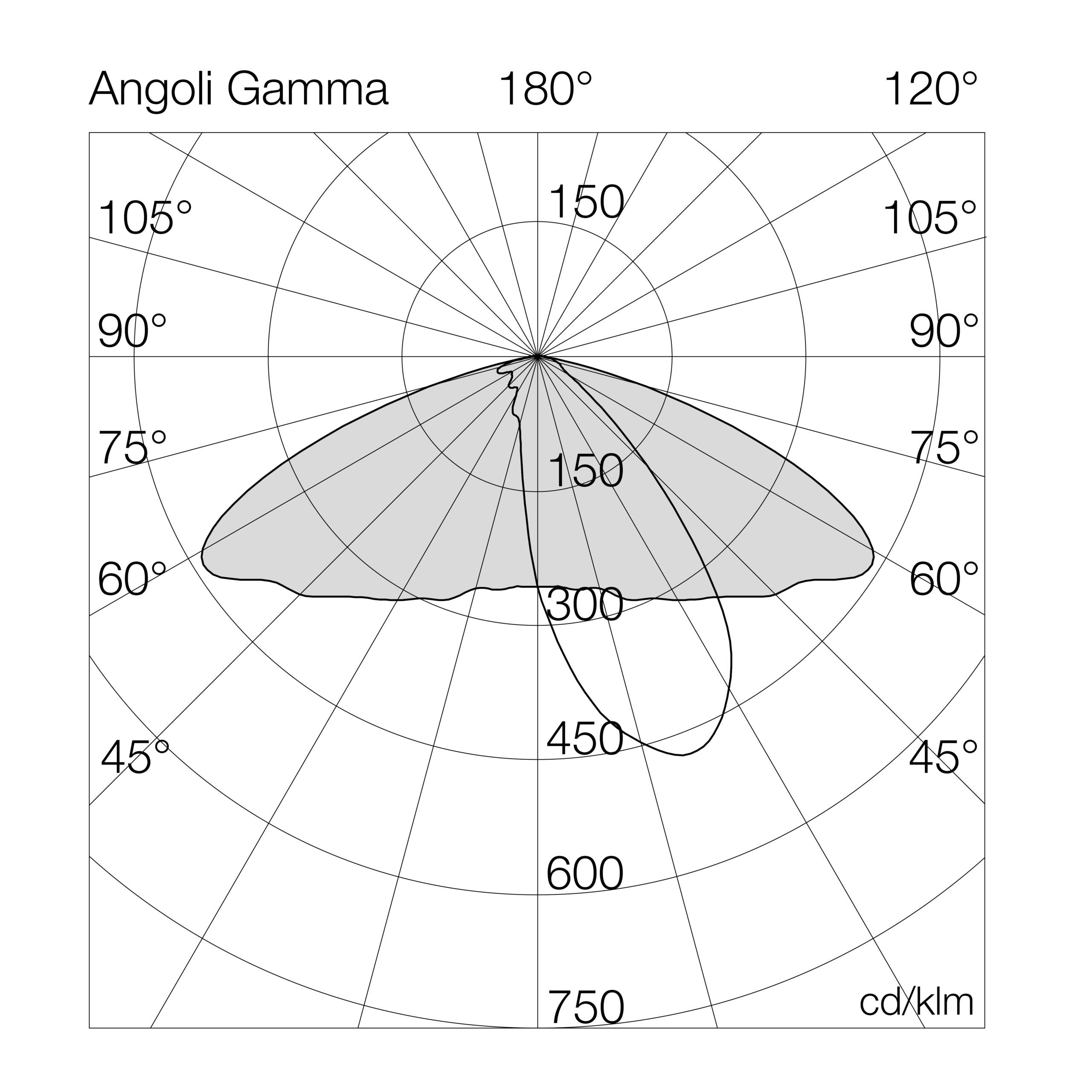

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7028T22= ambra (CRI >70)025073GL= on/off
3= 3000°K (CRI >70)036078GD= dali 2
4= 4000°K (CRI >70)037080MG= virtual midnight
5= 5000°K (CRI >70)050104
052120
054150

Models

W tot.
°K - CRI
Options

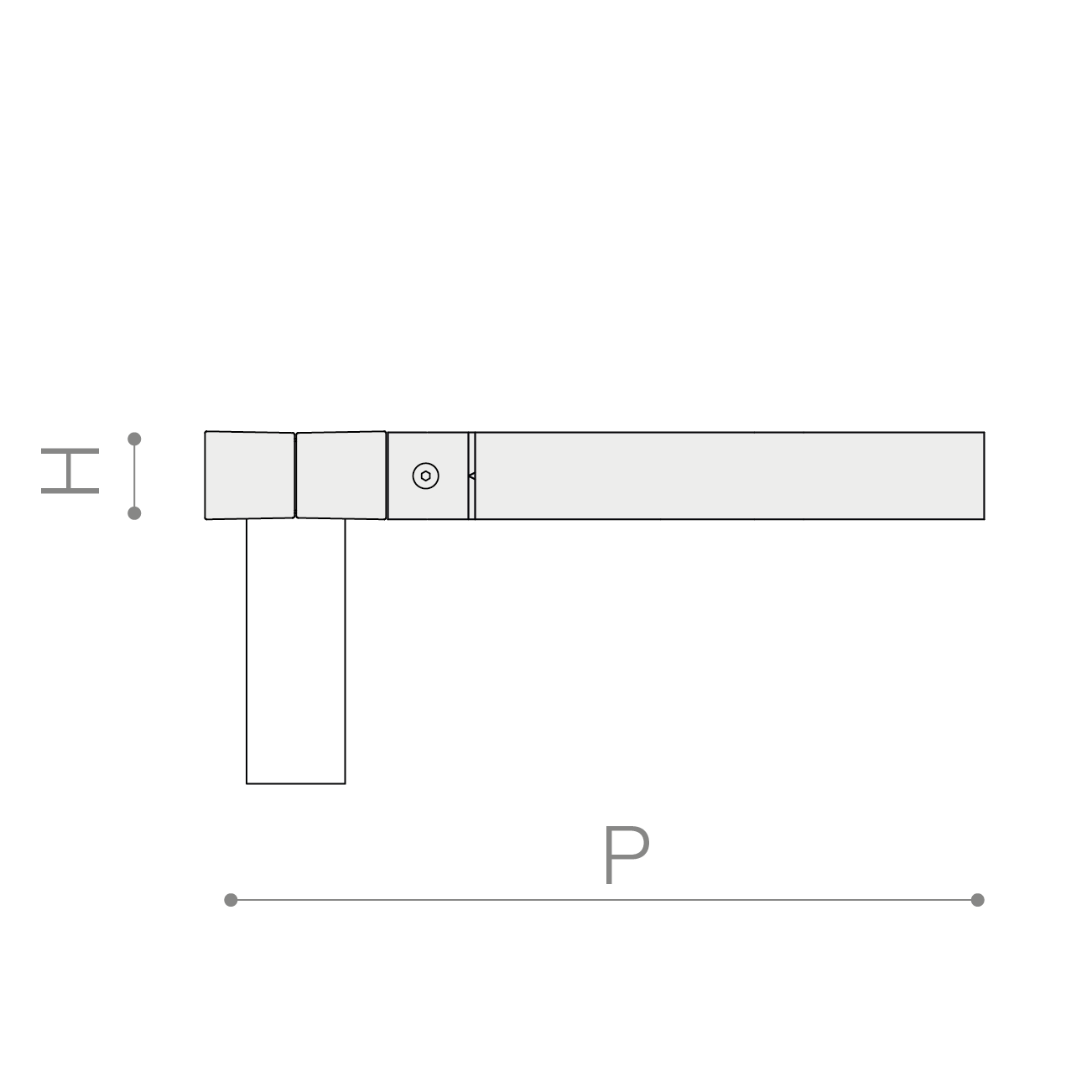

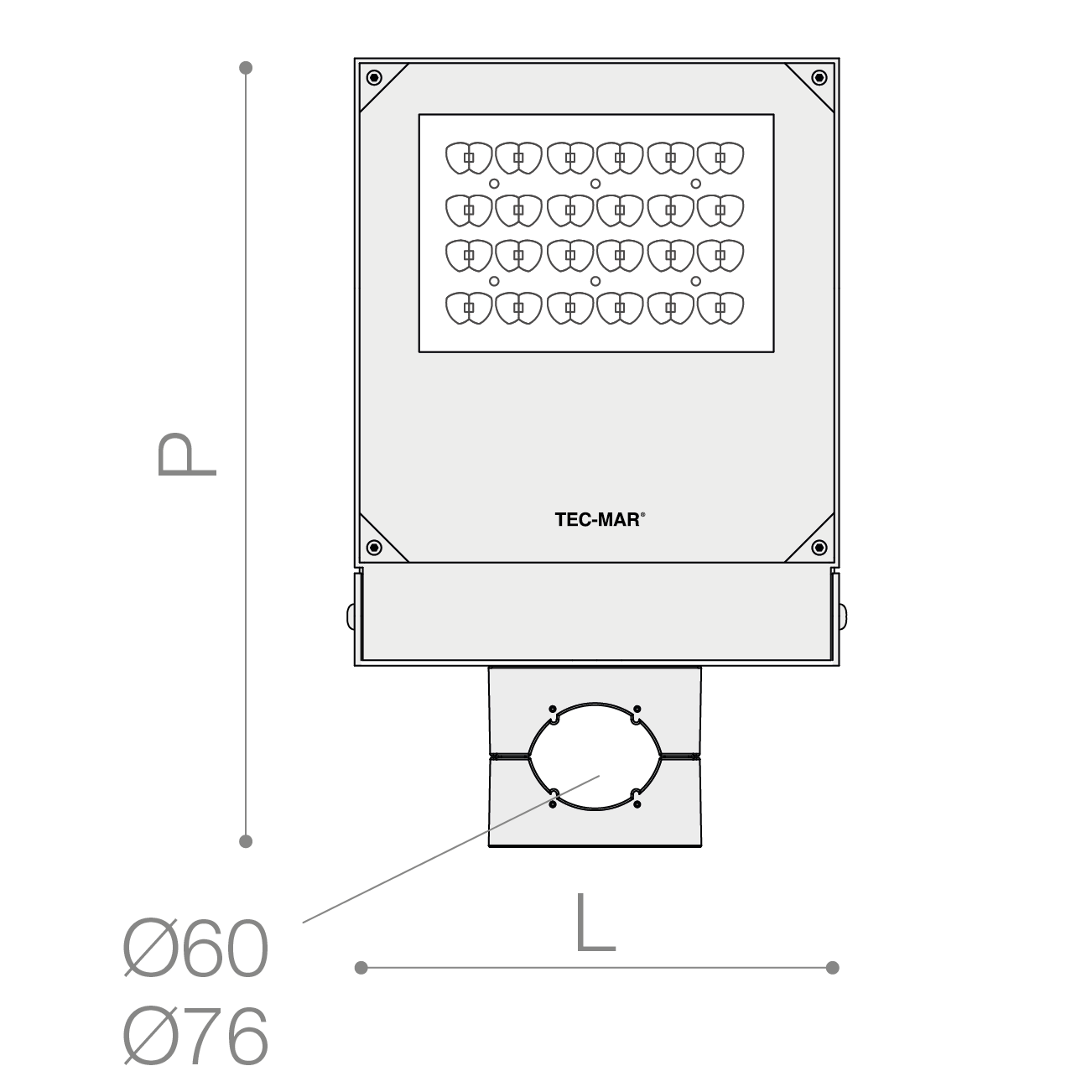

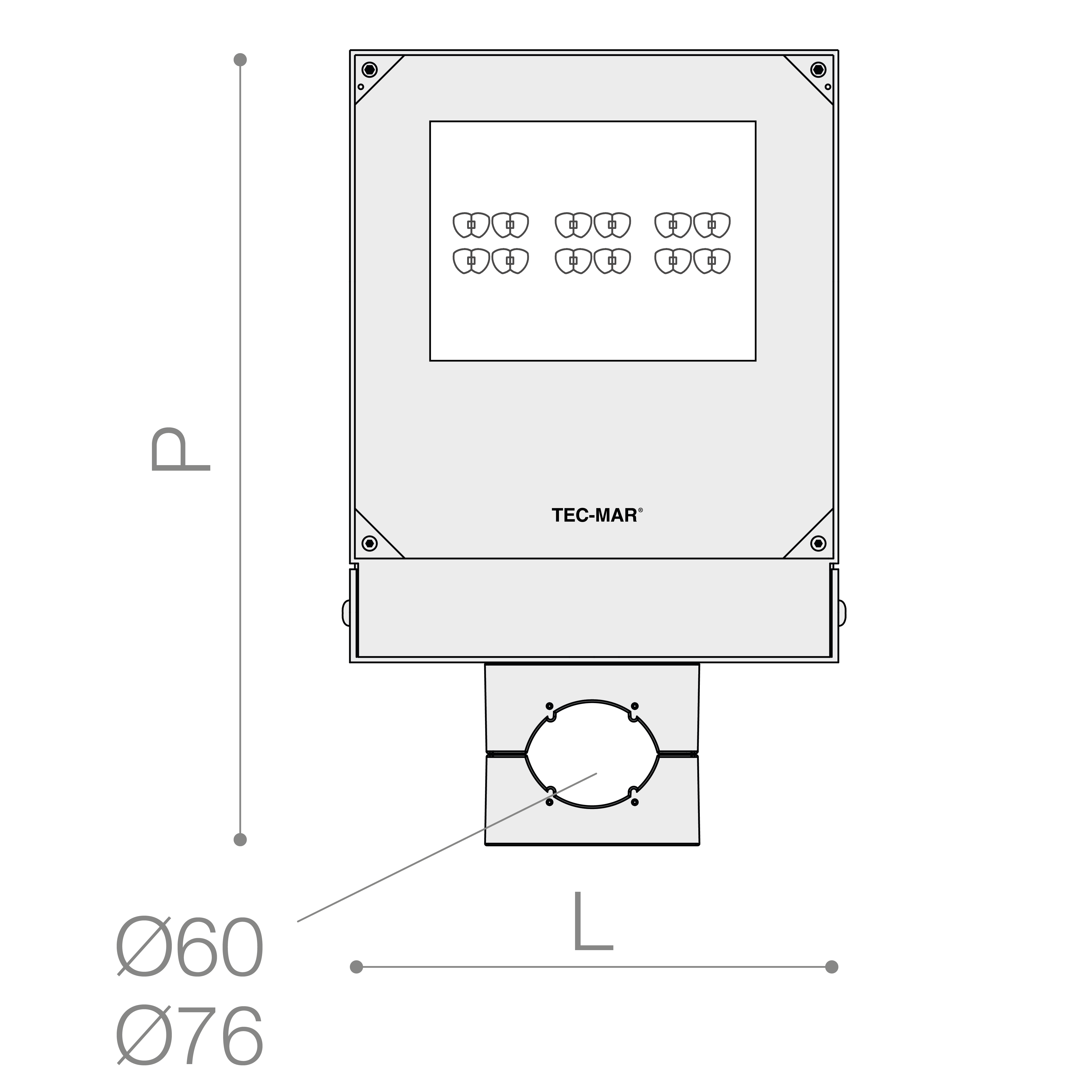

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7028T24025GL25-4000°K - CRI>70on/off422816929555465-7.5
7028T24037GL37-4000°K - CRI>70on/off634217129555465-7.5
7028T24050GL50-4000°K - CRI>70on/off845616929555465-7.5
7028T24036GL36-4000°K - CRI>70on/off592916529555465-7.5
7028T24054GL54-4000°K - CRI>70on/off889416529555465-7.5
7028T24073GL73-4000°K - CRI>70on/off1185916229555465-7.5
7028T24052GL52-4000°K - CRI>70on/off809015629555465-7.5
7028T24078GL78-4000°K - CRI>70on/off1213615629555465-7.5
7028T24104GL104-4000°K - CRI>70on/off1618115629555465-7.5
7028T24080GL80-4000°K - CRI>70on/off1156314529555465-7.5
7028T24120GL120-4000°K - CRI>70on/off1734614529555465-7.5
7028T24150GL150-4000°K - CRI>70on/off2218414829555465-7.5
7028T24025GD25-4000°K - CRI>70dali 2422816929555465-7.5
7028T24037GD37-4000°K - CRI>70dali 2634217129555465-7.5
7028T24050GD50-4000°K - CRI>70dali 2845616929555465-7.5
7028T24036GD36-4000°K - CRI>70dali 2592916529555465-7.5
7028T24054GD54-4000°K - CRI>70dali 2889416529555465-7.5
7028T24073GD73-4000°K - CRI>70dali 21185916229555465-7.5
7028T24052GD52-4000°K - CRI>70dali 2809015629555465-7.5
7028T24078GD78-4000°K - CRI>70dali 21213615629555465-7.5
