art.-7029-polar-4-ar-antracite

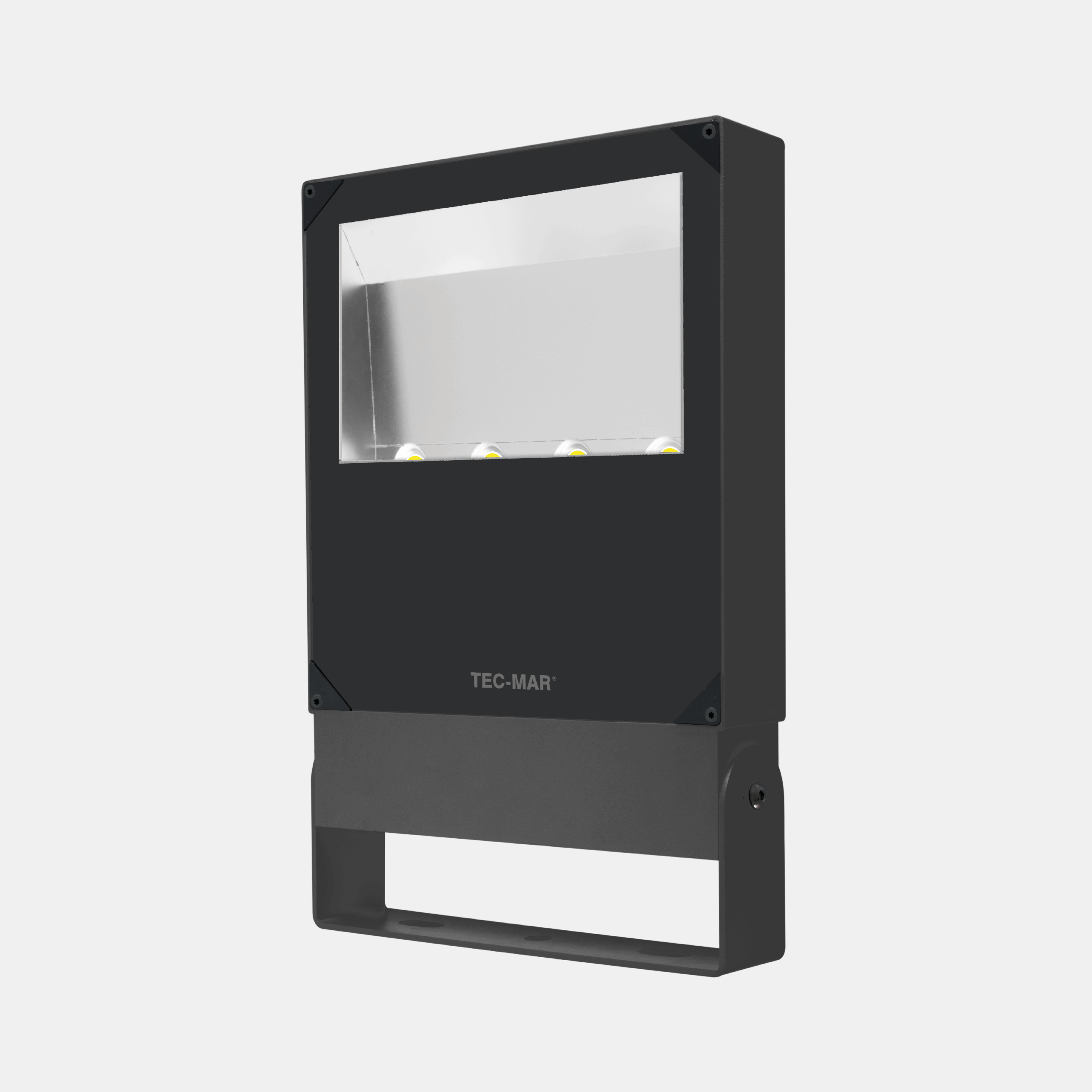

POLAR 4 – Mod. AR

(45° asymmetric optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 45° optics.
Categories: Led, POLAR, POLAR 4 - 7029, Floodlights, POLAR 4
Models: 135
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029AR2= ambra (CRI >80) 200EL= on/off
3= 3000°K (CRI >80)220LD= dali
4= 4000°K (CRI >80)240VA= acid-etched glass
5= 5000°K (CRI >80)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029AR4200EL200-4000°K - CRI>80on/off3277716432570500-8.4
7029AR4220EL220-4000°K - CRI>80on/off3476715832570500-8.4
7029AR4240EL240-4000°K - CRI>80on/off3664015332570500-8.4
7029AR4280EL280-4000°K - CRI>80on/off4307715432570500-8.4
7029AR4300EL300-4000°K - CRI>80on/off4624915432570500-8.4
7029AR4200LD200-4000°K - CRI>80dali3277716432570500-8.4
7029AR4220LD220-4000°K - CRI>80dali3476715832570500-8.4
7029AR4240LD240-4000°K - CRI>80dali3664015332570500-8.4
7029AR4280LD280-4000°K - CRI>80dali4307715432570500-8.4
7029AR4300LD300-4000°K - CRI>80dali4624915432570500-8.4
7029AR4200VA200-4000°K - CRI>80acid-etched glass3277716432570500-8.4
7029AR4220VA220-4000°K - CRI>80acid-etched glass3476715832570500-8.4
7029AR4240VA240-4000°K - CRI>80acid-etched glass3664015332570500-8.4
7029AR4280VA280-4000°K - CRI>80acid-etched glass4307715432570500-8.4
7029AR4300VA300-4000°K - CRI>80acid-etched glass4624915432570500-8.4
7029AR3200EL200-3000°K - CRI>80on/off3104615532570500-8.4
7029AR3220EL220-3000°K - CRI>80on/off3293115032570500-8.4
7029AR3240EL240-3000°K - CRI>80on/off3470514532570500-8.4
7029AR3280EL280-3000°K - CRI>80on/off4080314632570500-8.4
7029AR3300EL300-3000°K - CRI>80on/off4380714632570500-8.4

Accessories
