art.-7029-polar-4-cr-antracite

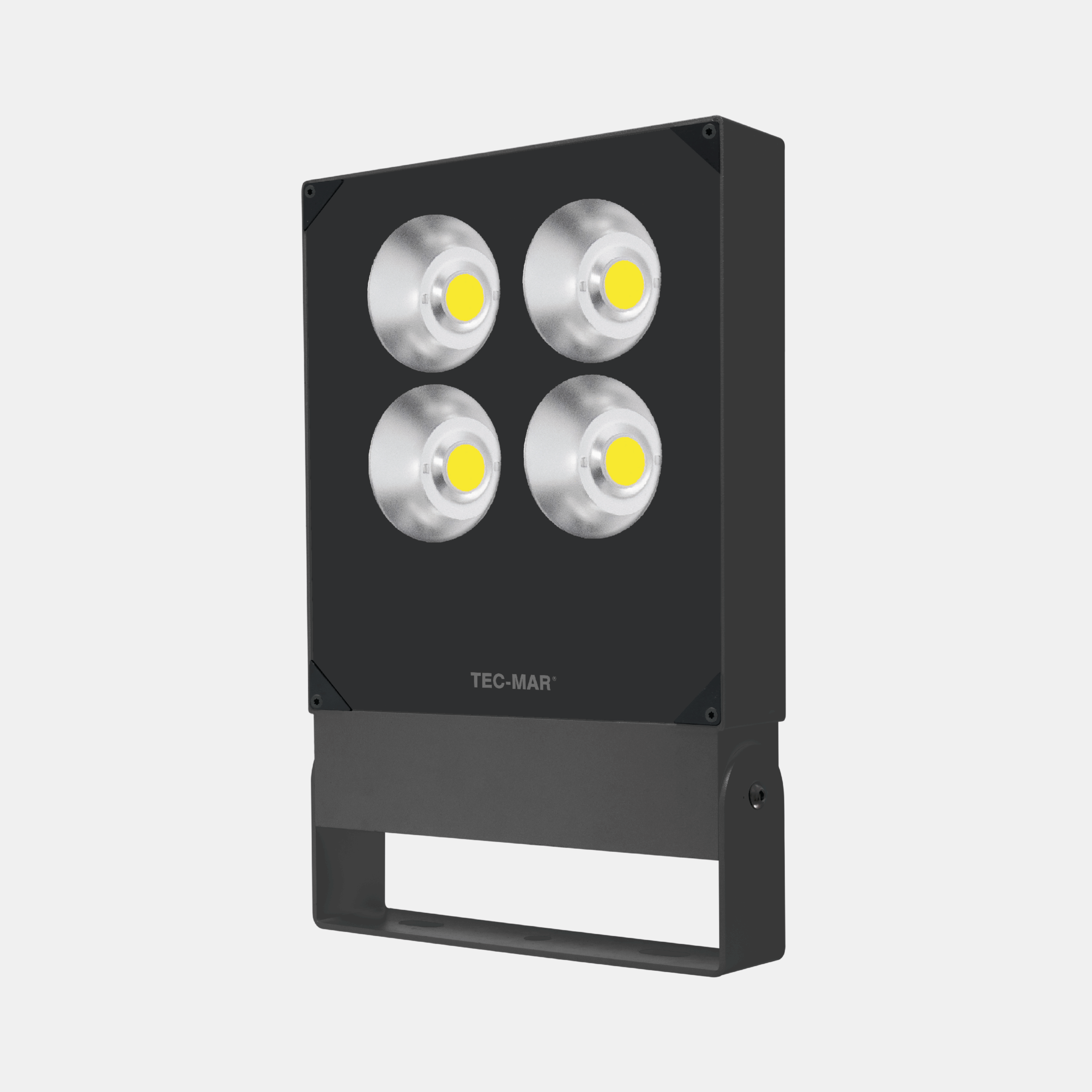

POLAR 4 – Mod. CR

(29° focusing optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with concentrating 29° optics.
Categories: Led, POLAR, POLAR 4 - 7029, Floodlights, POLAR 4
Models: 135
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029CR2= ambra (CRI >80) 200EL= on/off
3= 3000°K (CRI >80)220LD= dali
4= 4000°K (CRI >80)240VA= acid-etched glass
5= 5000°K (CRI >80)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029CR4200EL200-4000°K - CRI>80on/off3334216732570500-8.4
7029CR4220EL220-4000°K - CRI>80on/off3536616132570500-8.4
7029CR4240EL240-4000°K - CRI>80on/off3727215532570500-8.4
7029CR4280EL280-4000°K - CRI>80on/off4382015732570500-8.4
7029CR4300EL300-4000°K - CRI>80on/off4704715732570500-8.4
7029CR4200LD200-4000°K - CRI>80dali3334216732570500-8.4
7029CR4220LD220-4000°K - CRI>80dali3536616132570500-8.4
7029CR4240LD240-4000°K - CRI>80dali3727215532570500-8.4
7029CR4280LD280-4000°K - CRI>80dali4382015732570500-8.4
7029CR4300LD300-4000°K - CRI>80dali4704715732570500-8.4
7029CR4200VA200-4000°K - CRI>80acid-etched glass3334216732570500-8.4
7029CR4220VA220-4000°K - CRI>80acid-etched glass3536616132570500-8.4
7029CR4240VA240-4000°K - CRI>80acid-etched glass3727215532570500-8.4
7029CR4280VA280-4000°K - CRI>80acid-etched glass4382015732570500-8.4
7029CR4300VA300-4000°K - CRI>80acid-etched glass4704715732570500-8.4
7029CR3200EL200-3000°K - CRI>80on/off3158215832570500-8.4
7029CR3220EL220-3000°K - CRI>80on/off3349915232570500-8.4
7029CR3240EL240-3000°K - CRI>80on/off3530414732570500-8.4
7029CR3280EL280-3000°K - CRI>80on/off4150614832570500-8.4
7029CR3300EL300-3000°K - CRI>80on/off4456314932570500-8.4

Accessories
