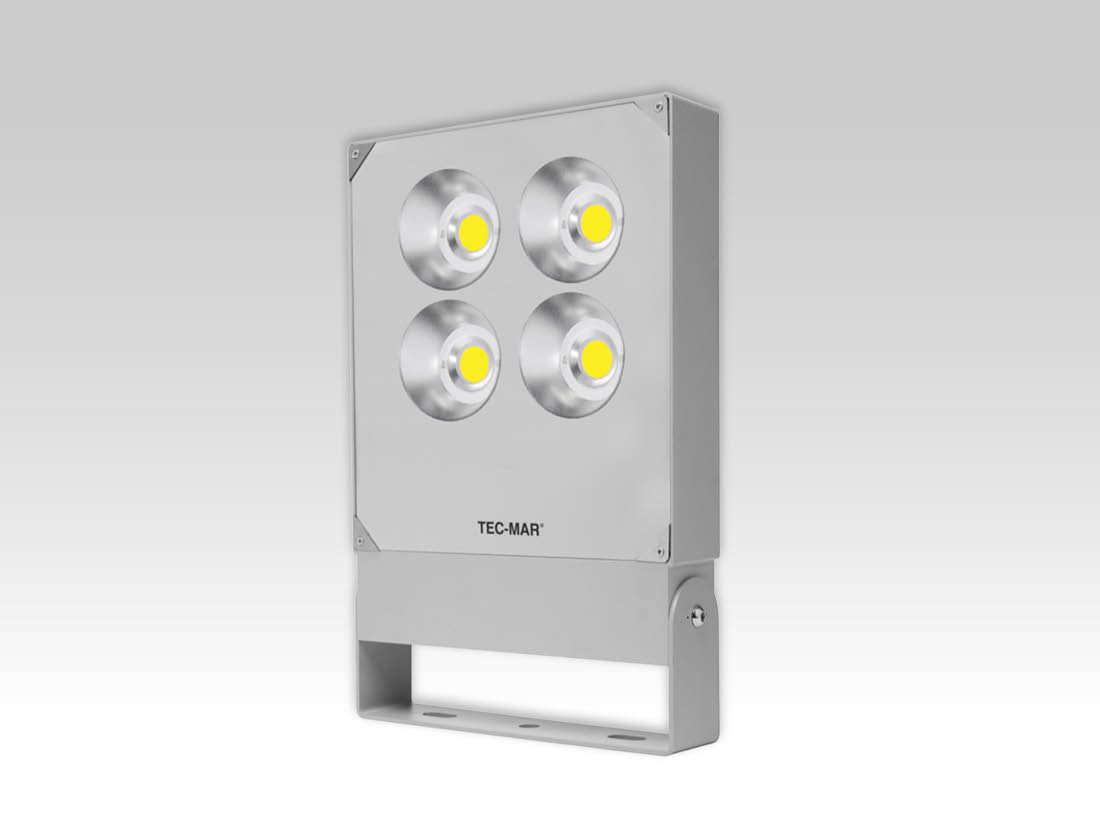

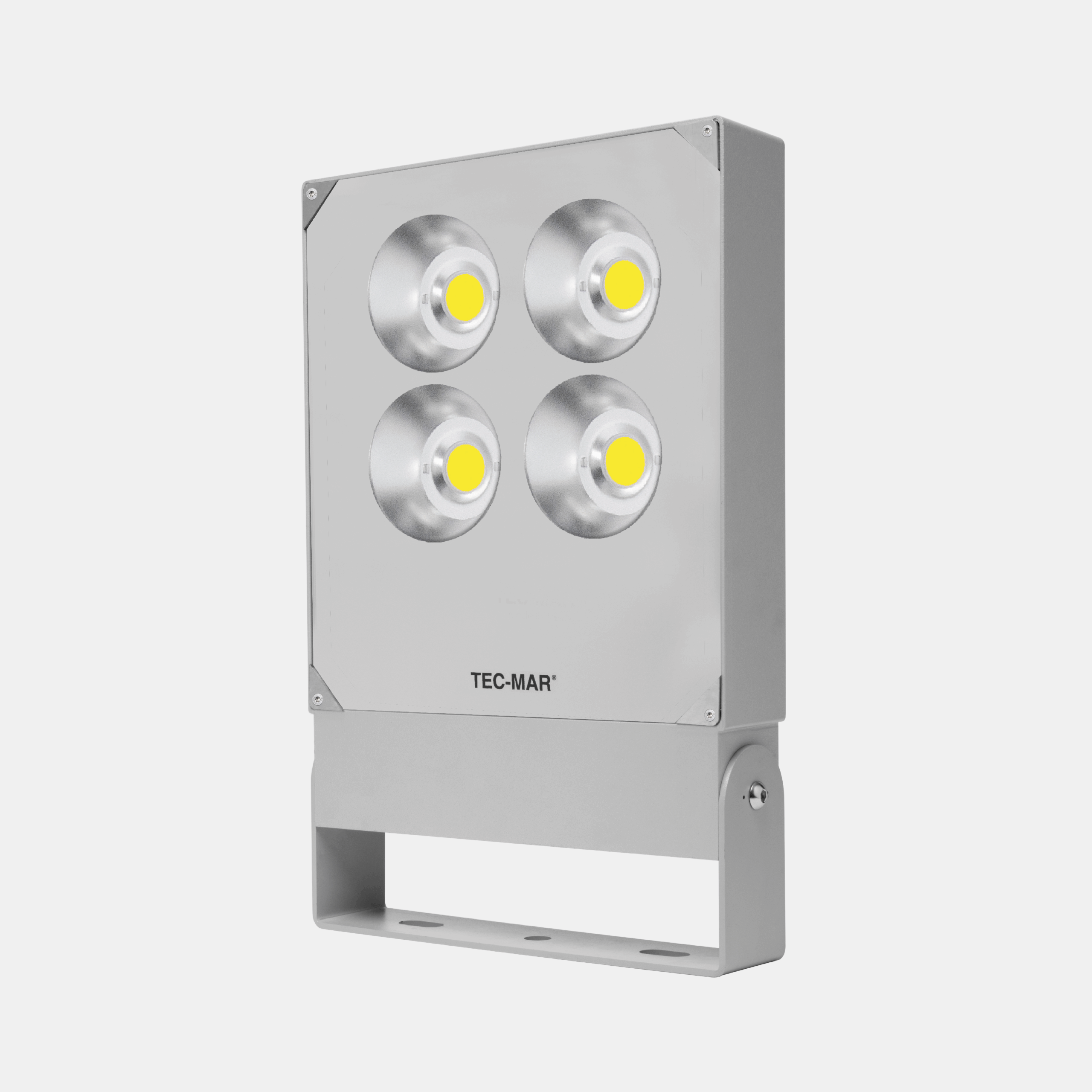

POLAR 4 – Mod. CR

(29° focusing optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with concentrating 29° optics.
Categories: Led, POLAR, POLAR 4 - 7029, Floodlights, POLAR 4
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

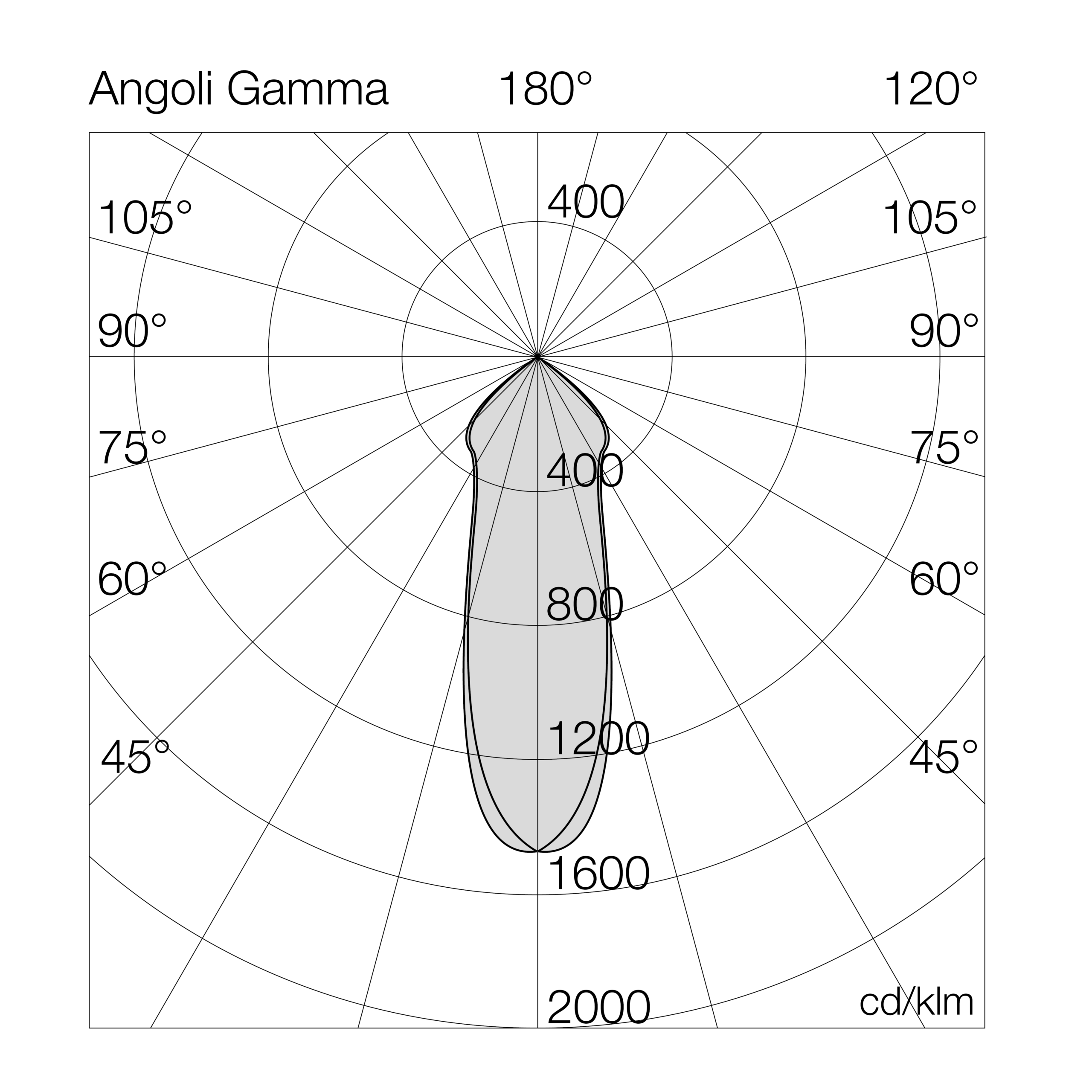

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029CR2= ambra (CRI >80) 200GL= on/off
3= 3000°K (CRI >80)220GD= dali
4= 4000°K (CRI >80)240GA= acid-etched glass
5= 5000°K (CRI >80)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029CR4200GL200-4000°K - CRI>80on/off3334216732570500-8.4
7029CR4220GL220-4000°K - CRI>80on/off3536616132570500-8.4
7029CR4240GL240-4000°K - CRI>80on/off3727215532570500-8.4
7029CR4280GL280-4000°K - CRI>80on/off4382015732570500-8.4
7029CR4300GL300-4000°K - CRI>80on/off4704715732570500-8.4
7029CR4200GD200-4000°K - CRI>80dali3334216732570500-8.4
7029CR4220GD220-4000°K - CRI>80dali3536616132570500-8.4
7029CR4240GD240-4000°K - CRI>80dali3727215532570500-8.4
7029CR4280GD280-4000°K - CRI>80dali4382015732570500-8.4
7029CR4300GD300-4000°K - CRI>80dali4704715732570500-8.4
7029CR4200GA200-4000°K - CRI>80acid-etched glass3334216732570500-8.4
7029CR4220GA220-4000°K - CRI>80acid-etched glass3536616132570500-8.4
7029CR4240GA240-4000°K - CRI>80acid-etched glass3727215532570500-8.4
7029CR4280GA280-4000°K - CRI>80acid-etched glass4382015732570500-8.4
7029CR4300GA300-4000°K - CRI>80acid-etched glass4704715732570500-8.4
7029CR3200GL200-3000°K - CRI>80on/off3158215832570500-8.4
7029CR3220GL220-3000°K - CRI>80on/off3349915232570500-8.4
7029CR3240GL240-3000°K - CRI>80on/off3530414732570500-8.4
7029CR3280GL280-3000°K - CRI>80on/off4150614832570500-8.4
7029CR3300GL300-3000°K - CRI>80on/off4456314932570500-8.4
