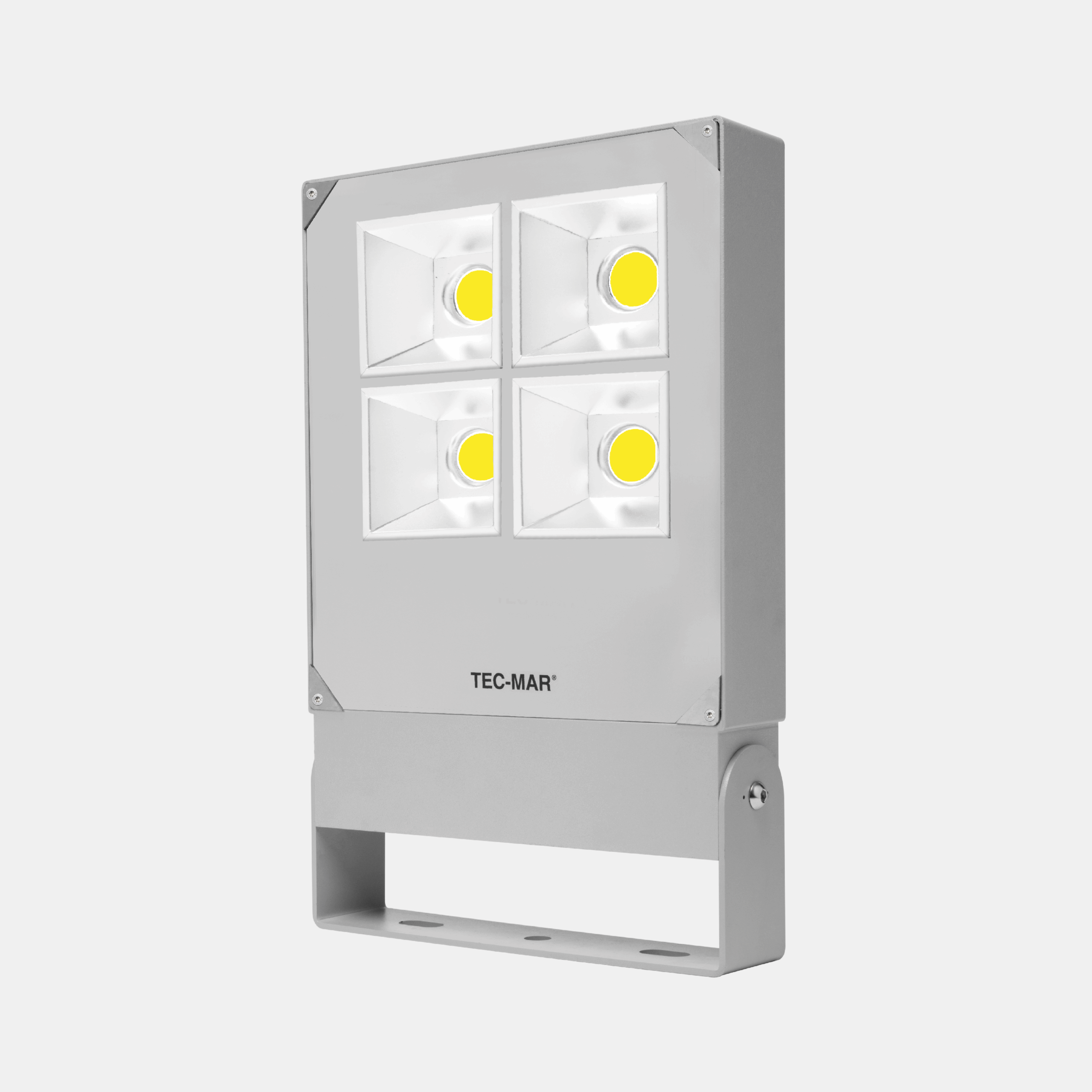

POLAR 4 – Mod. PR

(90° symmetrical optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with symmetrical 90° optics.
Categories: Led, POLAR, POLAR 4 - 7029, Floodlights, POLAR 4
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

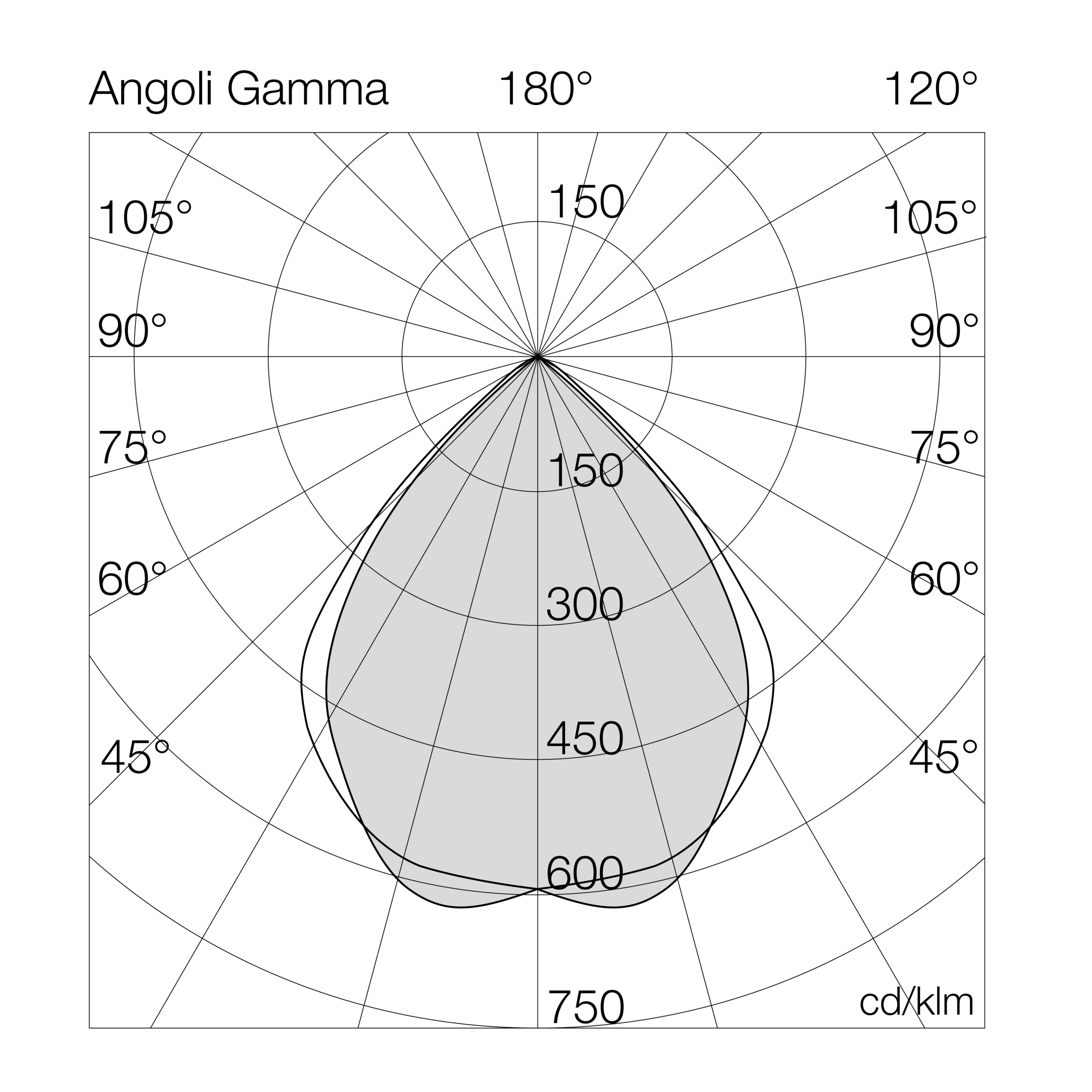

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029PR2= ambra (CRI >80) 200GL= on/off
3= 3000°K (CRI >80)220GD= dali
4= 4000°K (CRI >80)240GA= acid-etched glass
5= 5000°K (CRI >80)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029PR4200GL200-4000°K - CRI>80on/off3462317332570500-8.4
7029PR4220GL220-4000°K - CRI>80on/off3672516732570500-8.4
7029PR4240GL240-4000°K - CRI>80on/off3870416132570500-8.4
7029PR4280GL280-4000°K - CRI>80on/off4550416332570500-8.4
7029PR4300GL300-4000°K - CRI>80on/off4885416332570500-8.4
7029PR4200GD200-4000°K - CRI>80dali3462317332570500-8.4
7029PR4220GD220-4000°K - CRI>80dali3672516732570500-8.4
7029PR4240GD240-4000°K - CRI>80dali3870416132570500-8.4
7029PR4280GD280-4000°K - CRI>80dali4550416332570500-8.4
7029PR4300GD300-4000°K - CRI>80dali4885416332570500-8.4
7029PR4200GA200-4000°K - CRI>80acid-etched glass3462317332570500-8.4
7029PR4220GA220-4000°K - CRI>80acid-etched glass3672516732570500-8.4
7029PR4240GA240-4000°K - CRI>80acid-etched glass3870416132570500-8.4
7029PR4280GA280-4000°K - CRI>80acid-etched glass4550416332570500-8.4
7029PR4300GA300-4000°K - CRI>80acid-etched glass4885416332570500-8.4
7029PR3200GL200-3000°K - CRI>80on/off3279516432570500-8.4
7029PR3220GL220-3000°K - CRI>80on/off3478615832570500-8.4
7029PR3240GL240-3000°K - CRI>80on/off3666015332570500-8.4
7029PR3280GL280-3000°K - CRI>80on/off4310115432570500-8.4
7029PR3300GL300-3000°K - CRI>80on/off4627515432570500-8.4

Accessories
