art.-7029-tod-3-t2-me-cp-silver

TOD 3 – Mod. CP

(Asymmetrical pedestrian and cycle street lighting, Class P (type II/III))

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 3 - 7029, Street lighting, TOD 3
Models: 40
Color: Silver
Catalogue abstract

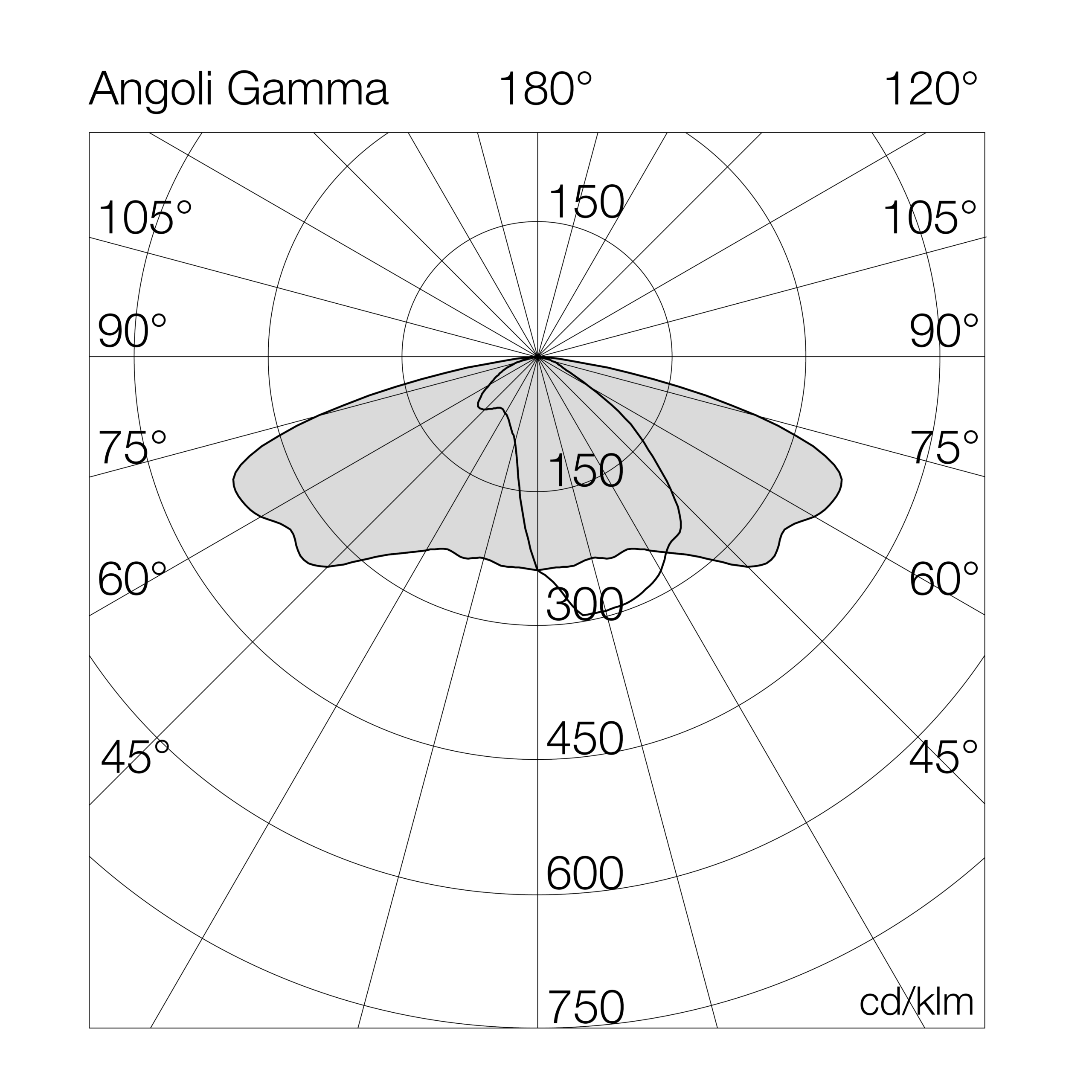

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029CP2= ambra (CRI >70) 160GL= on/off
3= 3000°K (CRI >70)200MG= virtual midnight
4= 4000°K (CRI >70)240
5= 5000°K (CRI >70)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029CP4160GL160-4000°K - CRI>70on/off2449315332570555-9.5
7029CP4200GL200-4000°K - CRI>70on/off2797514032570555-9.5
7029CP4240GL240-4000°K - CRI>70on/off3211913432570555-9.5
7029CP4280GL280-4000°K - CRI>70on/off3576412832570555-9.5
7029CP4300GL300-4000°K - CRI>70on/off3747912532570555-9.5
7029CP4160MG160-4000°K - CRI>70virtual midnight2449315332570555-9.5
7029CP4200MG200-4000°K - CRI>70virtual midnight2797514032570555-9.5
7029CP4240MG240-4000°K - CRI>70virtual midnight3211913432570555-9.5
7029CP4280MG280-4000°K - CRI>70virtual midnight3576412832570555-9.5
7029CP4300MG300-4000°K - CRI>70virtual midnight3747912532570555-9.5
7029CP3160GL160-3000°K - CRI>70on/off2437115232570555-9.5
7029CP3200GL200-3000°K - CRI>70on/off2783513932570555-9.5
7029CP3240GL240-3000°K - CRI>70on/off3195813332570555-9.5
7029CP3280GL280-3000°K - CRI>70on/off3558512732570555-9.5
7029CP3300GL300-3000°K - CRI>70on/off3729212432570555-9.5
7029CP3160MG160-3000°K - CRI>70virtual midnight2437115232570555-9.5
7029CP3200MG200-3000°K - CRI>70virtual midnight2783513932570555-9.5
7029CP3240MG240-3000°K - CRI>70virtual midnight3195813332570555-9.5
7029CP3280MG280-3000°K - CRI>70virtual midnight3558512732570555-9.5
7029CP3300MG300-3000°K - CRI>70virtual midnight3729212432570555-9.5
