TOD 3 – Mod. ME

(Wide asymmetric street optics Class ME)

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 3, Street lighting, TOD 3
Models: 40
Color: Silver
Catalogue abstract
Installation instructions

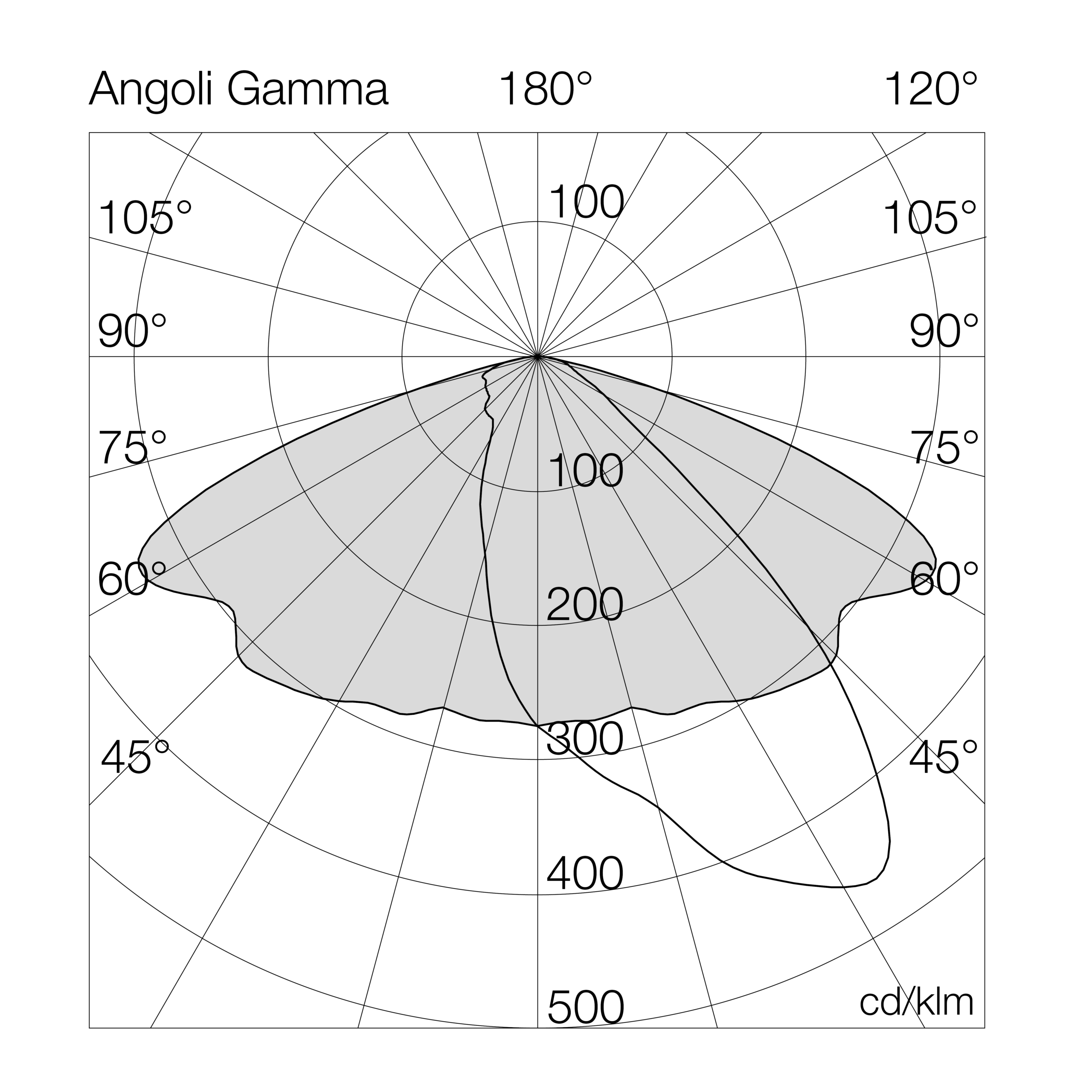

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029ME2= ambra (CRI >70) 160GL= on/off
3= 3000°K (CRI >70)200MG= virtual midnight
4= 4000°K (CRI >70)240
5= 5000°K (CRI >70)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029ME4130GL130-4000°K - CRI ≥70on/off2061715932570555-9.5
7029ME4155GL155-4000°K - CRI ≥70on/off2375315332570555-9.5
7029ME4180GL180-4000°K - CRI ≥70on/off2682414932570555-9.5
7029ME4205GL205-4000°K - CRI ≥70on/off2983514632570555-9.5
7029ME4245GL245-4000°K - CRI ≥70on/off3425114032570555-9.5
7029ME4130MG130-4000°K - CRI ≥70virtual midnight2061715932570555-9.5
7029ME4155MG155-4000°K - CRI ≥70virtual midnight2375315332570555-9.5
7029ME4180MG180-4000°K - CRI ≥70virtual midnight2682414932570555-9.5
7029ME4205MG205-4000°K - CRI ≥70virtual midnight2983514632570555-9.5
7029ME4245MG245-4000°K - CRI ≥70virtual midnight3425114032570555-9.5
7029ME3130GL130-3000°K - CRI ≥70on/off2051415832570555-9.5
7029ME3155GL155-3000°K - CRI ≥70on/off2363415232570555-9.5
7029ME3180GL180-3000°K - CRI ≥70on/off2669014832570555-9.5
7029ME3205GL205-3000°K - CRI ≥70on/off2968614532570555-9.5
7029ME3245GL245-3000°K - CRI ≥70on/off3408013932570555-9.5
7029ME3130MG130-3000°K - CRI ≥70virtual midnight2051415832570555-9.5
7029ME3155MG155-3000°K - CRI ≥70virtual midnight2363415232570555-9.5
7029ME3180MG180-3000°K - CRI ≥70virtual midnight2669014832570555-9.5
7029ME3205MG205-3000°K - CRI ≥70virtual midnight2968614532570555-9.5
7029ME3245MG245-3000°K - CRI ≥70virtual midnight3408013932570555-9.5

Accessories
