art.-7029-tod-3-t2-me-cp-antracite

TOD 3 – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

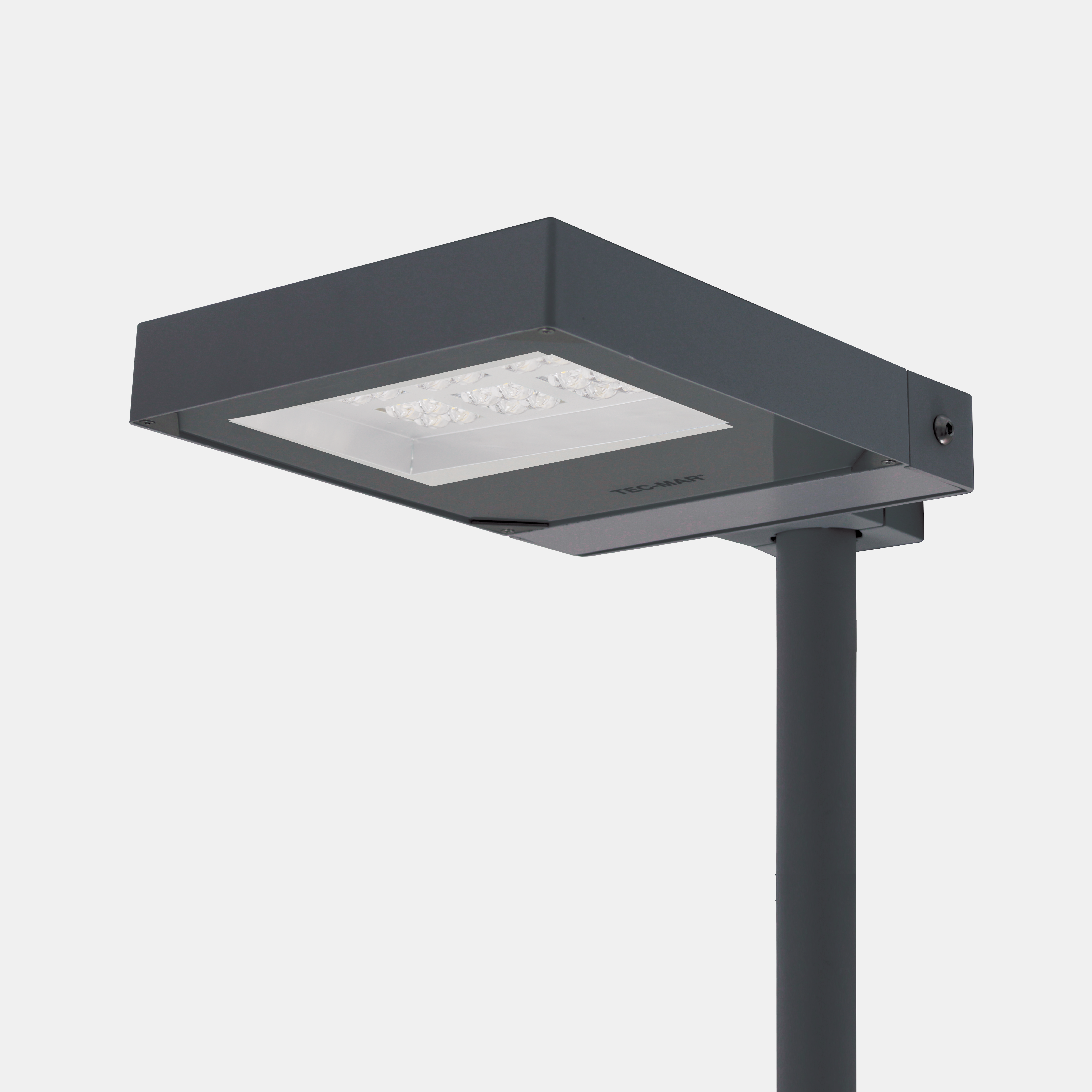

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder anthracite color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 3 - 7029, Street lighting, TOD 3
Models: 40
Color: Anthracite
Catalogue abstract
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029T22= ambra (CRI >70) 160EL= on/off
3= 3000°K (CRI >70)200MD= virtual midnight
4= 4000°K (CRI >70)240
5= 5000°K (CRI >70)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029T24160EL160-4000°K - CRI>70on/off2457815432570555-9.5
7029T24200EL200-4000°K - CRI>70on/off2807114032570555-9.5
7029T24240EL240-4000°K - CRI>70on/off3223013432570555-9.5
7029T24280EL280-4000°K - CRI>70on/off3588812832570555-9.5
7029T24300EL300-4000°K - CRI>70on/off3760912532570555-9.5
7029T24160MD160-4000°K - CRI>70virtual midnight2457815432570555-9.5
7029T24200MD200-4000°K - CRI>70virtual midnight2807114032570555-9.5
7029T24240MD240-4000°K - CRI>70virtual midnight3223013432570555-9.5
7029T24280MD280-4000°K - CRI>70virtual midnight3588812832570555-9.5
7029T24300MD300-4000°K - CRI>70virtual midnight3760912532570555-9.5
7029T23160EL160-3000°K - CRI>70on/off2445515332570555-9.5
7029T23200EL200-3000°K - CRI>70on/off2793114032570555-9.5
7029T23240EL240-3000°K - CRI>70on/off3206913432570555-9.5
7029T23280EL280-3000°K - CRI>70on/off3570912832570555-9.5
7029T23300EL300-3000°K - CRI>70on/off3742112532570555-9.5
7029T23160MD160-3000°K - CRI>70virtual midnight2445515332570555-9.5
7029T23200MD200-3000°K - CRI>70virtual midnight2793114032570555-9.5
7029T23240MD240-3000°K - CRI>70virtual midnight3206913432570555-9.5
7029T23280MD280-3000°K - CRI>70virtual midnight3570912832570555-9.5
7029T23300MD300-3000°K - CRI>70virtual midnight3742112532570555-9.5

Accessories
