art.-7029-tod-3-t2-me-cp-silver

TOD 3 – Mod. T2

(IESNA Type II 45° Medium Asymmetric Street Light)

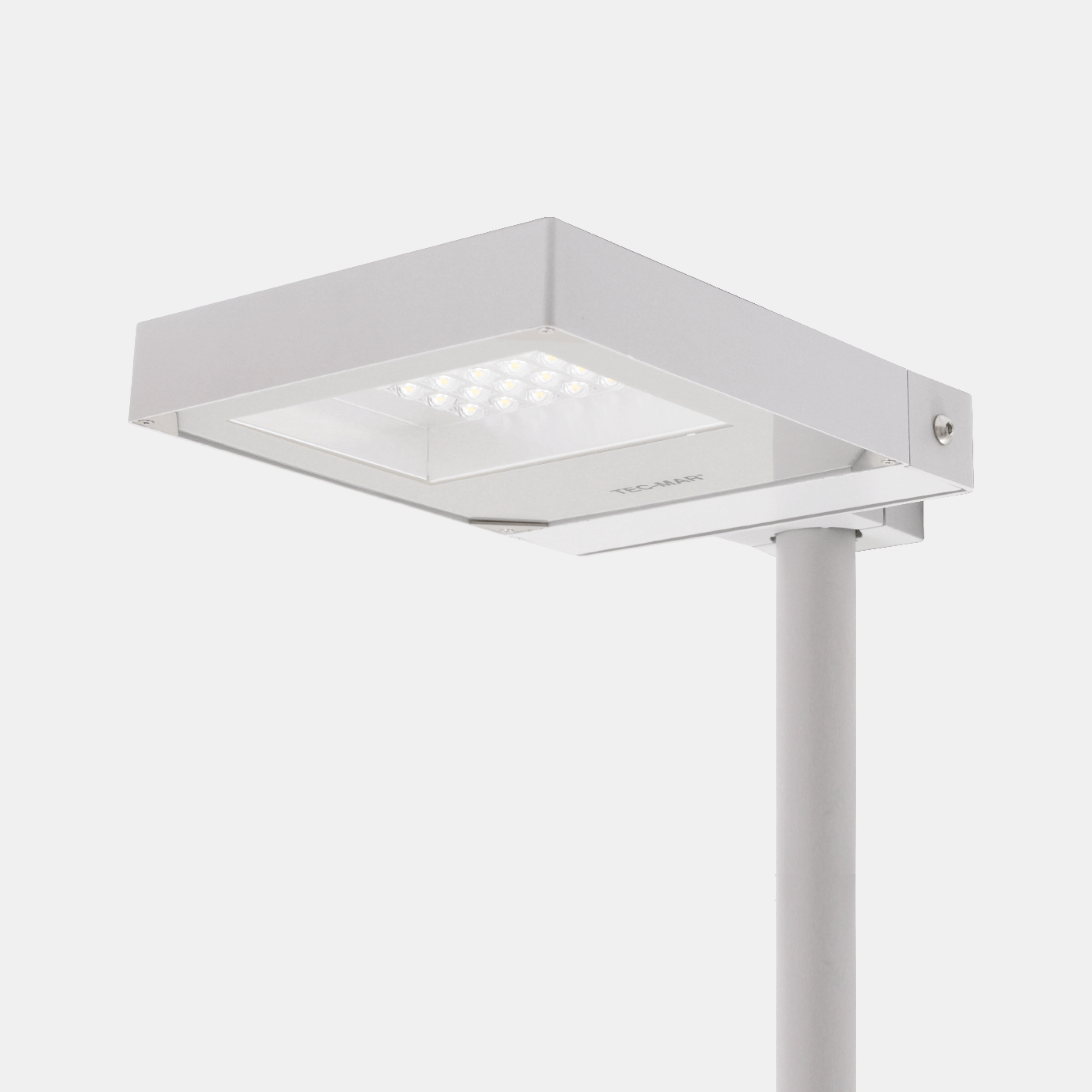

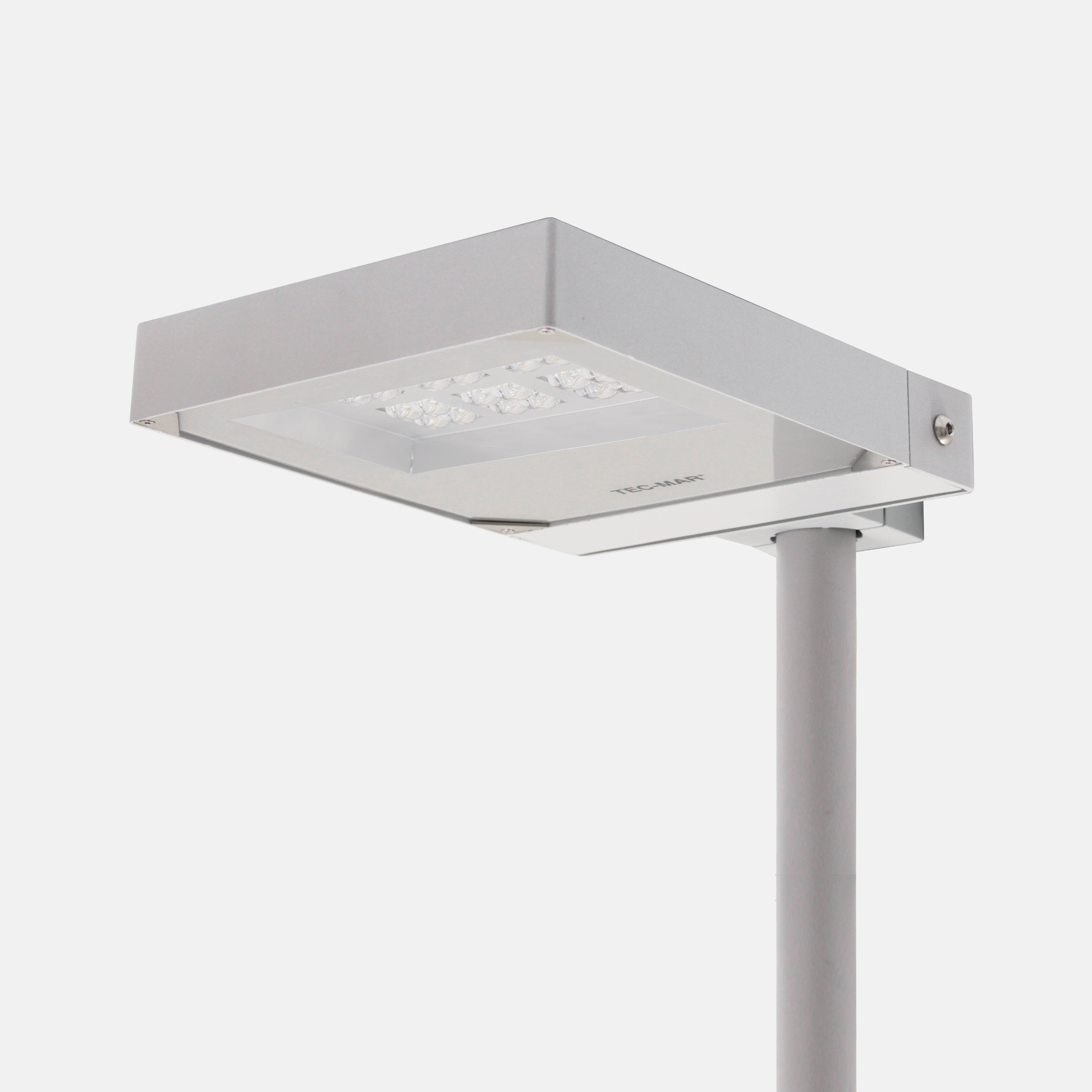

Led street light fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color. 4 mm thick tempered transparent glass , silicon gasket, electronic driver 220V-240V 50/60Hz. Pole bracket included. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOD 3 - 7029, Street lighting, TOD 3
Models: 40
Color: Silver
Catalogue abstract

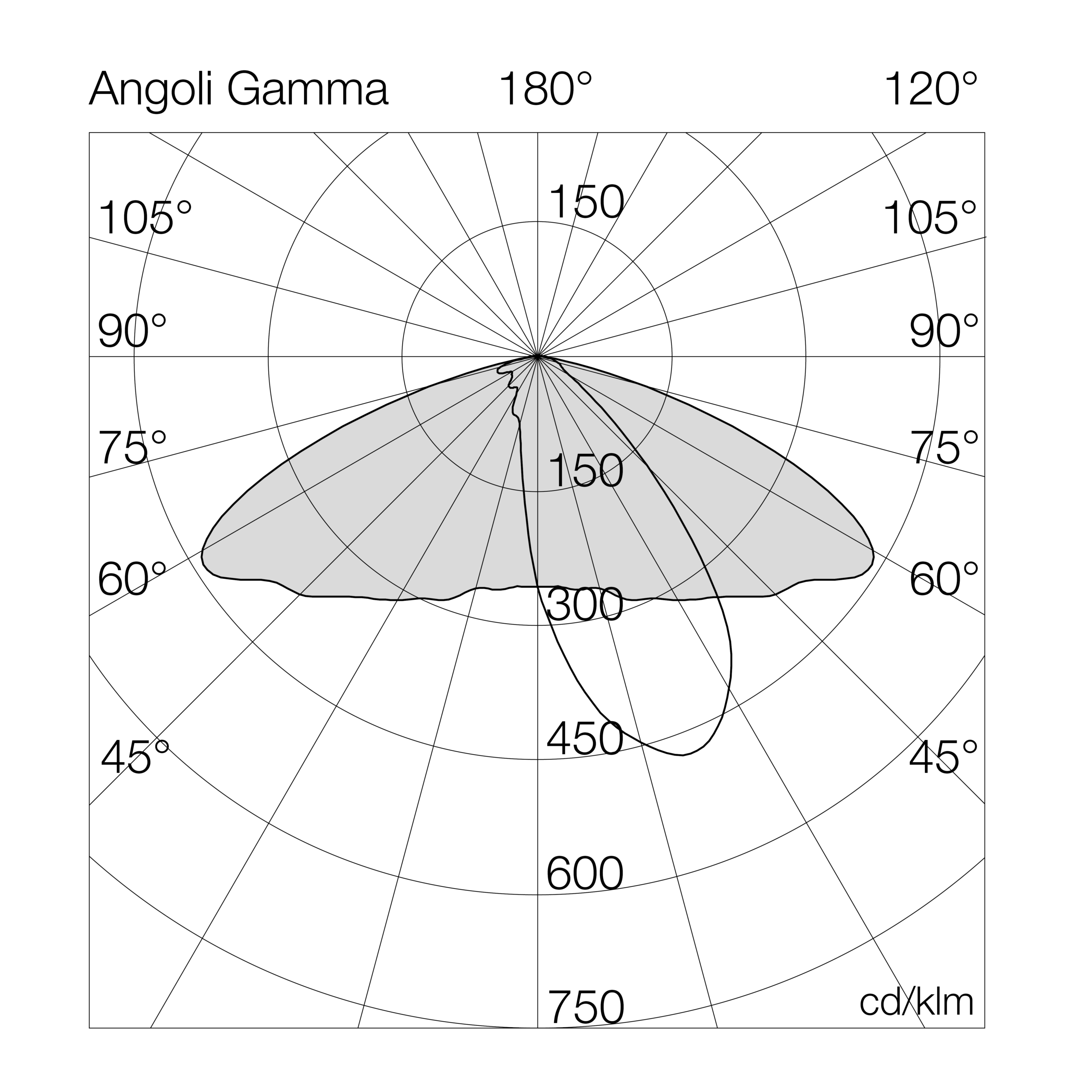

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7029T22= ambra (CRI >70) 160GL= on/off
3= 3000°K (CRI >70)200MG= virtual midnight
4= 4000°K (CRI >70)240
5= 5000°K (CRI >70)280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7029T24160GL160-4000°K - CRI>70on/off2457815432570555-9.5
7029T24200GL200-4000°K - CRI>70on/off2807114032570555-9.5
7029T24240GL240-4000°K - CRI>70on/off3223013432570555-9.5
7029T24280GL280-4000°K - CRI>70on/off3588812832570555-9.5
7029T24300GL300-4000°K - CRI>70on/off3760912532570555-9.5
7029T24160MG160-4000°K - CRI>70virtual midnight2457815432570555-9.5
7029T24200MG200-4000°K - CRI>70virtual midnight2807114032570555-9.5
7029T24240MG240-4000°K - CRI>70virtual midnight3223013432570555-9.5
7029T24280MG280-4000°K - CRI>70virtual midnight3588812832570555-9.5
7029T24300MG300-4000°K - CRI>70virtual midnight3760912532570555-9.5
7029T23160GL160-3000°K - CRI>70on/off2445515332570555-9.5
7029T23200GL200-3000°K - CRI>70on/off2793114032570555-9.5
7029T23240GL240-3000°K - CRI>70on/off3206913432570555-9.5
7029T23280GL280-3000°K - CRI>70on/off3570912832570555-9.5
7029T23300GL300-3000°K - CRI>70on/off3742112532570555-9.5
7029T23160MG160-3000°K - CRI>70virtual midnight2445515332570555-9.5
7029T23200MG200-3000°K - CRI>70virtual midnight2793114032570555-9.5
7029T23240MG240-3000°K - CRI>70virtual midnight3206913432570555-9.5
7029T23280MG280-3000°K - CRI>70virtual midnight3570912832570555-9.5
7029T23300MG300-3000°K - CRI>70virtual midnight3742112532570555-9.5

Accessories
