art.-7031-polar-he-ar-antracite

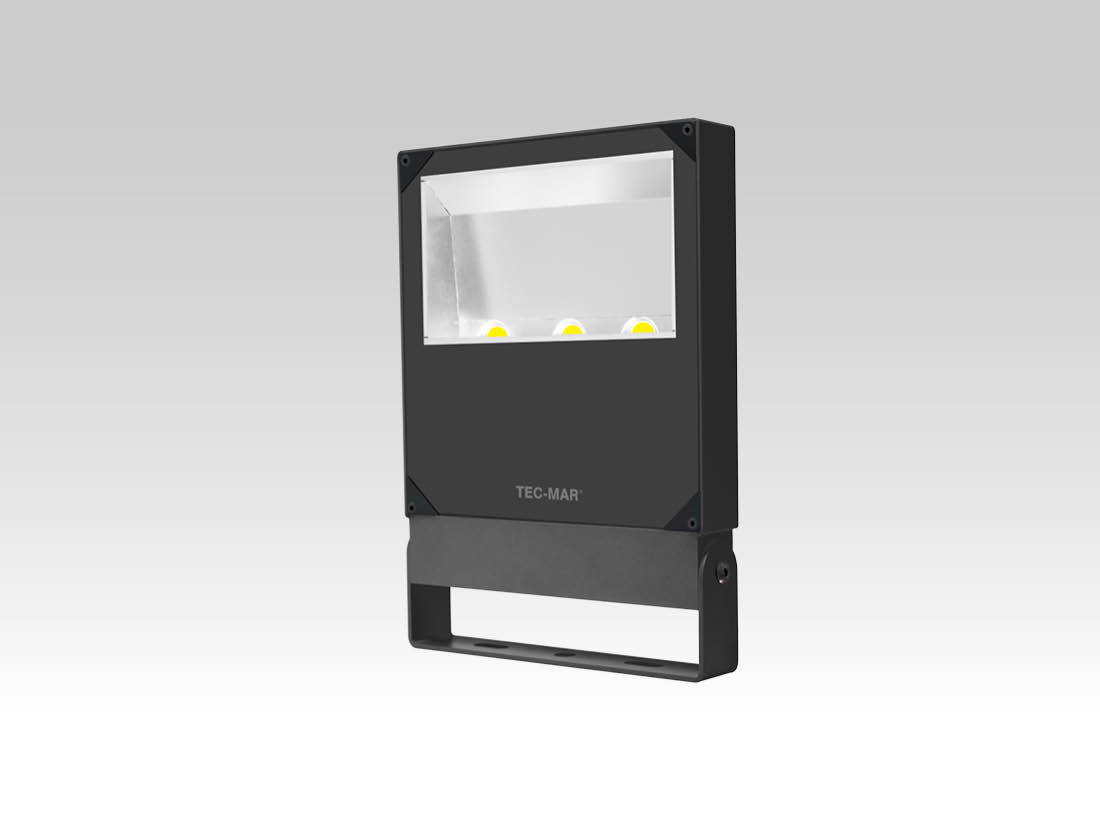

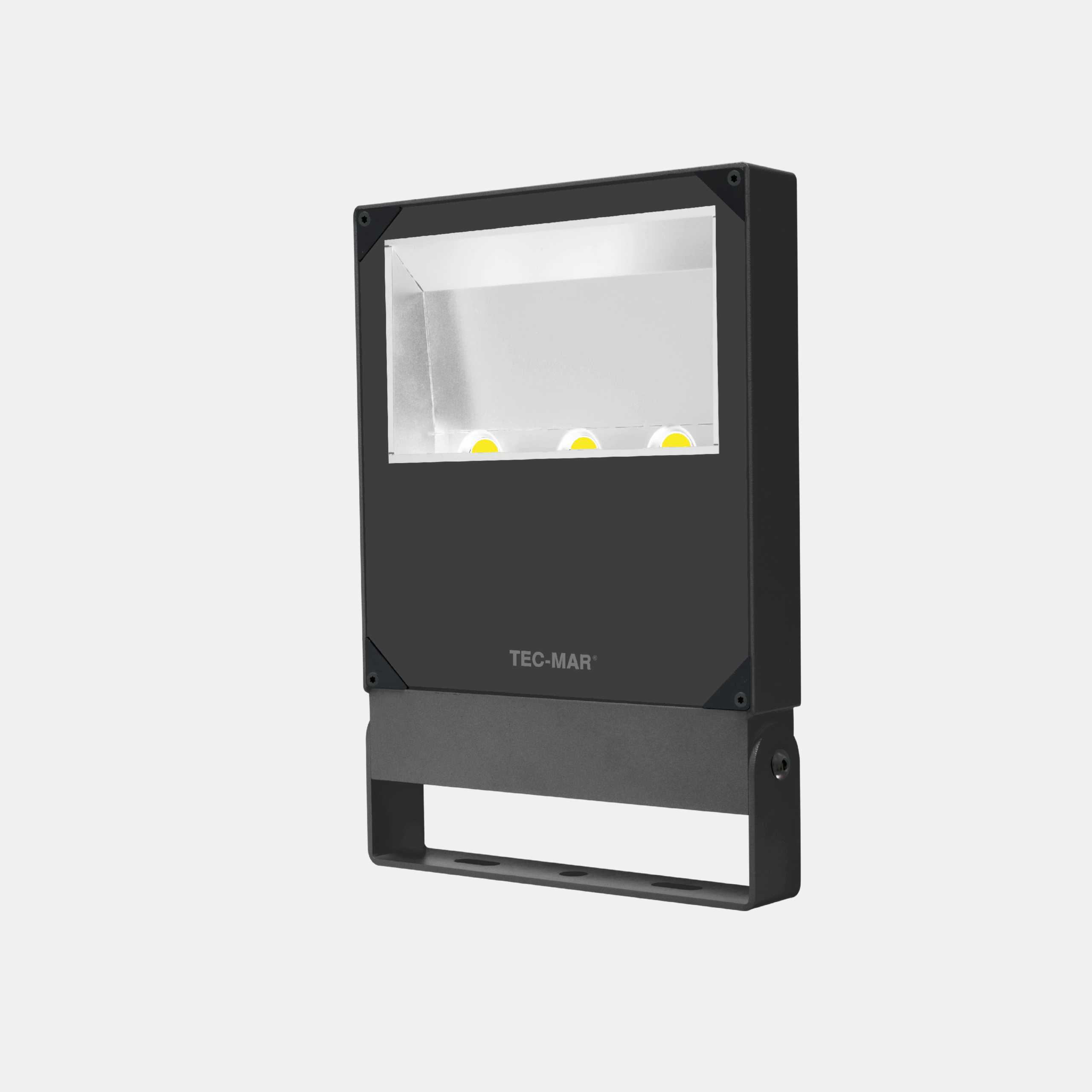

POLAR HE/AR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR HE - 7031, POLAR, Floodlights, art. 7031 Polar HE
Models: 288
Color: Anthracite
Catalogue abstract
Installation instructions

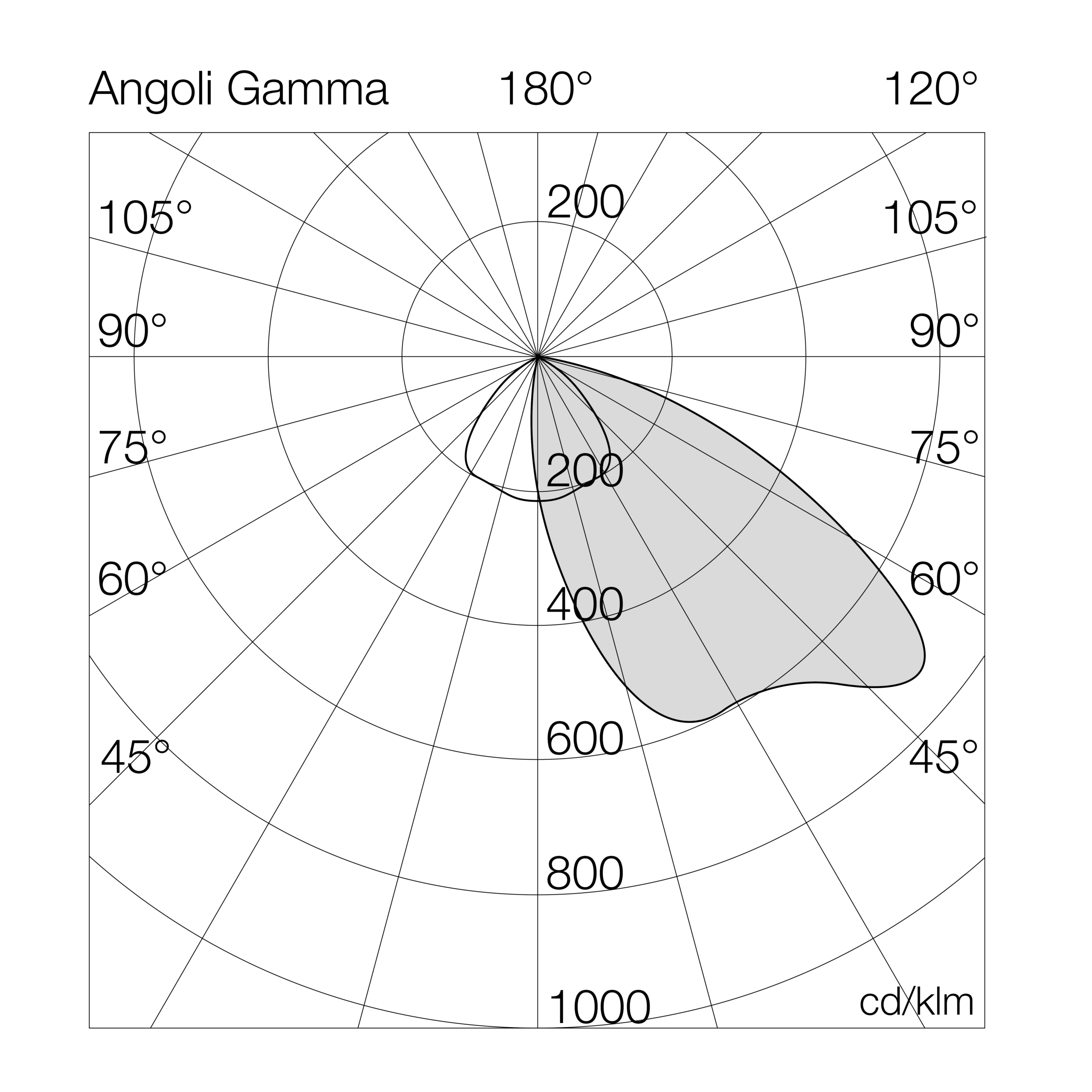

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7031AR2= ambra (CRI >80) 040EL= on/off
3= 3000°K (CRI >80)050LD= dali
4= 4000°K (CRI >80)060VA= acid-etched glass
5= 5000°K (CRI >80)070
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
130
150
175
190

Models

W tot.
°K - CRI
Options

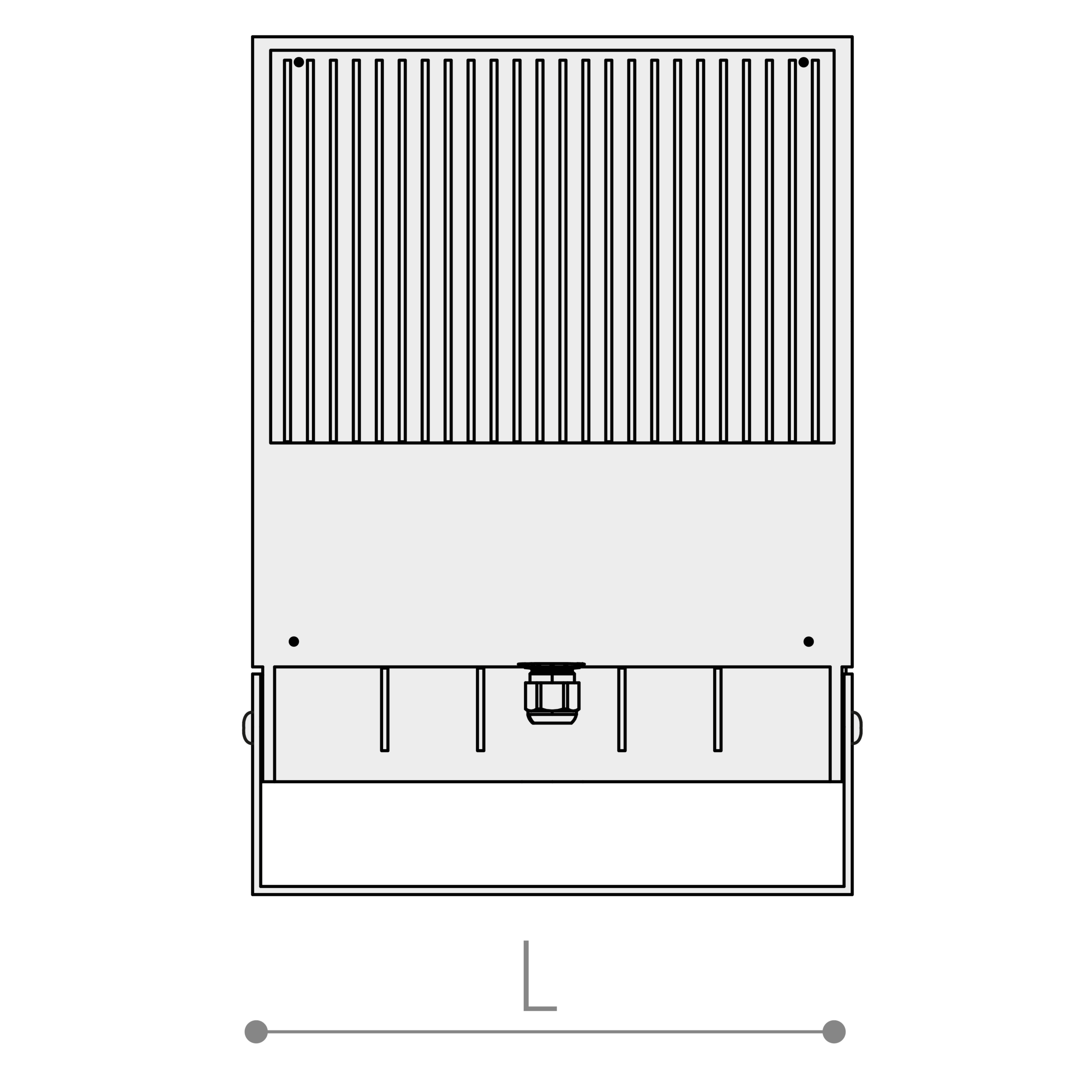

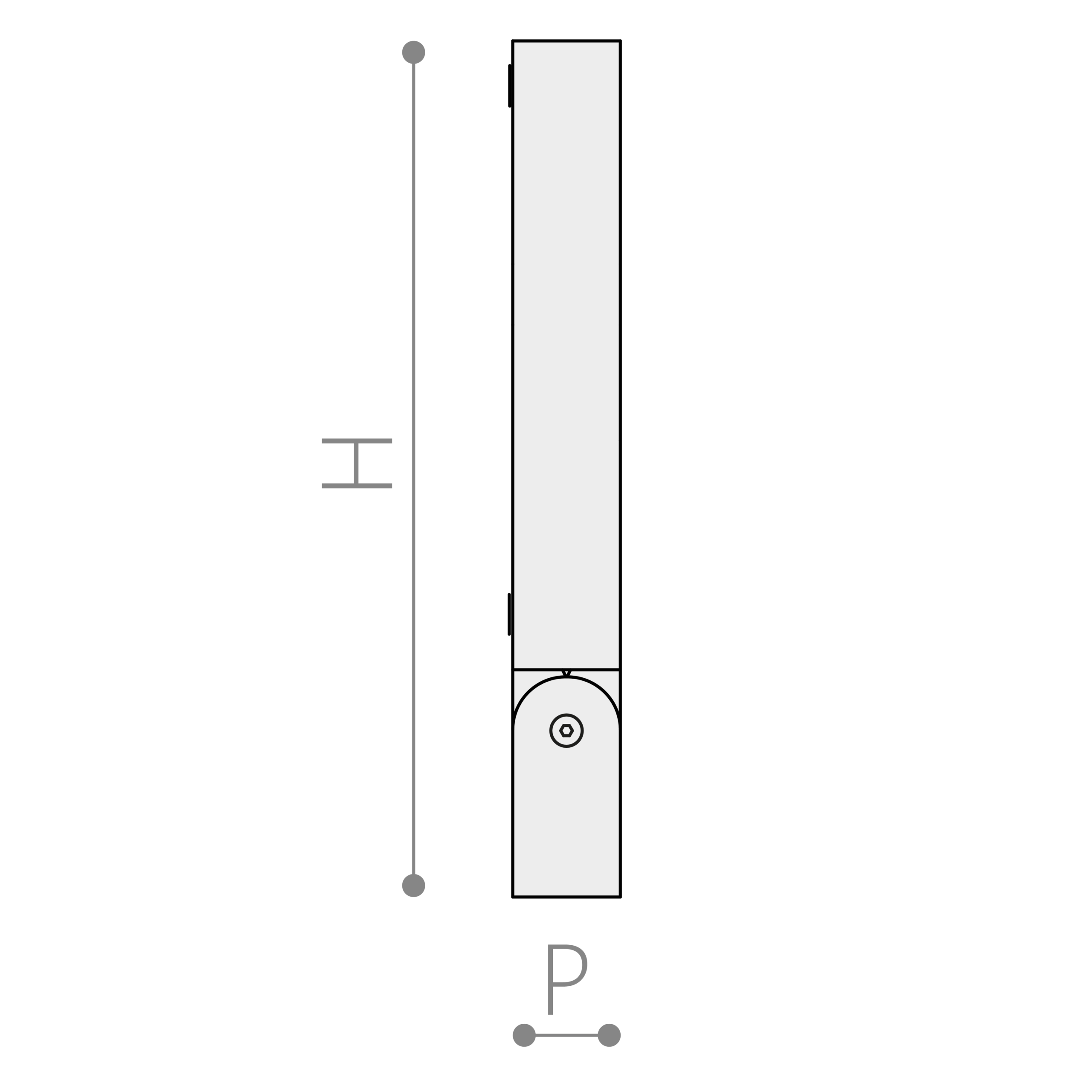

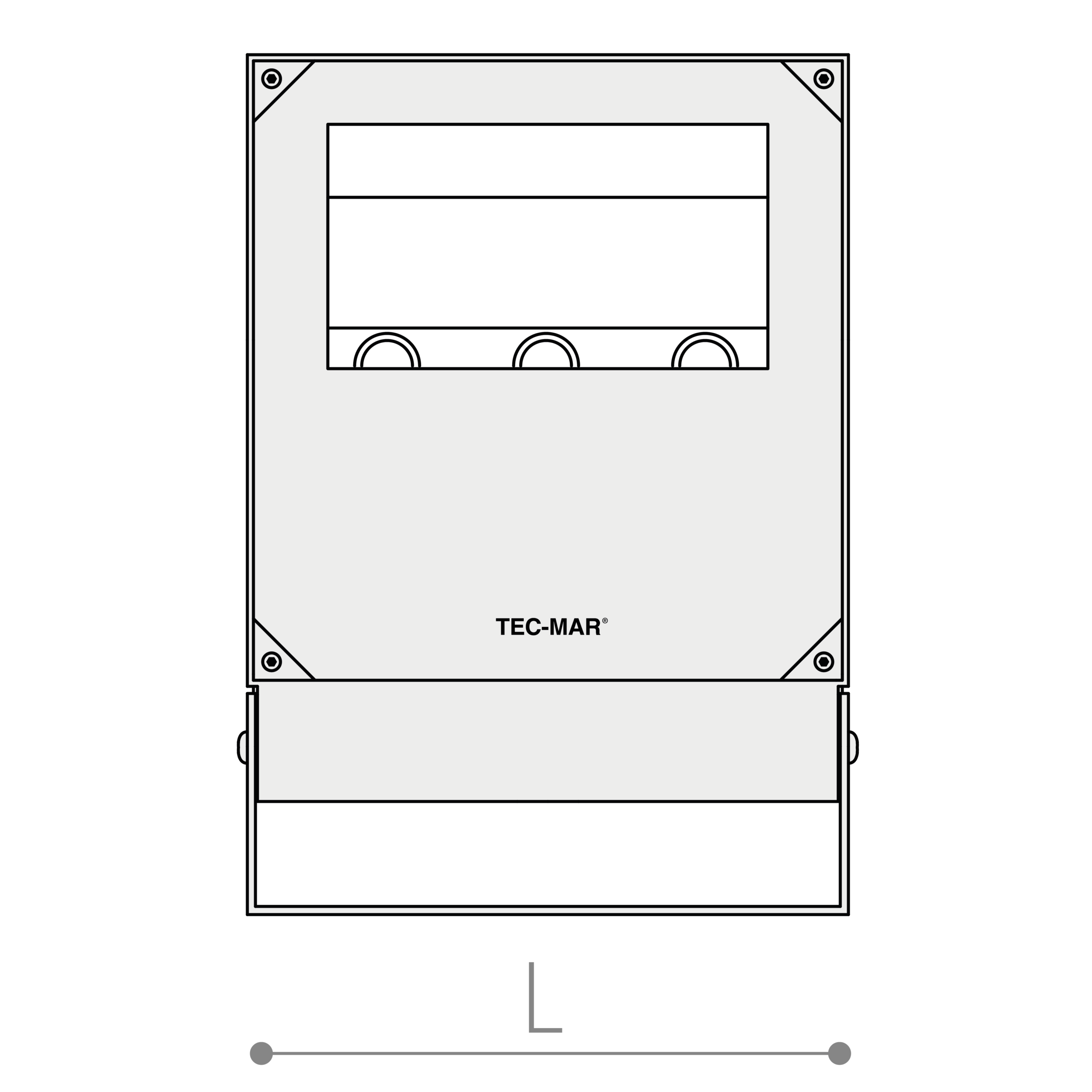

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7031AR4040EL40-4000°K - CRI>80on/off691017329555425-5.6
7031AR4050EL50-4000°K - CRI>80on/off868117429555425-5.6
7031AR4060EL60-4000°K - CRI>80on/off1042117429555425-5.6
7031AR4070EL70-4000°K - CRI>80on/off1211717329555425-5.6
7031AR4080EL80-4000°K - CRI>80on/off1378817229555425-5.6
7031AR4090EL90-4000°K - CRI>80on/off1495416629555425-5.6
7031AR4100EL100-4000°K - CRI>80on/off1610316129555425-5.6
7031AR4120EL120-4000°K - CRI>80on/off1975916529555425-5.6
7031AR4130EL130-4000°K - CRI>80on/off2088816129555425-5.6
7031AR4150EL150-4000°K - CRI>80on/off2254815029555425-5.6
7031AR4175EL175-4000°K - CRI>80on/off2687715429555425-5.6
7031AR4190EL190-4000°K - CRI>80on/off2842415029555425-5.6
7031AR4040LD40-4000°K - CRI>80dali691017329555425-5.6
7031AR4050LD50-4000°K - CRI>80dali868117429555425-5.6
7031AR4060LD60-4000°K - CRI>80dali1042117429555425-5.6
7031AR4070LD70-4000°K - CRI>80dali1211717329555425-5.6
7031AR4080LD80-4000°K - CRI>80dali1378817229555425-5.6
7031AR4090LD90-4000°K - CRI>80dali1495416629555425-5.6
7031AR4100LD100-4000°K - CRI>80dali1610316129555425-5.6
7031AR4120LD120-4000°K - CRI>80dali1975916529555425-5.6

Accessories
